Week 9 - Attachment Feature Creation - Challenge 2

SCREW BOSSES.

• Create the point on the surface by using the point command.
• create a circle on the surface at the length of d 5.2 mm.
• the second circle is created at a length of 8.2mm.
• by using the pad extend the circle.
• make sure part body is different.

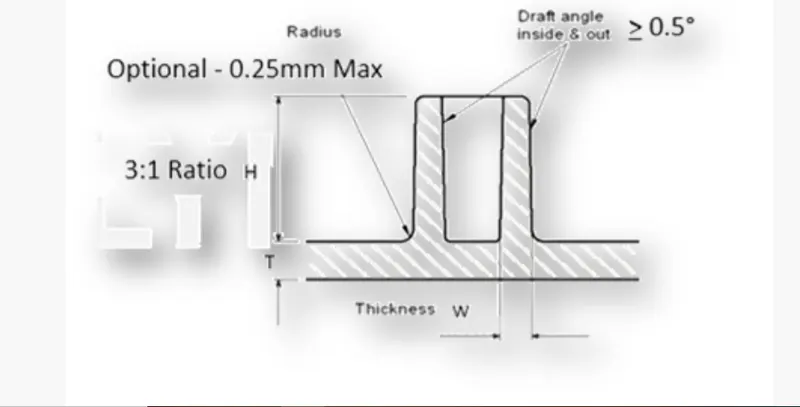

• draft the screw bosses at the angle of 0.5 deg and the pulling axis is the tooling axis surface is the extracted plane.
•
• create the intersection line by using the screw bosses and coin holder.
•

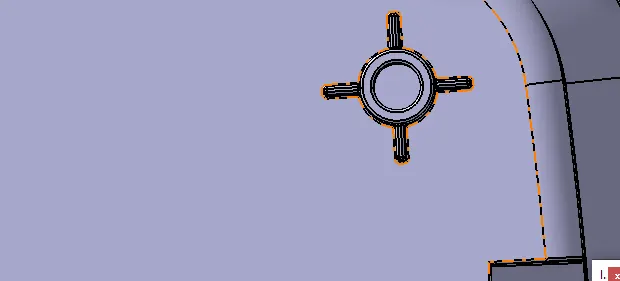

• circles are used to act as a reference for ribs.
•

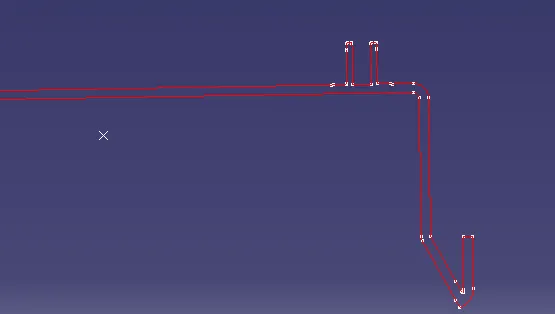

• use the thickness surface to ribs at the length of 1 mm and make sure that matching to the intersecting line.
• Transfer the screw bosses by use point to point.

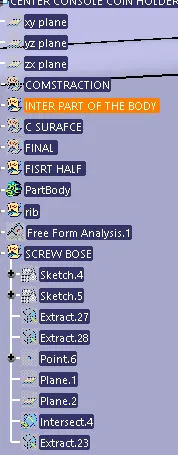

• the tree structure of screw bosses.
•

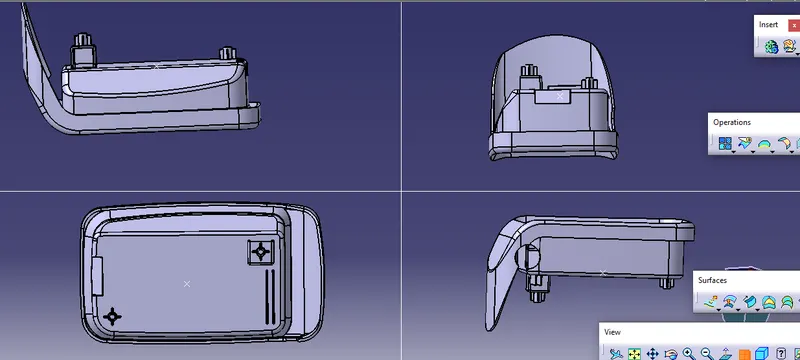

• after completing the addition to the main part body.
•
• finally, add the fillets of 0.25mm.

DOG HOUSE.

•

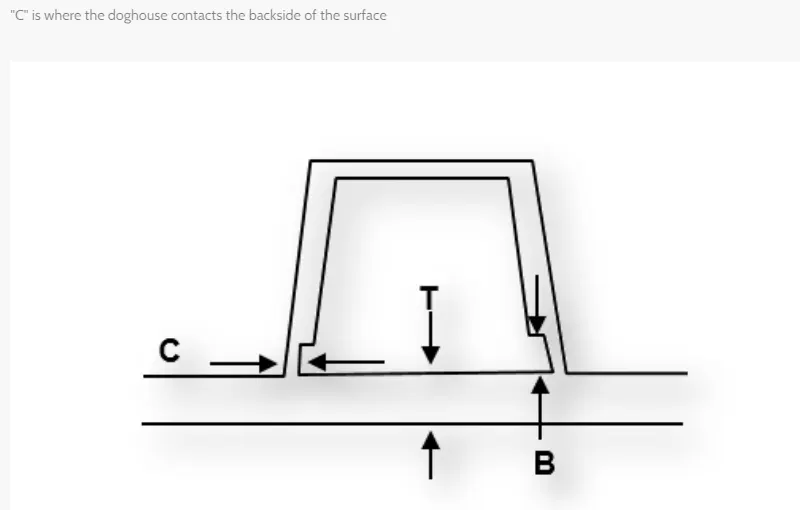

• Dog house id used to avoid breakage and shrinkage.
• take a reference to the screw bosses sketch to create a dog house.

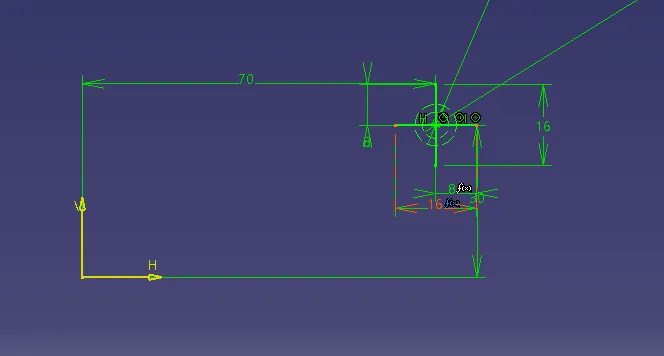

• create a sketch by using the screw bosses sketch.

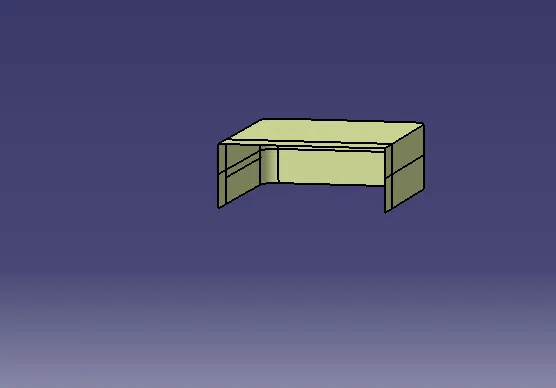

• create a box at the required angle.
• extrude or swept can be used to create the surface.
• use thickness surface at the length of 2mm.
• draft both the sides at an angle of 0.5 degrees.
•
• the small box is used to split the dog house.
• if not split is not happing need extrapolate or swept the boundaries.
• make sure are in the support part body.

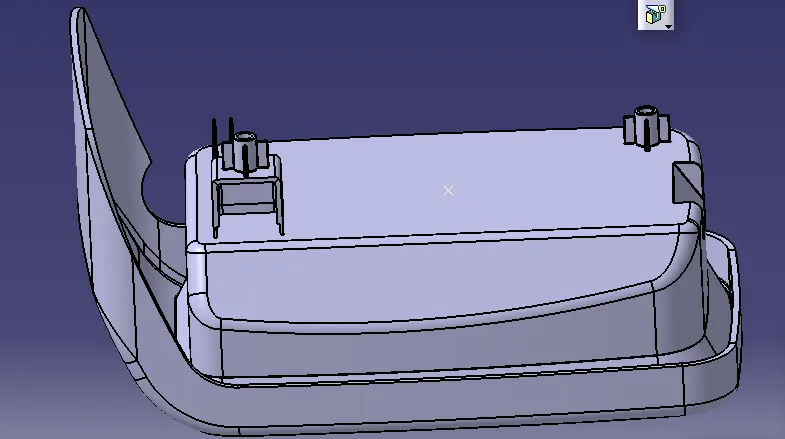

• after completing the split added into the main body.
• screw bosses as to transfer onto the dog house by using the point to point.
•

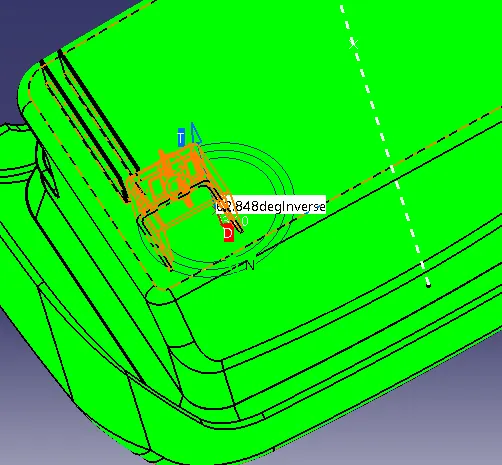

DRAFT ANALYSIS.

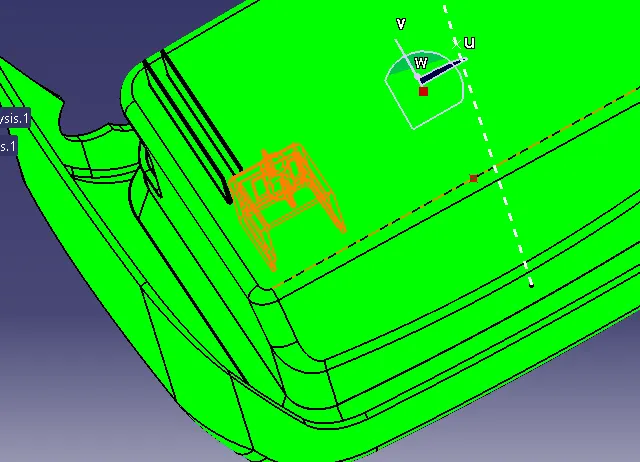

compass as to placed on the dog house.

check the degrees of the body and need to check both the axis of the body.

set compass on the tooling axis.

need to check the running of the draft analysis.

lock the compass after pard body checking is done.

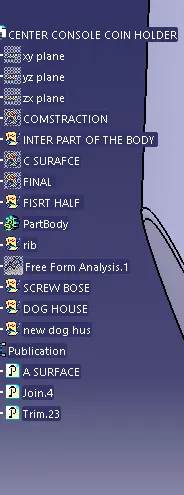

TREE STRUCTURE.
