Week 9 - Attachment Feature Creation - Challenge 1

AIM:

To Create the rib for the Centre console coin holder considering the design rules mentioned in the video.

Procedure:

• extract the area in which the rib is created.
• create a skecth in that extract by drawing a desired line for the rib.
• extrude the sketch for the rib.

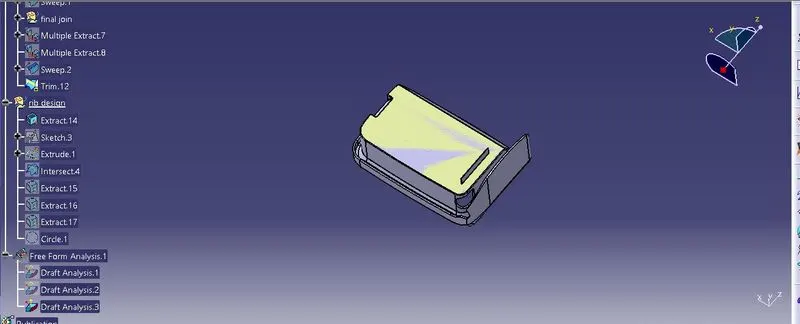

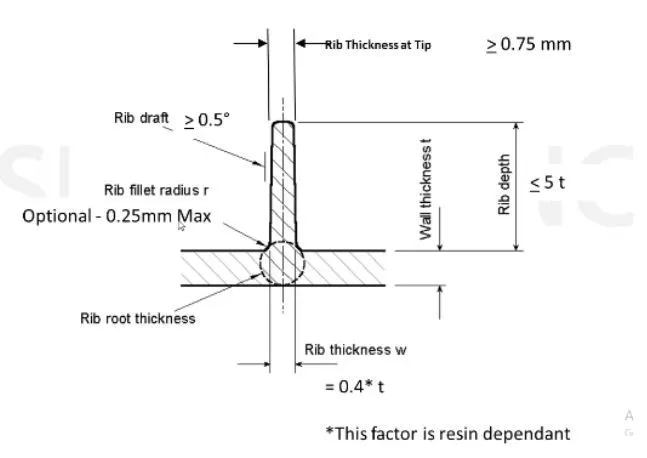

the thickness( bootom and tip), height, root thickness and radius should be fall under the rib design rule.

After creating the rib we need to check the rib with the design rules.

OUTPUT:

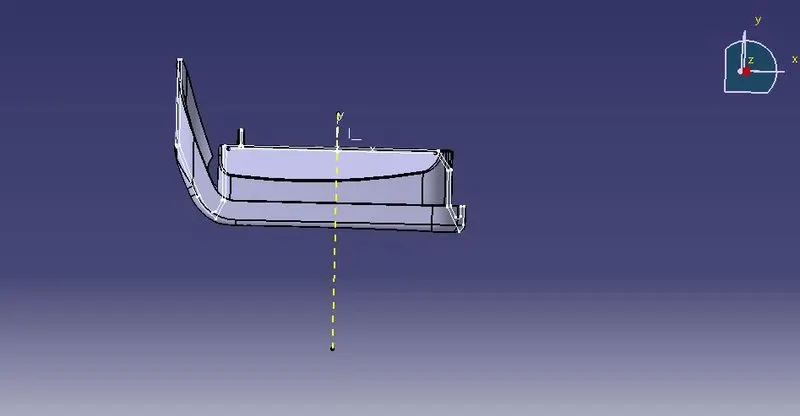

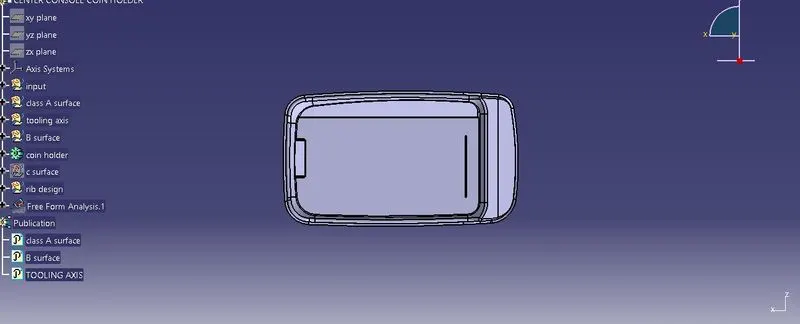

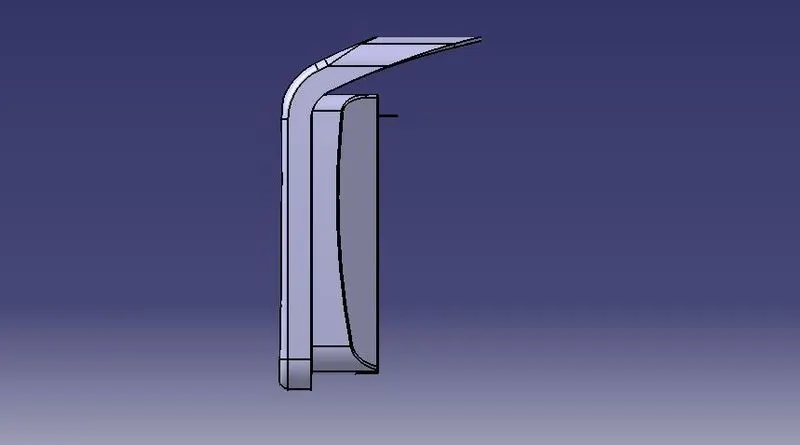

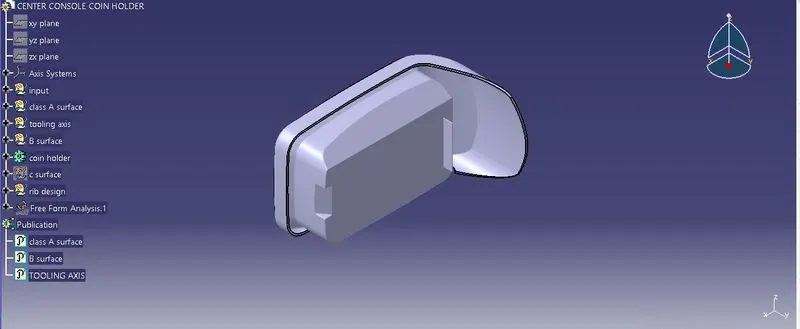

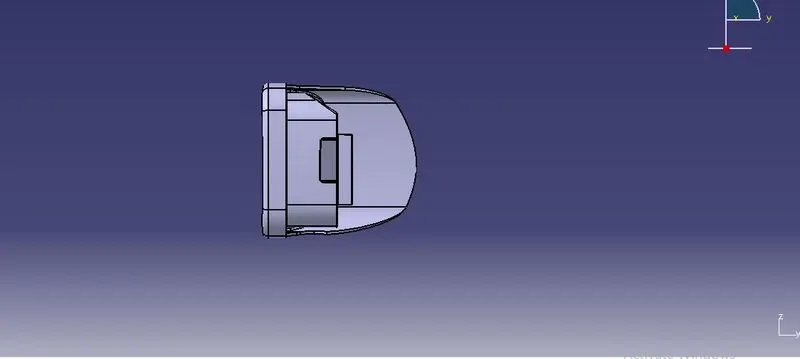

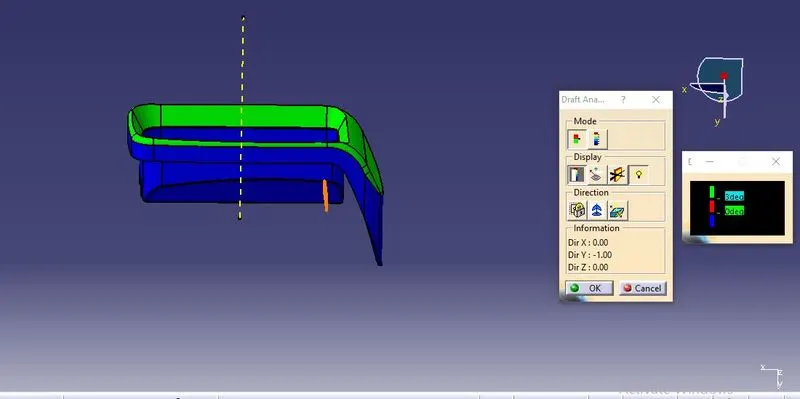

DRAFT ANALYSIS WITH RIB:
