Week 8 - Challenge 6 - Core & Cavity Design

AIM

To Create the Core and cavity blocks for the switch bezel designed in the earlier challenge.

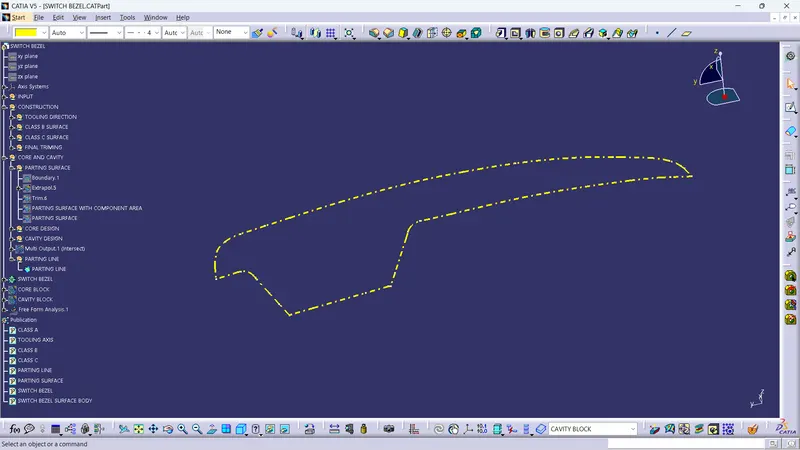

PARTING SURFACE WITH COMONENT AREA and PARTING LINE

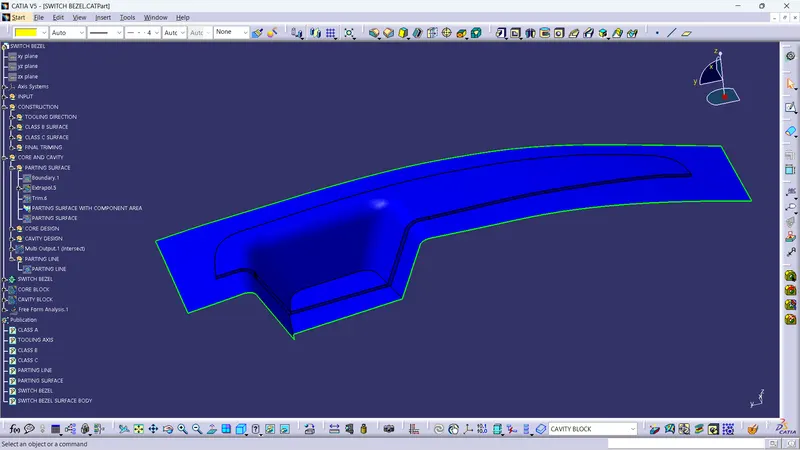

• This is parting surface area with component the A+C surface trimed with b surface

• The out side area of the component is consider as parting surface this parting surface always come along with the b surface to avoide damage in the aesthetic suface

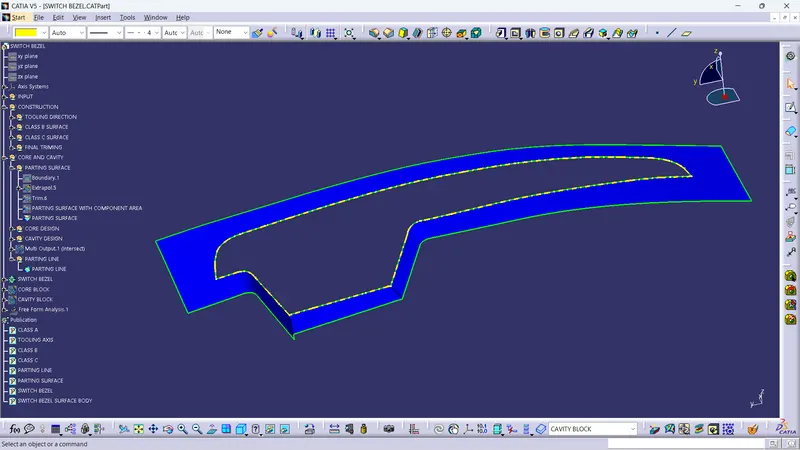

• The intersecting line of the component and the parting surface is called parting line

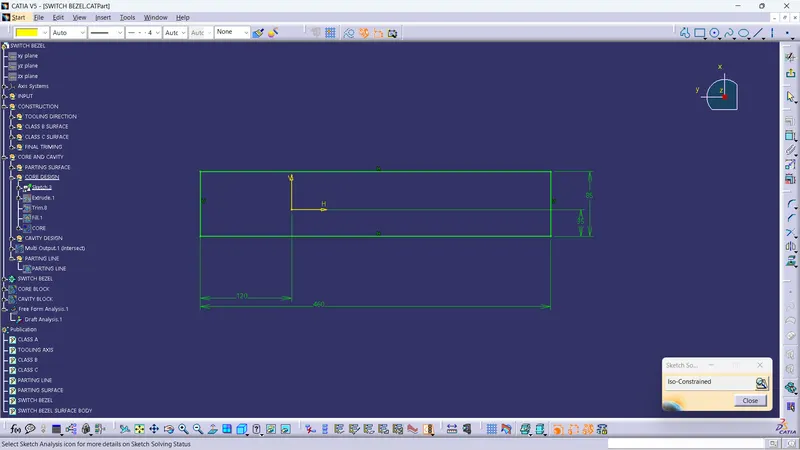

CORE DESING

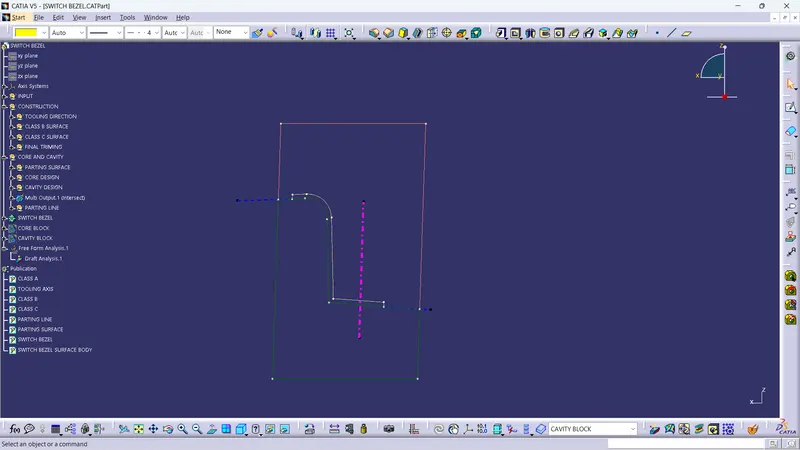

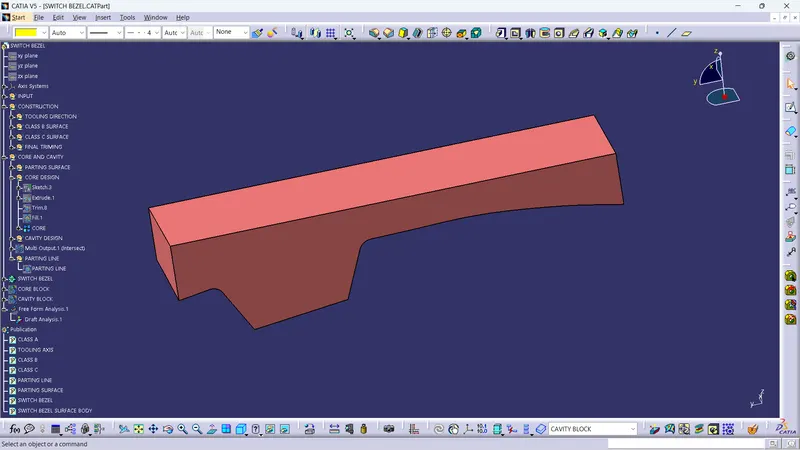

• The rectangular sketch is created around the component and got extruded along the tooling axis then trimed with the parting surface with component and using fill and join command the core block is created
• Then it got solid body in close surface command

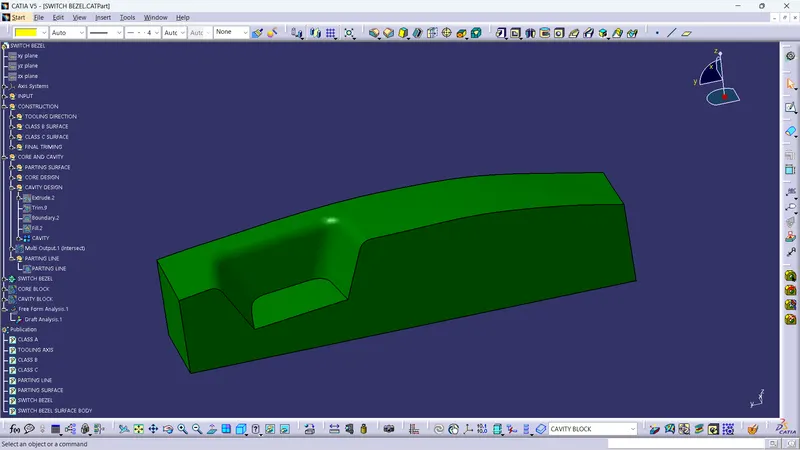

CAVITY BLOCK

• Using the same sketch for extruding and got trimed with parting surface with component in another side then using fill and join command the cavity block is created
• Then it got solid body in close surface command

INTERSECTION

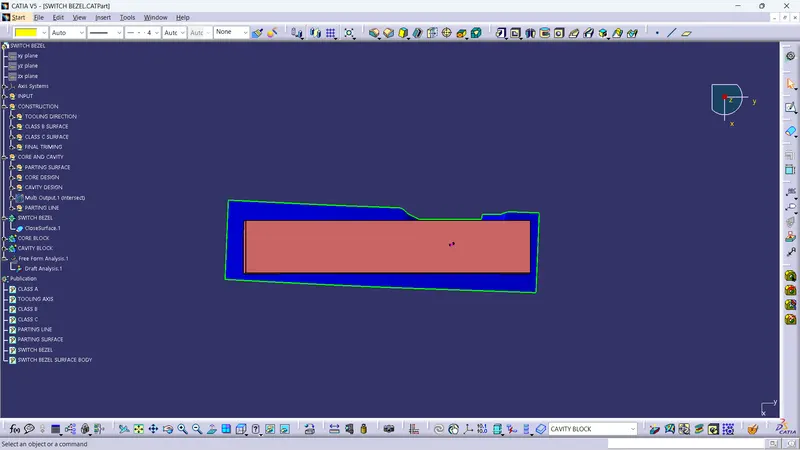

• Intersection between core,cavity,component and parting suface

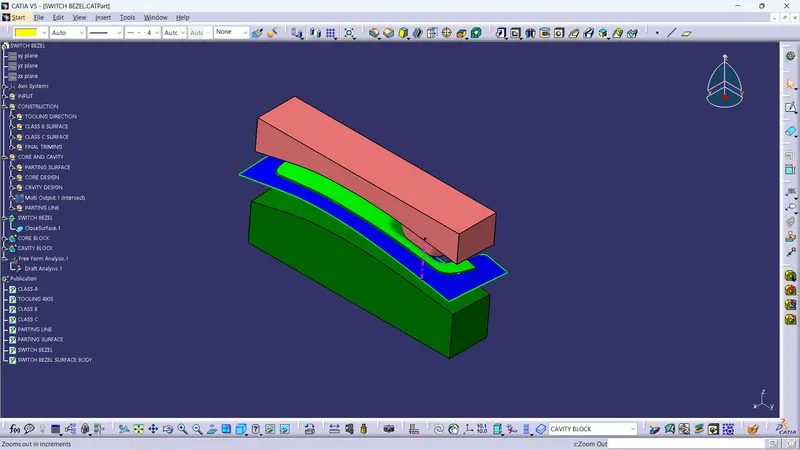

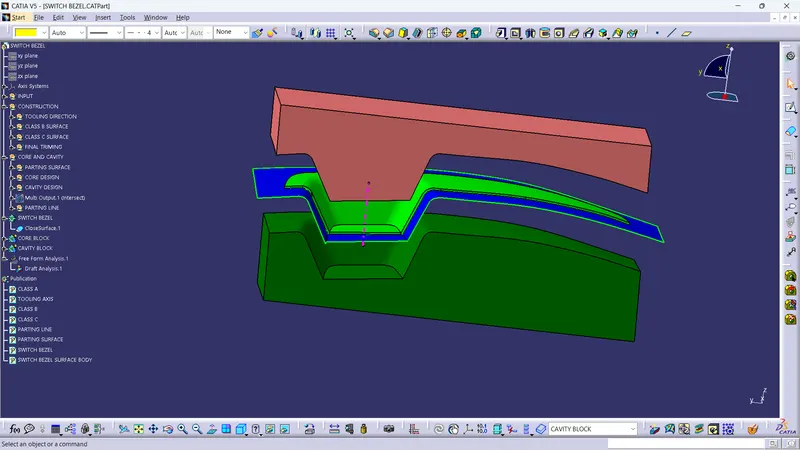

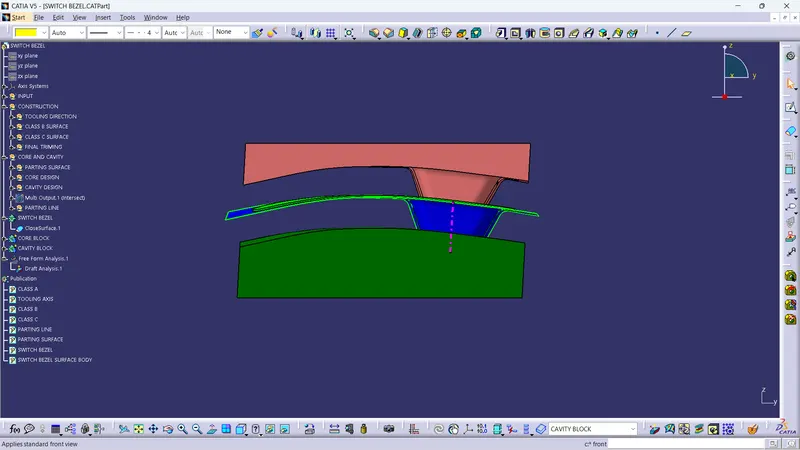

• The core and cavity translated to 50mm now we can see the component,core,cavity and parting surface clearly

ISO VIEW

FRONT VIEW

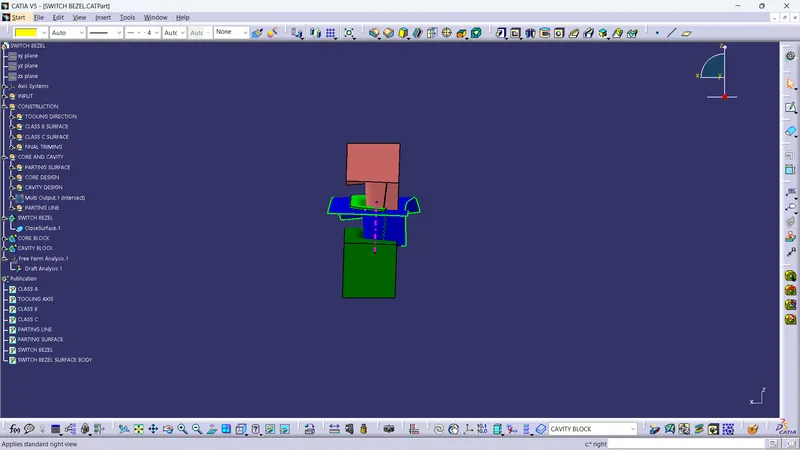

SIDE VIEW

TOP VIEW

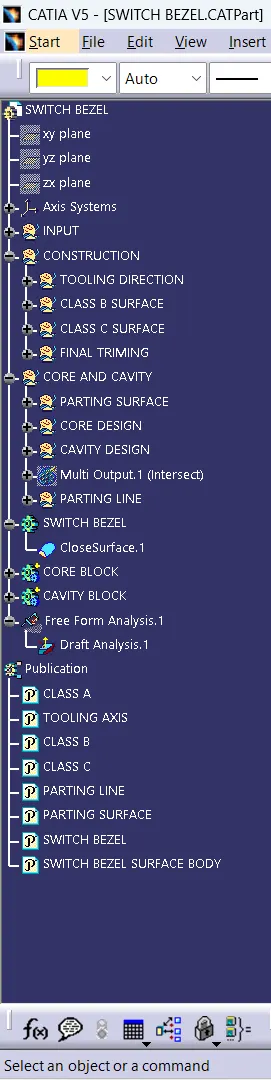

TREE STRUCTURE
