Week 8 - Challenge 6 - Core & Cavity Design

Objective:

The main objective of this challenge is to design a 'Core and Cavity for a Switch Bezel' in CATIA V5 with the help of a surface workbench. Before we design the core and cavity, we should perform a draft analysis on the solid part body of the switch bezel.

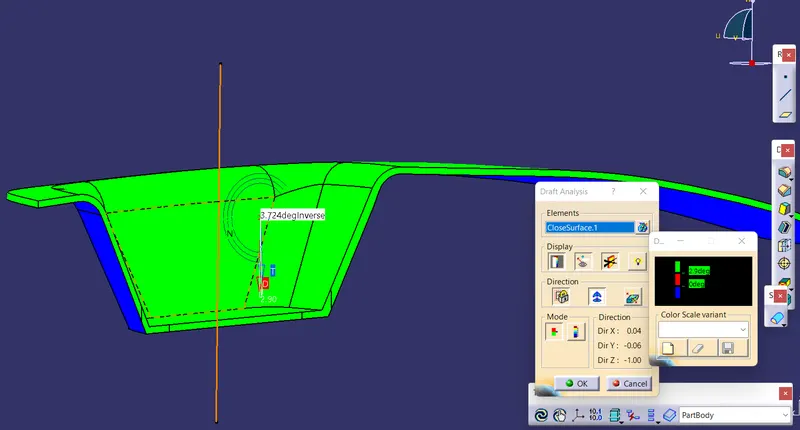

DRAFT ANALYSIS :

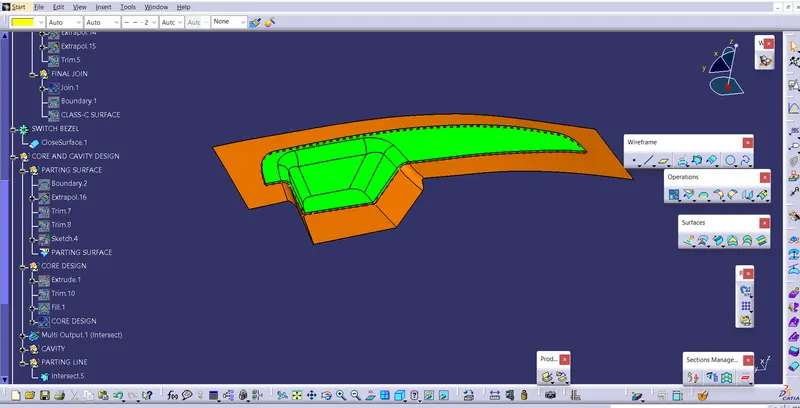

Core Design:

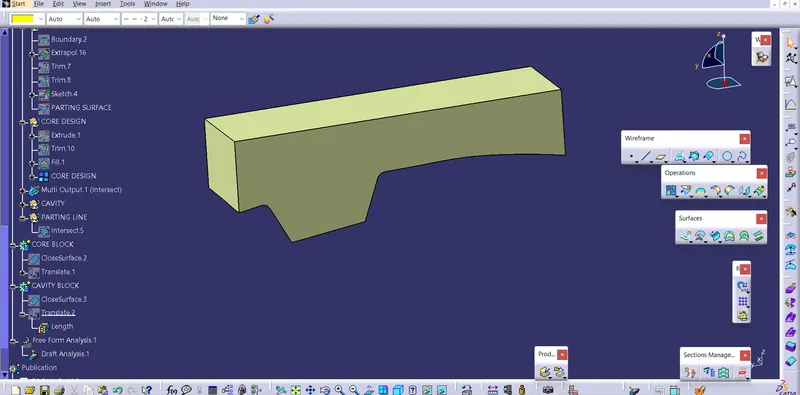

Initially, I have taken the boundary of the class A surface to extrapolate it. After extrapolating the class A surface I trimmed extrapolated class A surface and class C surface (join of class A and sweeped surface), after I trimmed the class B surface with Trim to create the 'Parting surface'. Now I draw a rectangle, which does not exceed the boundary of the parting surface. Now I extruded the sketch along the tooling axis, after extruding the rectangular sketch I trimmed both the parting surface and rectangular extrude to remove the lower side of the parting surface. I filled the upper surface to make a closed surface by joining the filled and trimmed surface. Now I make the closed surface into a solid body, the obtained solid part body is our CORE bock.

Cavity Design:

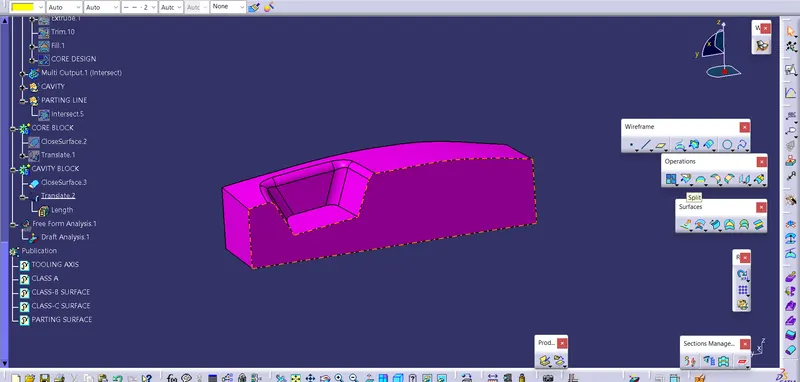

To create the cavity block, I trimmed the rectangular extrude with a class B surface to remove the surface which is the upper side of it. After that, I filled the surface which is opened, to make a closed surface by joining both trim and filled surface. Now create a solid body from the closed surface by using the closed surface. The obtained part body from the closed surface is our CAVITY block.

PARTING LINE:

To create a parting line I take an intersection of class B surface and class C surface (class C surface- join of class A and sweep).

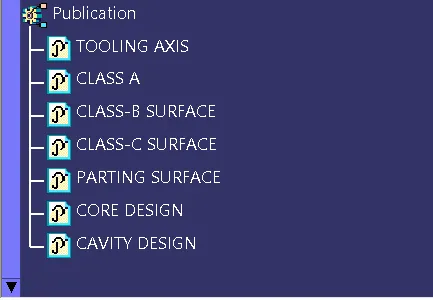

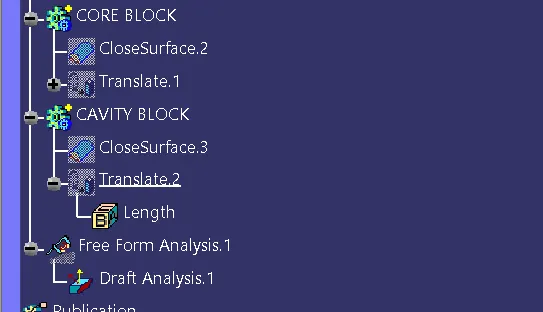

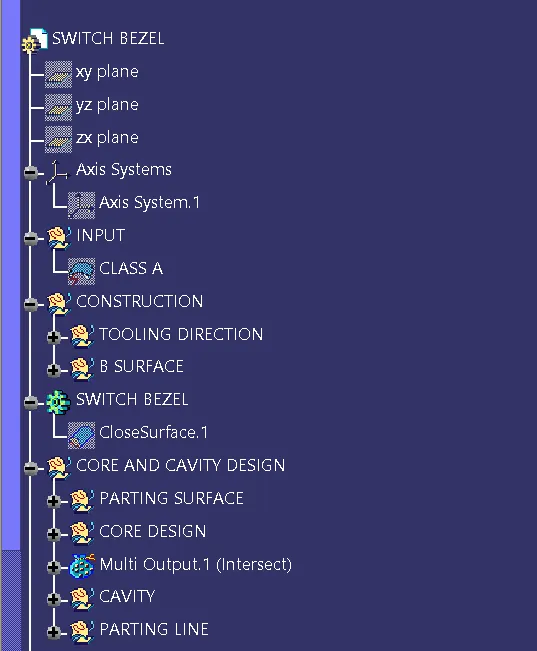

Tree Structure:

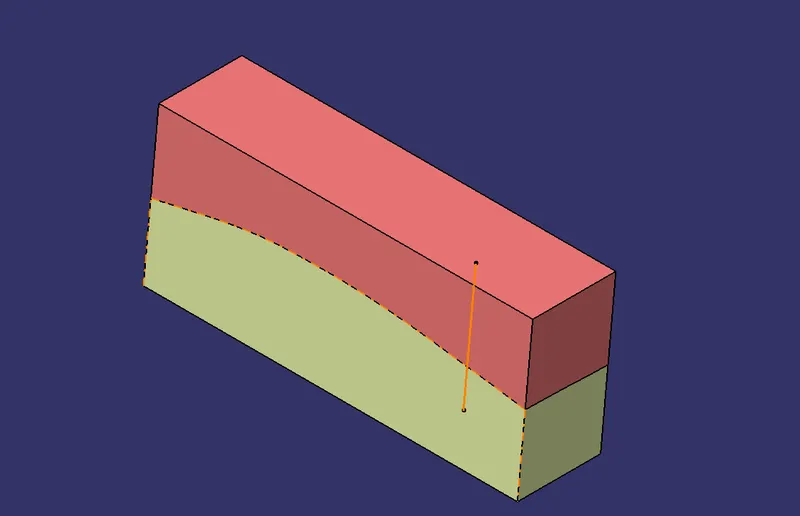

ISOMETRIC VIEW

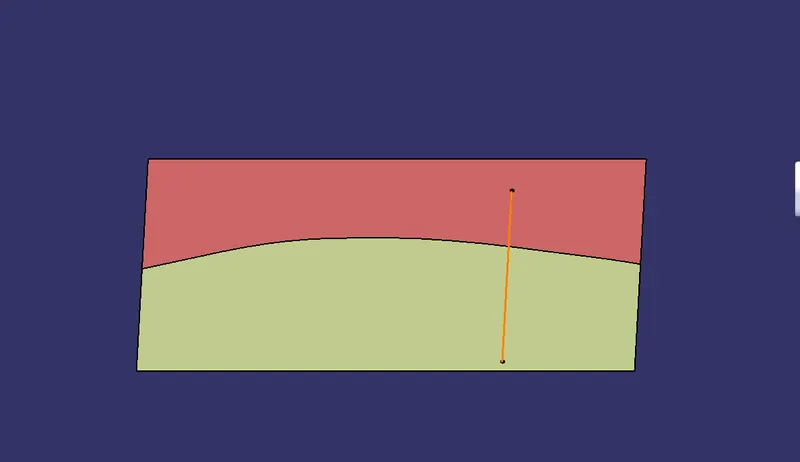

FRONT VIEW

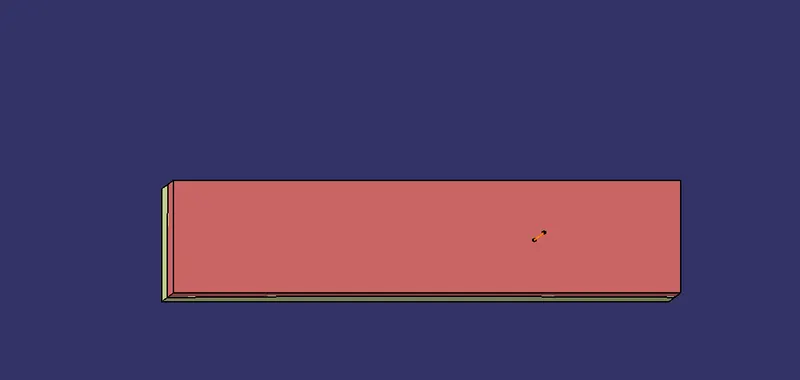

TOP VIEW :

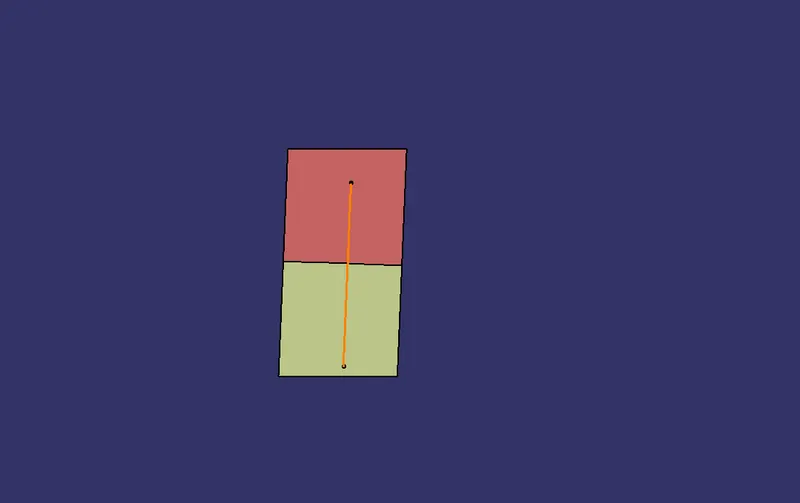

SIDE VIEW :

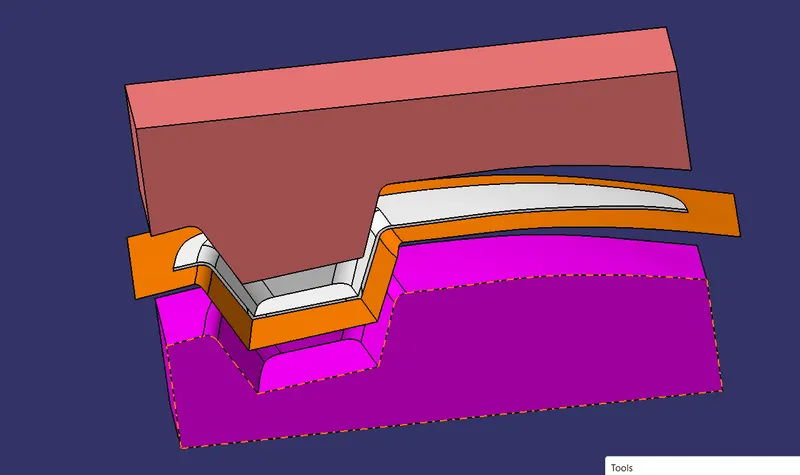

TRANSITION OF CORE AND CAVITY :

RESULT :

Hence CORE AND CAVITY FOR SWITCH BEZEL IS CREATED.
