Week 8 - Challenge 6 - Core & Cavity Design

BBhargav Futane1 Aug 2022

REPORT:

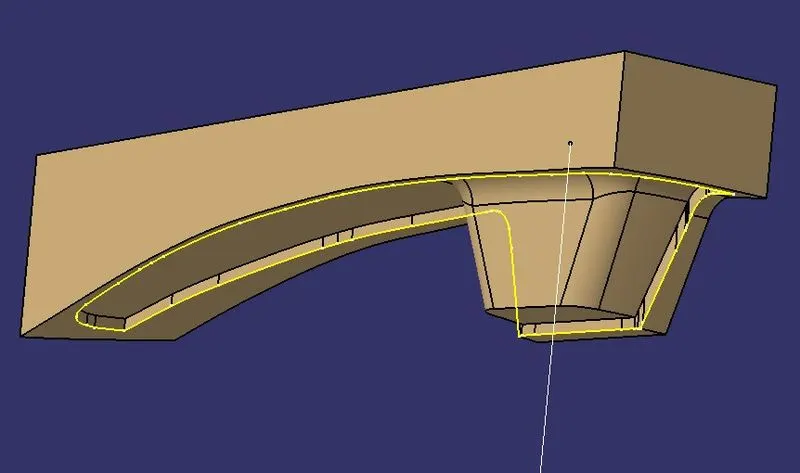

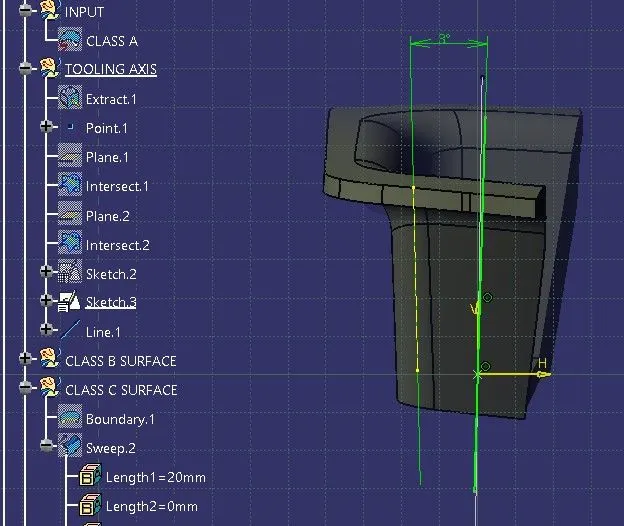

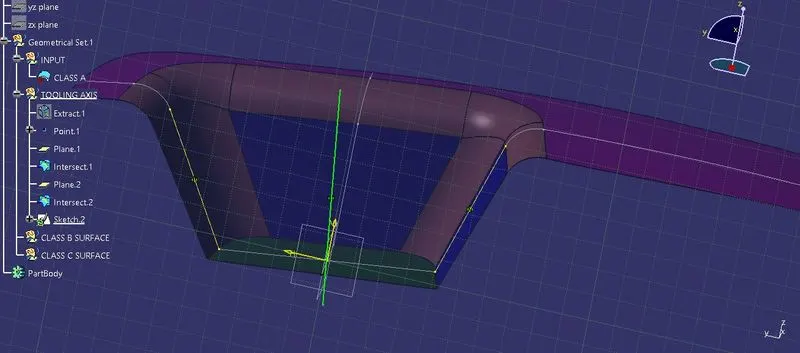

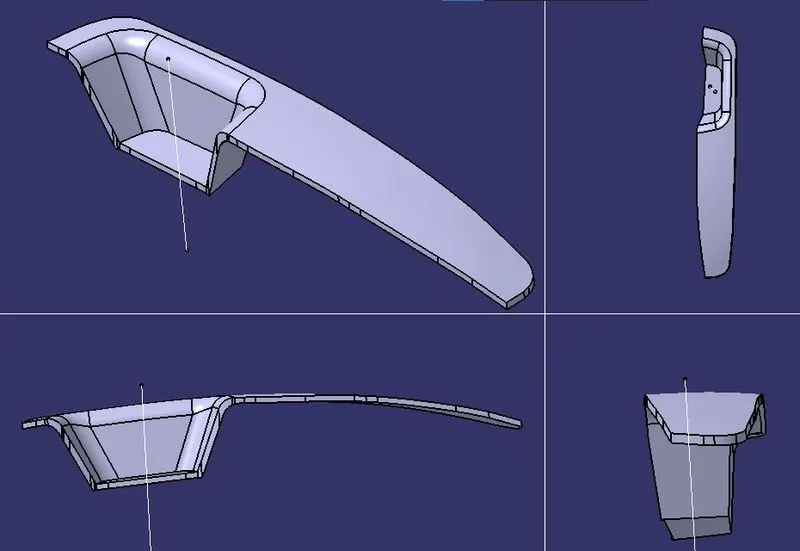

Tooling axis is created using side faces of class A. Tooling axis should bisect the opposite faces and should be at 3 degree to the other face.
Any other direction of toling axis may cause ejection errors during moulding.

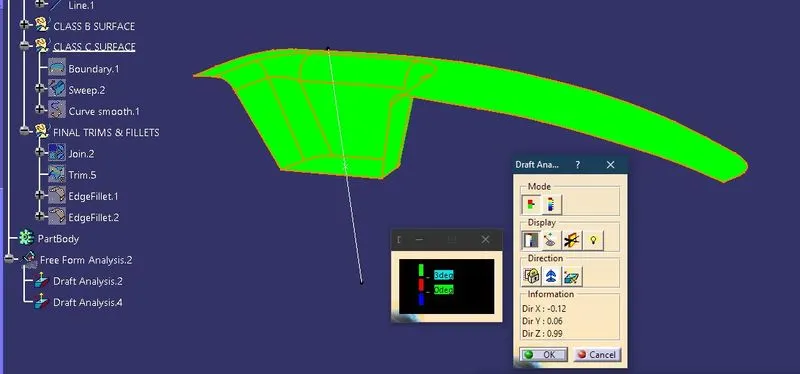

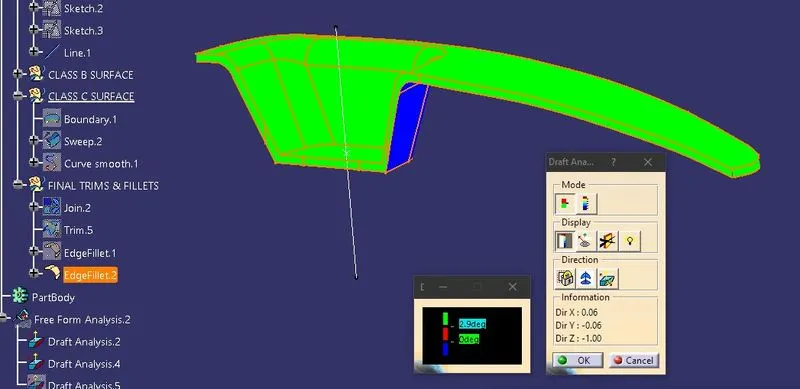

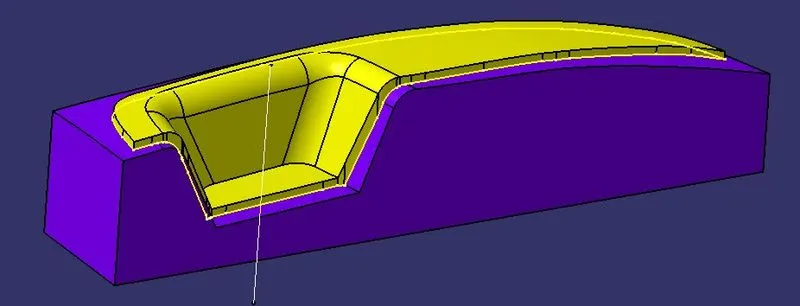

Class C is created giving 3 degree draft using sweep command.
