Week 8 - Challenge 4 - Bumper

REPORT

Creating Tooling Axis-

Temporary tooling axis created on a extracted surface.

TA XLEARING X DIRECTION by intersection class A and plane zx

TA CLEARING Y DIRECTION by intersection class A and plane zy

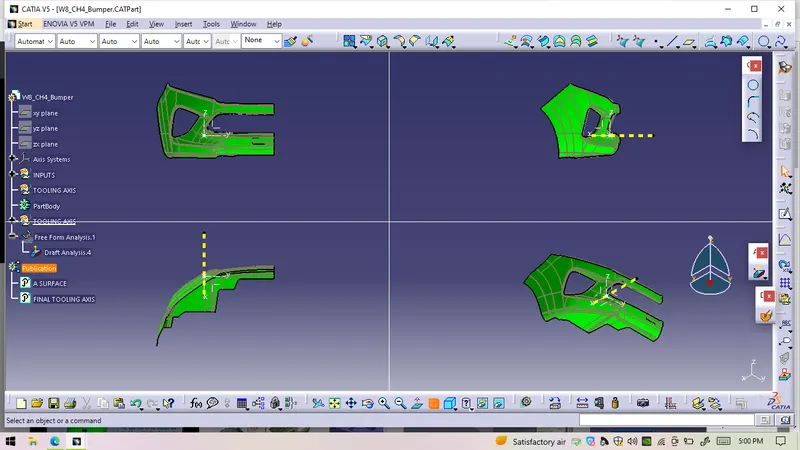

FINAL TOOLING AXIS- created by bisecting previous Tooling axes in X and Y direction.

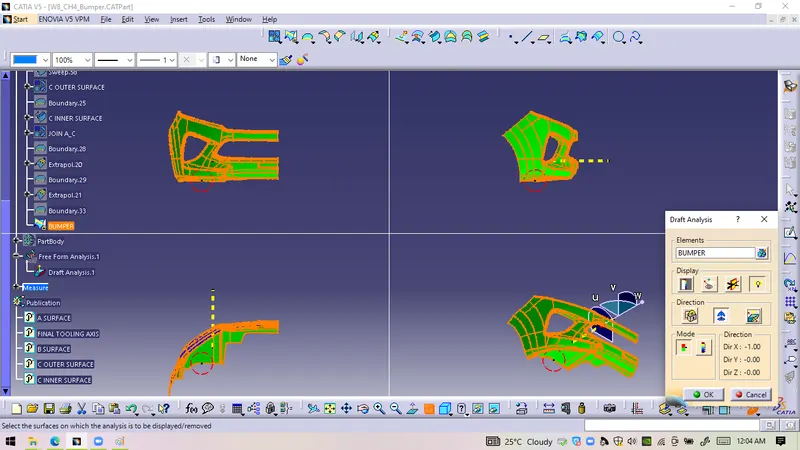

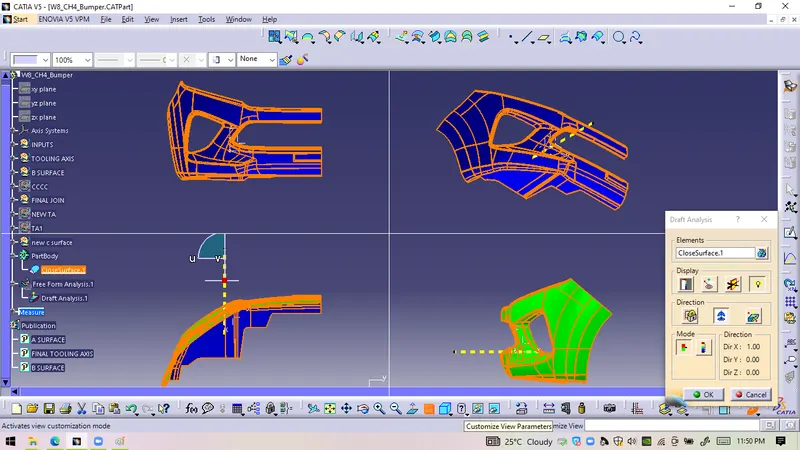

Draft Analysis-

Draft analusis is performed, all surfaces are in 0 to 3 degree.

hence part is ready to design.
