Week 8 - Challenge 6 - Core & Cavity Design

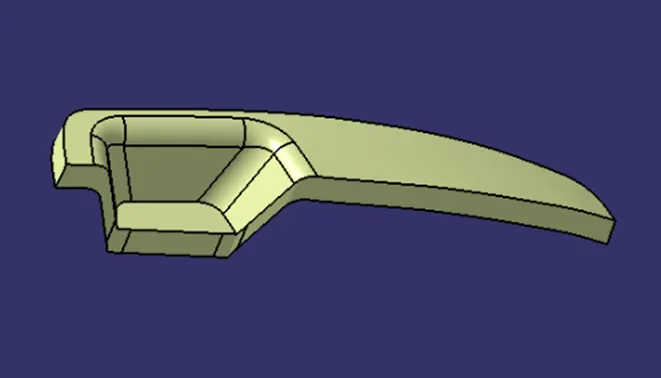

AIM:to create the core cavity for the switch bezel condering the all design rules.

TOOLING AXIS: it is the axis in which the direction core and cavity open. This is very important for production of plastic component. Most of the defect will be done with improper tooling axis creation by the plastic designer.

There are many methods for creation of tooling axis. Intersect is the only method for creating the tooling axis.

Basic method:

For doing this you should not find out the what is the best tooling direction. For doing that rotate the part and we see all direction and choose the which direction will be comfortable.

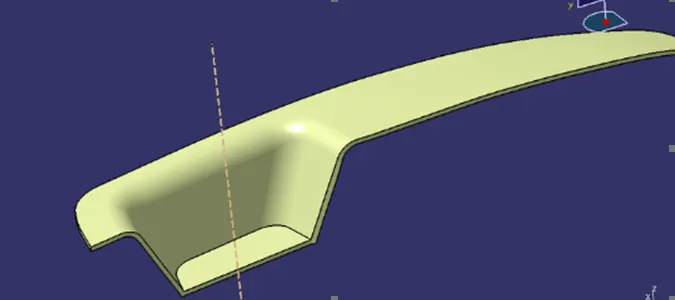

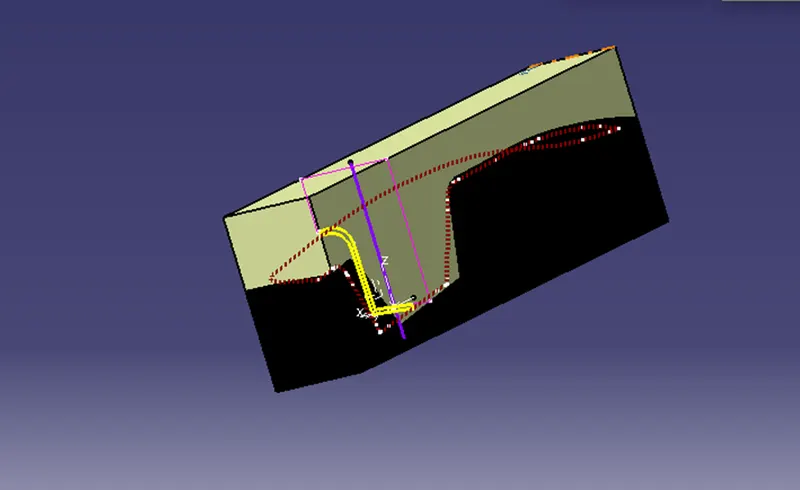

Then create the point on the base mostly create the point where the hole or the pocket are given. And after that insert tooling axis in yhat point . then first see in x direction it all clear the all faces of the part if not create a plane and intersect to each other . the following will be appeared.

Draft analysis:

The purpose of draft analysis is perfect to detect the part should be easily withdrawn from the core and cavity by using the different colours

This analysis will be done by draft analysis command. This command got to intrest<analysis<feature draft analysis

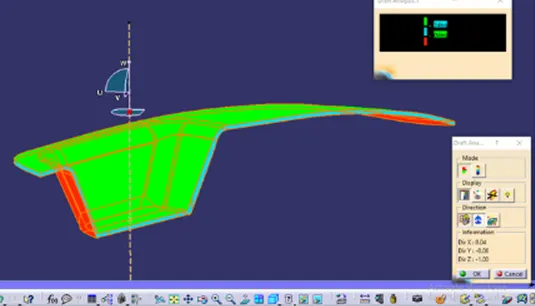

These are the following steps to do that draft analysis on switch bezel to click the draft analysis command the following windoe will appear.

DRAFT ANALYSIS REPORT FOR SOLID BODY.

CROE CAVITY DESIGN SWITCH BEZEL.

A CORE AND CAVITY :

A core and cavity is on msjor part of the mould and it is resoponsible for half of the modeled part . actually core is the protection of the body cavity is the depression of the body . these are core and cavity combines to form a mould to get a plastic part.

Parting surface.

Injection moulding has two major components one is core and another is cavity. During the injection molding process, these two halves are pressed tightly from sealed hollow to avoid the melt flow leakage and maintain certain holding pressure , the prseed surface are called parting surface, usually projection outline of the part .

Parting line:

It is the area in which the parting surface and components meet or it’s a junction core nad cavity and the parting surface.

Design parting should follow the following rules.

Design the injection mold simple as possible avoid or reduce side parting as much as possible to reduce complexity of the mold.

Design injection mold is simple as possible. Avoid or reduce the size and parting surface has some set of rules because the product quality mostly depends on the parting surface.

Ease of molding as far as possible, for instance the plastic parts should stay fixed have injection mold and should ejection by side demold action.

Ensure appearance requiement modeled parts finish or mismatch usually occurs on parting surface.

Ensure adequet venting if possibe parting surface should be place at the end of the mold flow . this is going to be advantageous of filling and venting.

To extrapolate class a surface

Trimn ` class a with c to get inside portion.

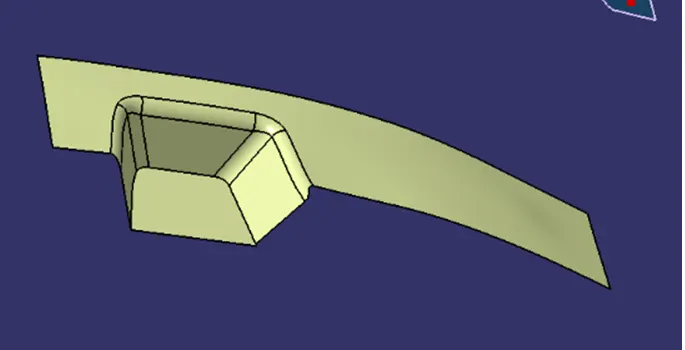

Now trim the b SURFACE WITH THE output of class a and c that will be parting surface with output of class a sketch overall through the tooling direction are trim it with parting surface.

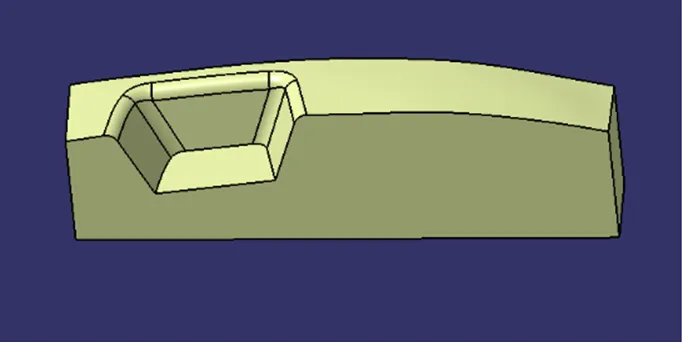

Final output of core design.

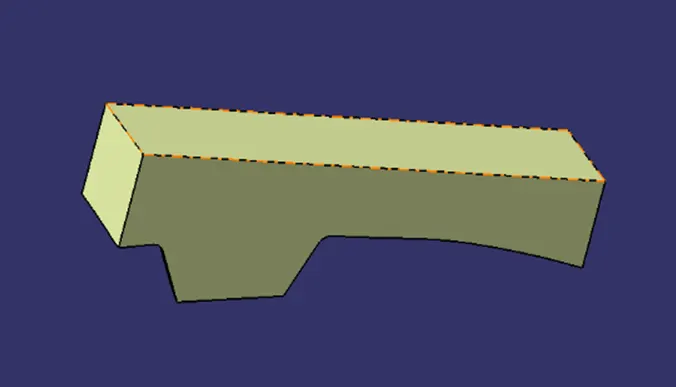

Part body of core.

Similarly, repeating th surface operatin for both as same done of the cavity and trim it on other side side surface.

Part body count cavity.

The cor and cavity are trancslated to certain value for understand.

Result.

The core and cavity for the switch bezel has been created as per the design rules.
