Week 8 - Challenge 5 - Door Trim Lower

Report
Assignment 25
step 1: Class A Surface has checked is Okey with 3deg Angle.

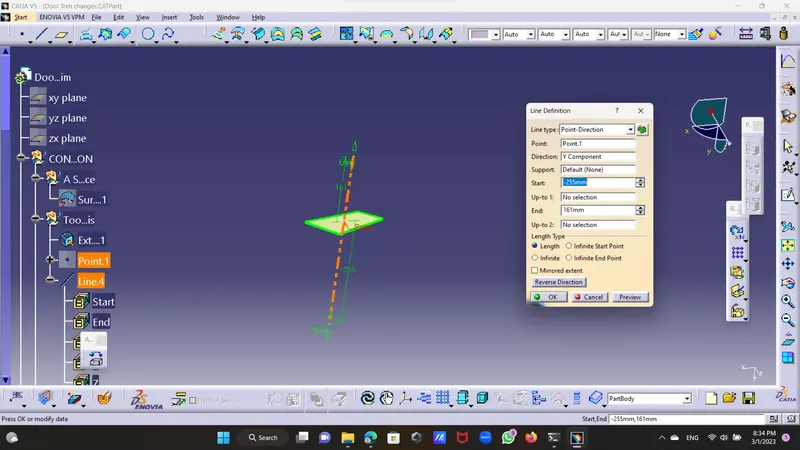

step 2: Extract Surface from Class A and Took Point at (0,0) drew line with Y direction through point.

step 3:Get Class B Surface from class A by Offset Method up to 2.5 mm.Class B had some opeanings which patched up several Operations.
step 4:first of all Top Surface in two parts patched by extracting from class A surface and trimed two surfaces together then side Wall Extracted from Class A Surface
and Offseted it by 2.5 mm from class A surface. Then Front Side extracted from Class A Surface and offset it from class A surface by
a distance 2.5 mm.Trimed it with before one trim surface.

Class B Surface:-

step 5:An excess portion was beyond surface go to Add command and choosed remove method and removed that one portion.
Step 5:meassurd all the fillet by selecting parallel curve operation and point on curve from point command and drew three point circle.
step 6:Done all fillets by edge fillet.

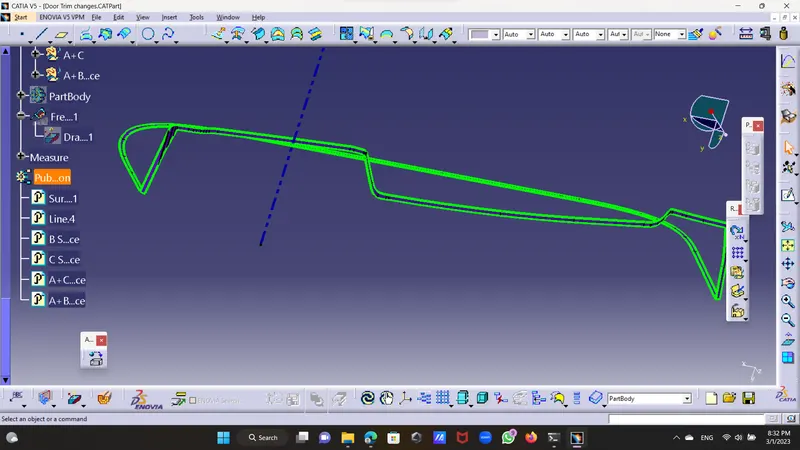

Step 7:Sweep :Select boundary seperately from class A surface and and drew various sweept with draft direction method with 3 deg and choosing sweep angle direction at outside. angle and curved portion are made by multisection surface method by selectin two profile and one boundary guide curve.
step 8:Sweep bottom portion with referance surface option with 90 deg referance angle

Class C Surface:-

[A and B portion which is visible to viewer dirctly has ever given draft angle 3 deg maximum.]

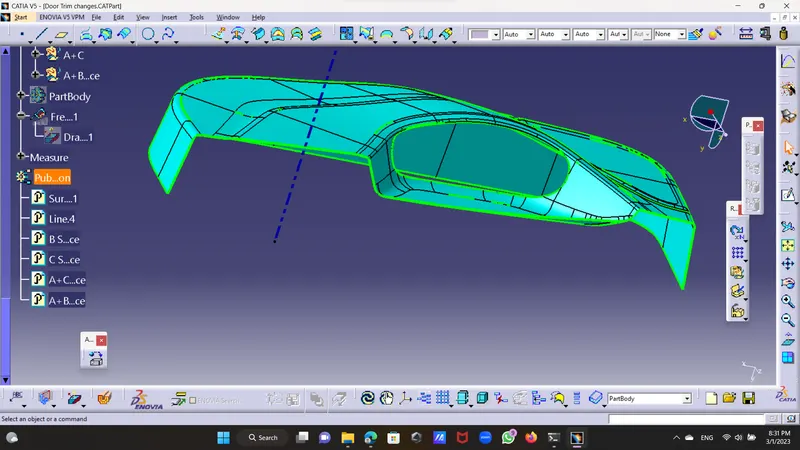

step 9: join three sweep and trimed it with class A Surface.

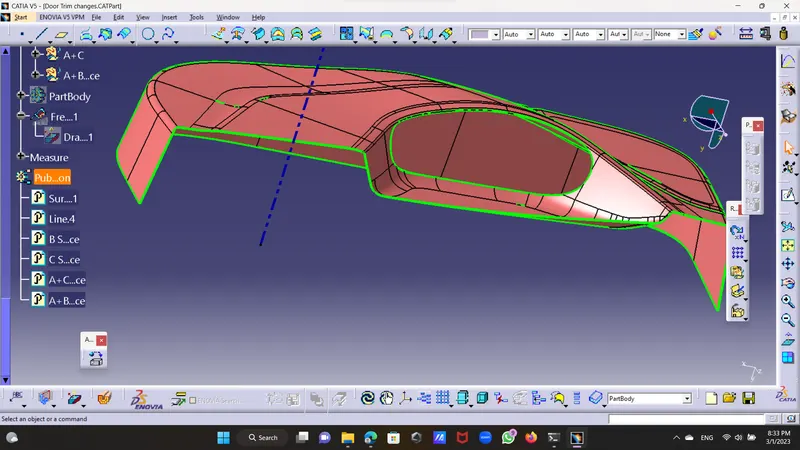

step 10:Teimed Class B Surface with step 9.

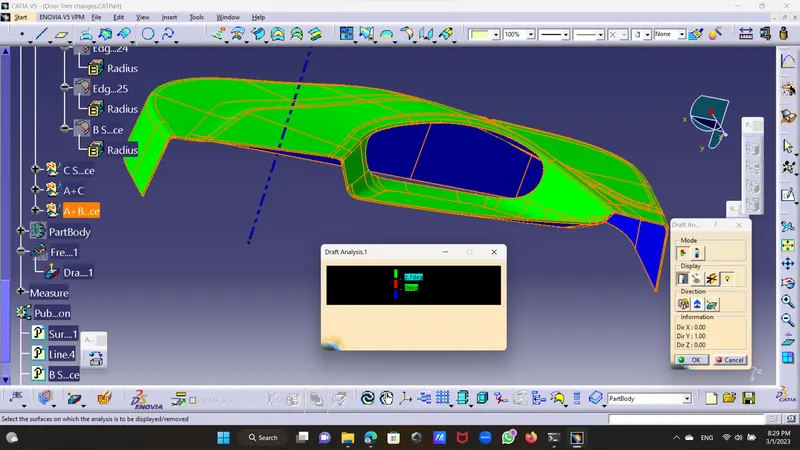

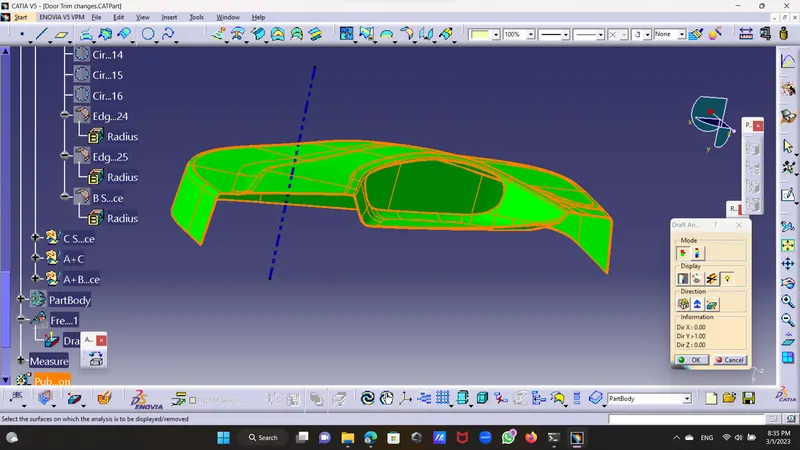

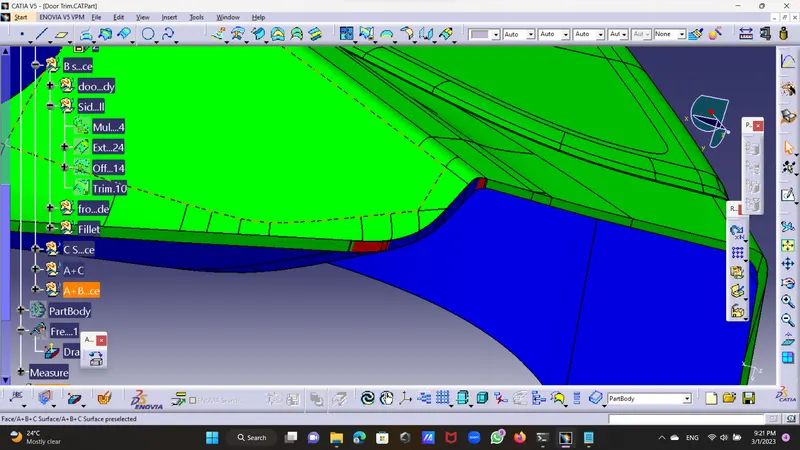

Step 11:draft analysis :choose compass and put it on axis then entered draft value 2.7 deg
green colour shows draft is from 3 deg to up
red colour shows draft is from 0 to 3 deg
blue colour shows draft is below 0 deg.

Step 12:NOTE:- After draft analyis some potion wass still looking red patches was multisection solid may have graphical error.

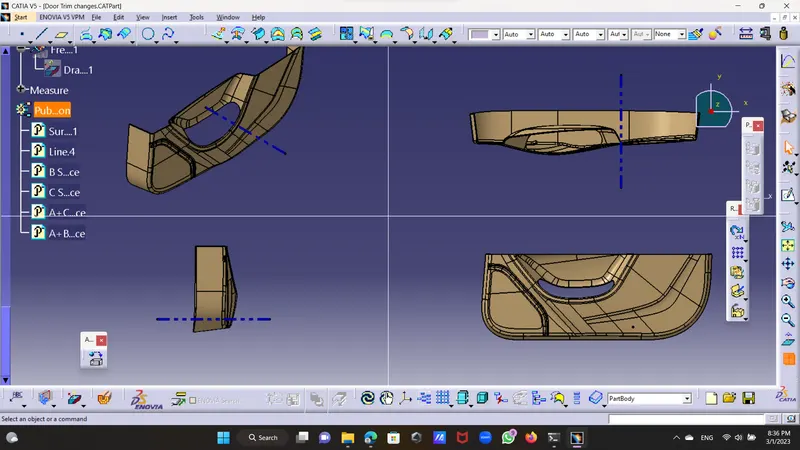

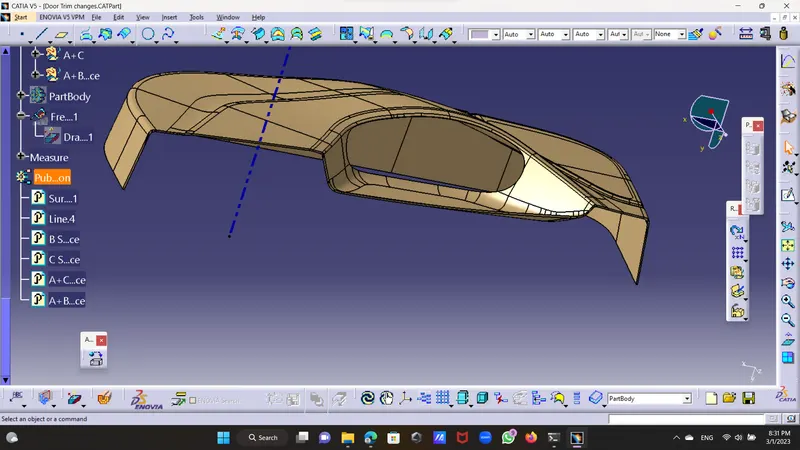

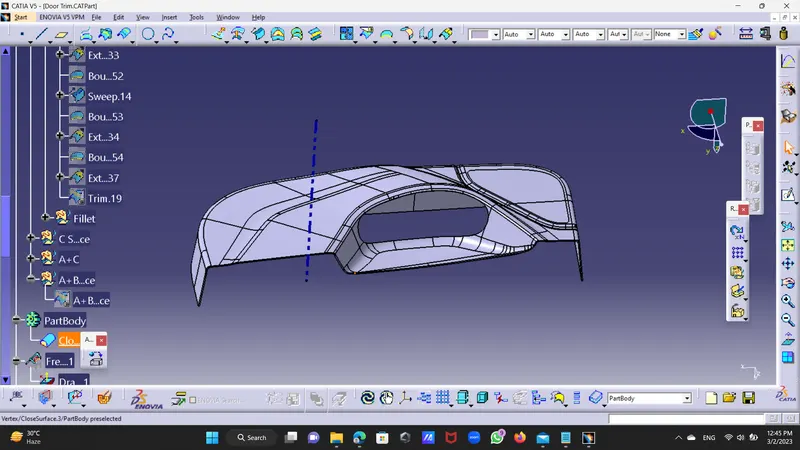

After complition it go to the part body and choosed closed body option and convert final surfae to solid.
