Week 8 - Challenge 5 - Core & Cavity Design

TOOLING AXIS

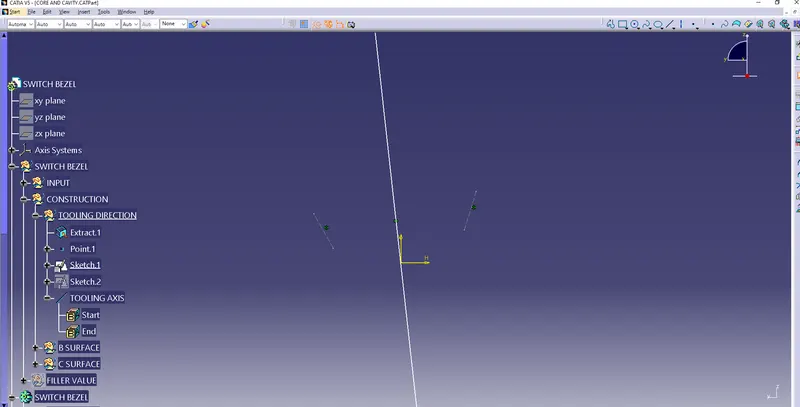

1) Extracted base surface and created point on it. created inclined lines and by bisecting method created bisecting line.

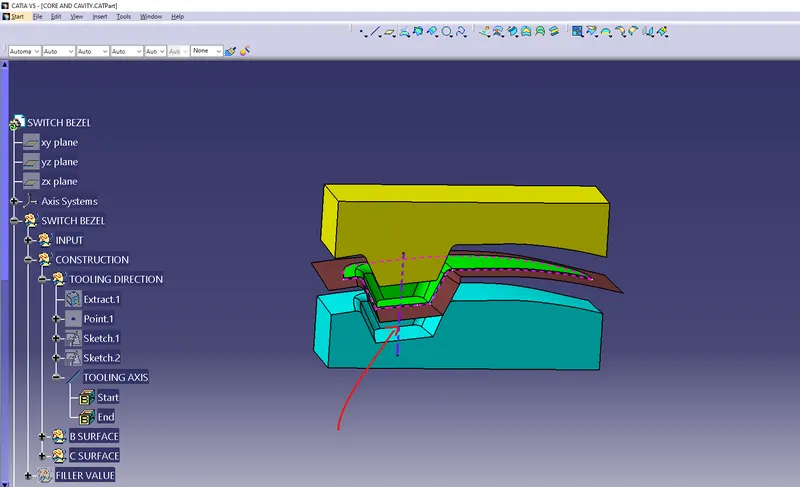

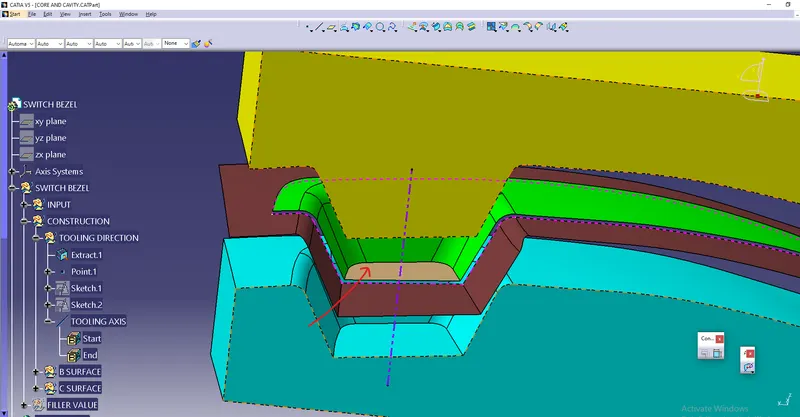

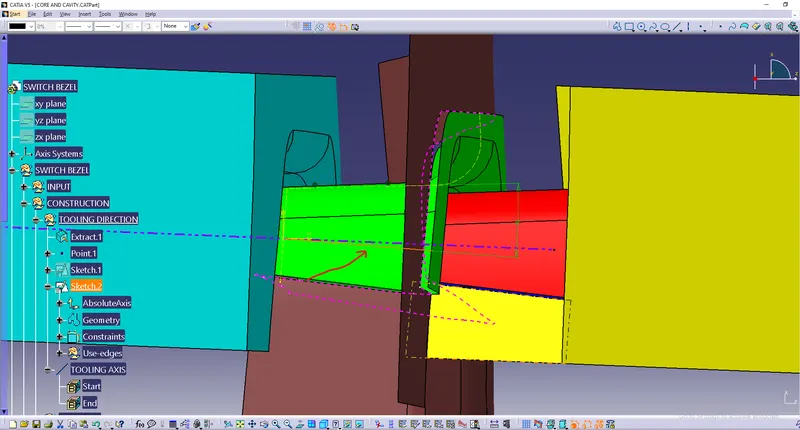

2) Drew line in YZ direction and gave constrained to it. further by bisecting line method got tooling axis.

DRAFT ANALYSIS

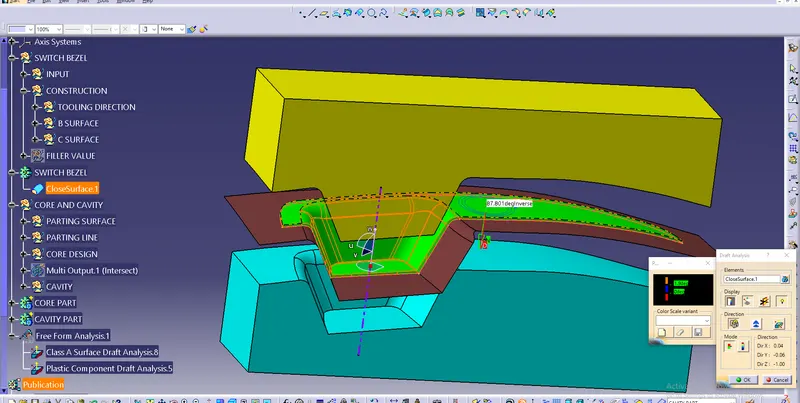

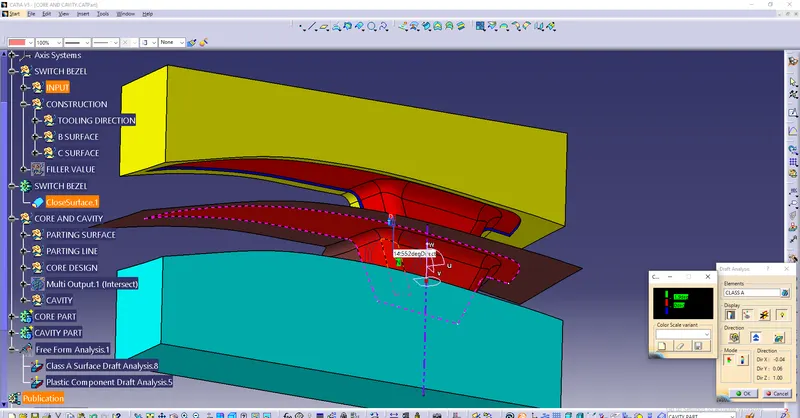

1) First checked view was customised view and in that material was selected. then go through draft analysis tool draged compass over tooling axis and locked direction. clicked over surface and green colour was showned that means draft was done.

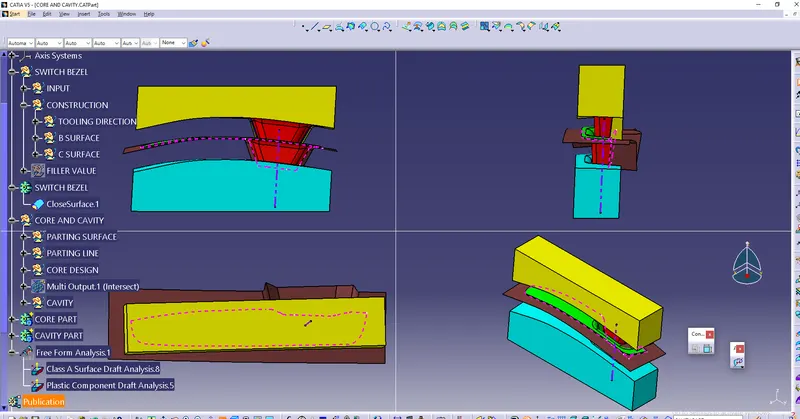

CORE AND CAVITY
