Week 8 - Challenge 3 - Switch Bezel Design

1) TOOLING AXIS

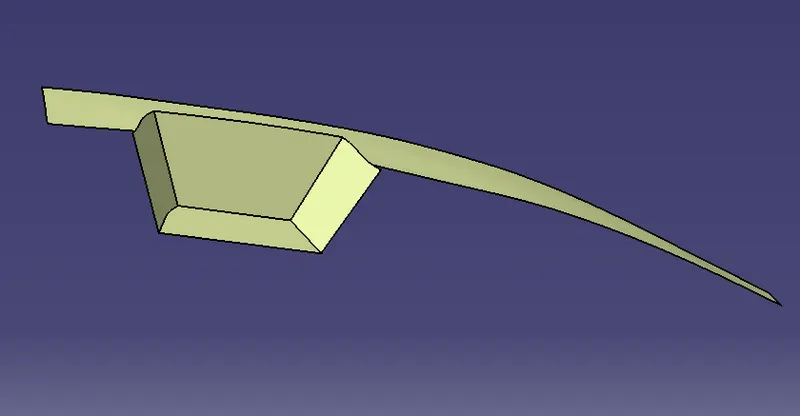

      1) First of all checked continuity by boundry command. There was no gap between two surfaces

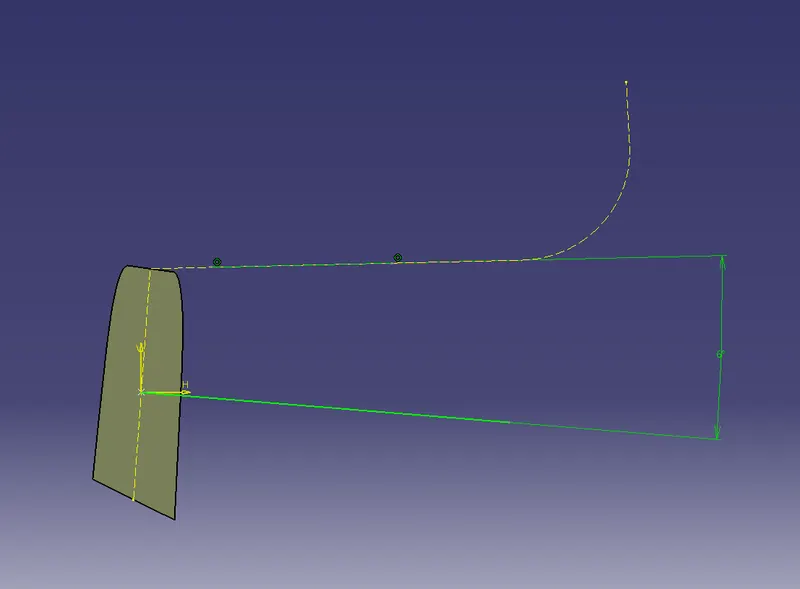

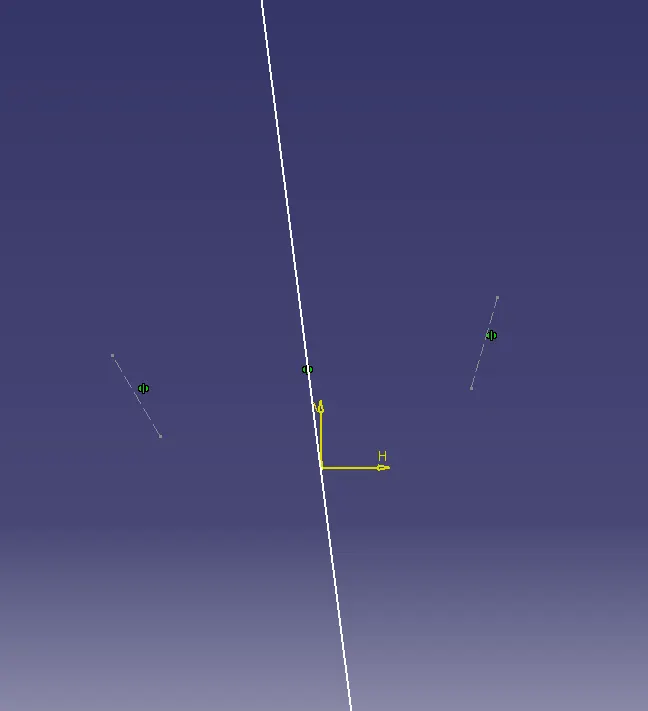

      2) Extracted the base surface and created point on center. then drew sketch of lines in yz direction and by bisecting line command got dummy tooling axis in y direction. similarly drew sketch in x direction and got dummy tooling axis in x direction. And then by bisecting line command got Final tooling axis

2) B SURFACE

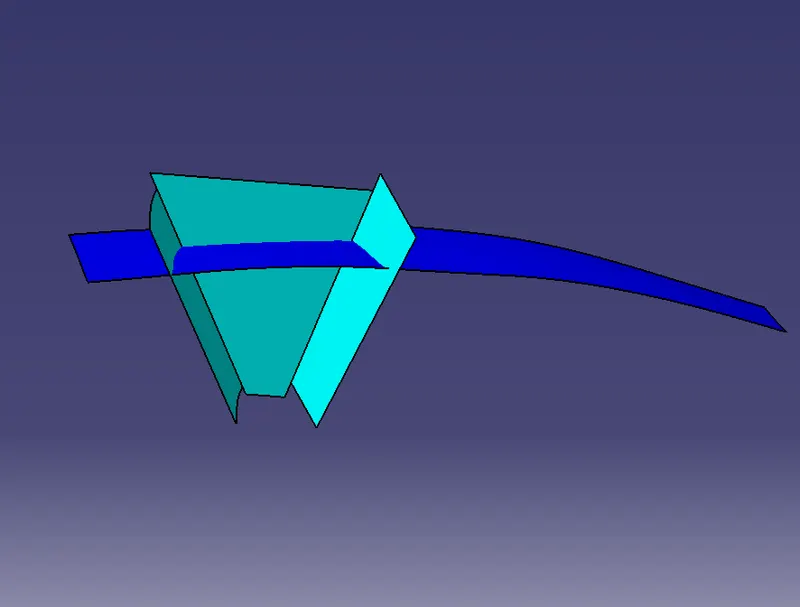

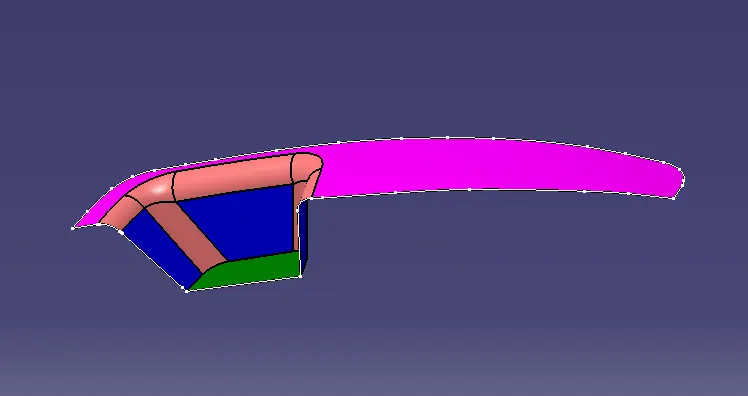

      1) Extracted bezel rest surface and surface untrimed it. offseted with 2.5 mm

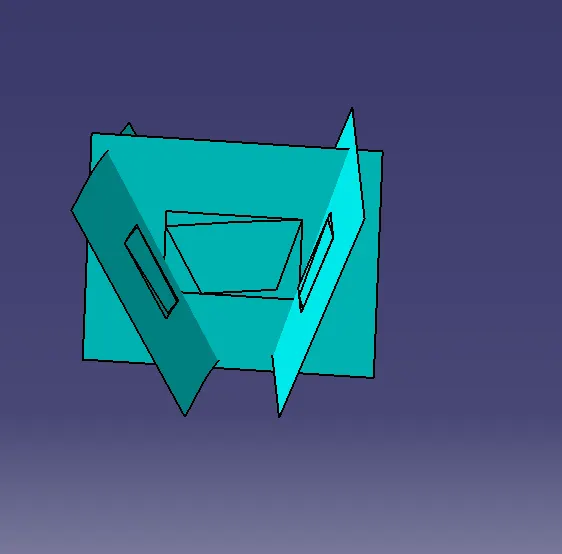

      2) Extracted all three walls then untrimed and extrapolated it. unhide offseted rest surface and trimed with extrapolated walls and offseted it.

      3) Base was extracted, untrimed and extrapolated.then offseted with 2.5mm and trimed offseted rset surface and offseted walls.

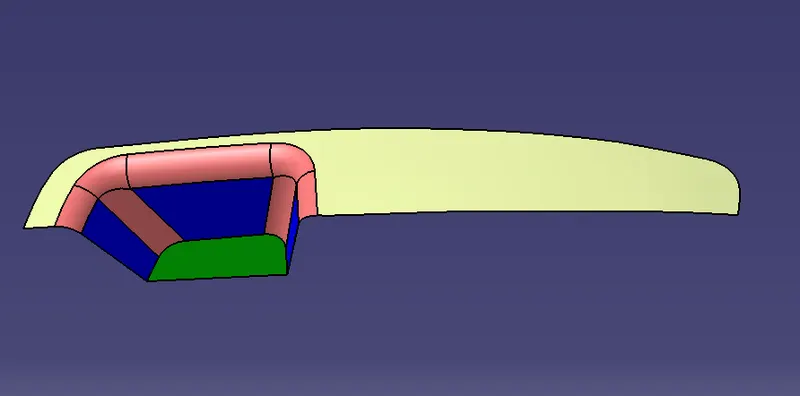

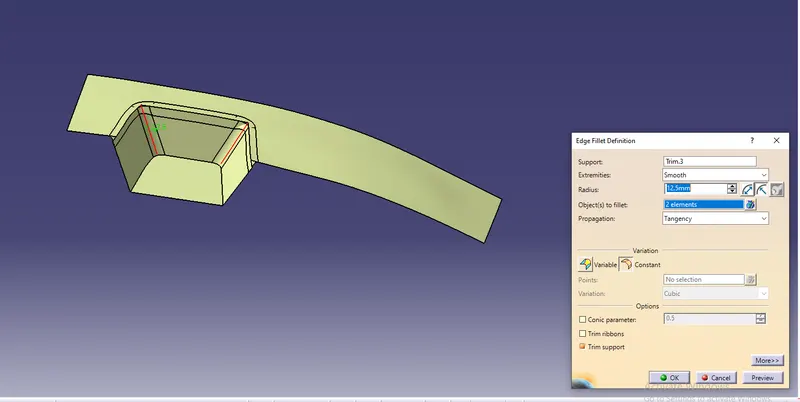

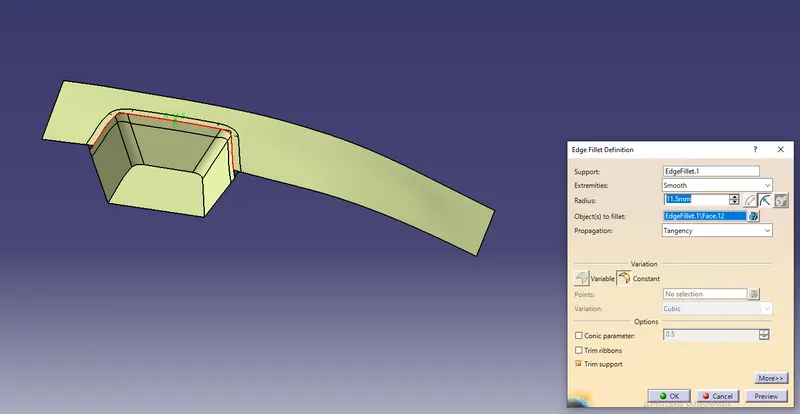

      4) Trimed offseted base surface and recently trimed surface.then filleted the sharp edges with (fillet value- thickness) radius.

3) C SURFACE

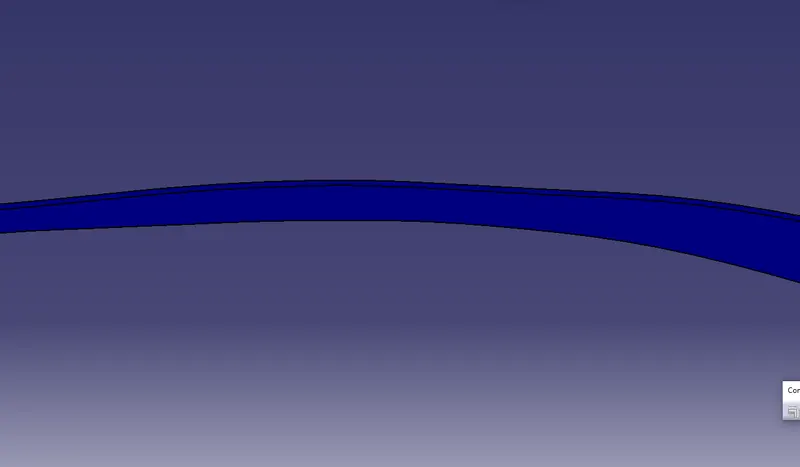

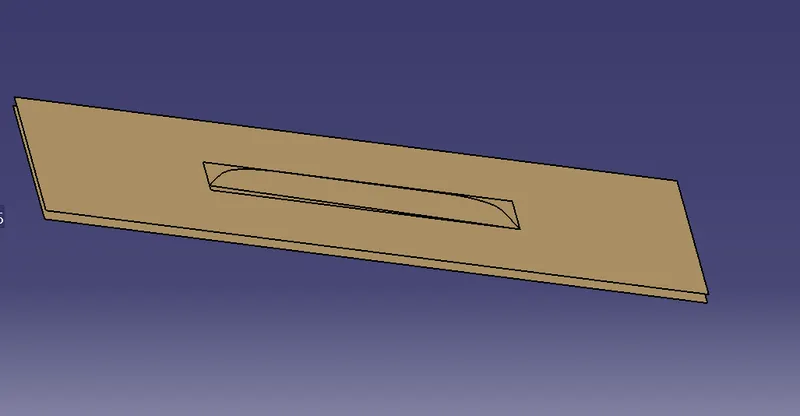

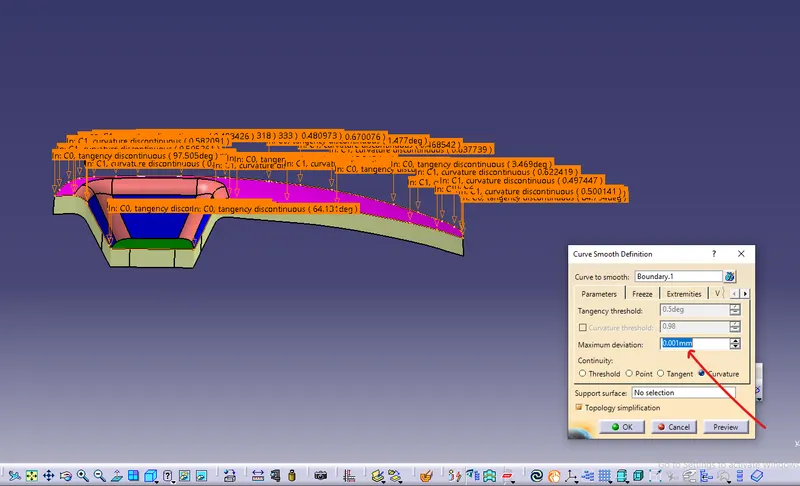

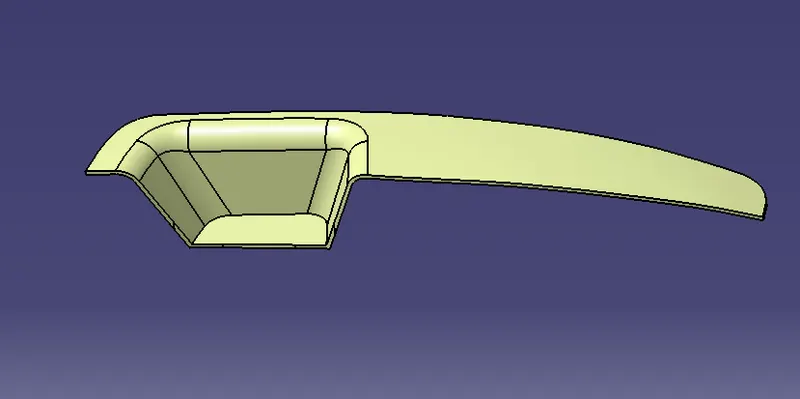

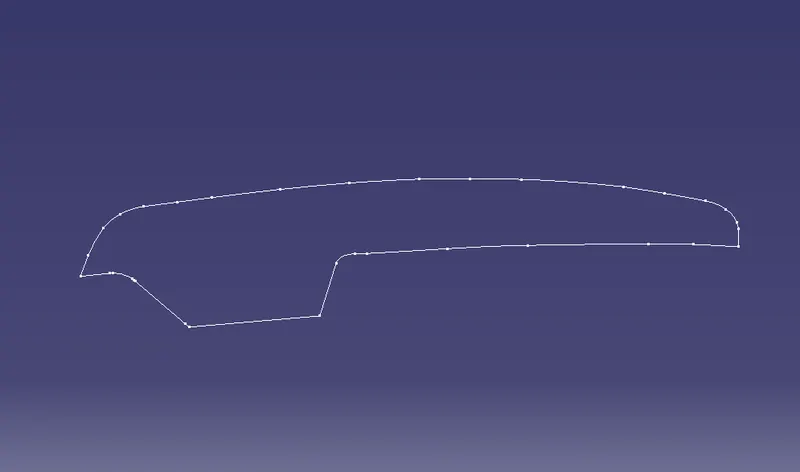

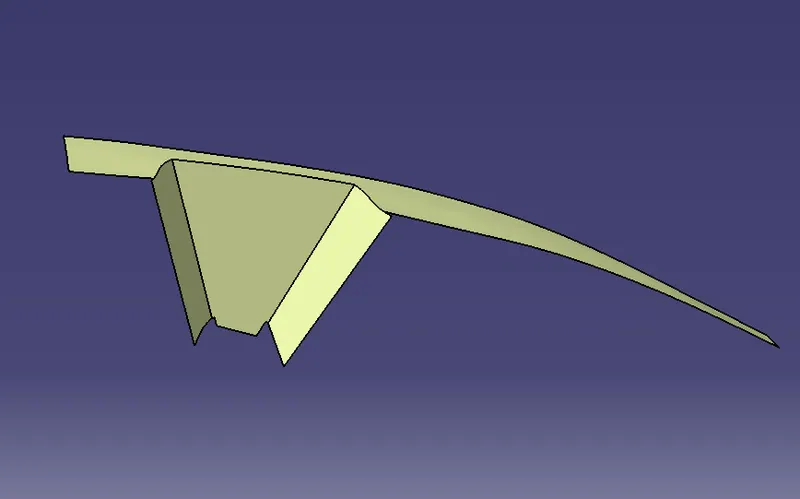

      1) Took boundry of class A surface then sweeped boundry and took smooth curve to avoided patches on surface with minimum deviation. Further joined sweeped surface with class A surface and trimed final joined and B surface. And get final plastic model.

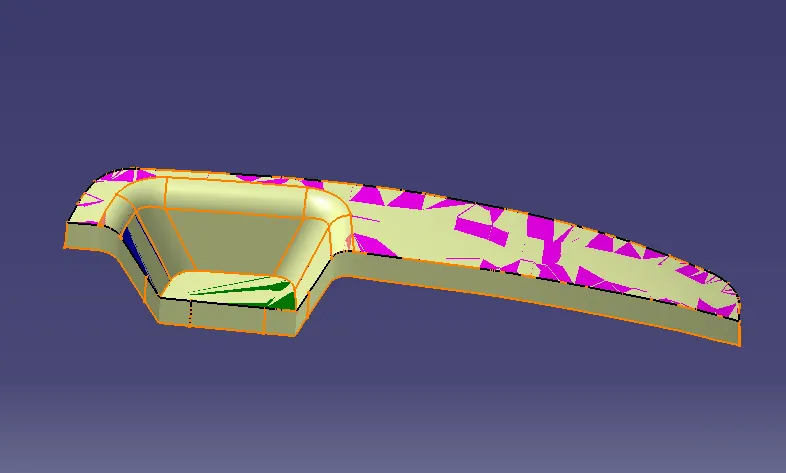

4) DRAFT ANALYSIS

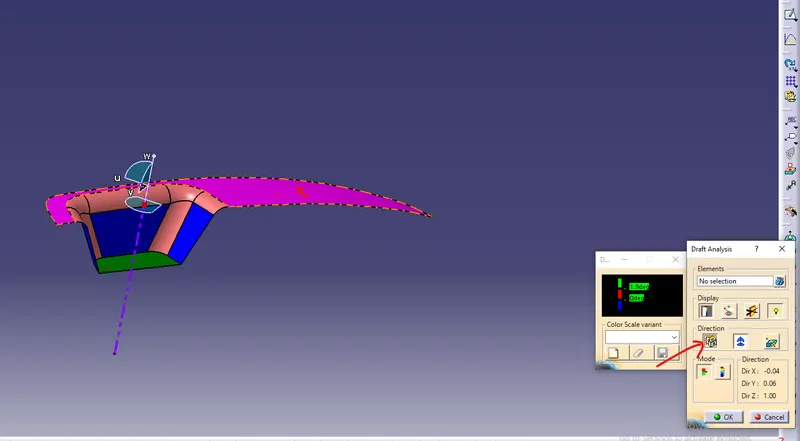

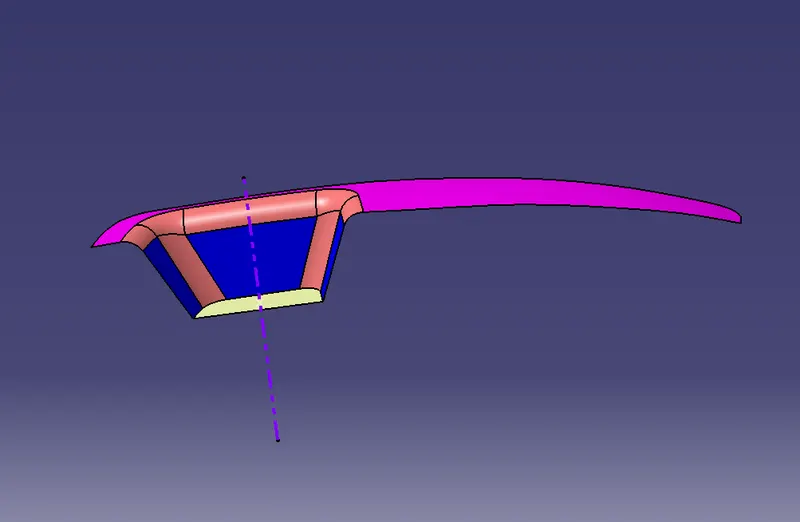

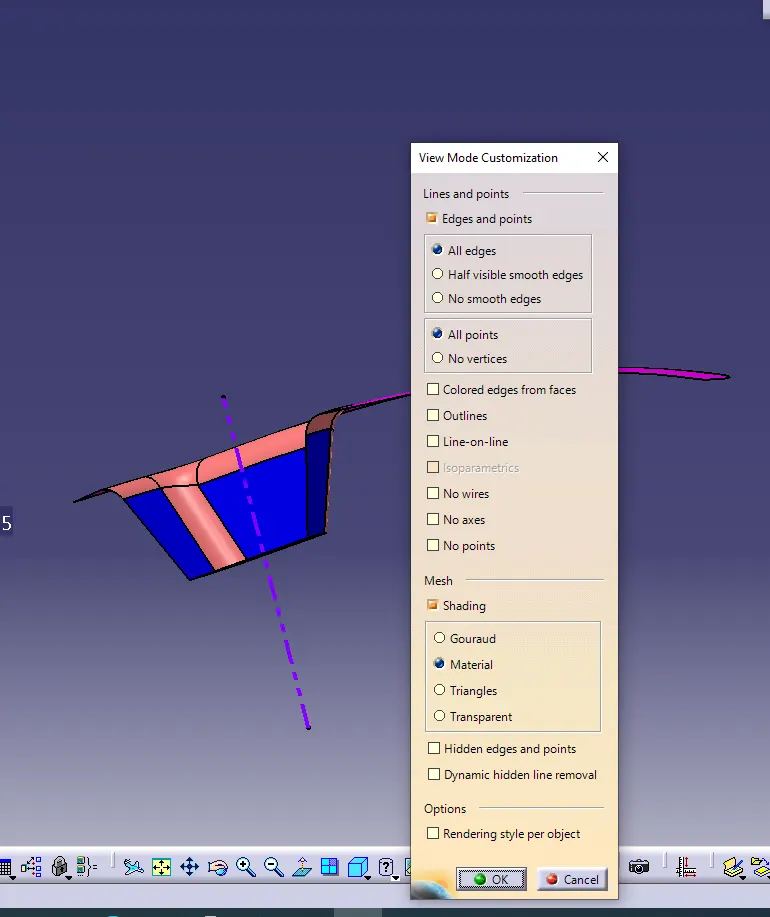

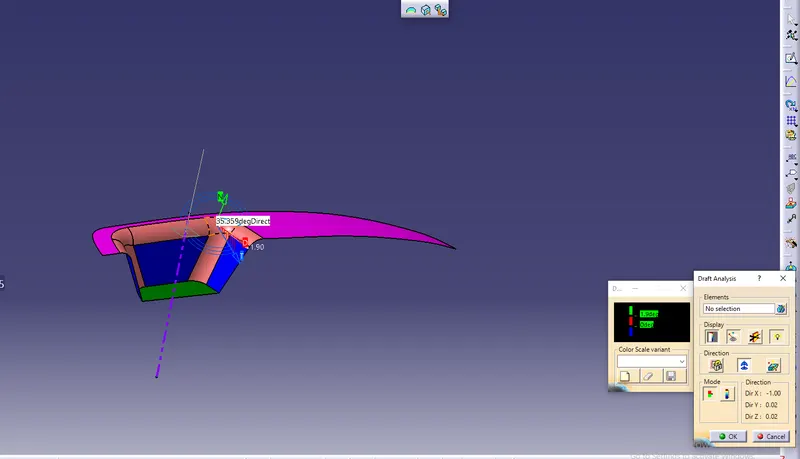

     1) First checked whether view was view mode customization and material was selected. then go to draft analysis tool selected compass and draged onto tooling axis.

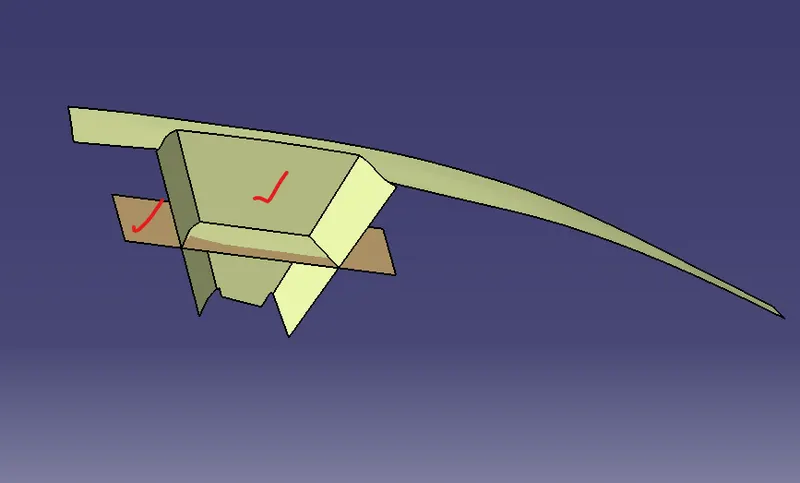

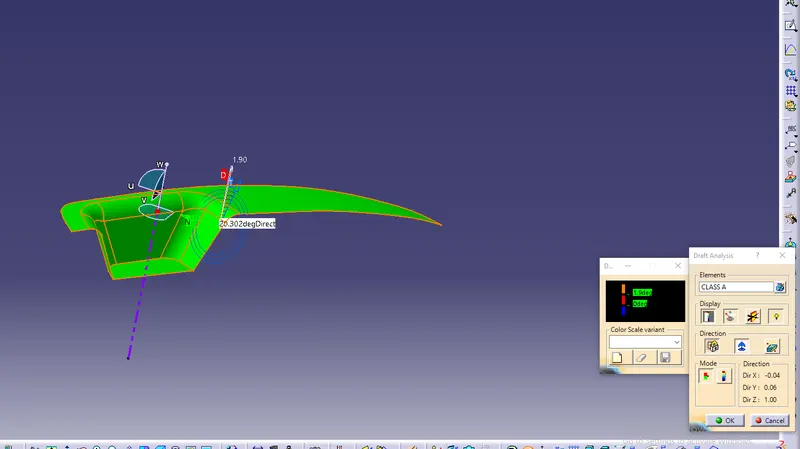

      2) Then selected lock command and picked point on surface. Green color was showned means drafting was done correctly.

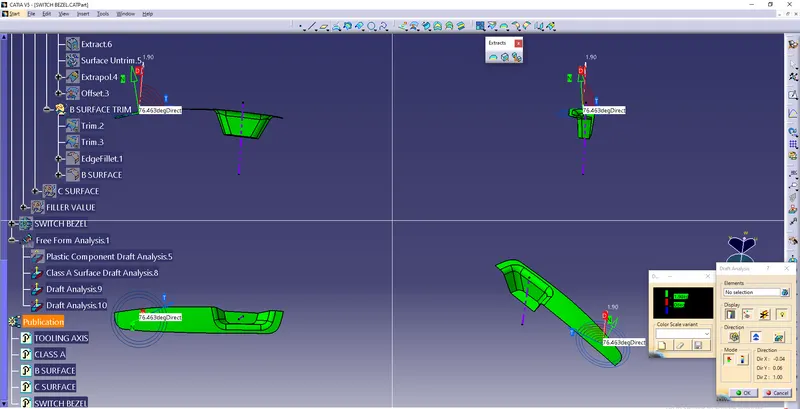

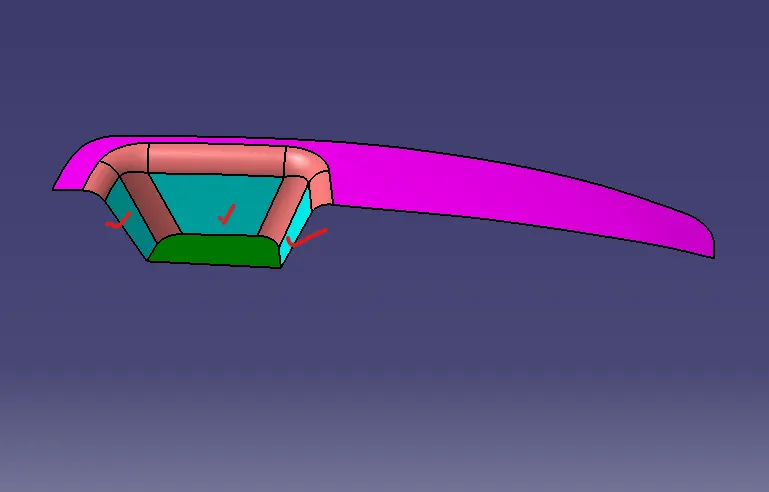

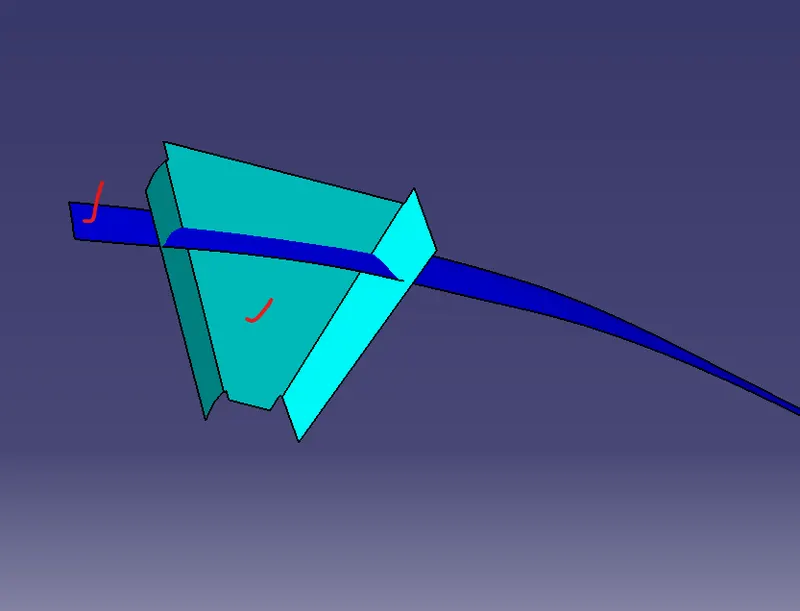

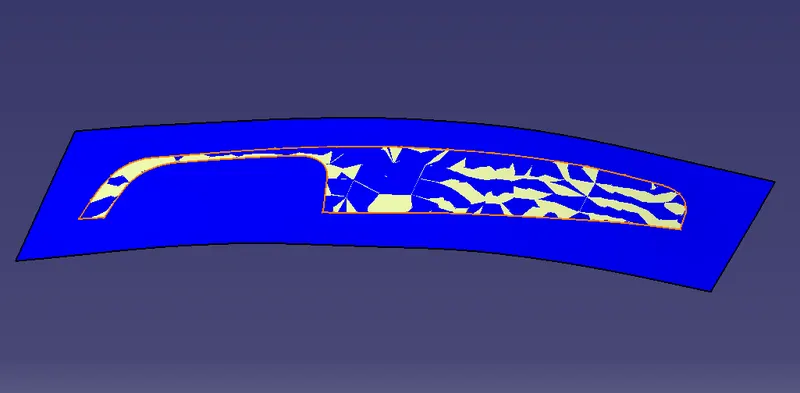

5) DRAFTING ANALYSIS OF CLASS A SURFACE

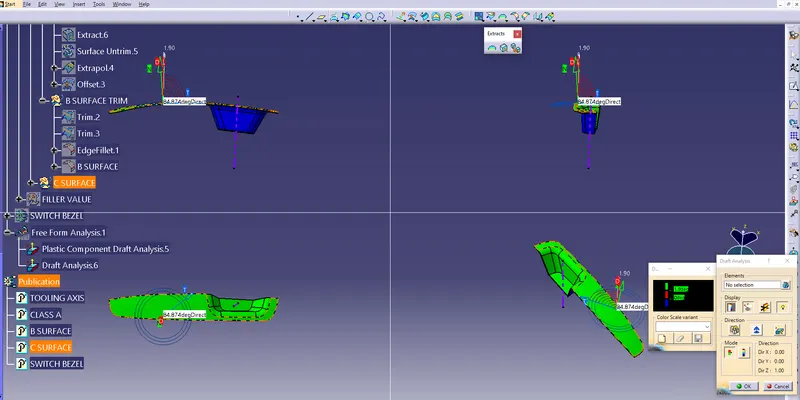

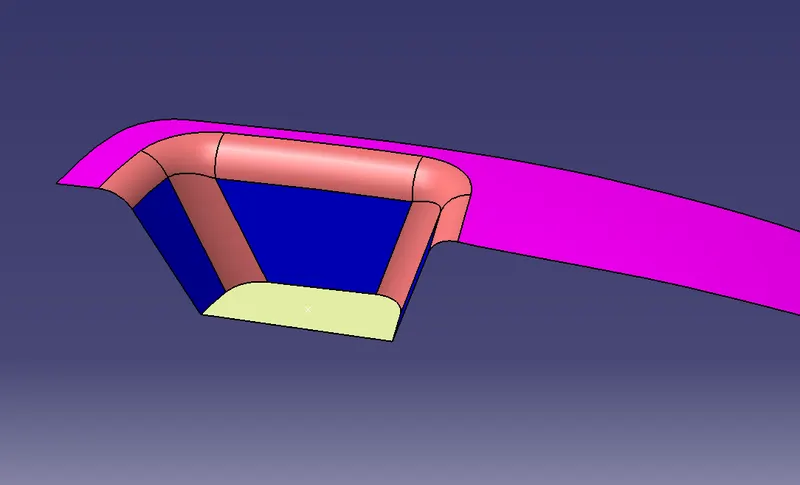

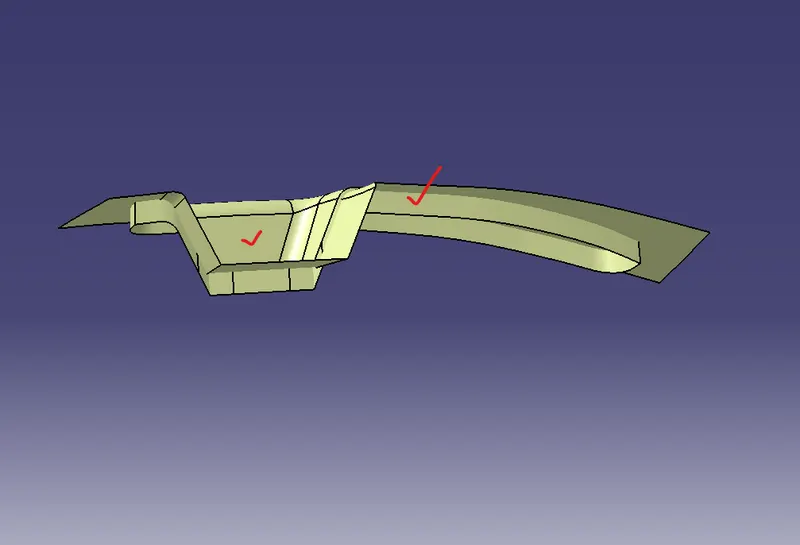

6) DRAFTNIG ANALYSIS OF PLASTIC COMPONENT
