Door Arm Rest Week 8 Challenge

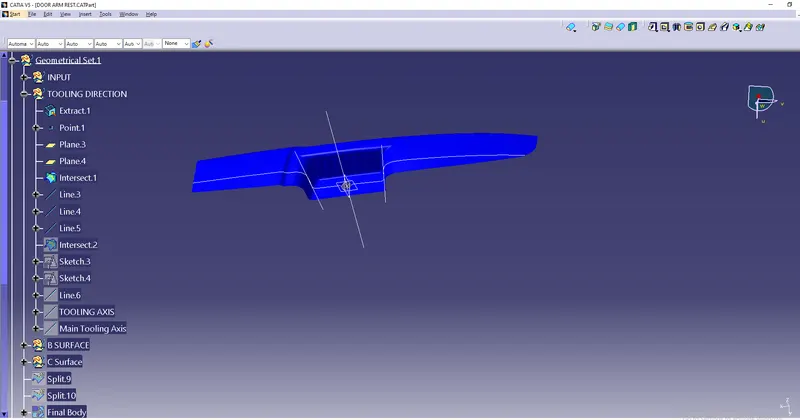

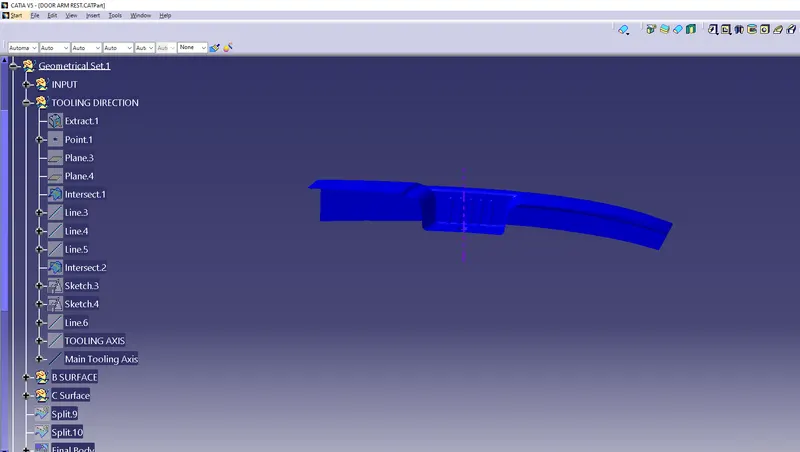

TOOLING AXIS

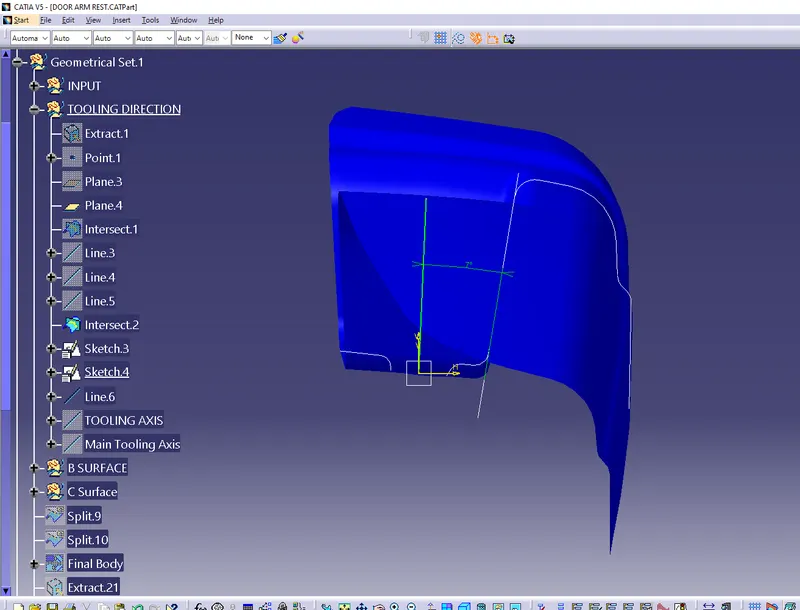

1) First extracted circle and created point over it. took two planes in X and Y direction and intersected in X direction first then created lines over inclined and by bisecteing method created tooling axis in X direction

2) Then similarly in Y direction intersected with plane and drew line 7degree with inclined surface and constrained it.

3) Again by bisecting line created tooling axis

B SURFACE

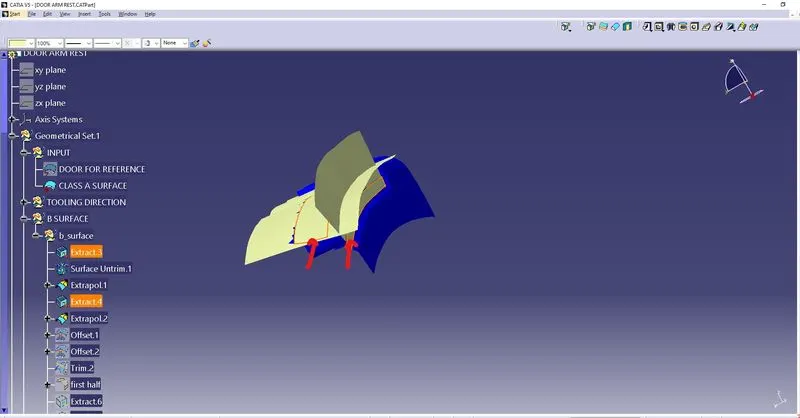

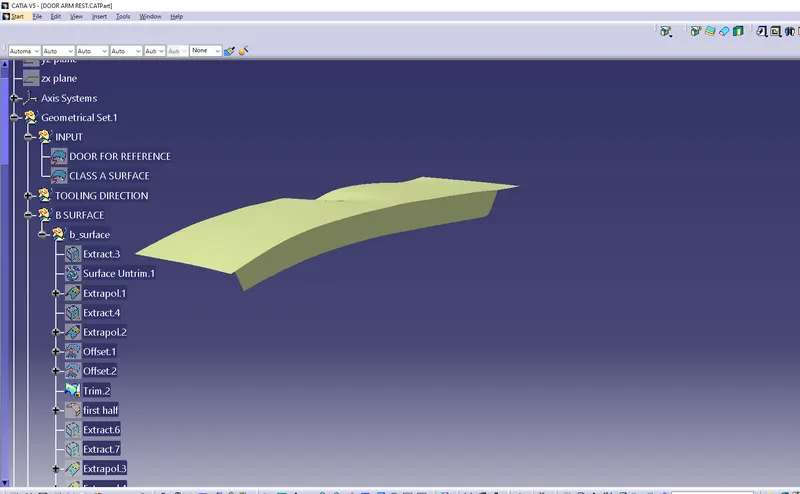

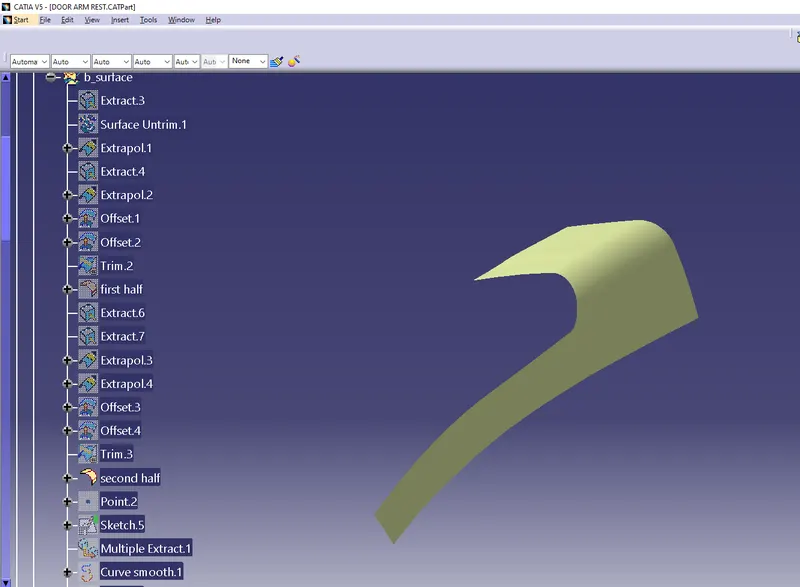

1) First created first half extracted this two part then untrimed, extrapolated, offseted with 2.5 mm and finaly trimed and filleted it.

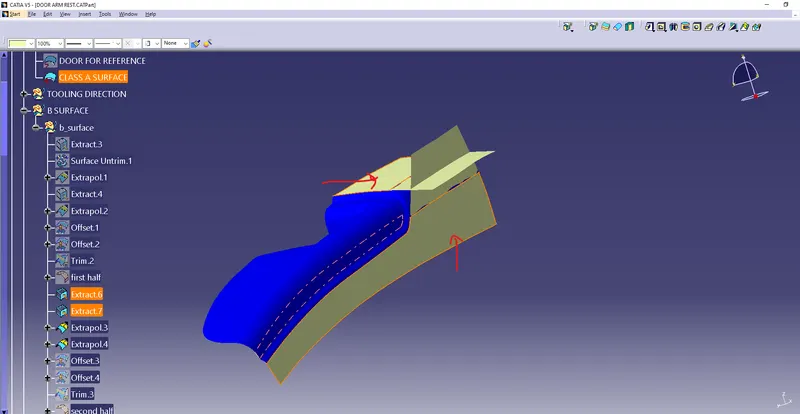

2) Then created second half extracted this two surfaces then extrapolated, offseted, trimed and filleted it.

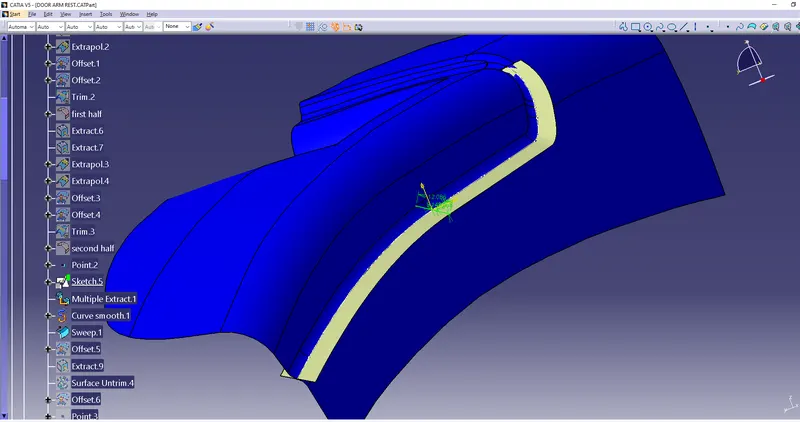

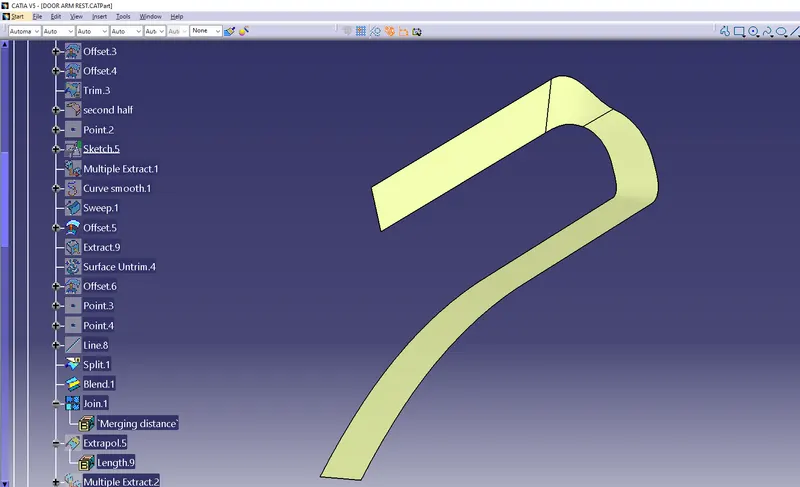

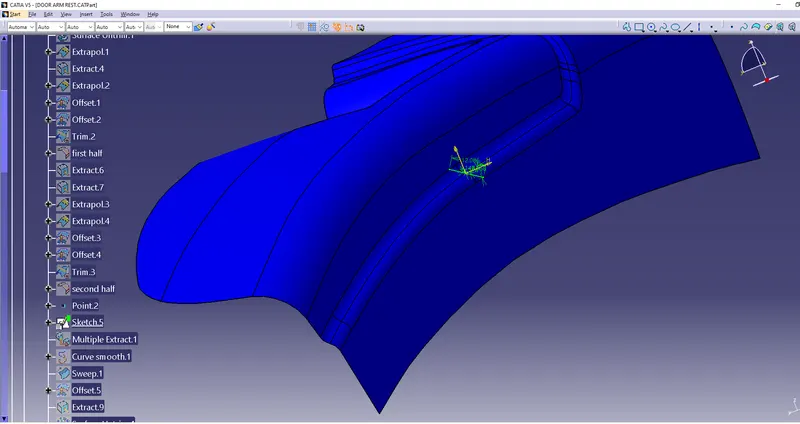

3) Created point on edge and drew line over it. took multiple extract gave smooth curve then sweeped and offseted it.

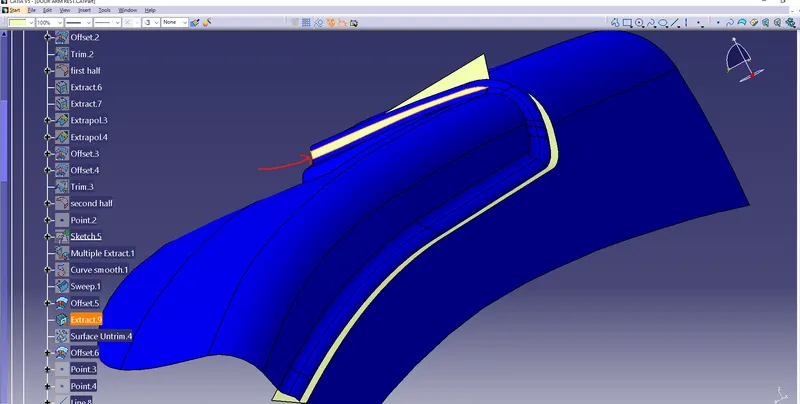

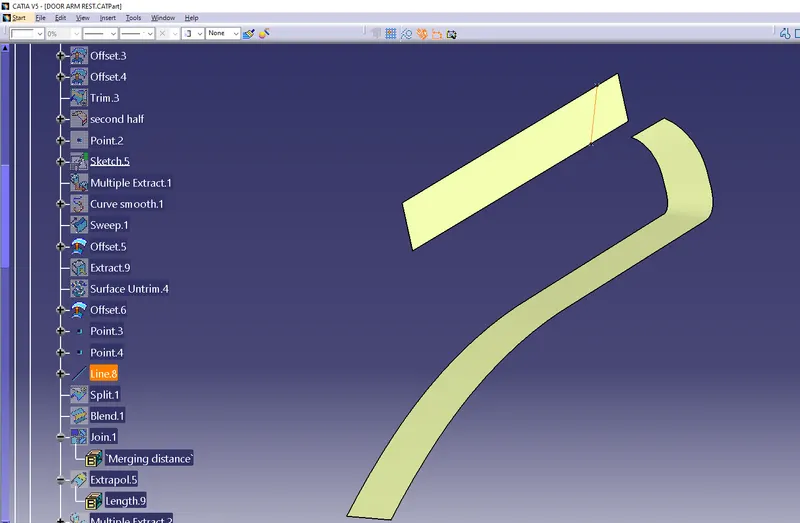

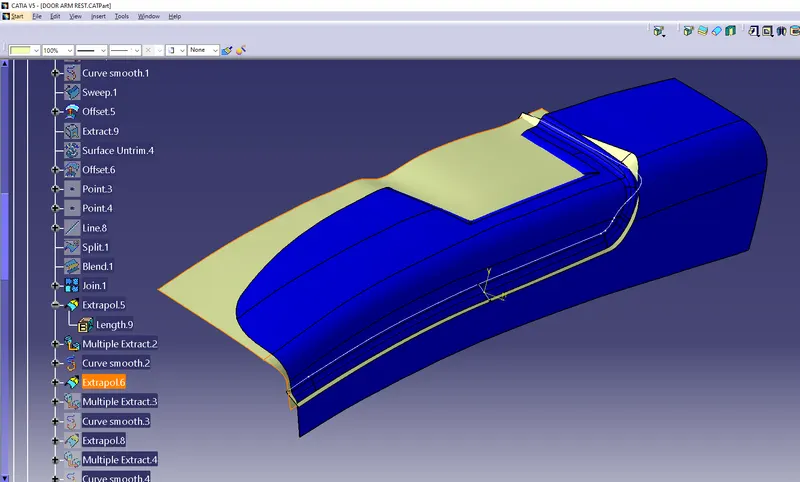

4) extracted this surface untrimed and offseted it. then created two points on surfaces and created line over surface. then splited, blended and joined it.

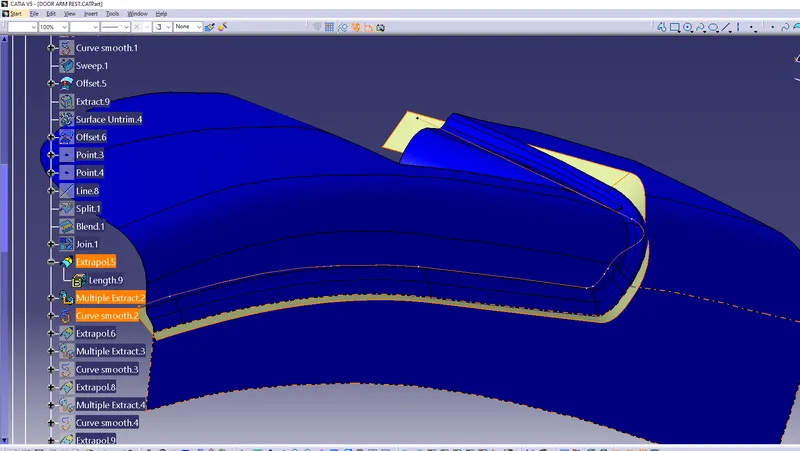

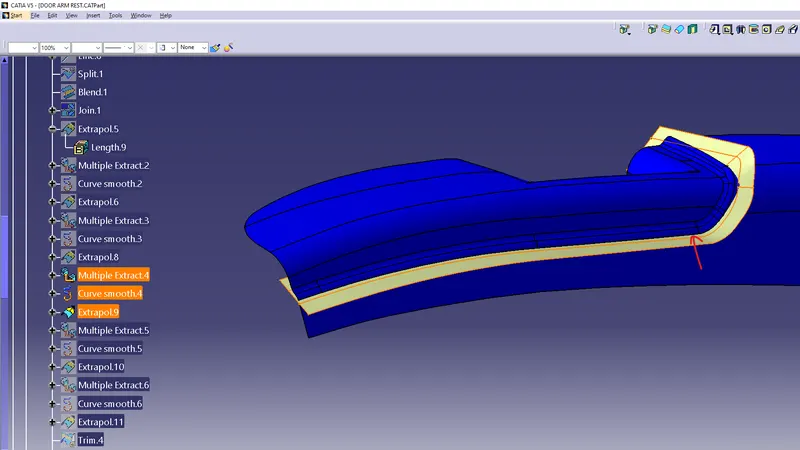

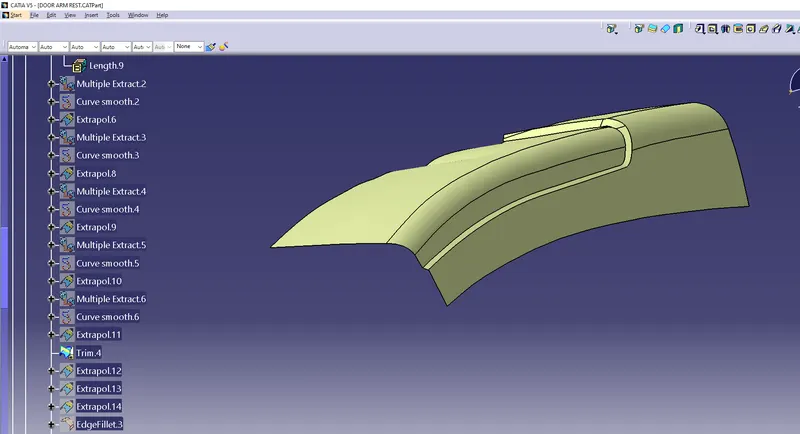

5) Multilple extracted this curve and gave smooth curve to curve. then extrapolated first half.

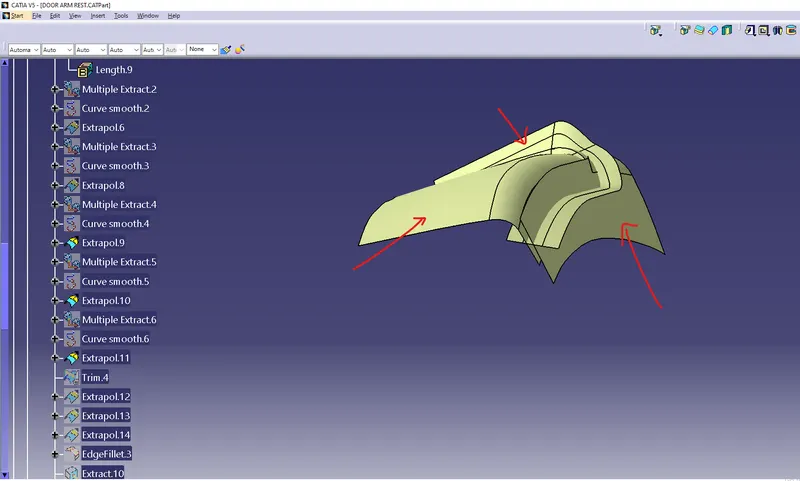

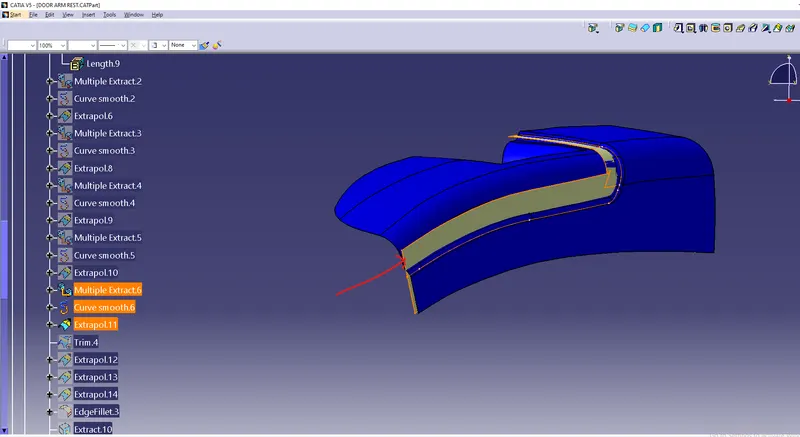

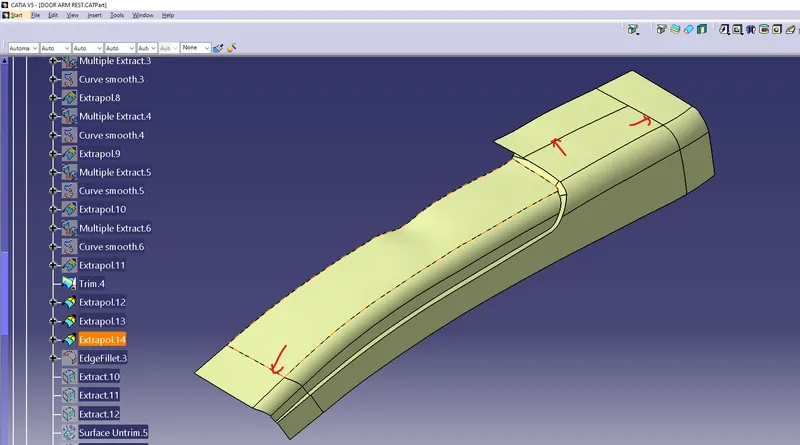

6) multiple extracted gave smooth curve and extrapolated it. then trimed all three extrapolate.

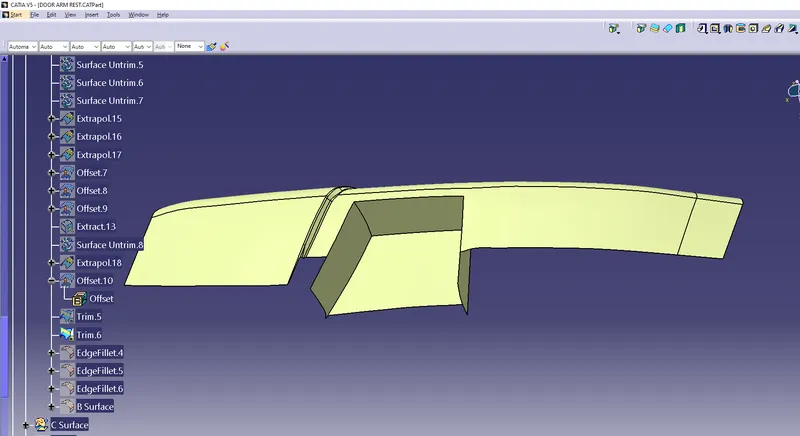

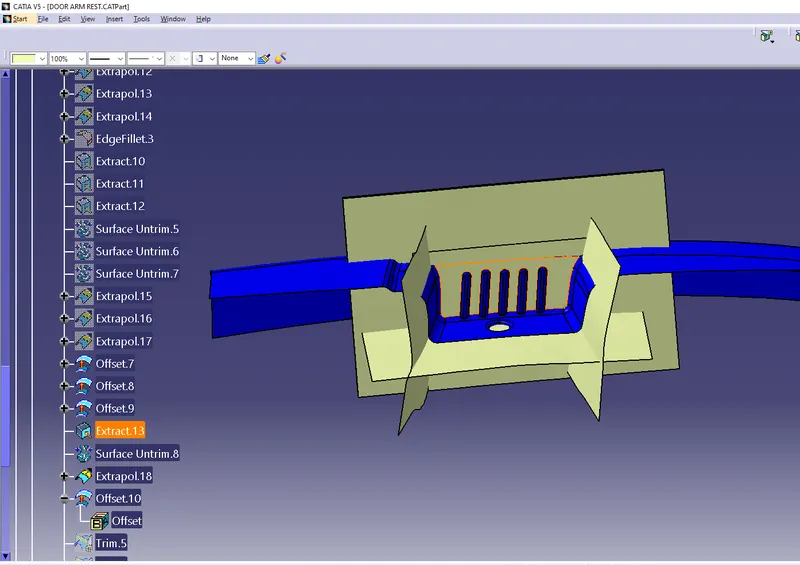

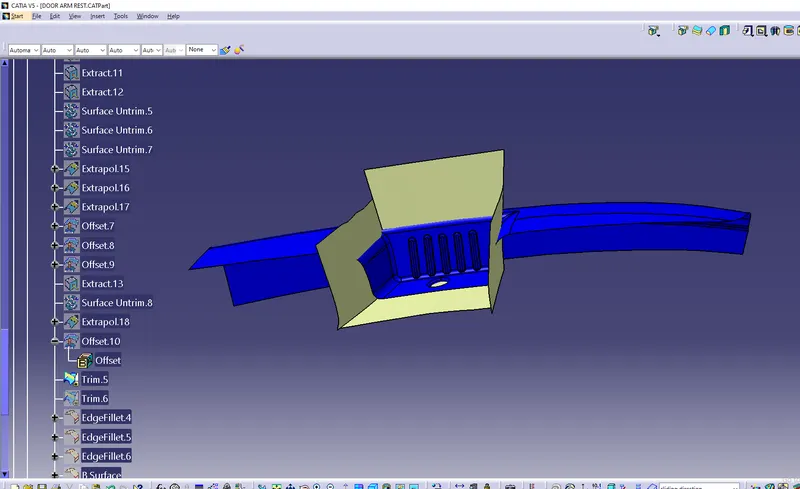

7) Extrapolated all these edges then extracted all wall surfaces. untrimed extrapolated and offseted all with 2.5 mm

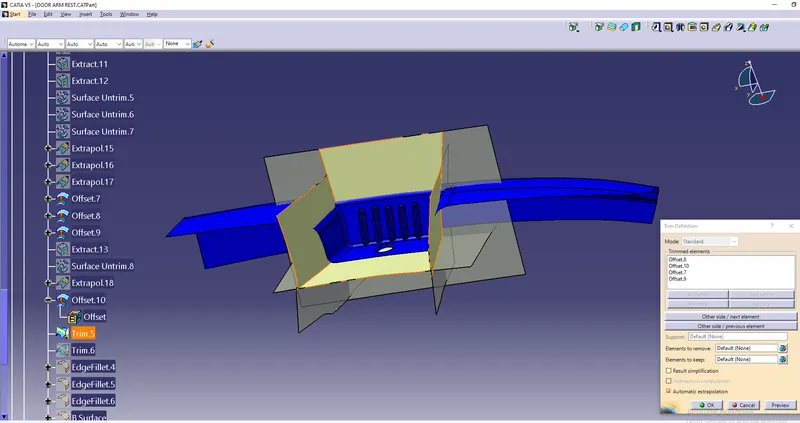

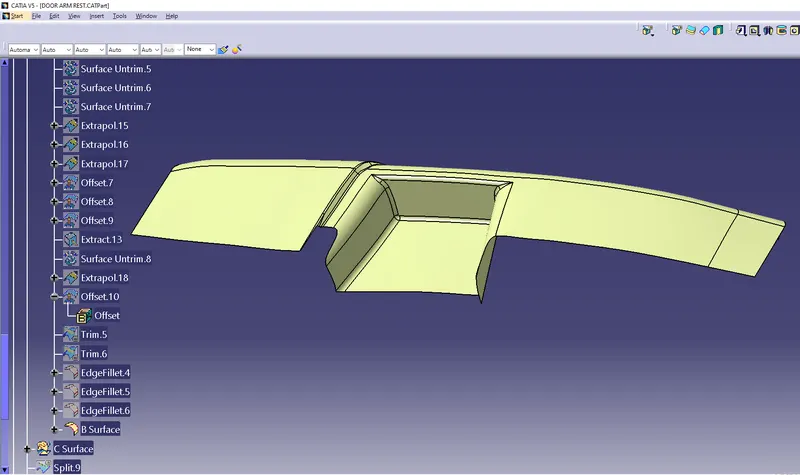

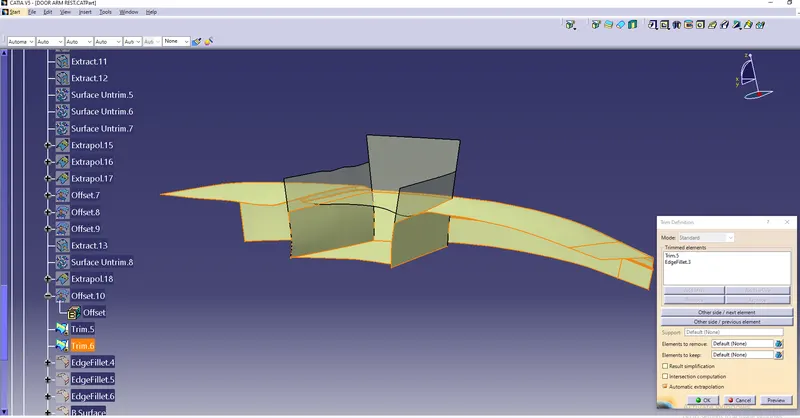

8) Trimed all that unwanted and measured fillet all sharp edges and filleted it.

C SURFACE

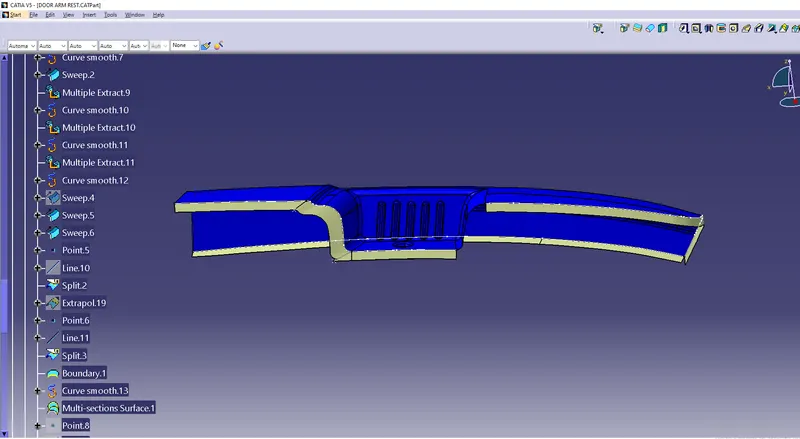

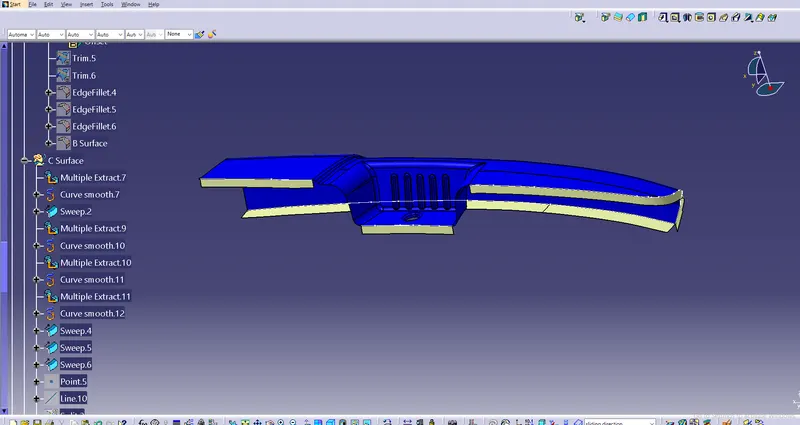

1) Extracted all showned edges gave smooth curve and sweeped it

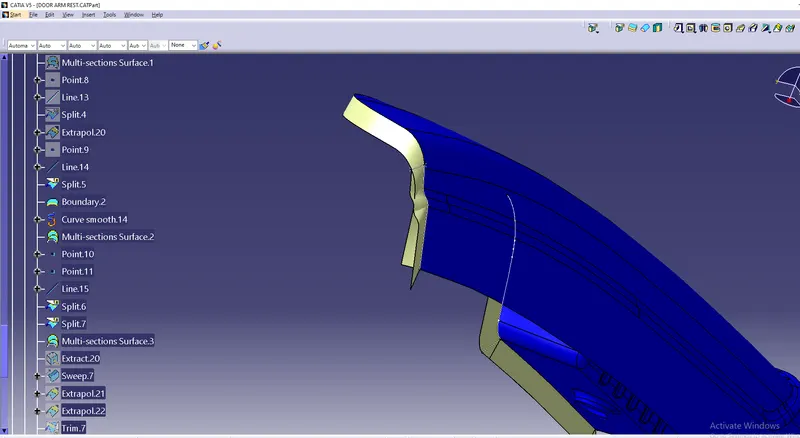

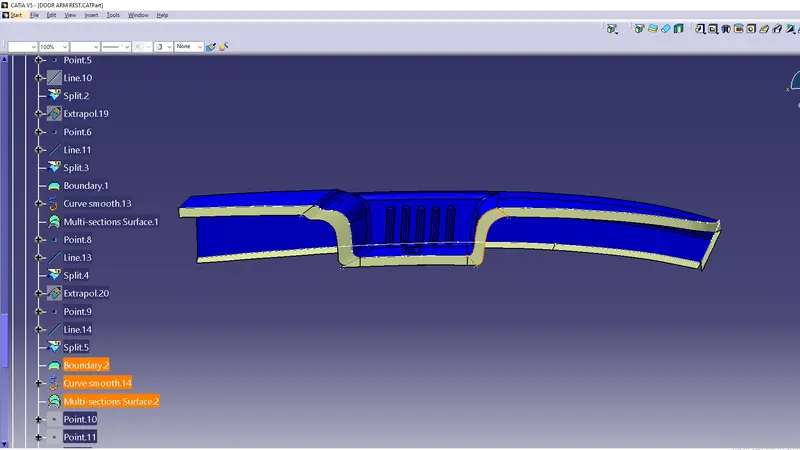

2) Here created points and drew lines and used multisection and similarly on other side.

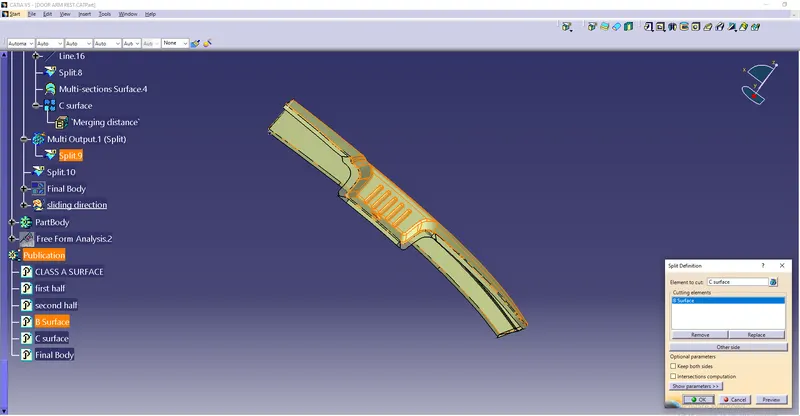

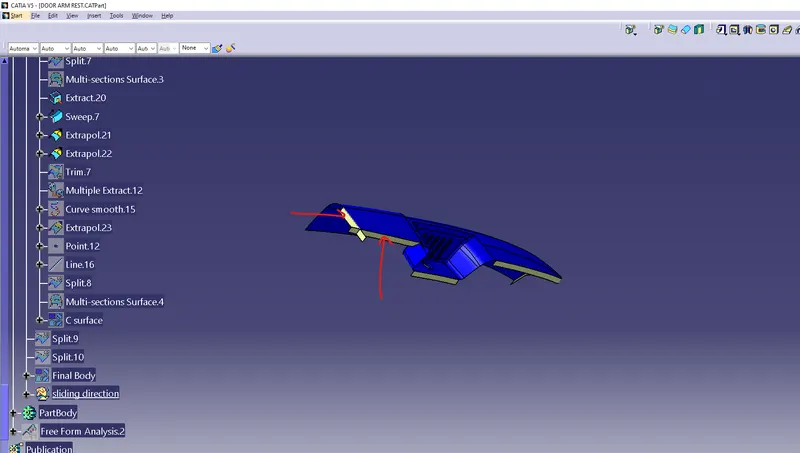

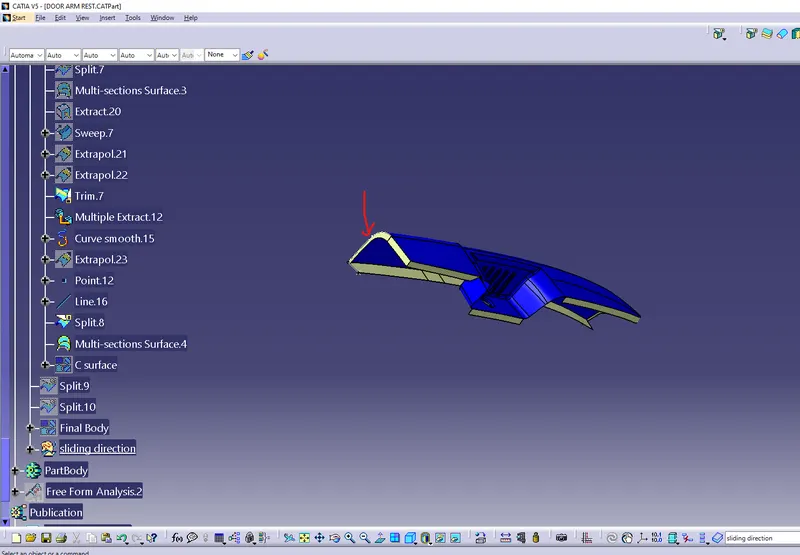

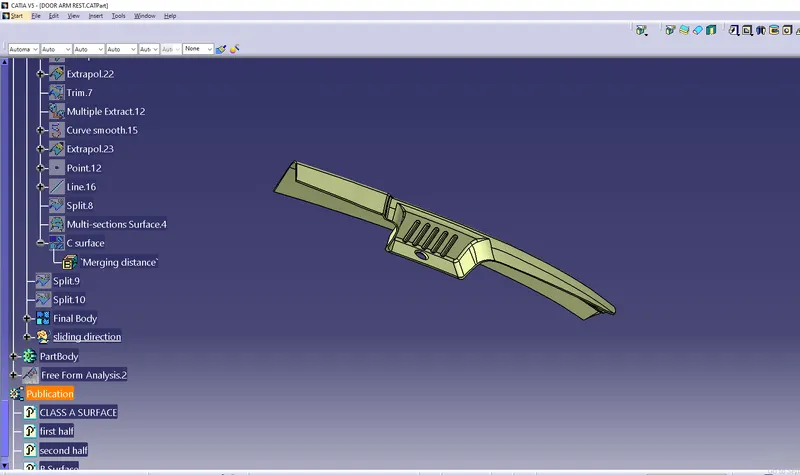

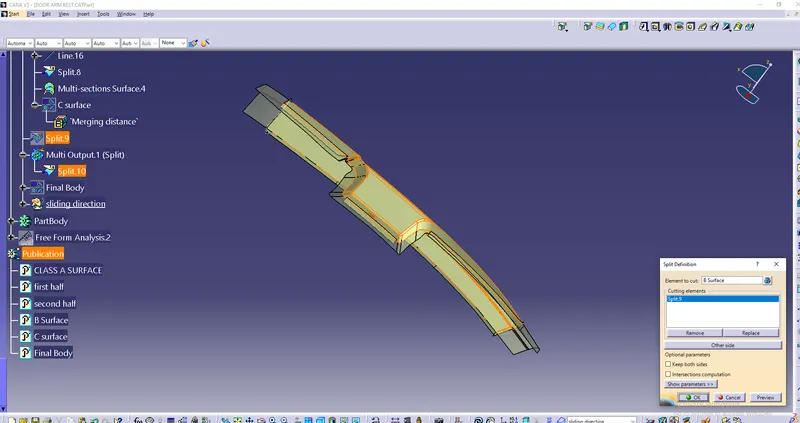

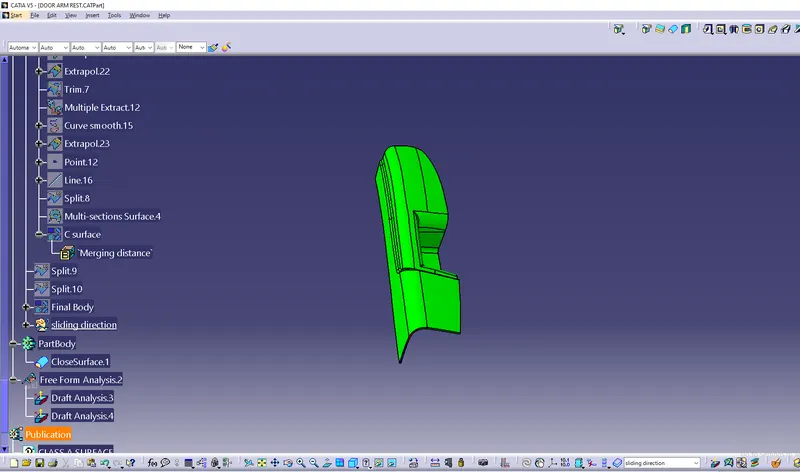

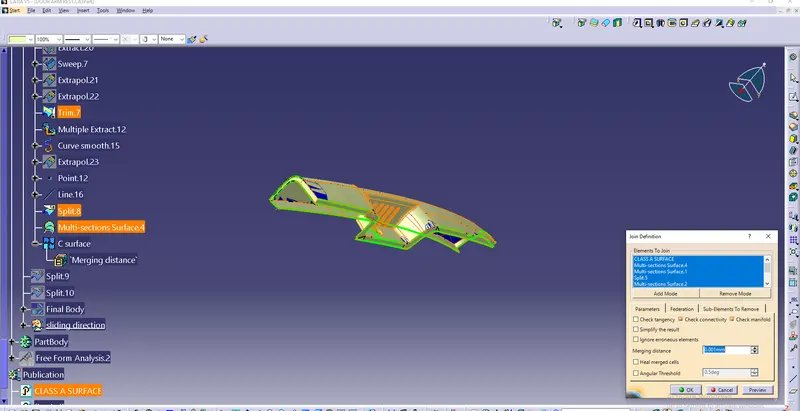

3) Extracted this edge and extrapolated and trimed it. then multiple extracted showned curve then gave smooth curve and multisectioned it. joined with class A surface. then splited B surface with C surface and futrher this gotted split splited with B surface.

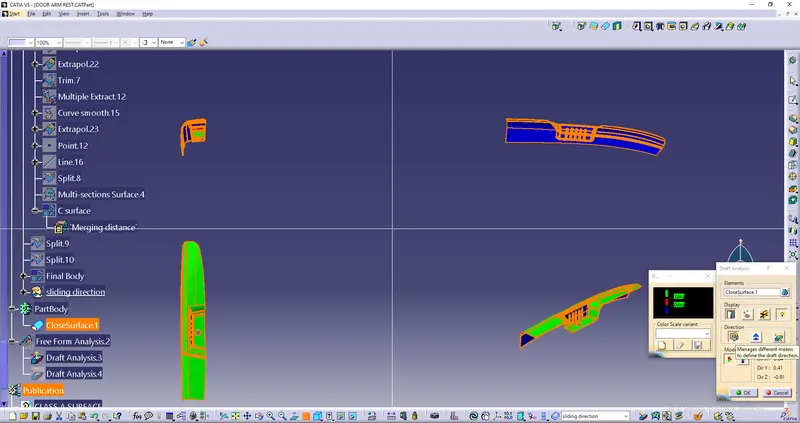

DRAFT ANALYSIS
