Week 8 - Challenge 4 - Coin Holder Design

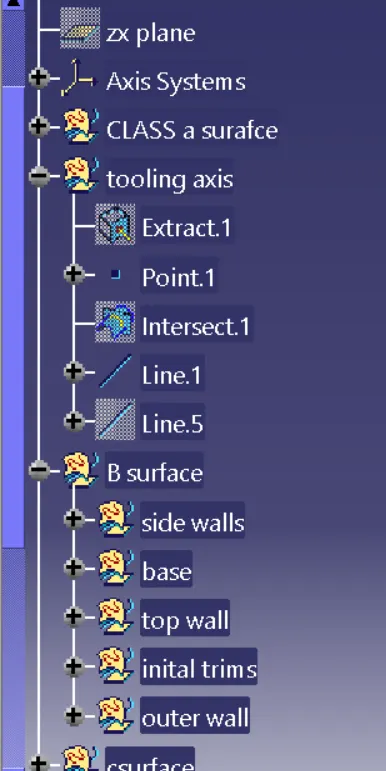

TOOLING AXIS;

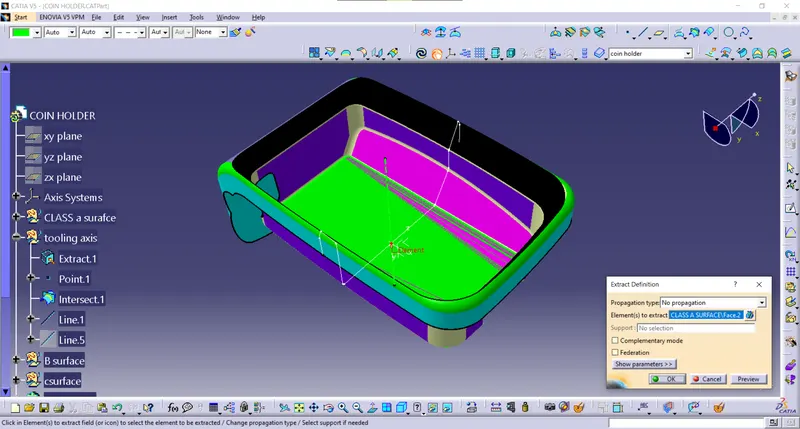

- Extract the base surface of class a surface

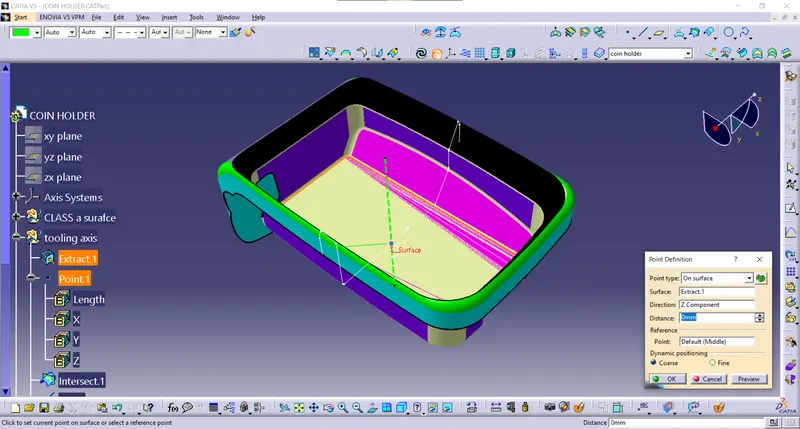

- create a point on extracted surface using a point on surface option

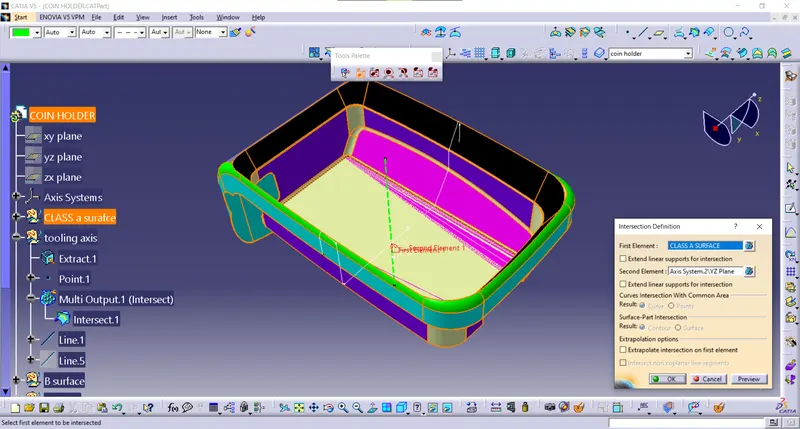

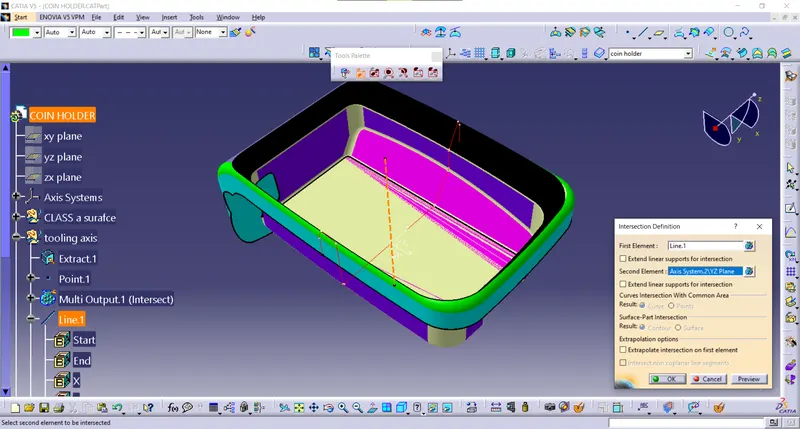

- insert axis system and create intersect in yz direction plane and class a surface
- create a line in using point direction using intersect point thus making it as tooling axis

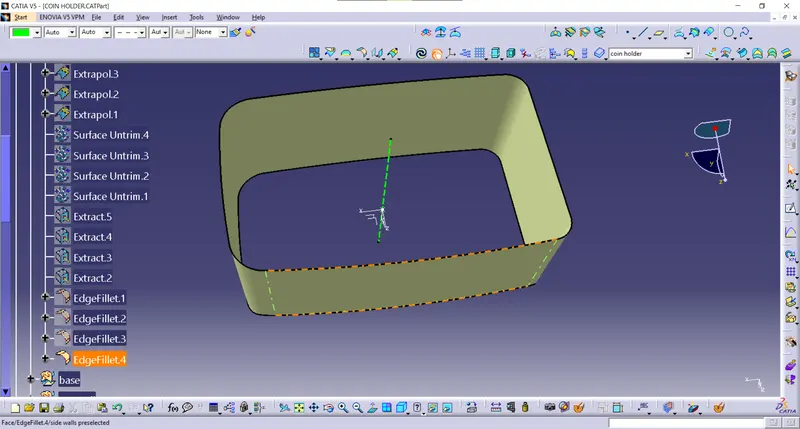

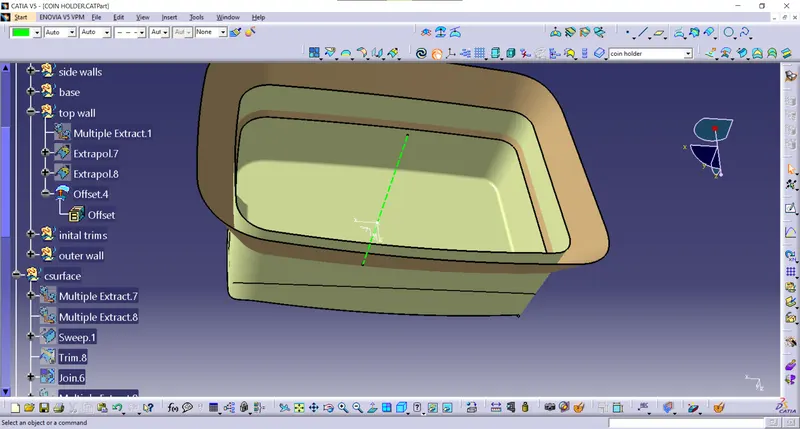

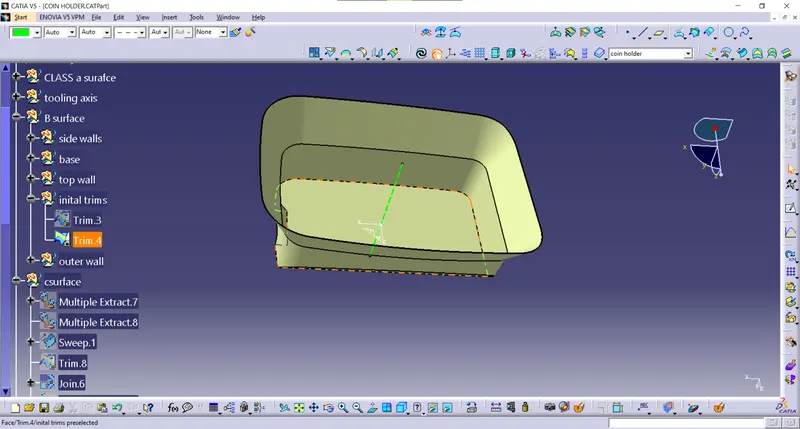

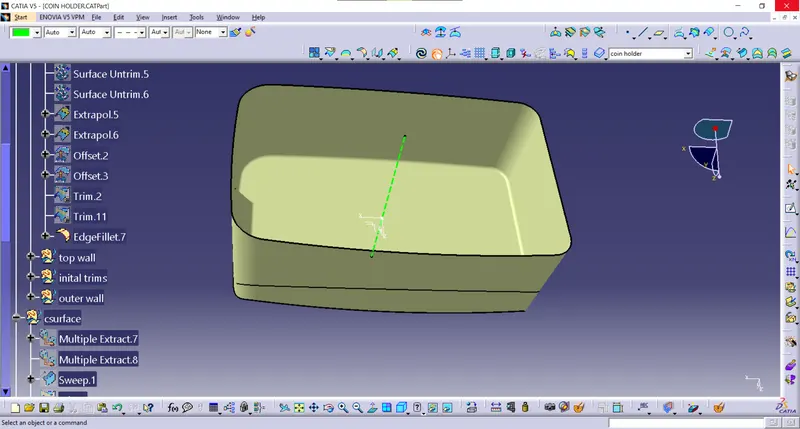

Class b surface

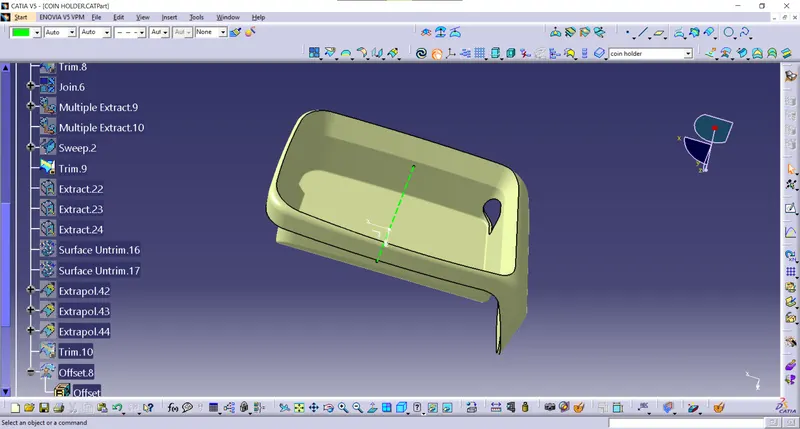

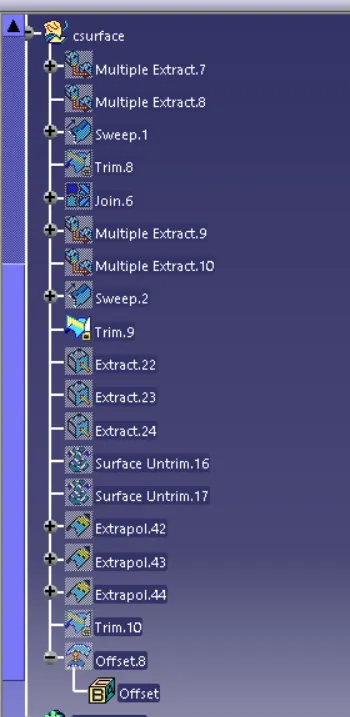

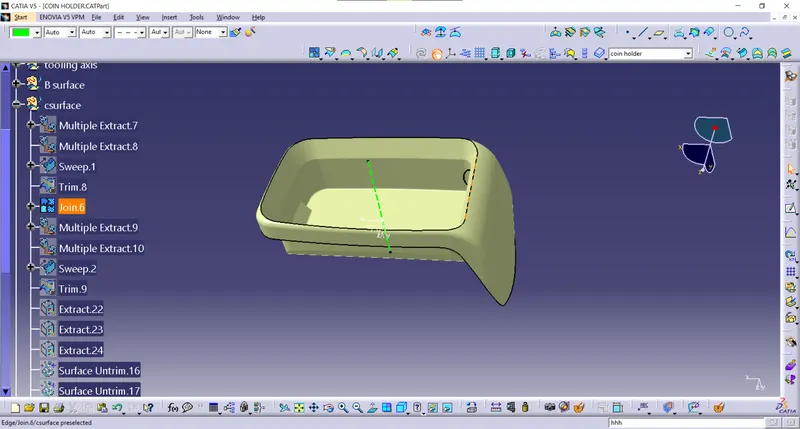

class c surafce

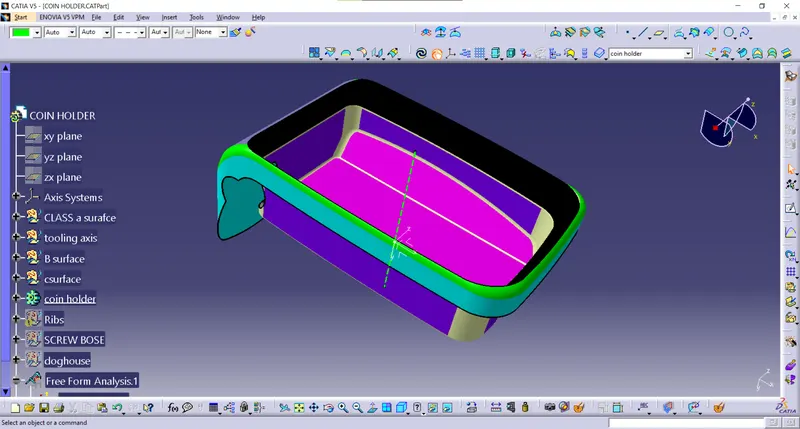

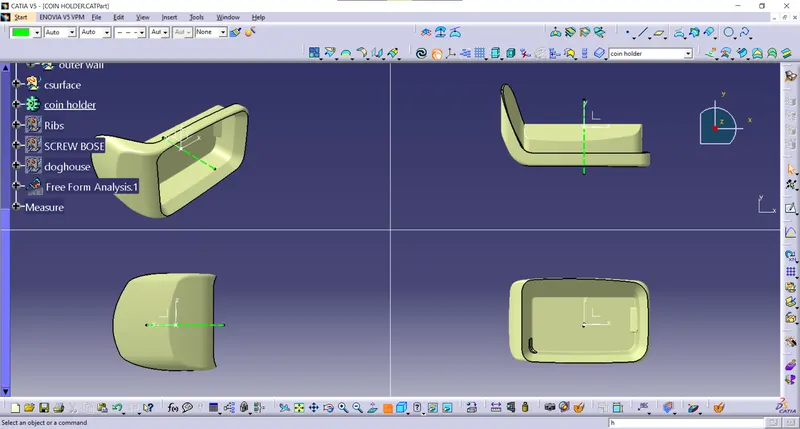

solid surface
Draft Analysis
- nominal draft angle is 3 degrees for subassembly up to 7 degree
- using Feature draft analysis; at the first position, the compass on the tooling axis and then lock-on
- then click on the component in x mark then the color of the component appears in a colored manner on surface
- it means green colored surface appears are accepted draft angle the component will pass in analysis
- can check angle from using analyses in running point in the surface
- two-mode we can use for analysis quick analyses and fully analysis mode

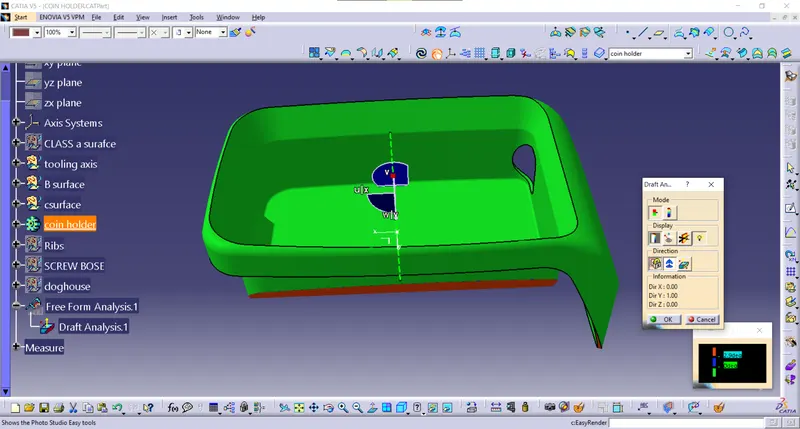

draft analysis for solid surface

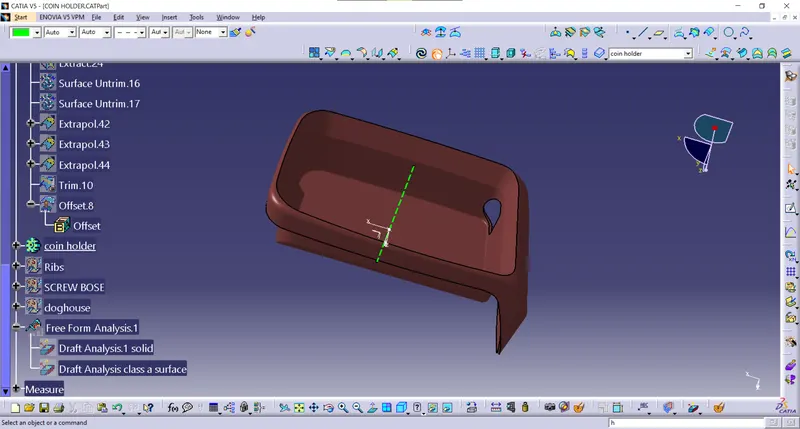

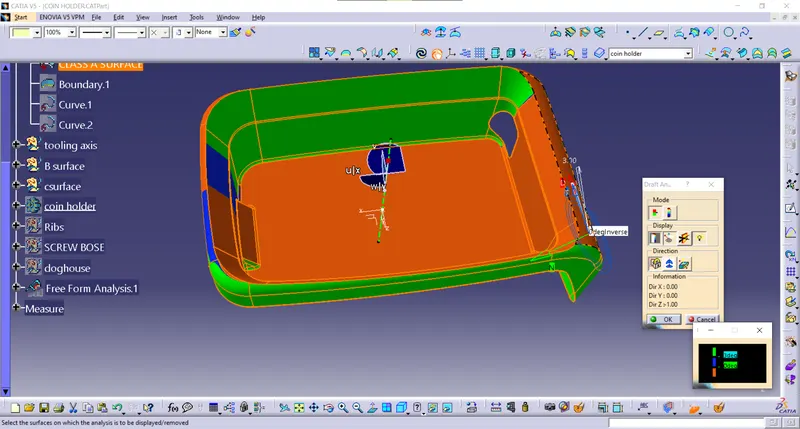

draft analysis for class a surface

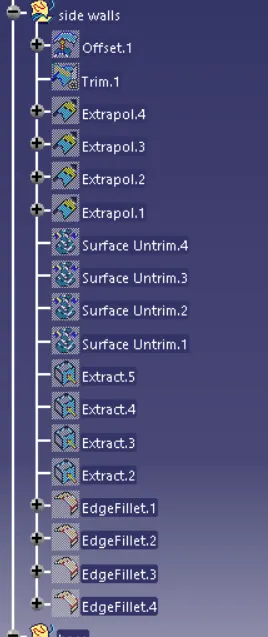

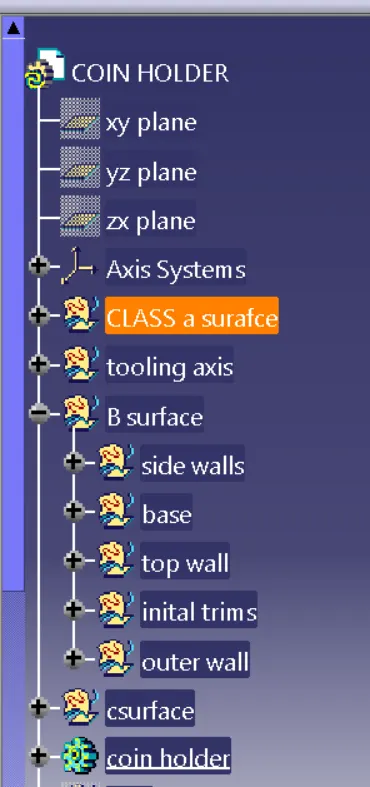

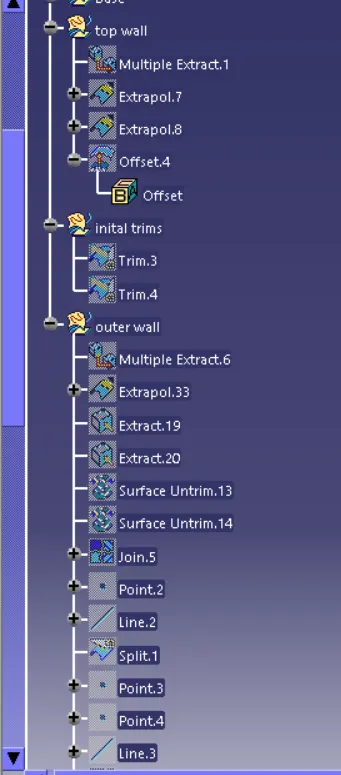

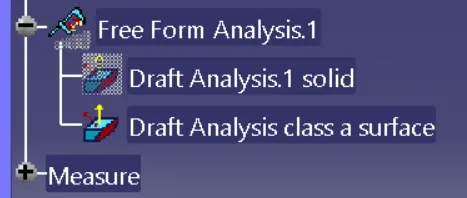

TREE structure
