Week 8 - Challenge 4 - Coin Holder Design

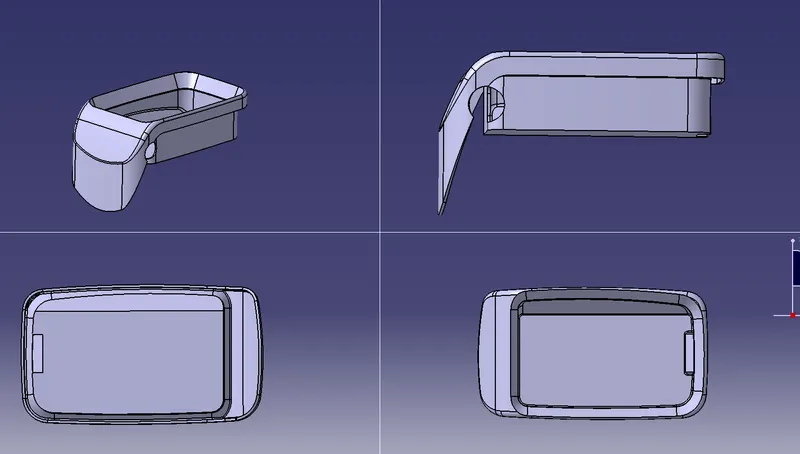

Coin Holder Design

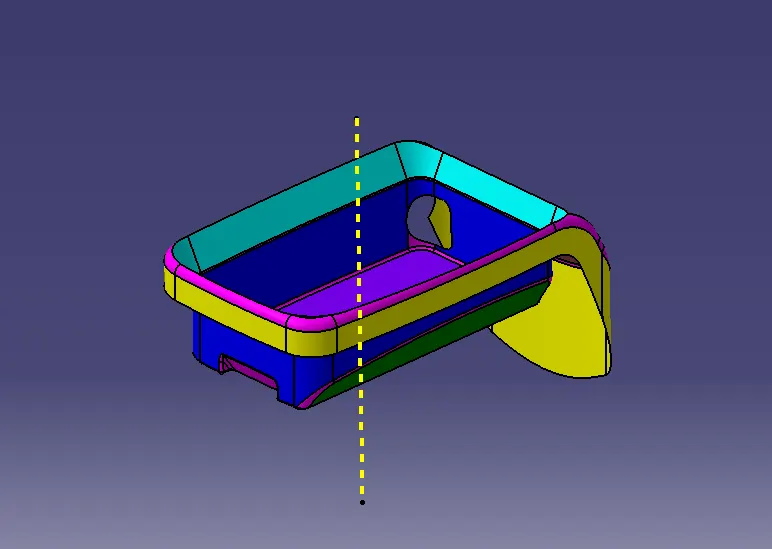

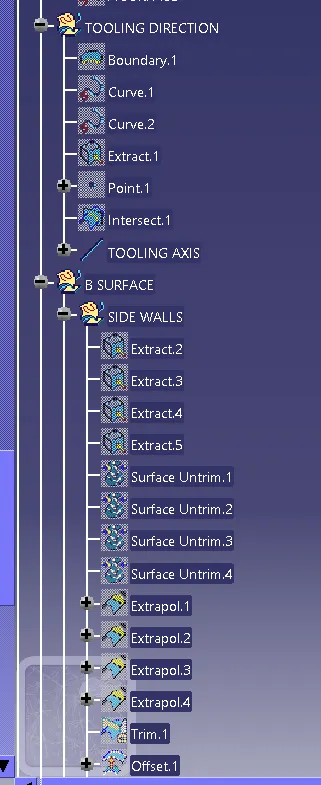

For the creation of Draft Analysis, we have to create Tooling Axis

while creating the tooling axis we have done the intersection method and then we analyze that intersect but the one side of the edge is 90-degree perpendicular so we created directly tooling axis in centre of that surface.

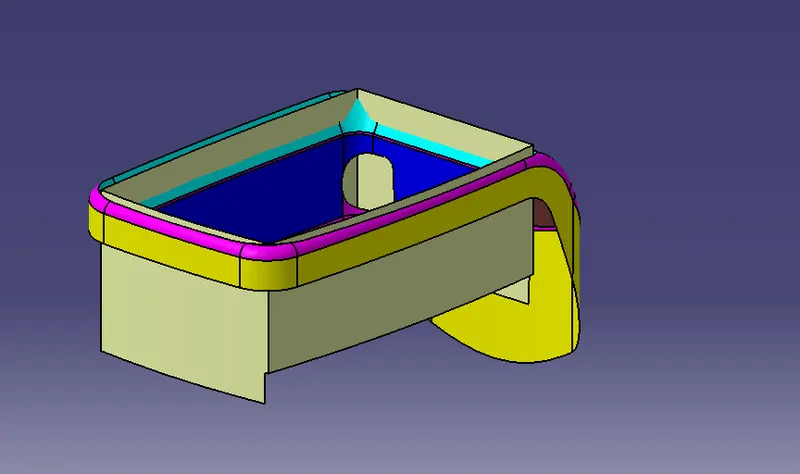

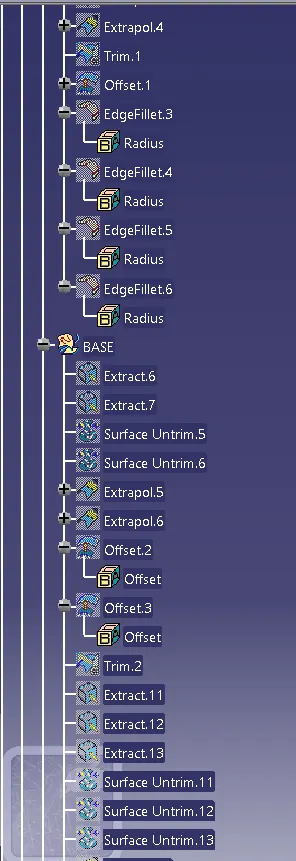

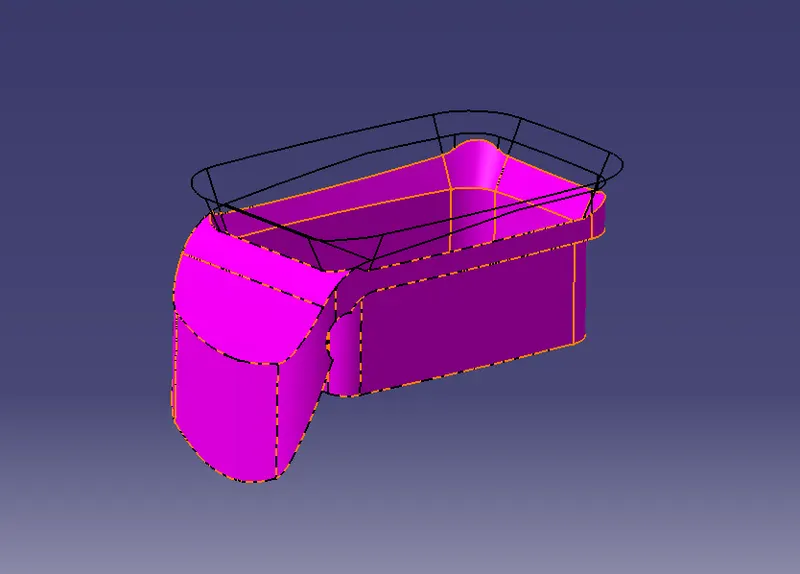

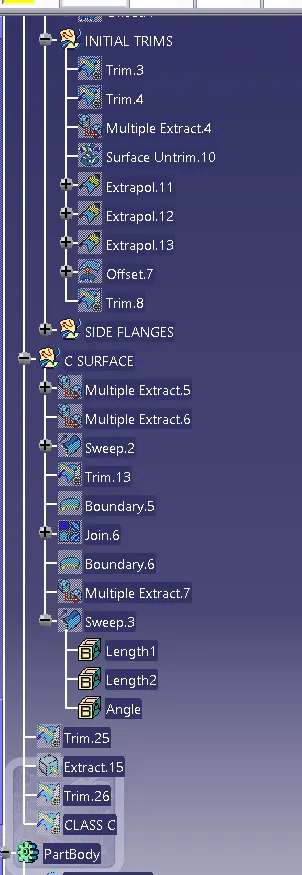

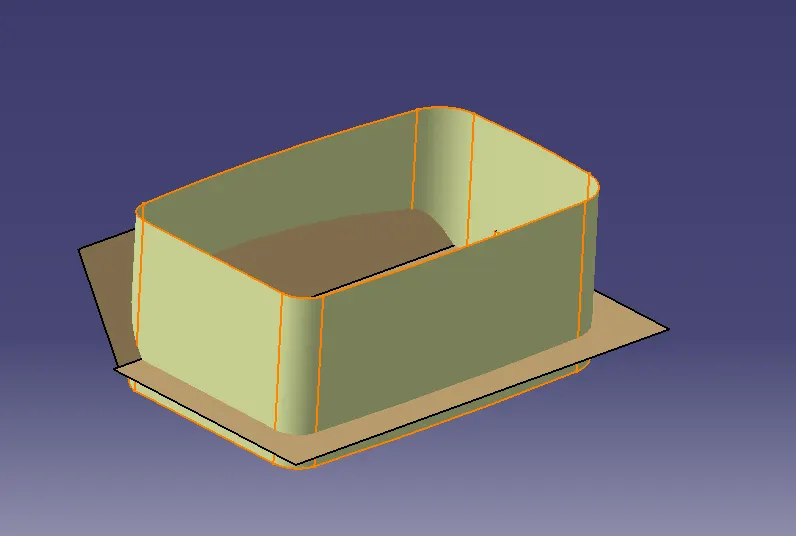

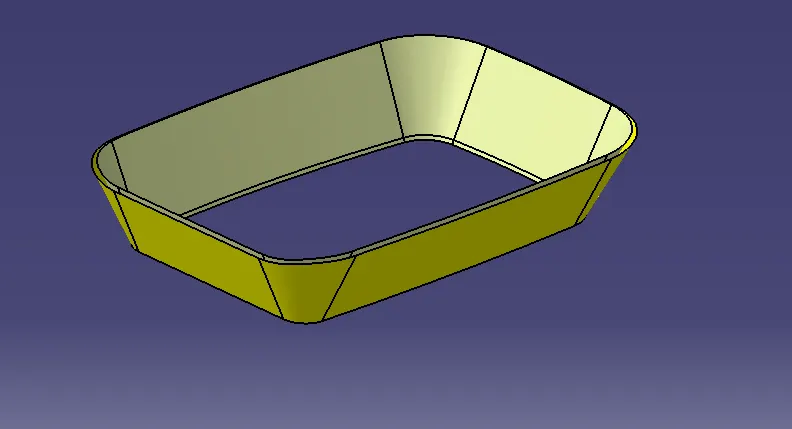

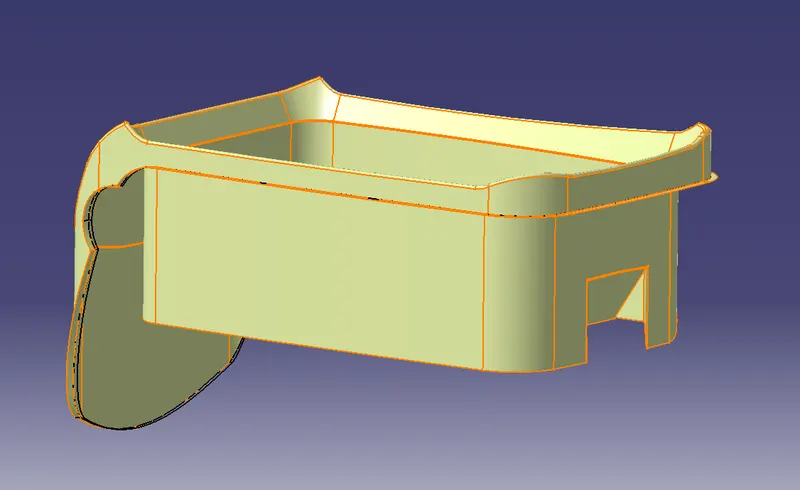

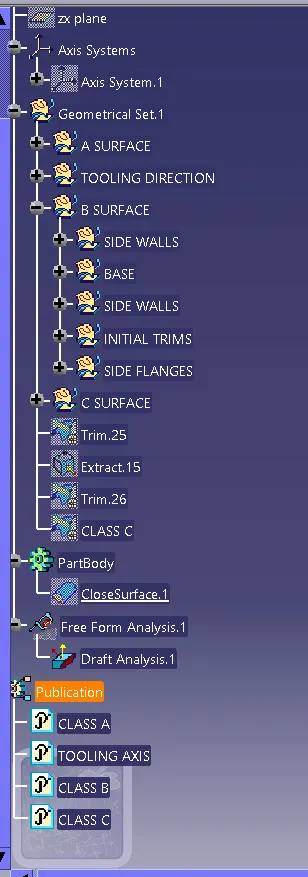

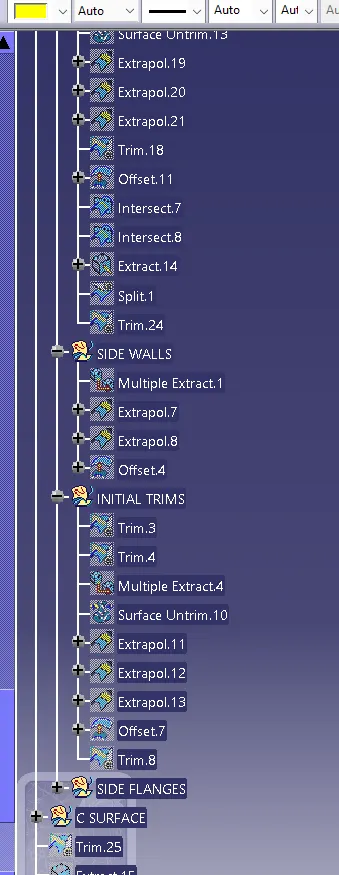

Step by step created B surface

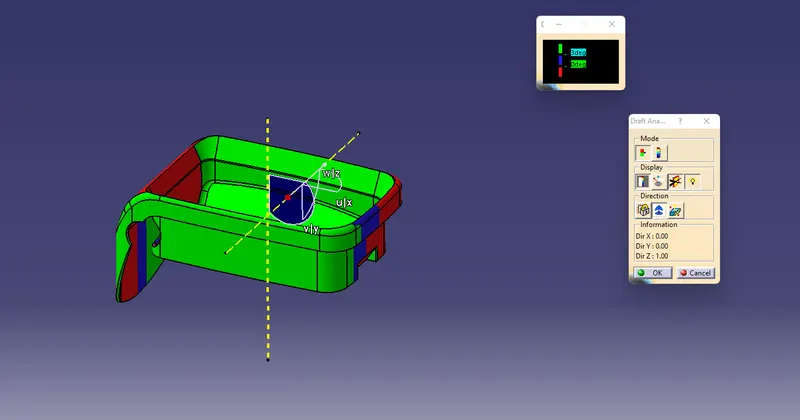

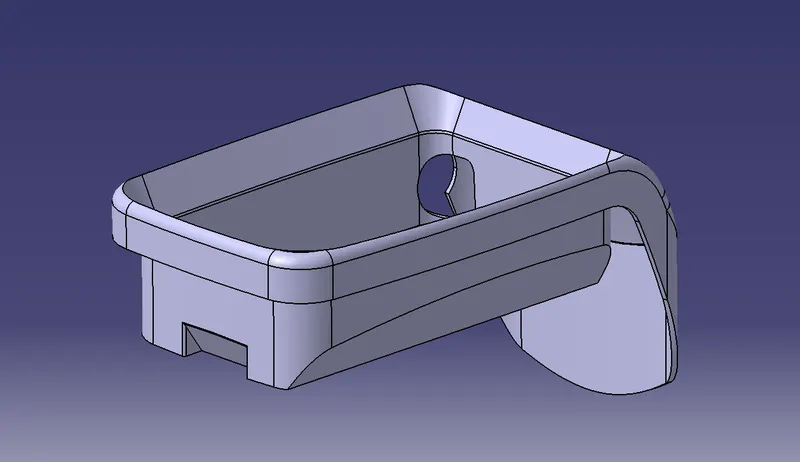

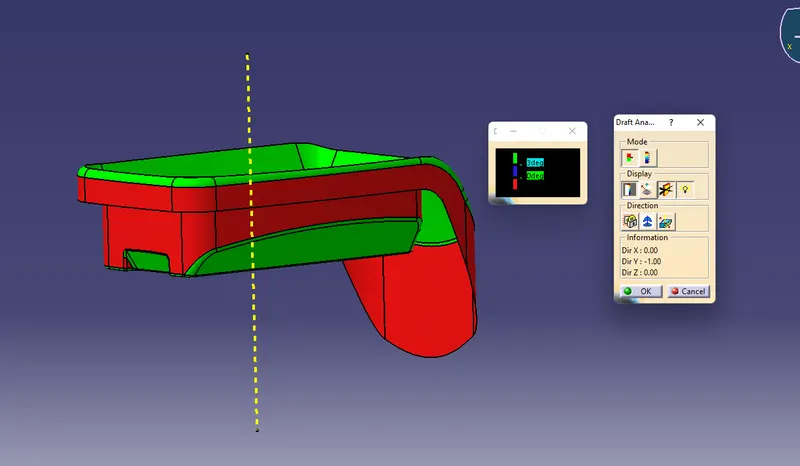

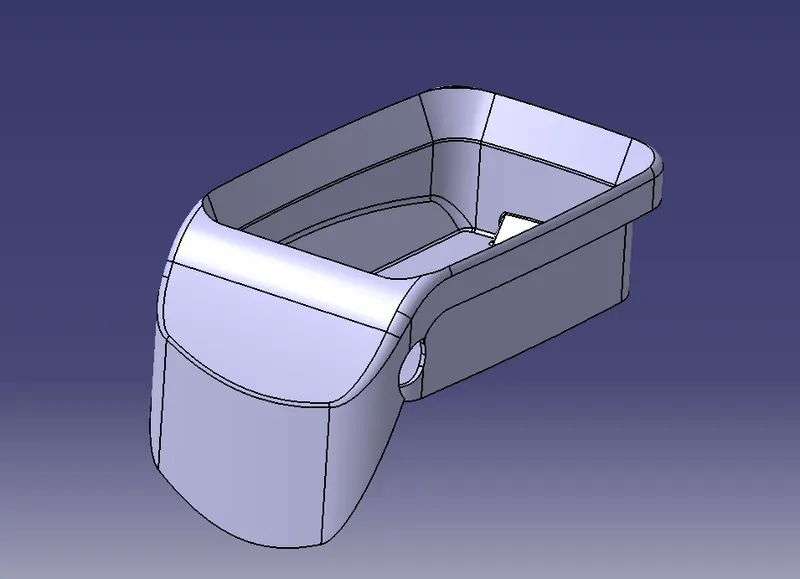

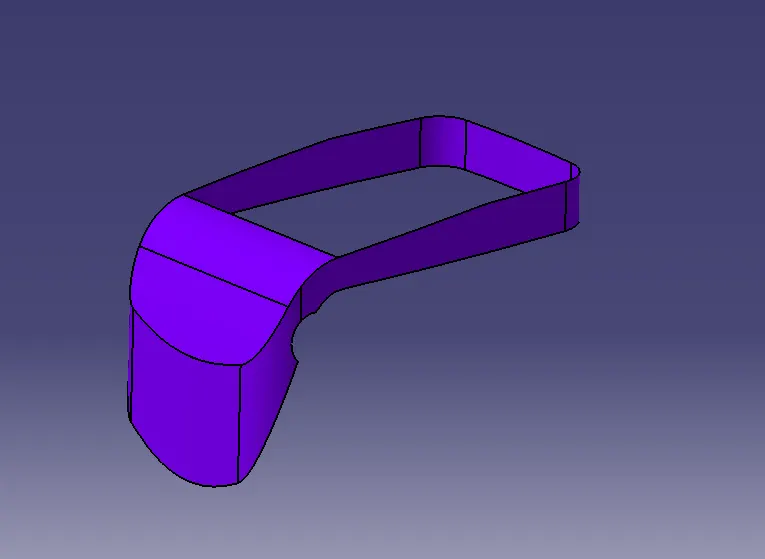

Draft Analysis on Closed Surface

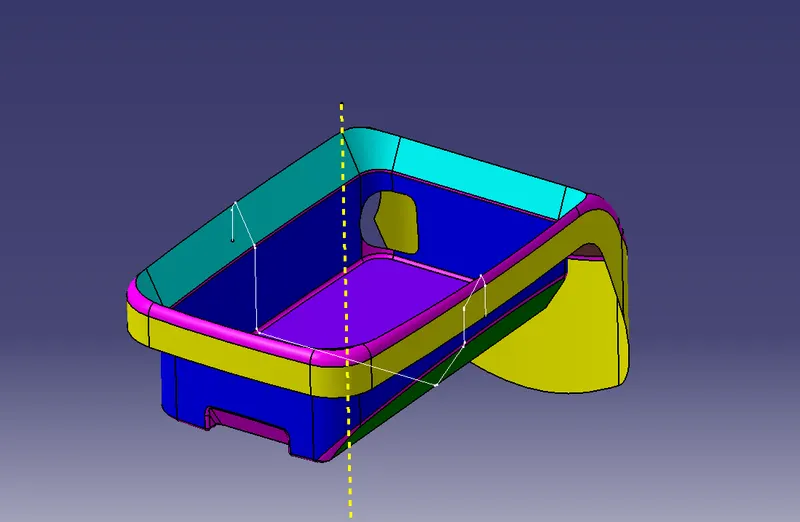

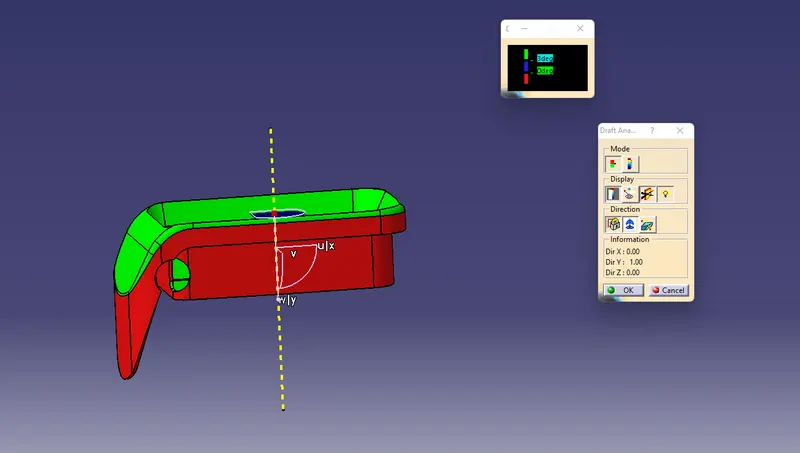

Created Side core Tooling Axis for Draft Analysis

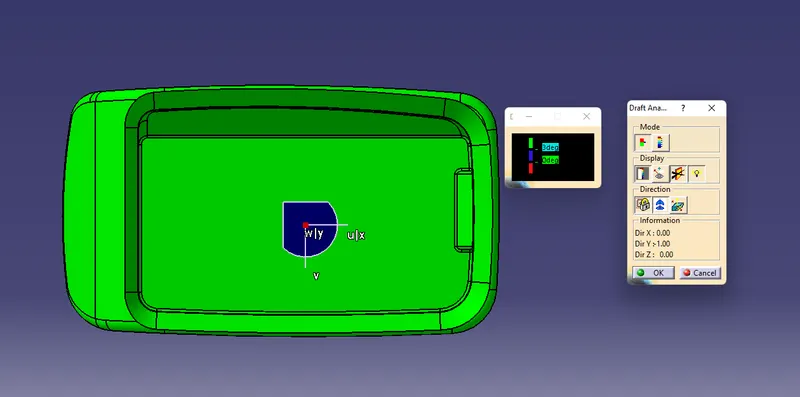

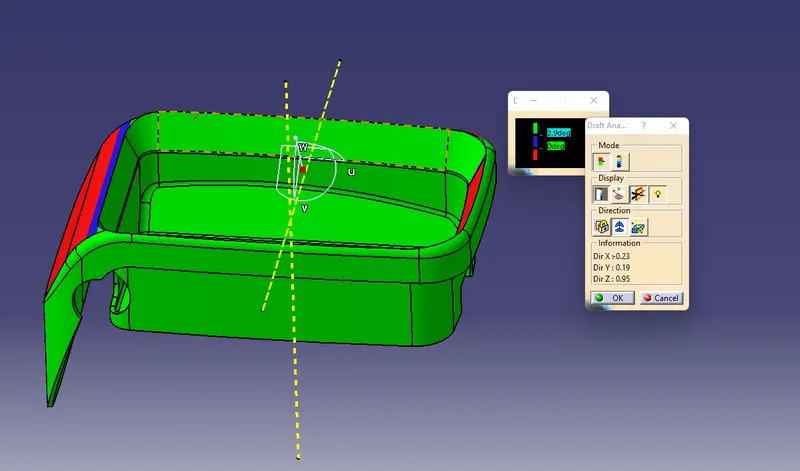

Adjust Compass as per Draft Analysis
