Week 8 - Challenge 4 - Bumper

REPORT:

The Tooling Axis was created for the Draft Analysis as shown above. The Tooling Axis was created by creating a line perpendicular to a flat surface at the bottom, which was adequate for the analysis. The Tooling axis was suitable and was able to clear the draft angle at the necessary places. The Tooling Axis created perpendicular to the surface was acceptable, hence the Bisecting Method was not used during Tooling Axis Creation.

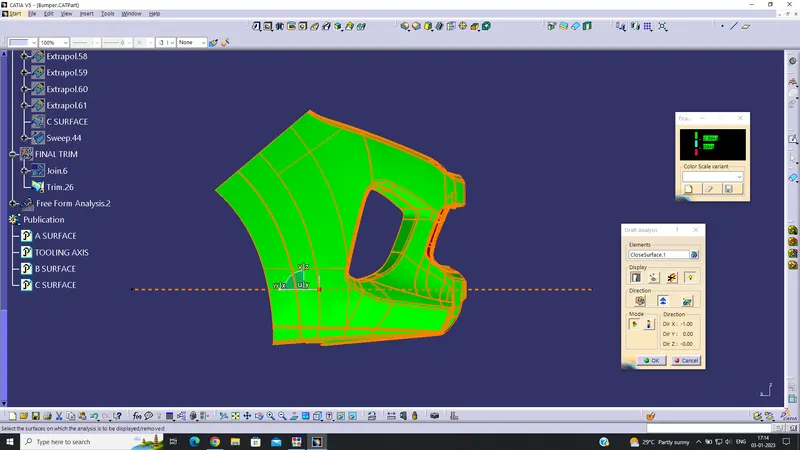

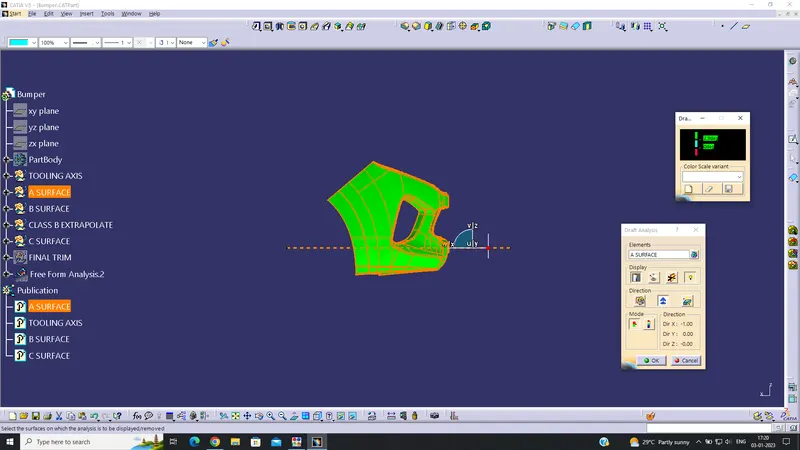

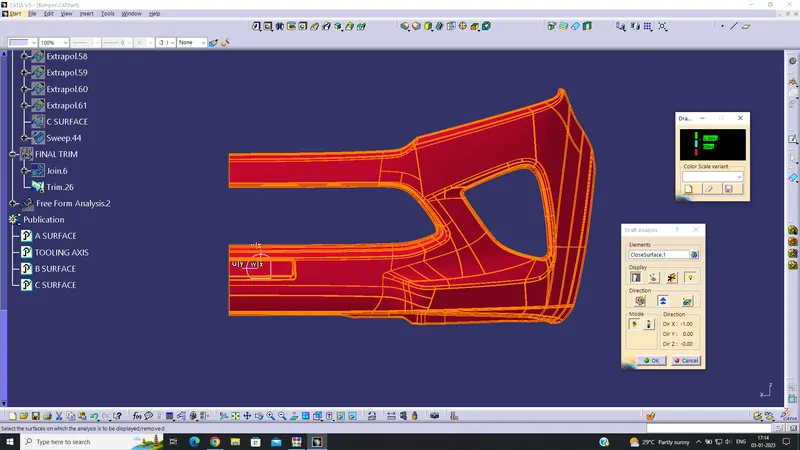

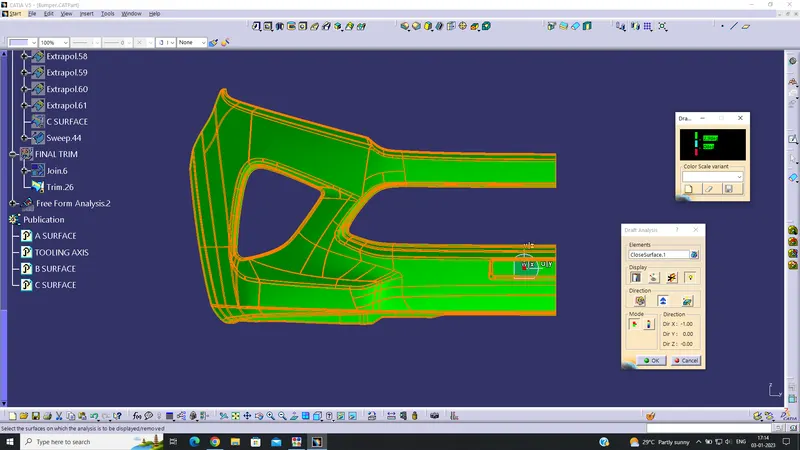

The Draft Analysis was done and the tooling axis was satisfactory as it cleared the draft analysis. The draft angle was provided at the places necessary.
