Week 8 - Challenge 3 - Coin Holder Design

REPORT:

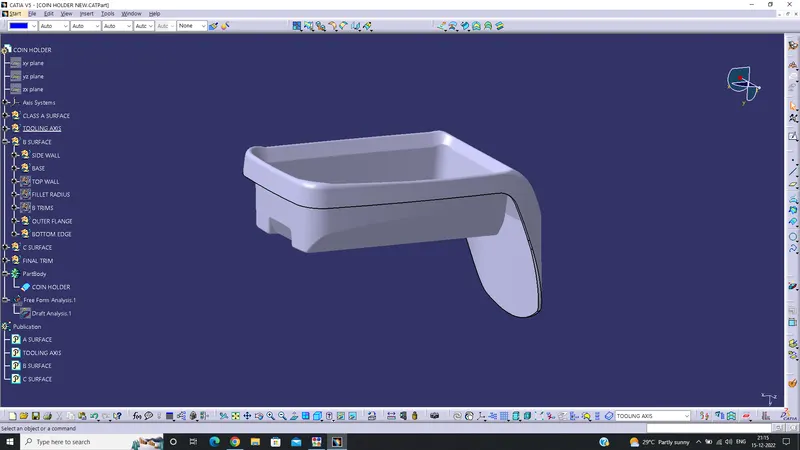

Before constructing the tooling axis, the walls of the component are examined. On examination, the side walls of the component are perpendicular to the base at 90deg. Since the walls are at 90deg to the base, the Tooling Axis is constructed by creating a line normal to the base.

A point is created on the base by creating a point in the middle of the base. Then a line is created from the point to the Y-Component. This line is considered the Tooling Axis.
