Week 8 - Challenge 4 - Bumper

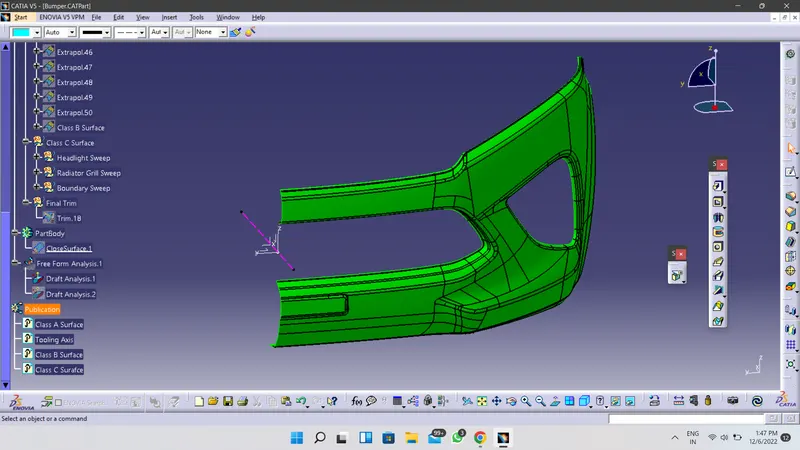

- Screenshots of the Draft analysis report for both the given Class-A surface
1. Draft Analysis Report

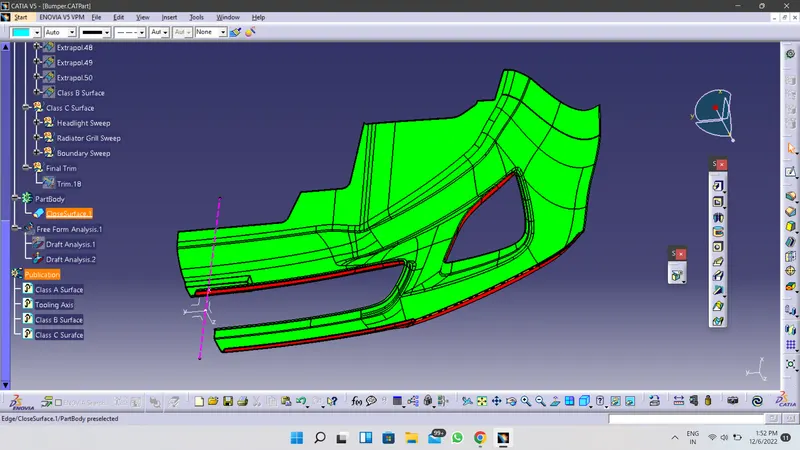

- Screenshots of the Draft analysis report for both the final plastic component

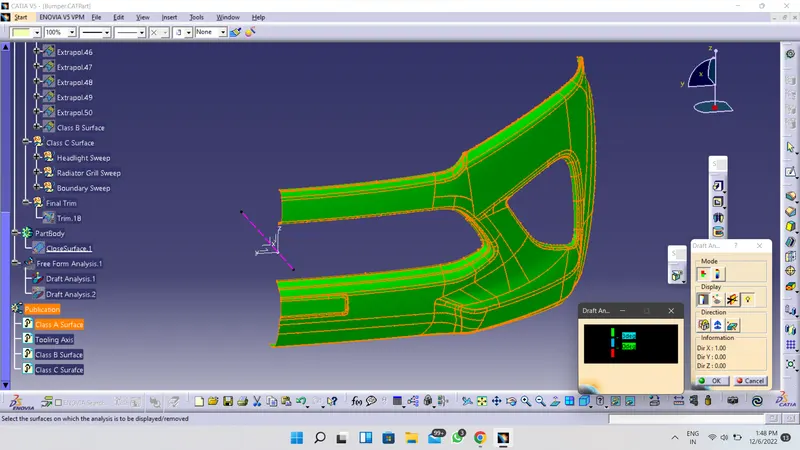

1. Draft Analysis Report along the tooling Axis

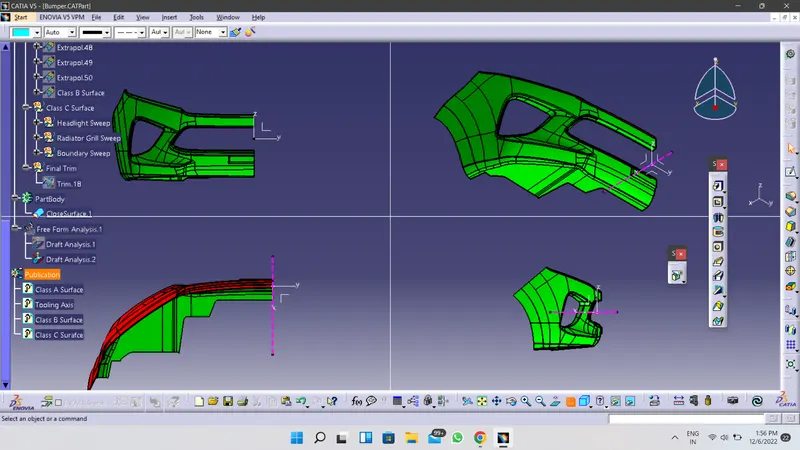

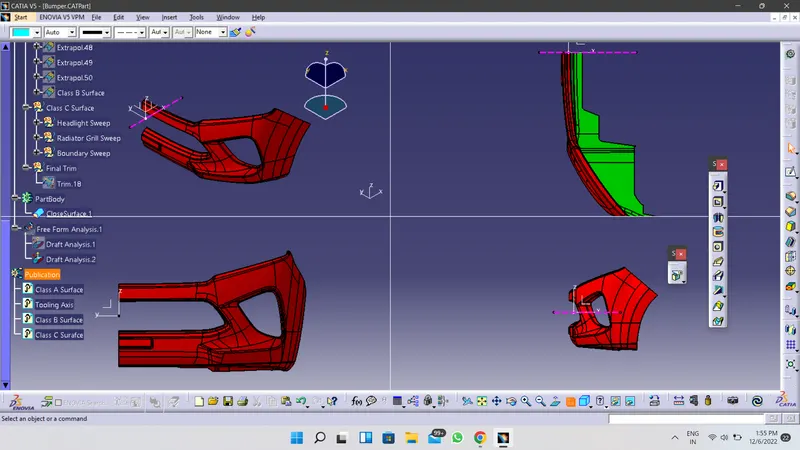

- Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)
Report :-
At initial level, we understand, provide a class A Surface by applying the boundary Wether it’s closed or not
As the Class A surface boundary condition is satisfied. We proceed the same for the tooling axis and class B surface creation.
While working on tooling axis initially locate the point where the coordinate system can be mounted so that the intersection of the provided class A surface can be taken with the reference planes of the coordinate system
Tooling Axis
After locating the coordinate systems to an intersection of the class, a surface with the reference planes
Onwards it’s observe that the van and is making an angle of 90° with the axis and hence take a dummy tooling axis from the centre of coordinate system and directed to the assumed access that can be considered as that correctly directions
Hence, with the help of draft analysis, tools lock the compass on the dummy tooling access and proceed for the trial. Draft analysis
The draft analysis reports found satisfactory with the assumed a dummy tooling axis and hence proceed further with considering the dummy tooling axis as tooling axis
Now, with the help of extract, multiple extract, extrapolate, multi section surface, split, trim tools, sweep tools processed for the class, B and class C Surface creation
Now to defined tooling axis is super to find okay with the final plastic products designed
For the same process to the draft analysis of the final plastic product designed with the help of tooling axis and the draft analysis report found satisfactory

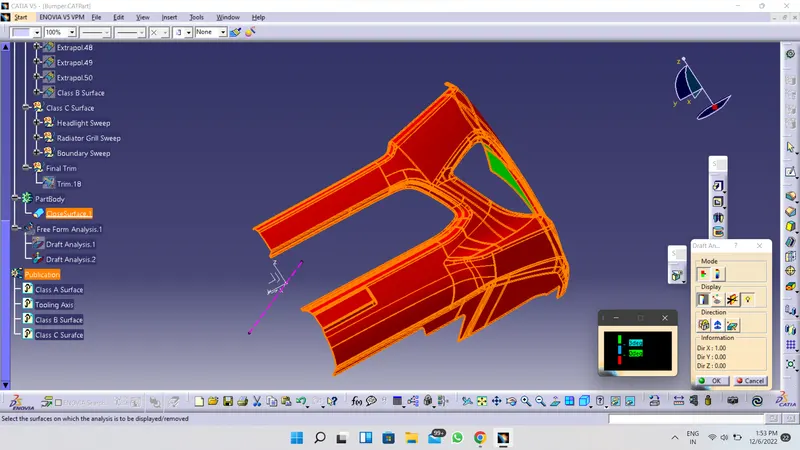

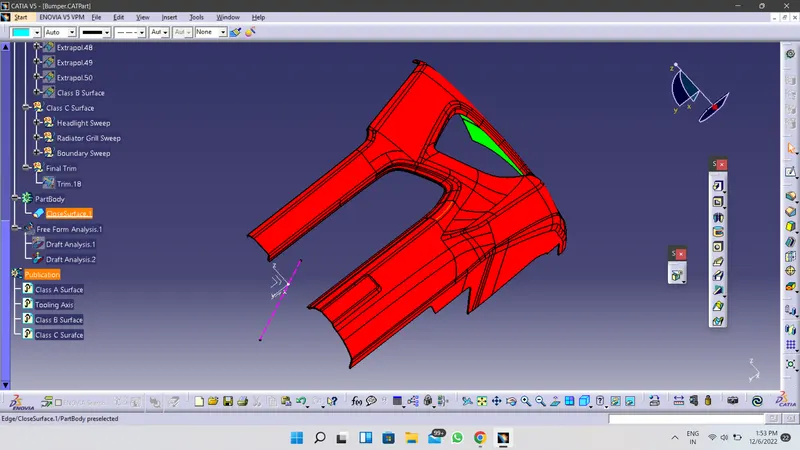

The green coloured services gives the positive draft man. Red coloured services shows the negative draft directions.
