Week 8 - Challenge 4 - Bumper

                                                      CALSS A SURFACE DRAFT ANALYSIS

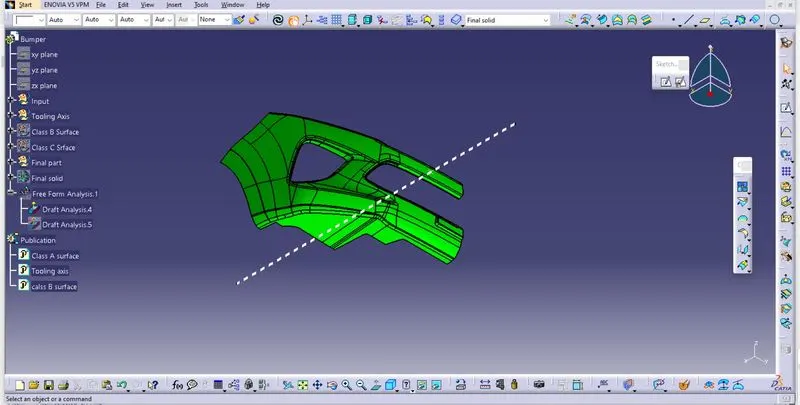

Class A surface draft analysis

                                                      FINAL SOLID DRAFT ANALYSIS

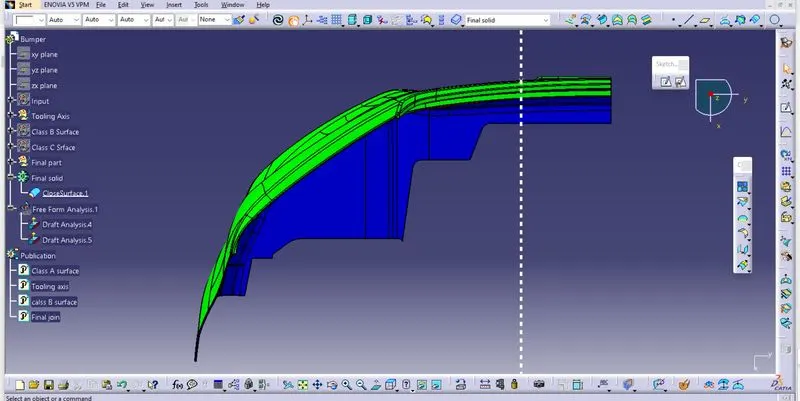

Final solid draft analysis (Isometric view)

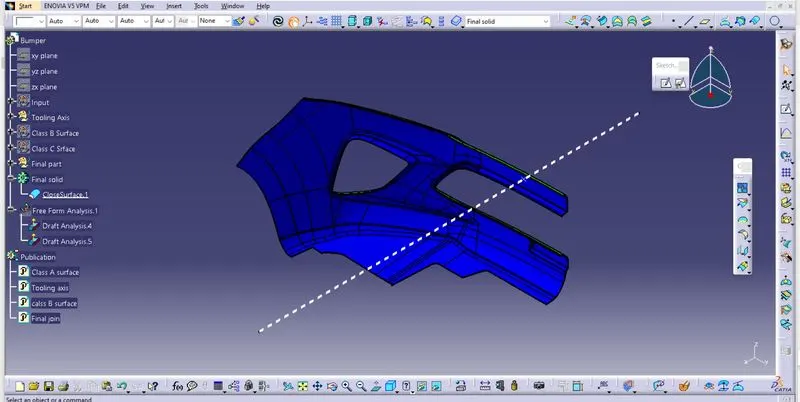

Final solid (Back view)

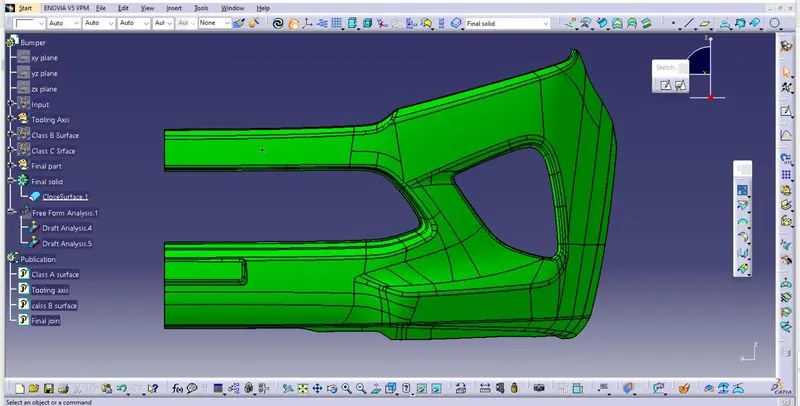

Final solid (Front view)

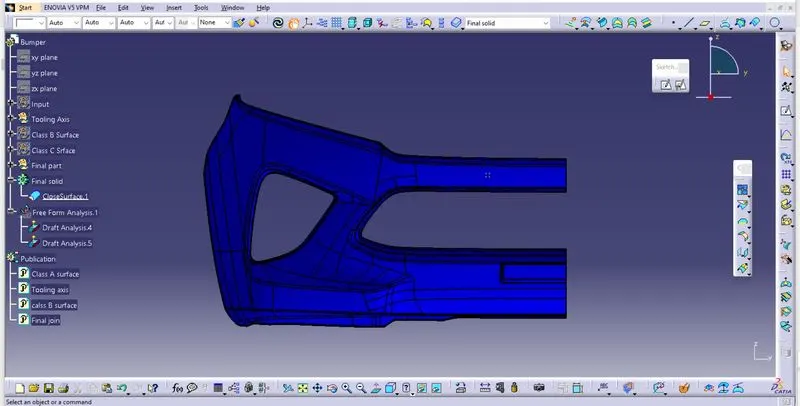

Final solid (Top view)

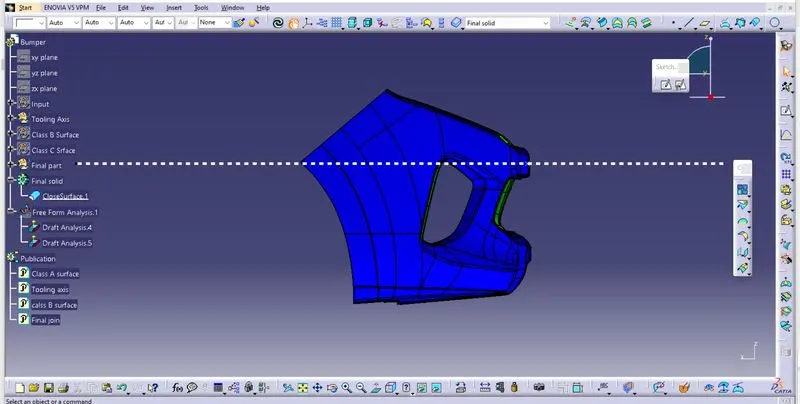

Final solid (Side view)

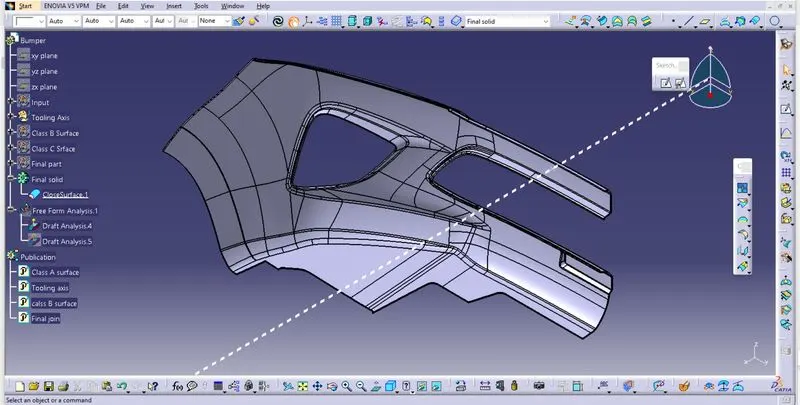

                                                                     FINAL SOLID

REPORT

1. First , I created the tooling axis with extracting a flat surface and drawn a perpendicular line to that surface.

2. Given class A surface is cleared the draft analysis, which are ready to be converted as a solid.

3. I continue with a given class A surface and created class B surface using untrim, offset, trim, extract, extrapolate, join, split,multiple extract, point, line commands

4. After i created the class C surface.

5. Finally i trim class A with class C, and trim that with class B to get a final solid.

6. I did draft analysis for final solid. calss A surface are in green colour, class B surfaces are in blue colour which are in 0 to 2.9 degree form the tooling axis, some faces in class C are in red colour which are in less tha 0 degree from the tooling axis.
