Week 8 - Challenge 6 - Core & Cavity Design

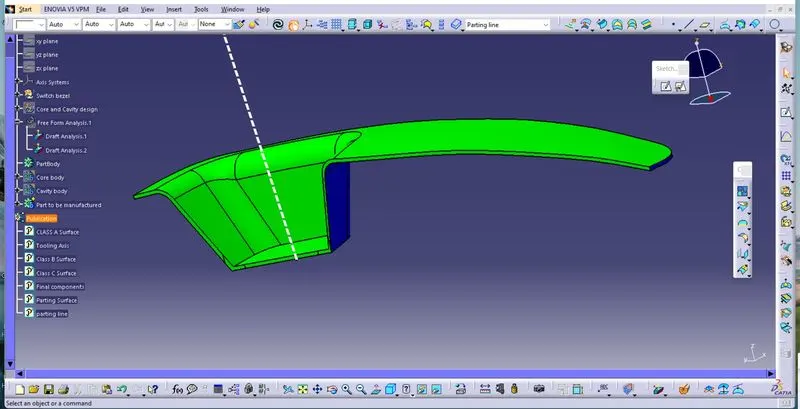

DRAFT ANALYSIS OF CLASS A SURFACE

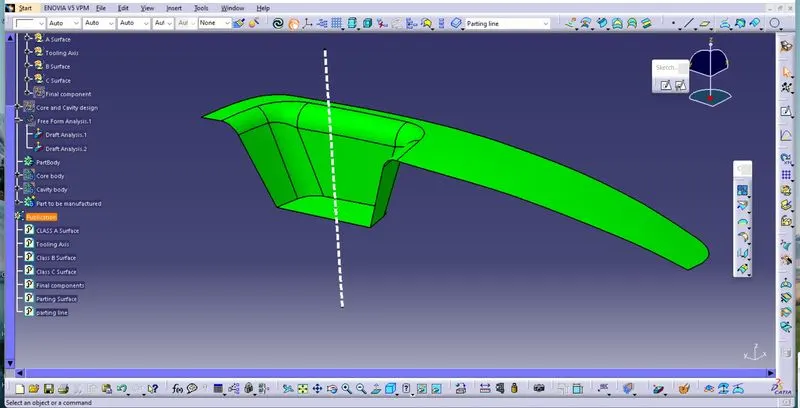

DRAFT ANALYSIS OF FINAL BODY

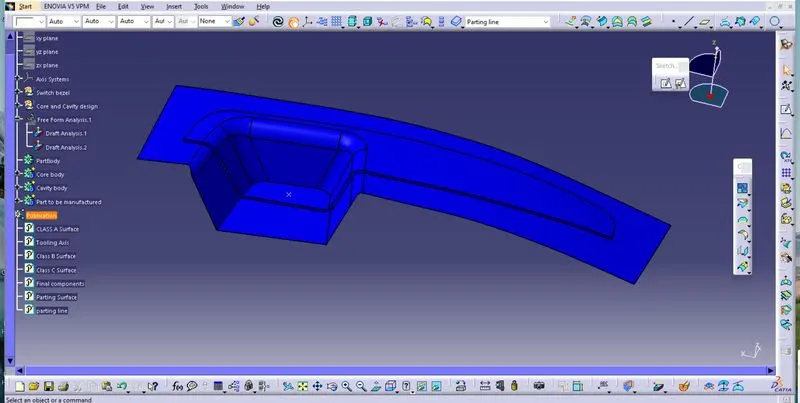

PARTING SURFACE

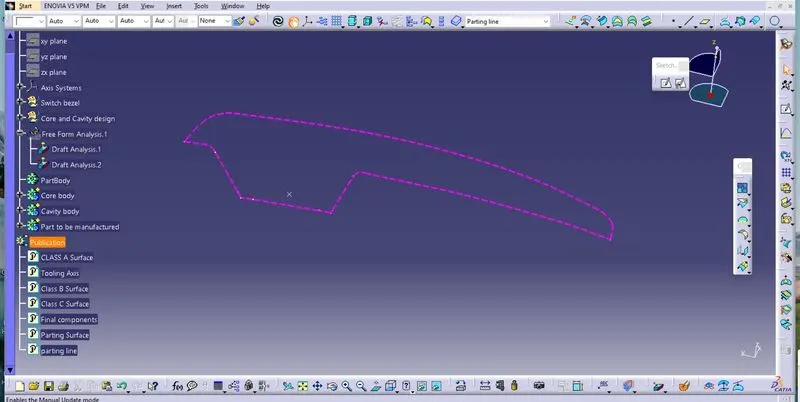

PARTING LINE

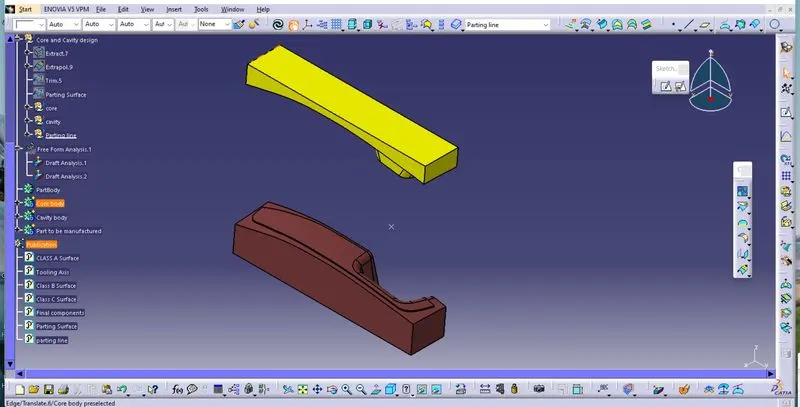

CORE AND CAVITY (ISOMETRIC IEW)

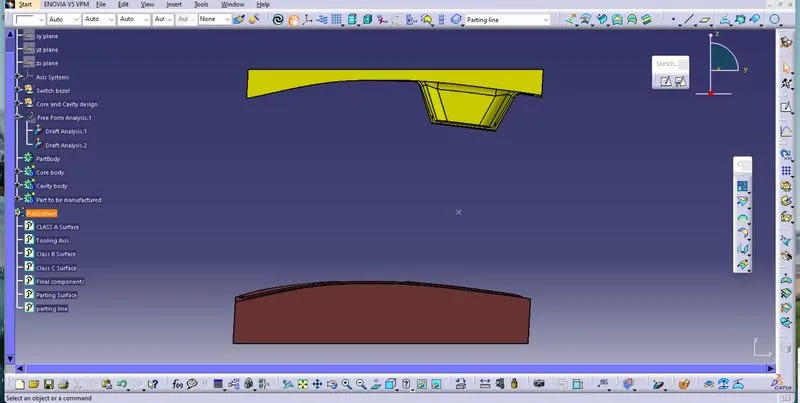

FRONT VIEW

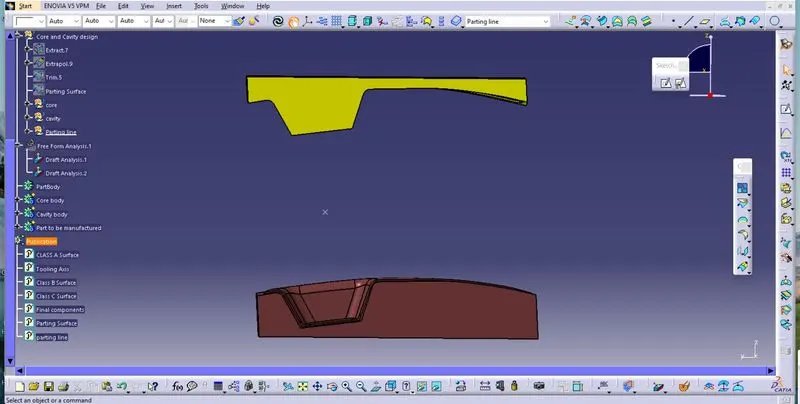

BACK VIEW

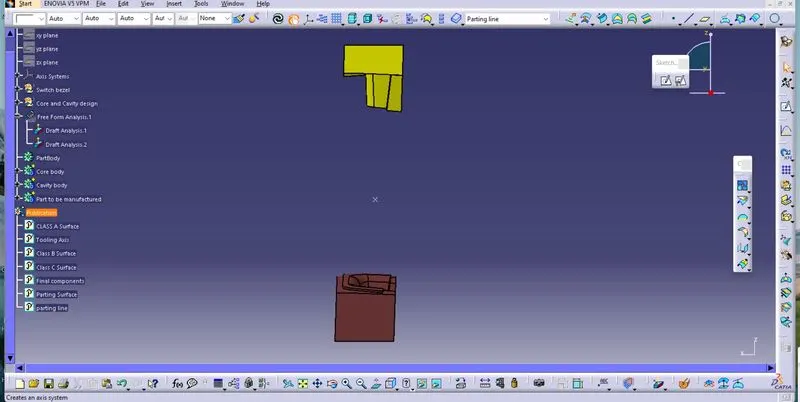

SIDE VIEW

REPORT :

1. First , I created the tooling axis by bisecting method. I drawn two straight line with the help of the slanting flat surfaces.

Bisecting those two line to get a tooling axis.

2. Here given calss A surface cleared the draft analysis. It should be more than 3degree to eject it from the mould.

3. I continue with a given class A surface and created class B surface using untrim, offset and trim commands

4. After i created the class C surface using sweep command with the draft angle of 3 degree.

5. Finally i trim class A with class C, and trim that with class B to get a final solid.

6. I did draft analysis for final solid.Class A and class C are having draft angle of more than 3 degree from the tooling.
