Week 8 - Challenge 2 - Switch Bezel Design

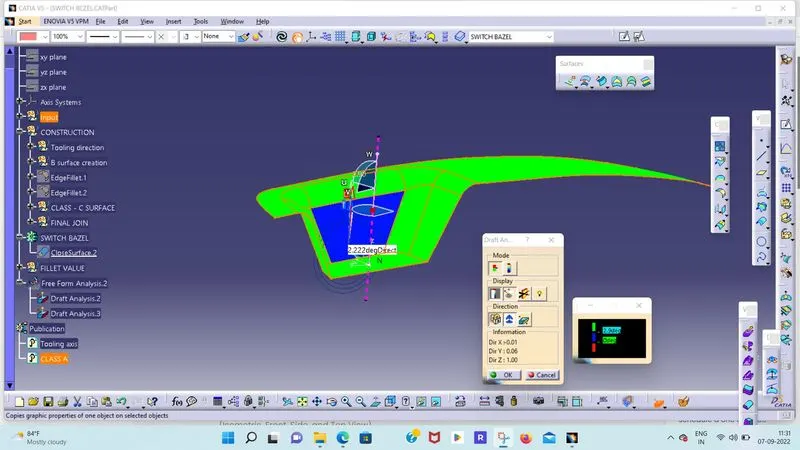

DRAFT ANALYSIS OF GIVEN CLASS A SURFACE

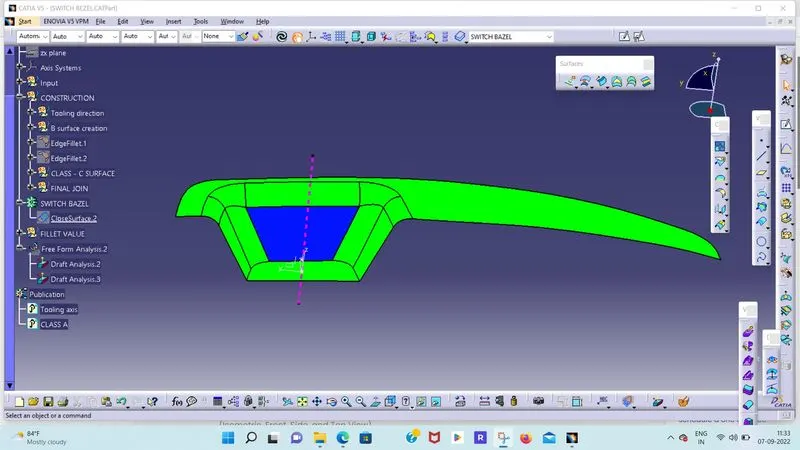

DRAFT ANALYSIS OF FINAL SOLID

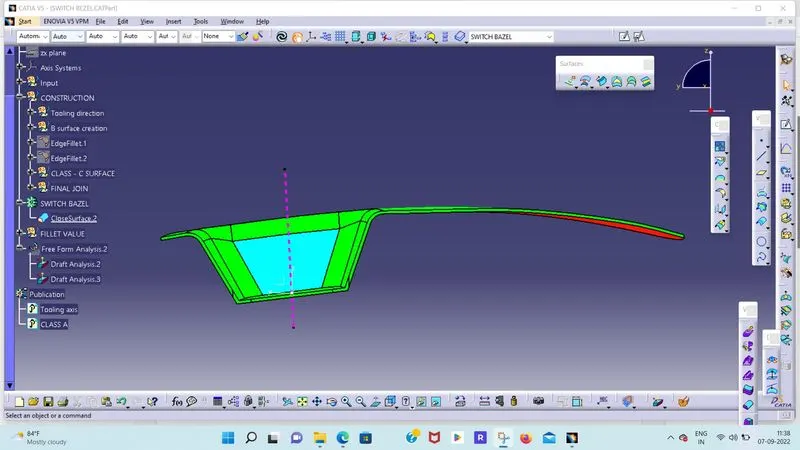

FINAL SOLID

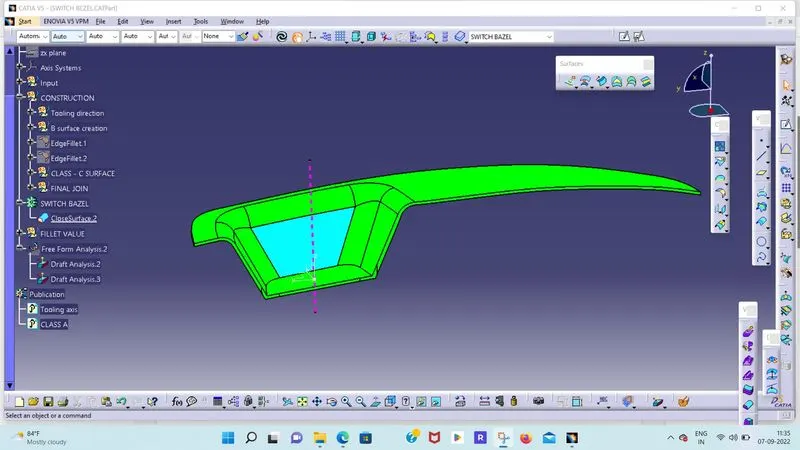

FINAL SOLID (FRONT VIEW)

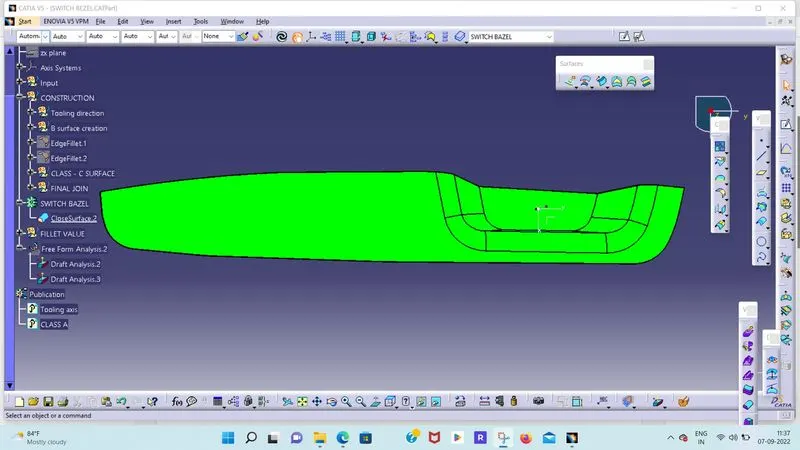

FINAL SOLID (TOP VIEW)

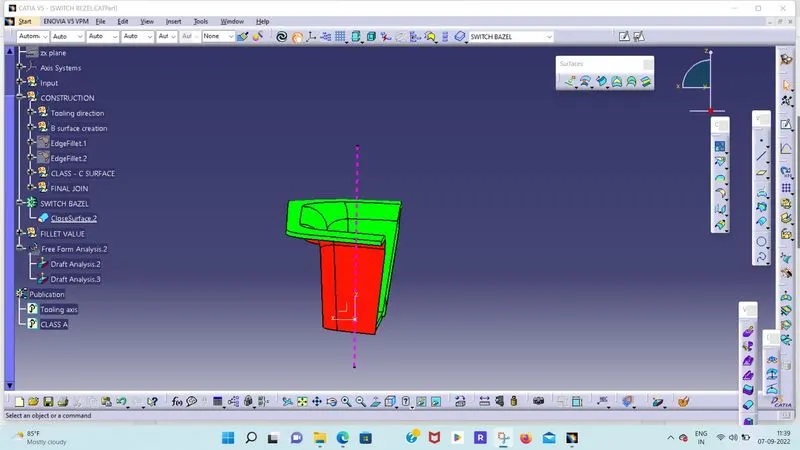

FINAL SOLID (SIDE VIEW)

REPORT :

1. First , I created the tooling axis

2. Blue colour surface in the given class A is 2.222degree from the tooling axis. It should be more than 3degree to eject it from the mould.

3. I continue with a given class A surface and created class B surface using untrim, offset and trim commands

4. After i created the class C surface using sweep command with the draft angle of 3 degree.

5. Finally i trim class A with class C, and trim that with class B to get a final solid.

6. I did draft analysis for final solid.Class A and class C are having draft angle of more than 3 degree from the tooling axis except that blue surface.
