Week 8 - Challenge 3 - Coin Holder Design

AIM :

Creating a manufacturable solid model with proper draft angle from a given class A surface by creating class B and class C surface.

COMMANDS USED :

1. Multiple extract

2. Untrim

3. Trim

4. Offset

5. Join

6. Sweep

7. Split

8. Point

9. Line

10. Extract

TOOLING AXIS:

Given class A suface has a flat face. So, i check the orientation and decided to creat tooling axis on that flat surface. I extracted a flat face and created a tooling axis.

DRAFT ANALYSIS OF CLASS A :

Check the draft analysis for given class A. It is showing in green colour. It is cleared the draft analysis and the part is ejectable.

DRAFT ANALYSIS OF FINAL SOLID :

Check the draft analysis for a final solid. class A surface is fully shown in green colour, every face in class A surface is above 3 degree form the tooling axis.

class C surface has some blue colour in it which are 0 to 2.9 degree from the tooling axis. It is acceptable and it can be ejected.

Class B surface are in blue colour, which are in 0 to 2.9 degree.

CLASS A DRAFT ANALYSIS

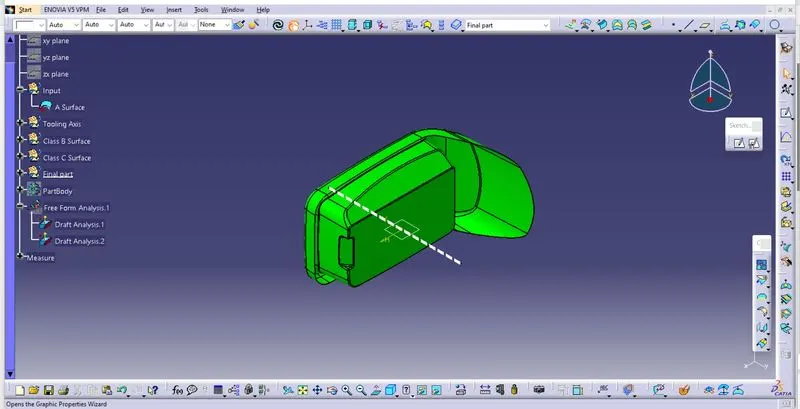

CLASS A DRAFT ANALYSIS (ISOMETRIC VIEW).

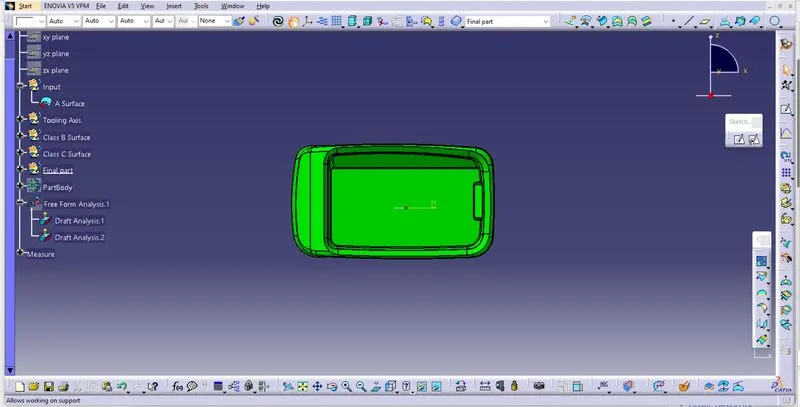

CLASS A DRAFT ANALYSIS (LEFT SIDE VIEW)

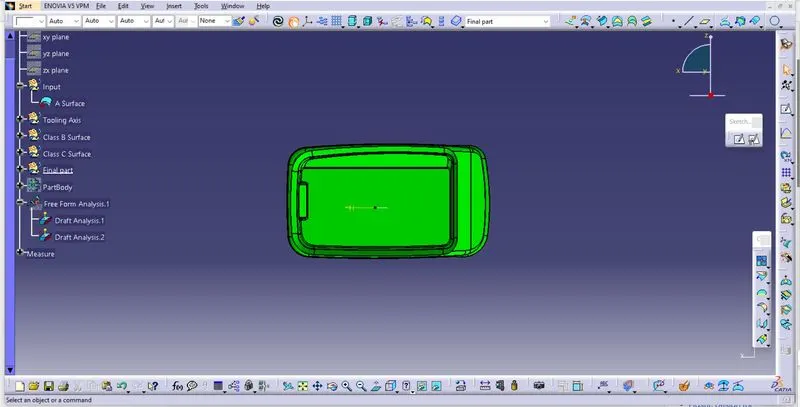

CLASS A DRAFT ANALYSIS (RIGHT SIDE VIEW)

DRAFT ANALYSIS FINAL SOLID

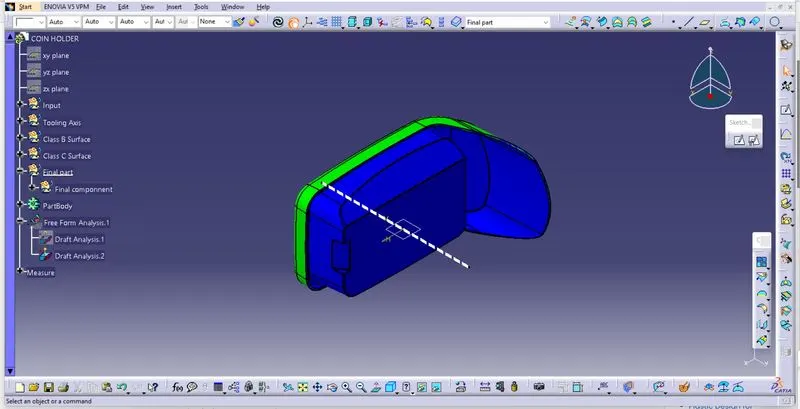

FINAL SOLID DRAFT ANALYSIS (ISOMETRIC VIEW)

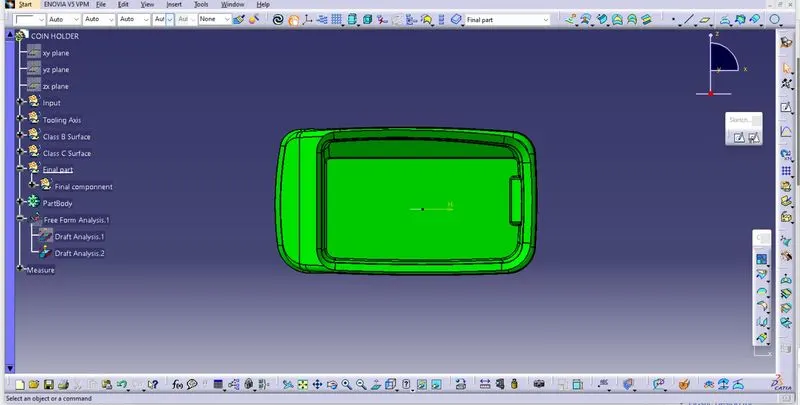

FINAL SOLID DRAFT ANALYSIS (LEFT SIDE VIEW)

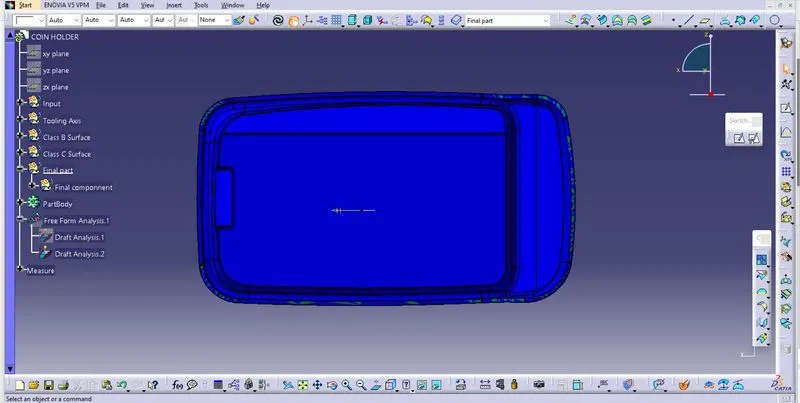

FINAL SOLID DRAFT ANALYSIS (RIGHT SIDE VIEW)

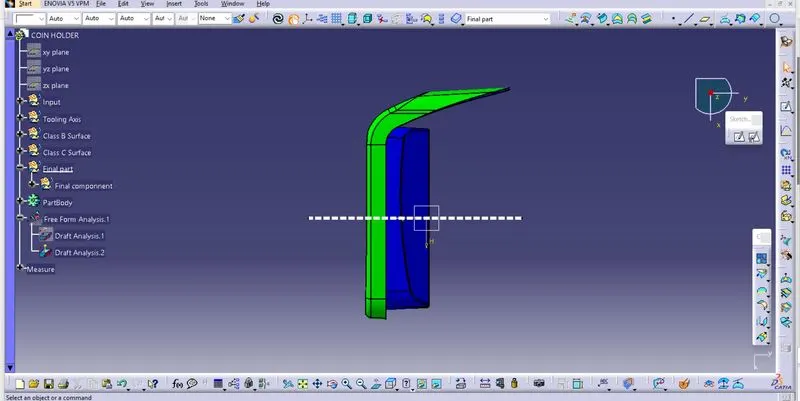

FINAL SOLID DRAFT ANALYSIS (TOP VIEW)
