Week 8 - Challenge 4 - Bumper

Aim:

To create the Bumper component from the given Class-A Surface and to perform draft analysis on the final component using CATIA V5 tool.

Objectives:

• Creation of Tooling Axis.
• Creation of Class B and Class C surfaces.
• Creating a solid part from the surface using close surface feature.
• Perform draft Analysis of final component.

Introduction:

This project aims to create bumper component using given Class A surface. The approach includes creation of Class B and Class C surfaces keeping 3 mm thickness in mind for the complete component.

Design Constraints:

• ALTERATION OF CLASS A IS NOT ALLOWED.
• ALL SURFACES SHOULD BE CLOSED BEFORE CONVERTING TO SOLID.
• ALL FACES SHOULD MEET THE ALLOWED DRAFT REQUIREMENTS.

Procedure:

Class A surface:

Following surface is the input for component creation.

• Class A surface is used to begin the design of a product.
• To continue with the design process, need to find out the tooling axis for surface-A.
• In next step, need to check for all the drafts using Draft Analysis tool of CATIA.

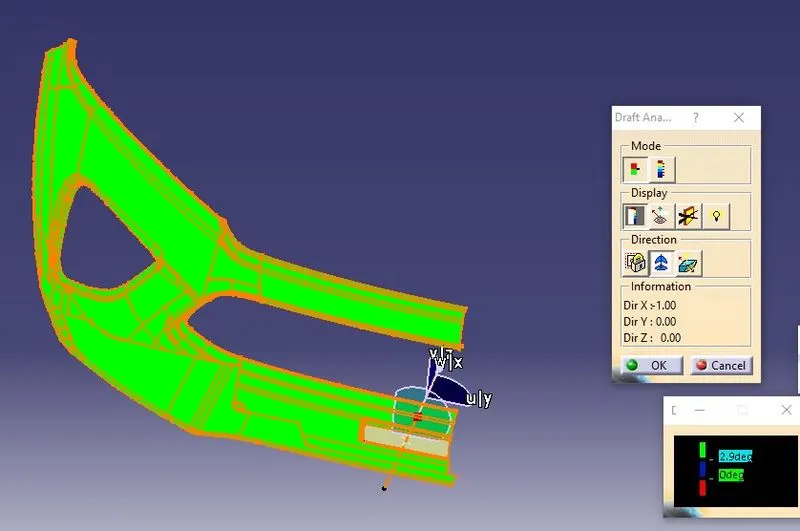

Draft Analysis for Surface A:

• The Drafting analysis is performed using the Feature Draft Analysis command from INSERT menu
• The drafting analysis is done with 2.9 degree draft angle.

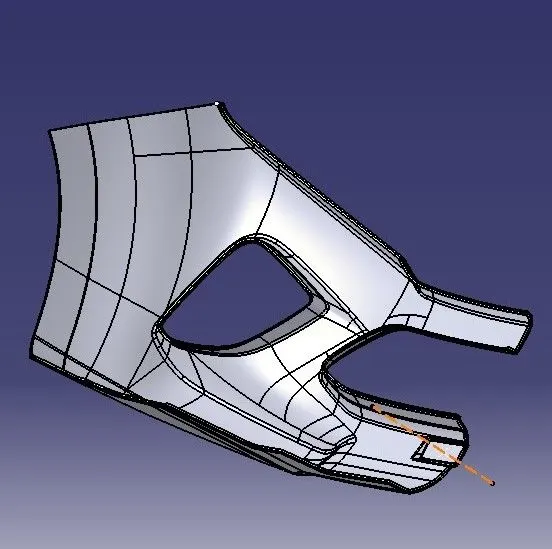

Creation of Tooling Axis:

• Tooling axis is created using a reference point created on the base surface
• Line is created normal to the base surface as shown in the figure below.
• The dashed line shown in figure is the tooling axis.

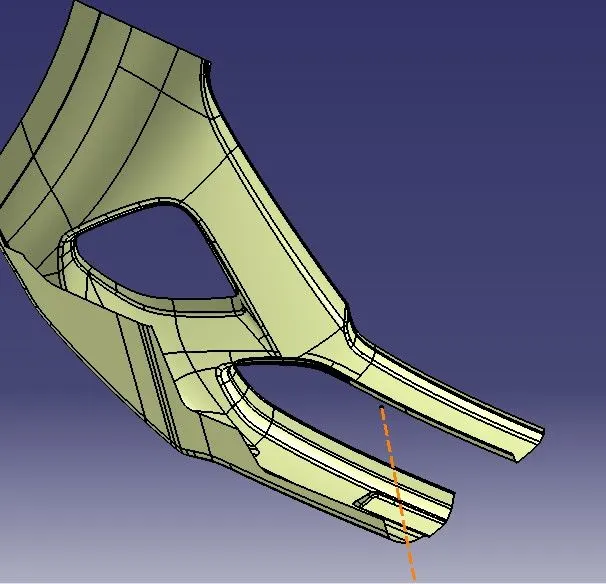

Creation of Class B surface:

• Class B surface is created from the Class A surface.
• Extract the surface from Class A and offset it with a distance of 3mm.
• The resultant surfaces are then trimmed to form the Class B surface.

Creation of Class C surface:

• Class C surface connects the Class A and Class B surface.
• For creating Class C surface, initially the boundary of Class A is extracted using Boundary
• Then Sweep command is used along the draft direction.

Final Trim: Class A + Class B + Class C:

• To make Class A and Class C as a single body, both surfaces are joined using Join This command is used to make sure that there is no any open boundary between Class A and Class C.
• To obtain the final output the joined Class A+C is trimmed with the Class B surface using trim feature.
• Solid body is obtained using closed surface feature from part workbench.
• The Tooling axis, Class A, B and C surfaces were published.

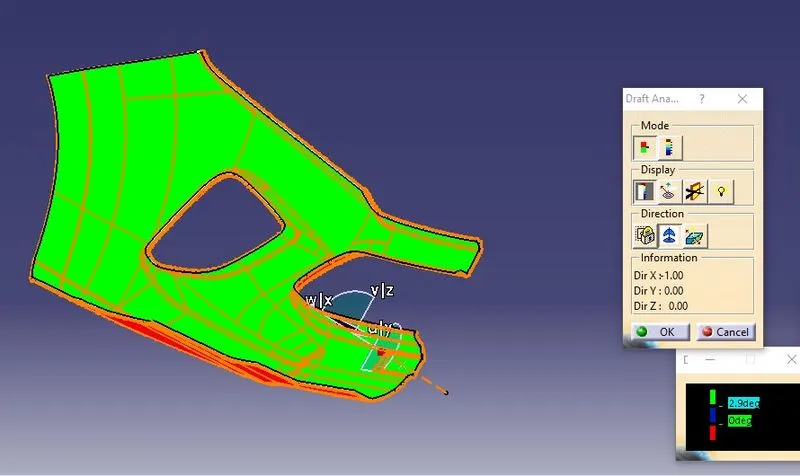

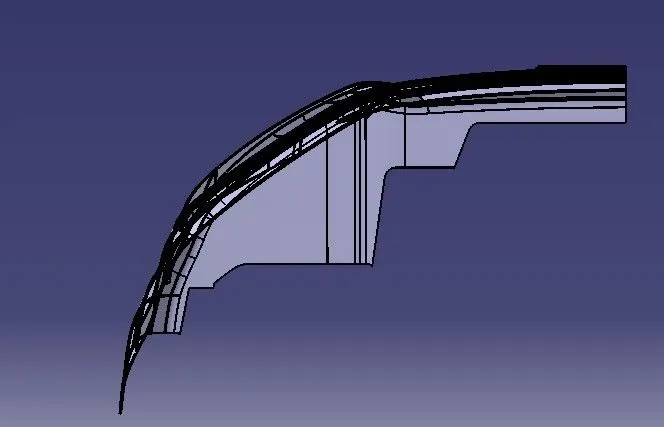

Draft Analysis of the Final Component:

• Main tooling axis is taken as the draft reference for this analysis.

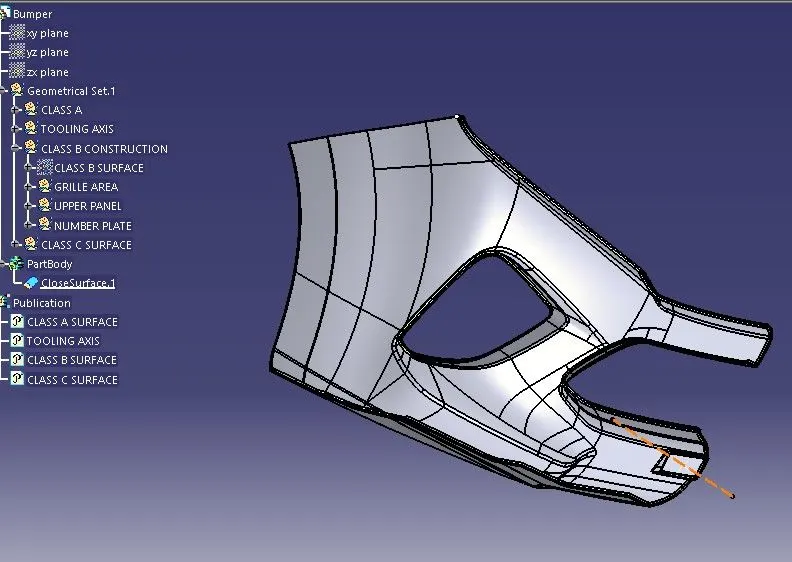

Tree Structure

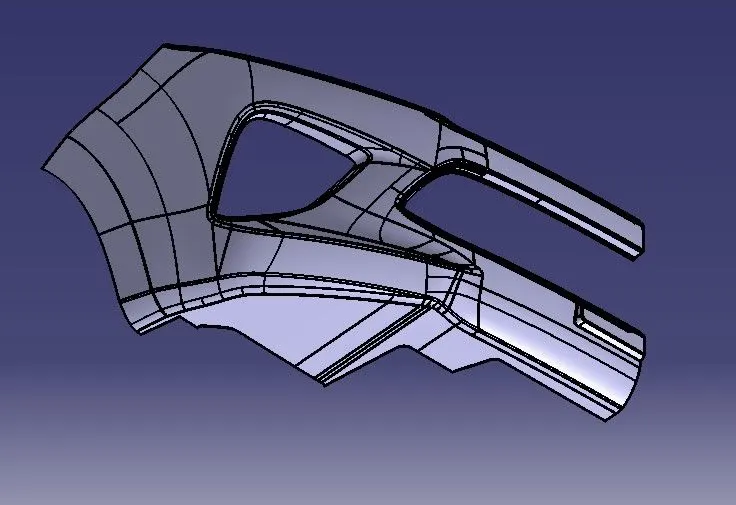

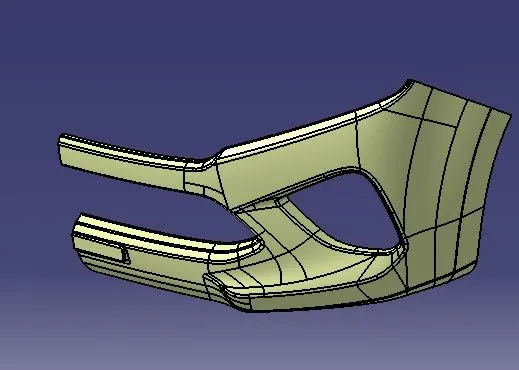

Isometric View

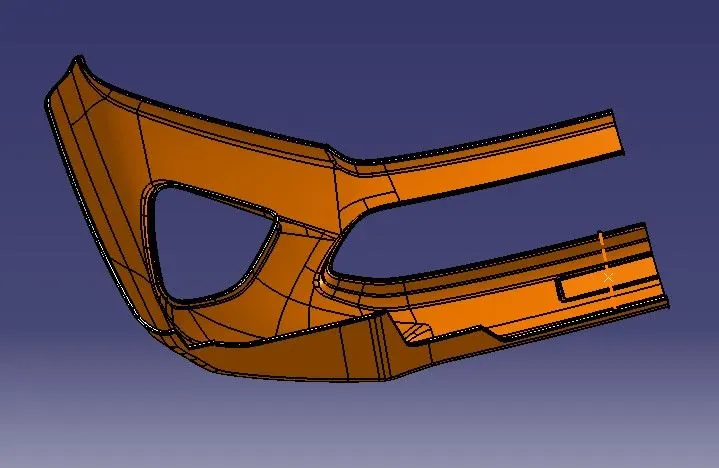

Front View

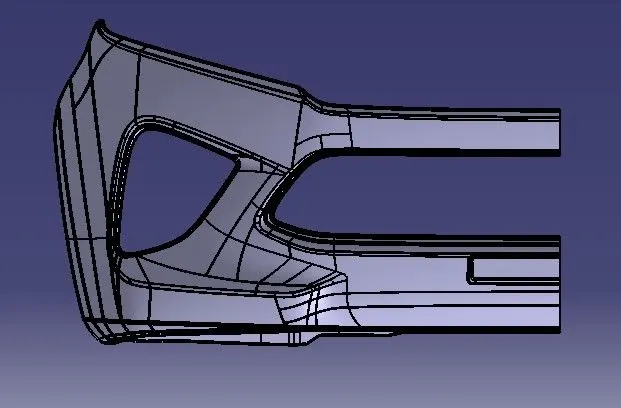

Side View

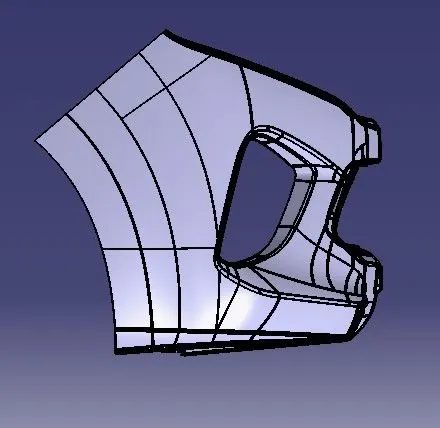

Top View

Conclusion:

Final output “BUMPER is successfully designed using CATIA VS tool.
