Designing Switch Bezel using A-Class surface in CATIA V5

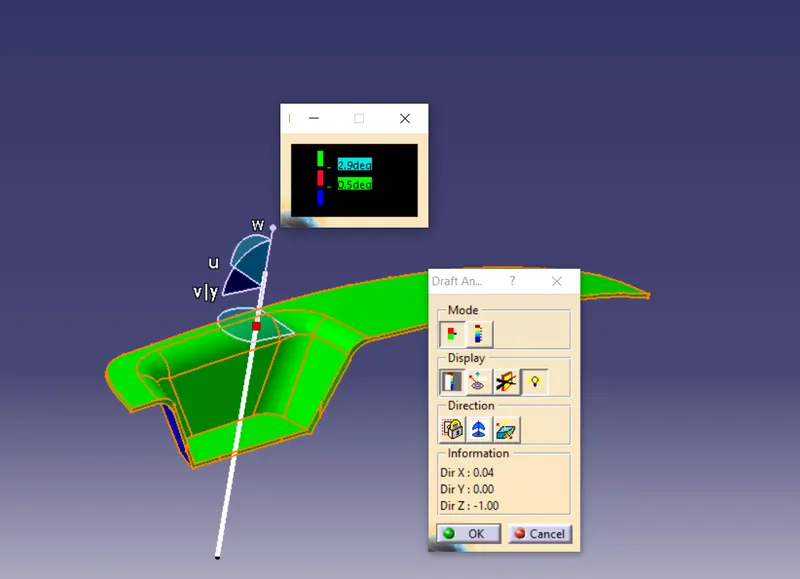

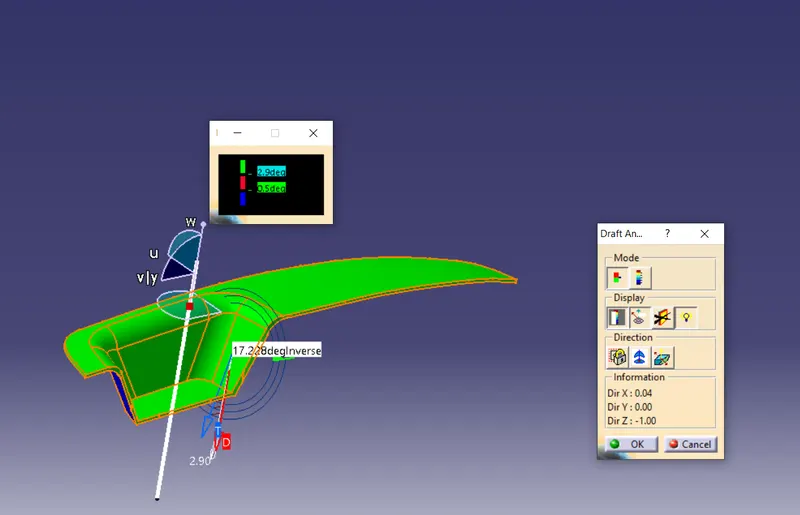

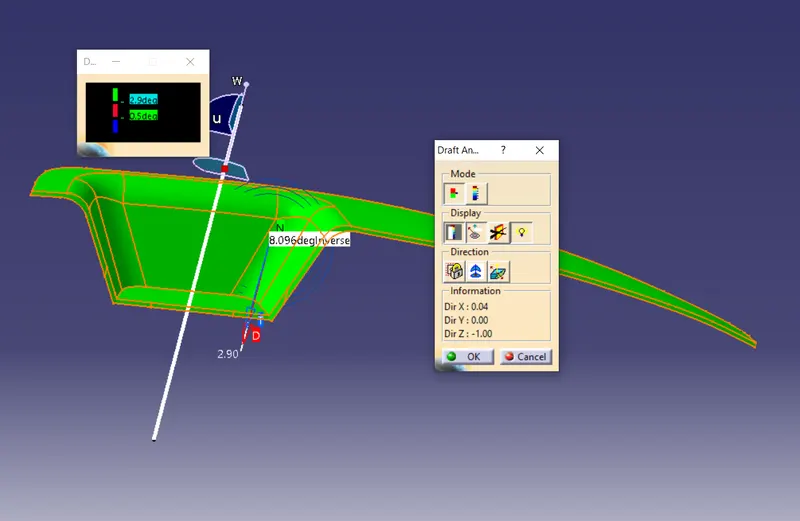

Draft Analysis.
Designer Final inspection This Drafting, Design Model If Manufacturing Are Not Checking In This Analysis method.
In Industry This Draft Angle Value is Standard For Injection Molding Process.
Minimum Draft Angle 3deg Maximum Draft Angle is 5deg.

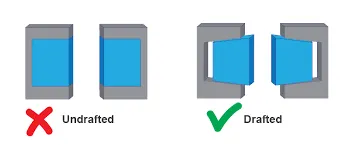

What is Draft Angle?
Draft angles are very important in thermoforming product design
A positive draft means the angle of the face, with respect to the direction of pull, is more than the reference angle

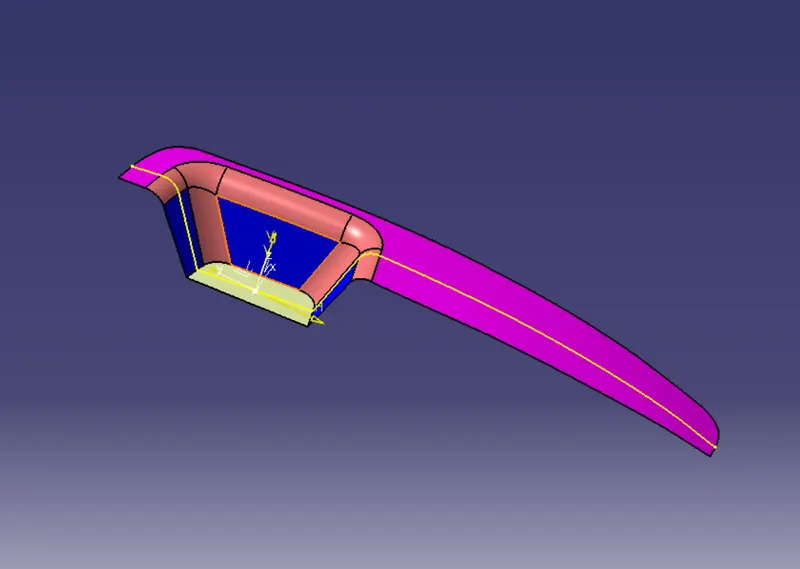

Input Class-A Surface

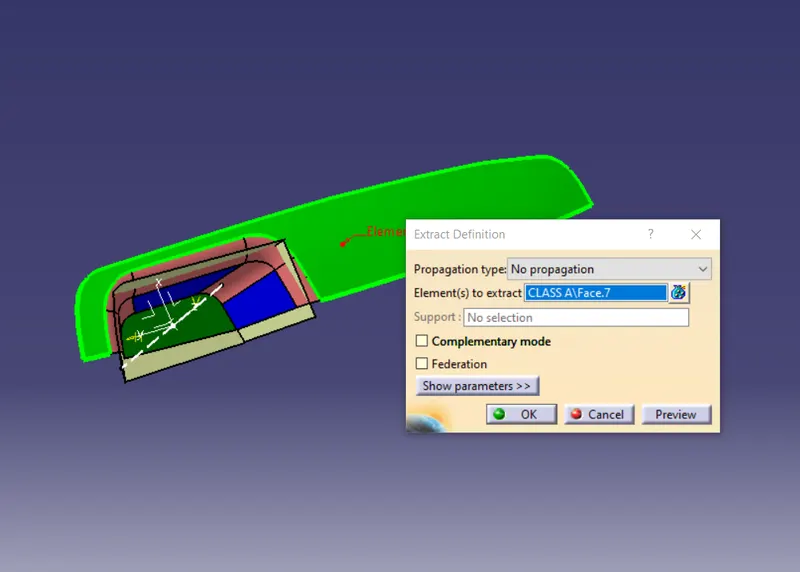

Extract Surface Because Crating Tooling Axis

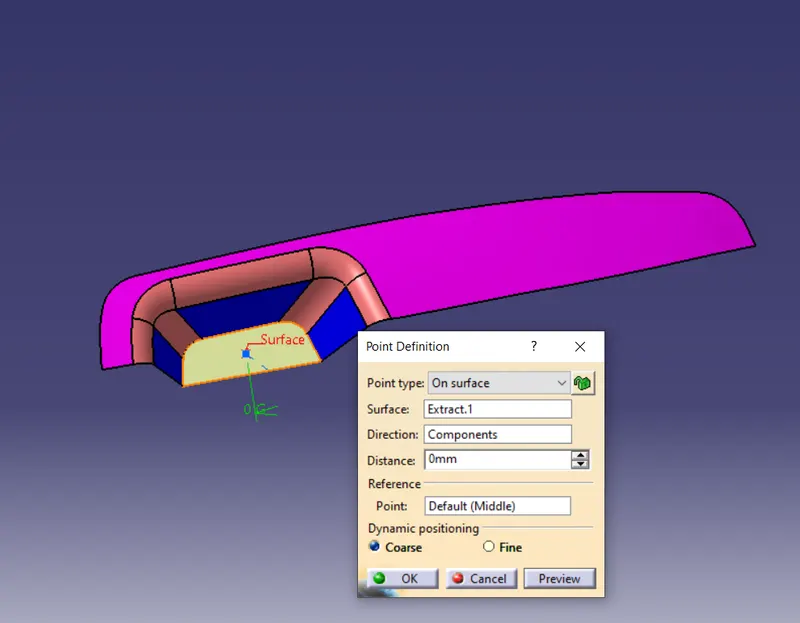

crate Point For Creating For Tooling Axis

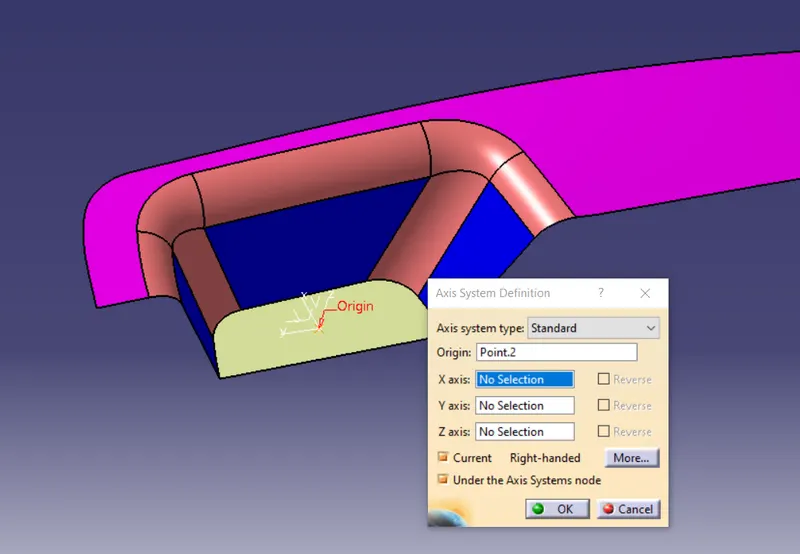

Now Created Axis System in That point.
Crate Interset Line With Class A-Surface

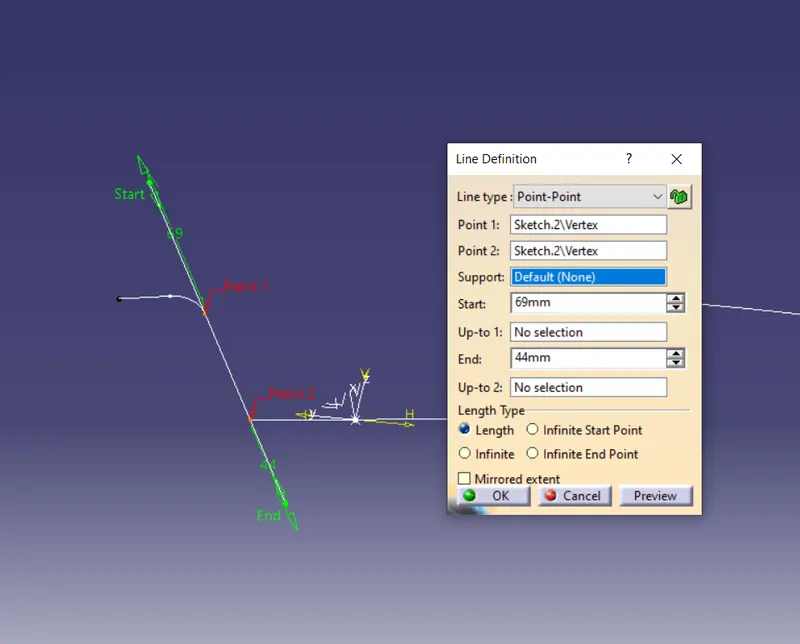

Make Two line On Interset Line

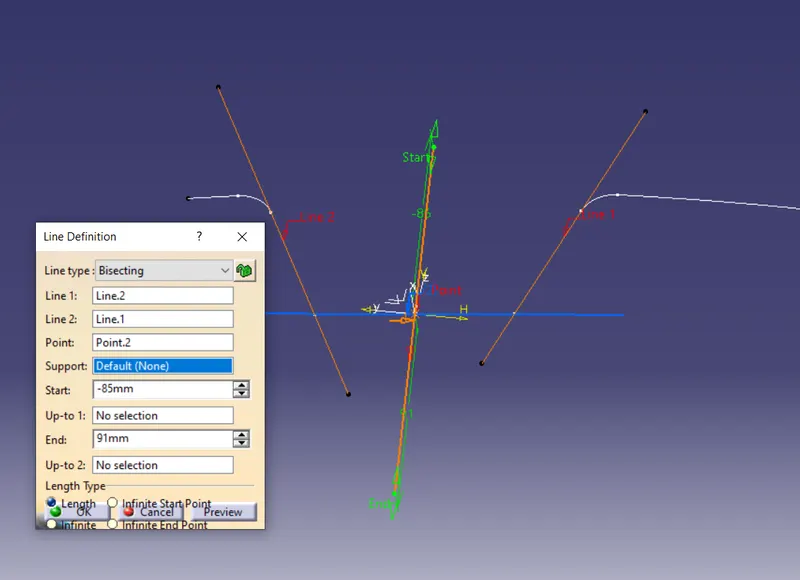

Crate Bisecting line, this bisecting line is toling axis.

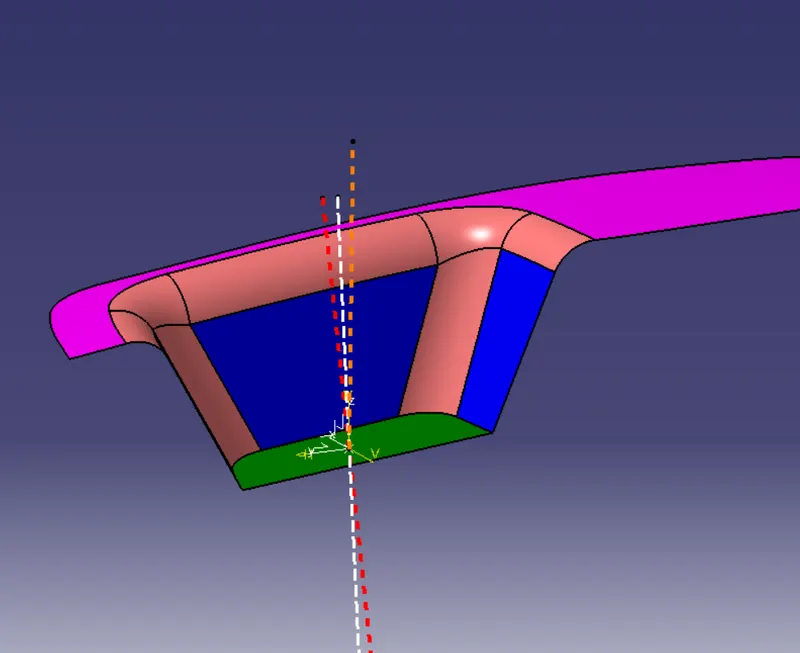

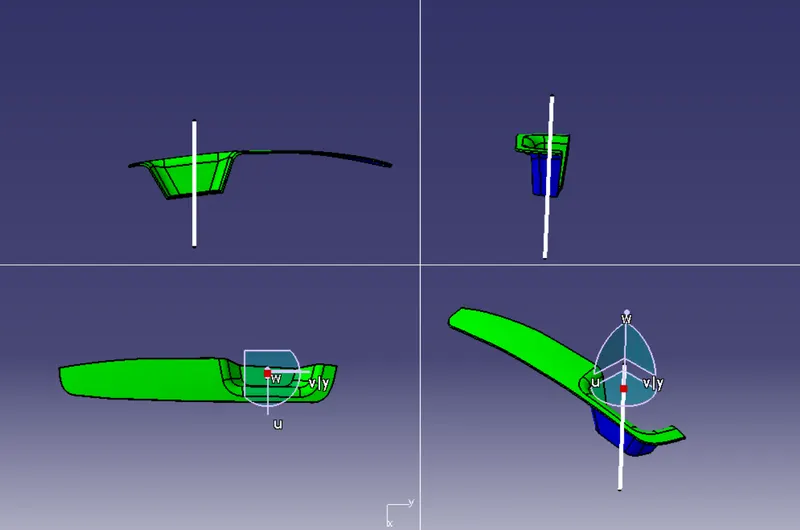

Red line is X-direcation tooling axis
Create interset line in Y direction

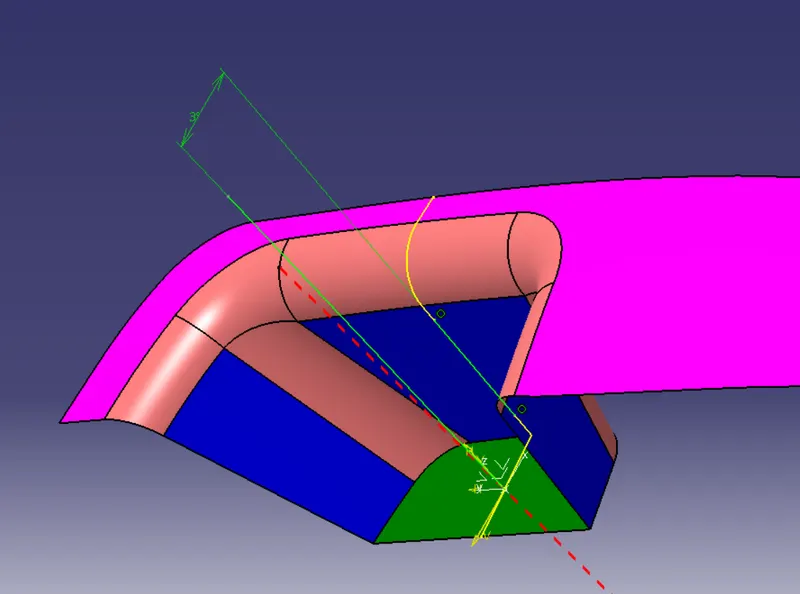

Crate line for 3deg This Line Is Biseting line.

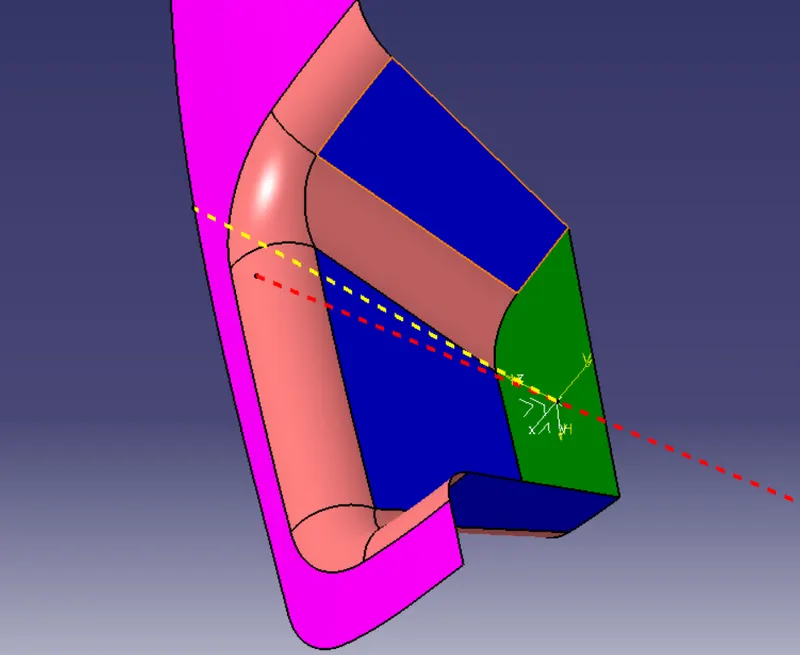

Yellow Line is Y-draction Tooling Axis

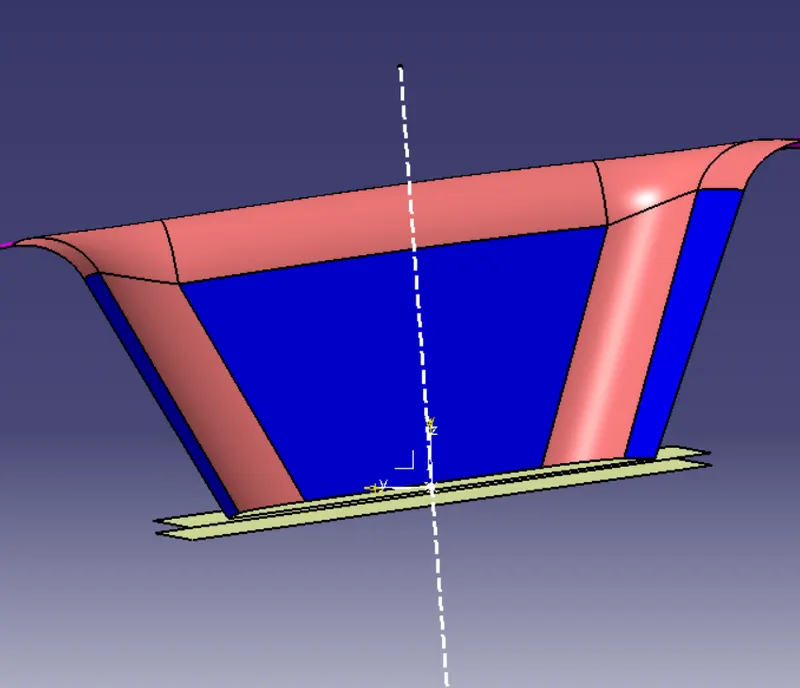

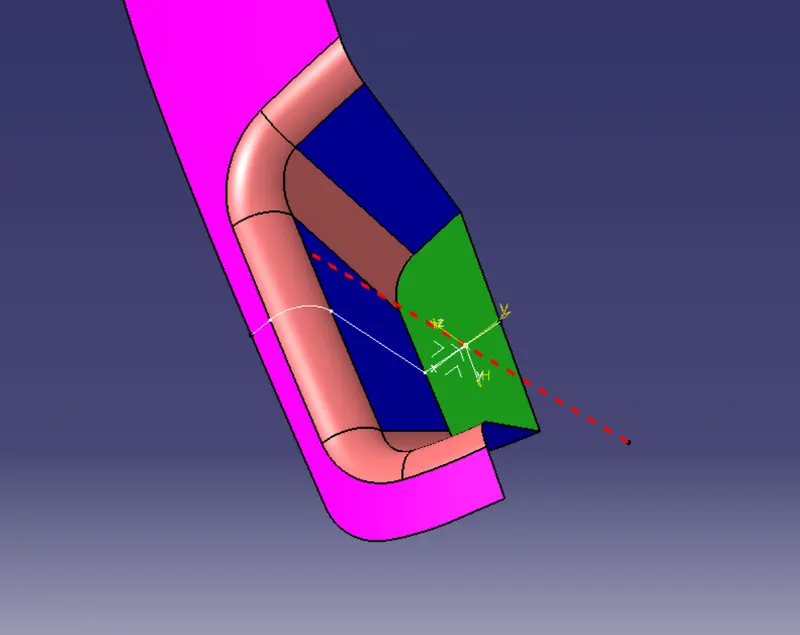

Wight Line Is Main Tooling Axis

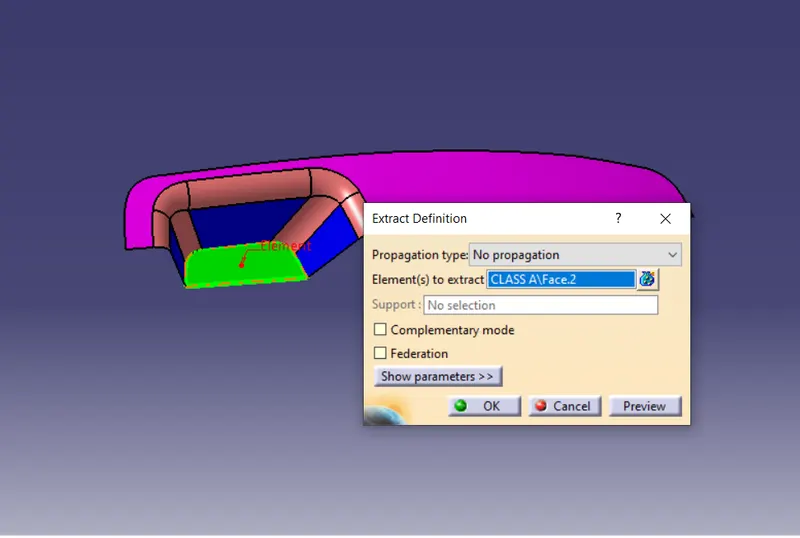

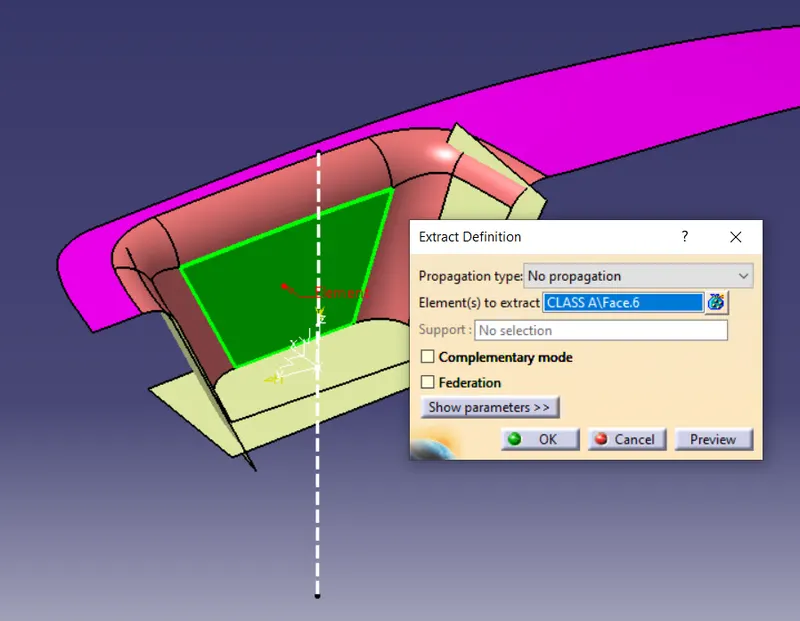

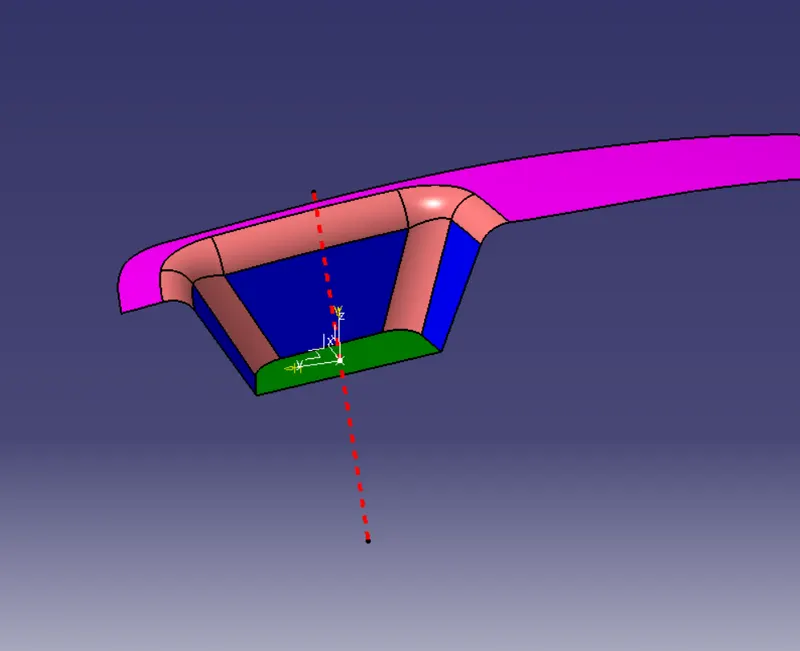

Extract The Base Surface.

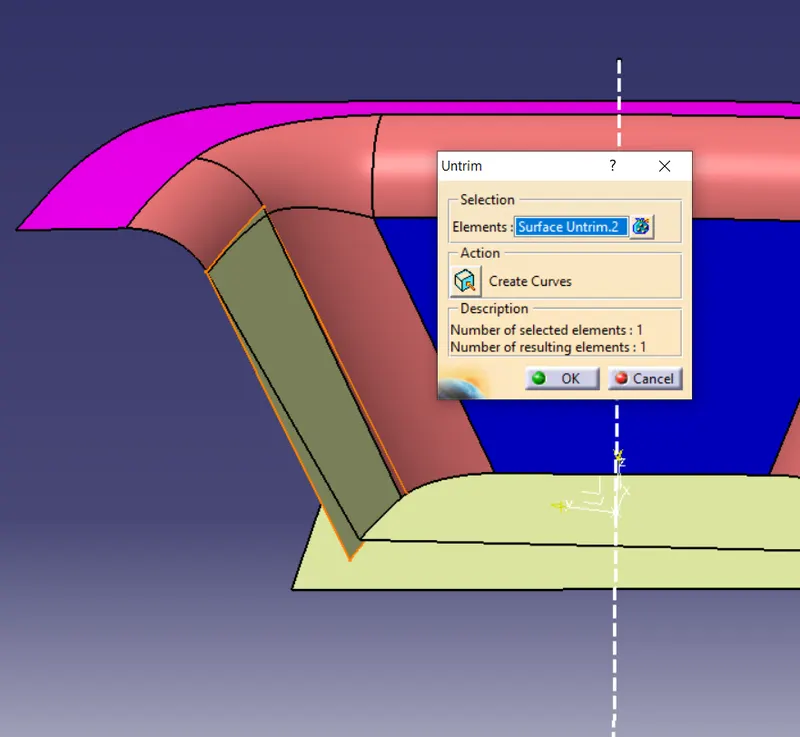

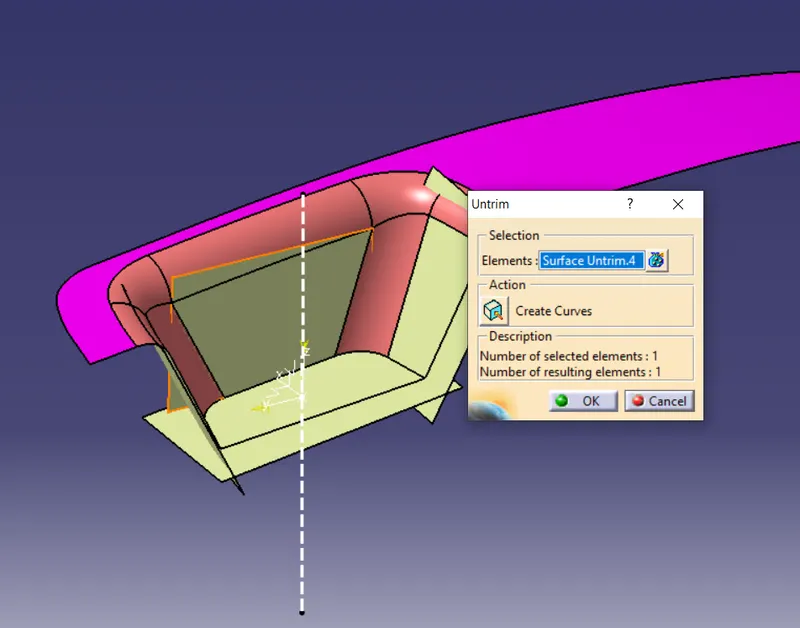

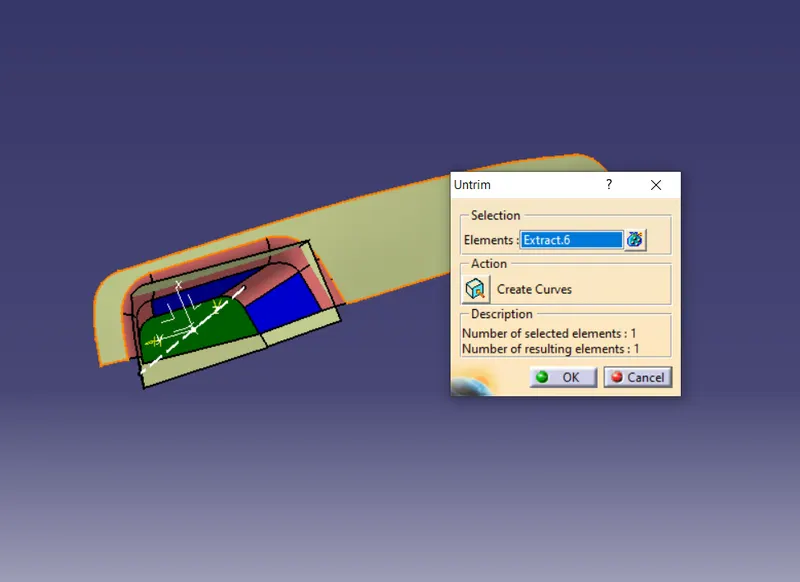

Untrim That Extract Surface.

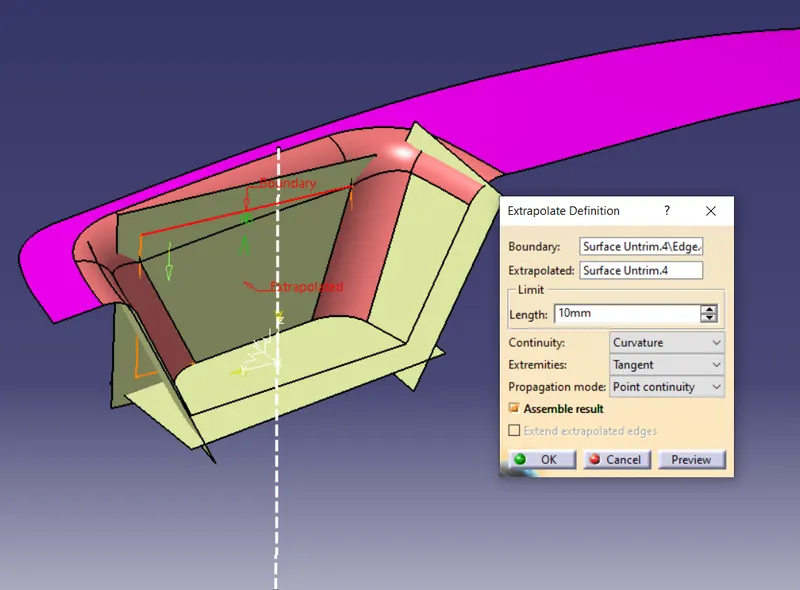

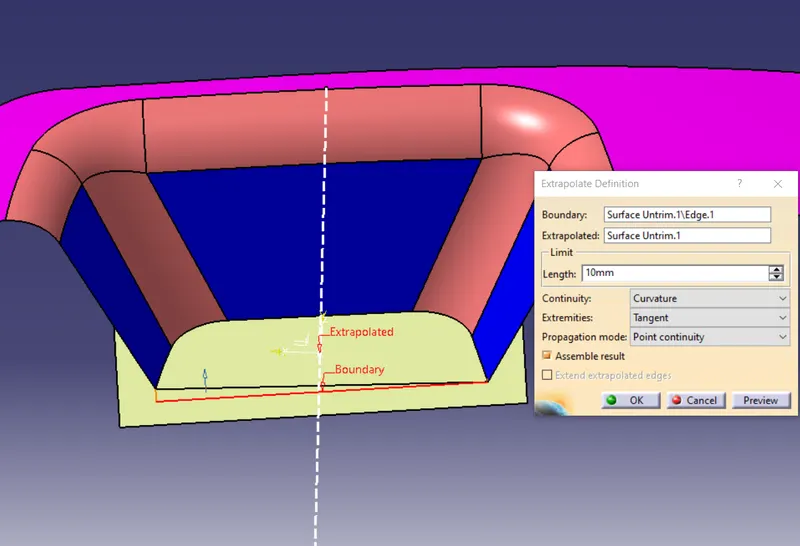

Extroplite That Surface

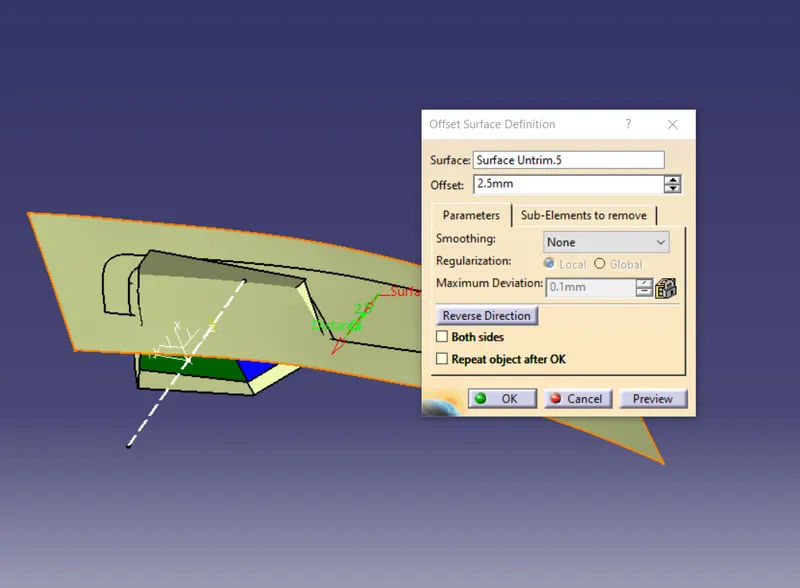

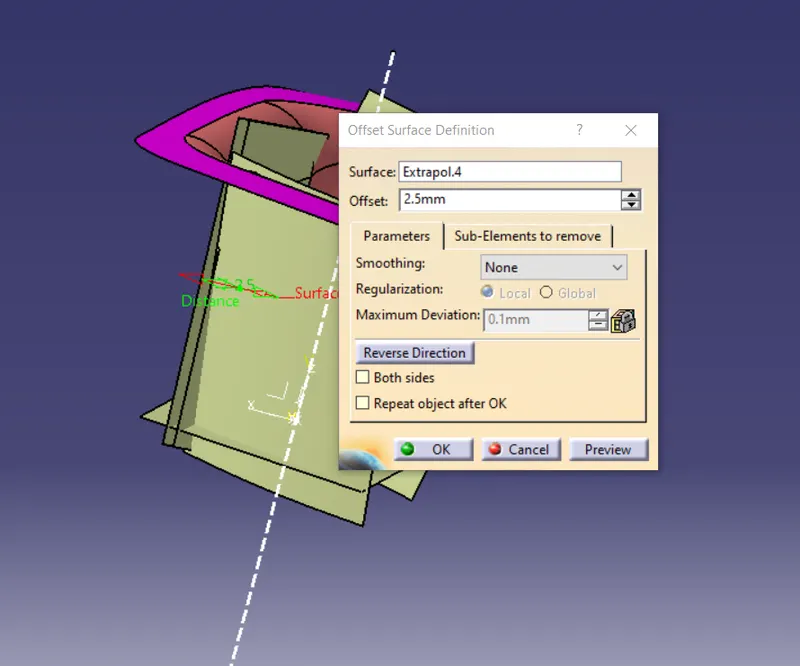

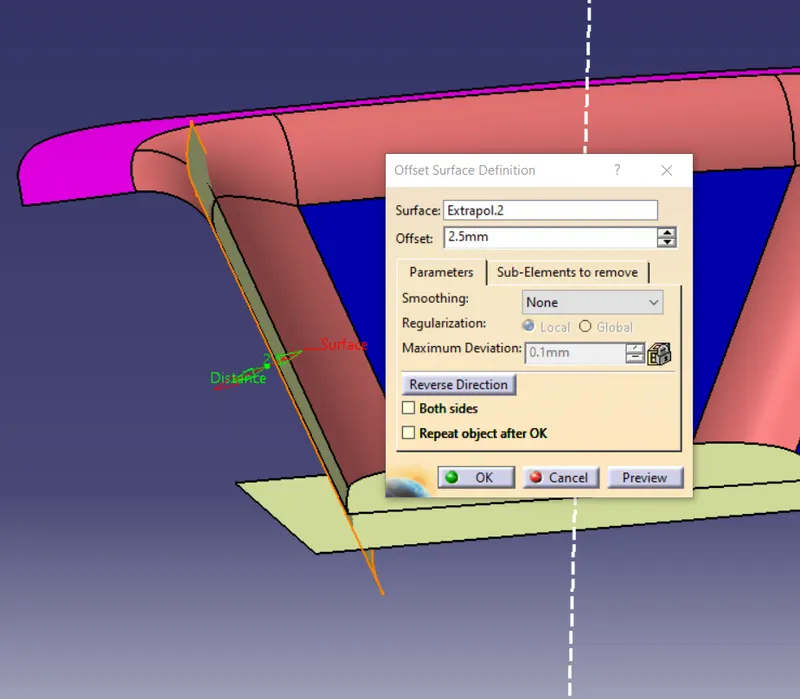

Ofset The Surface 2.5mm

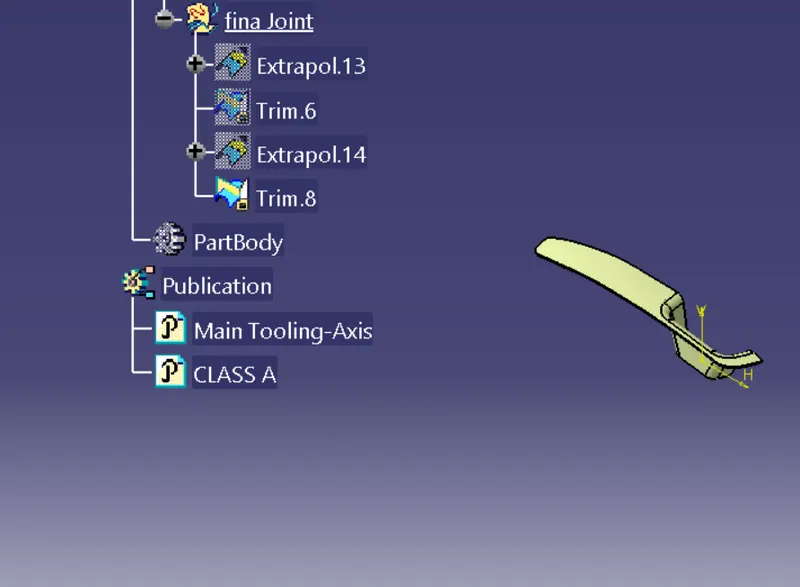

Publication

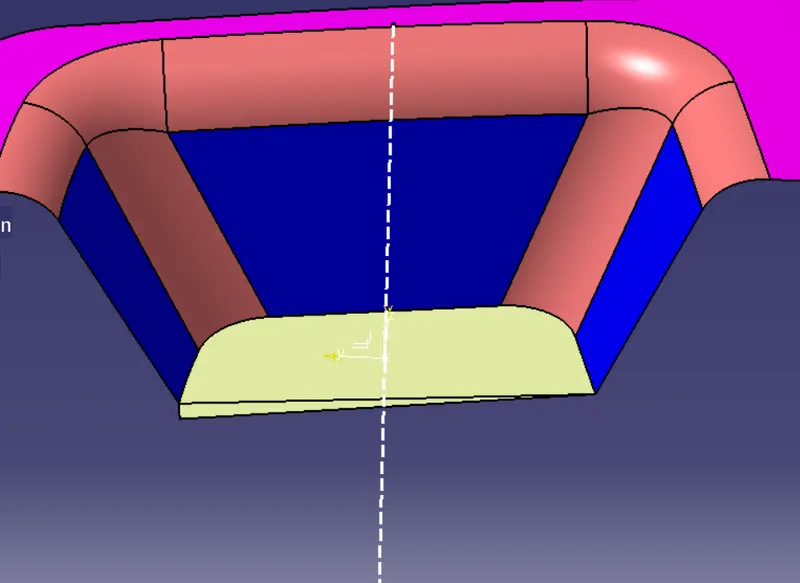

Side Surface

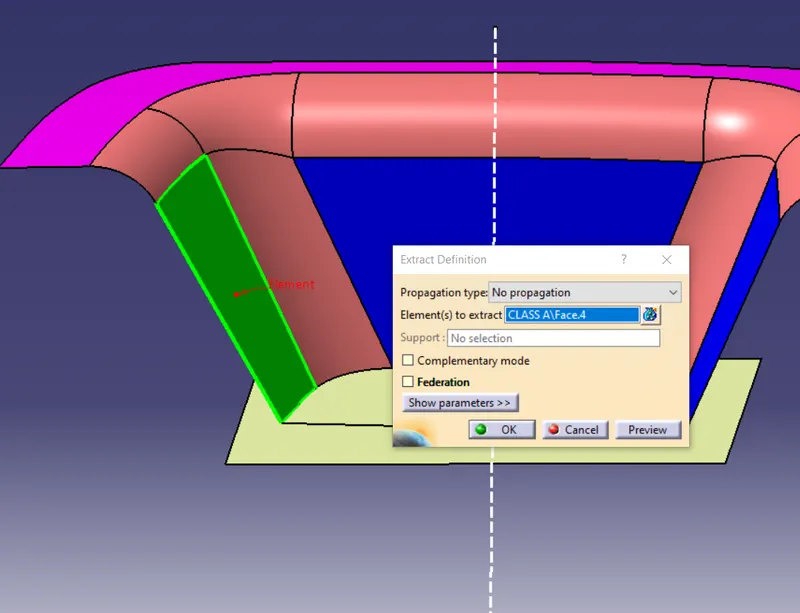

Extract The Base Surface.
Untrim That Extract Surface.

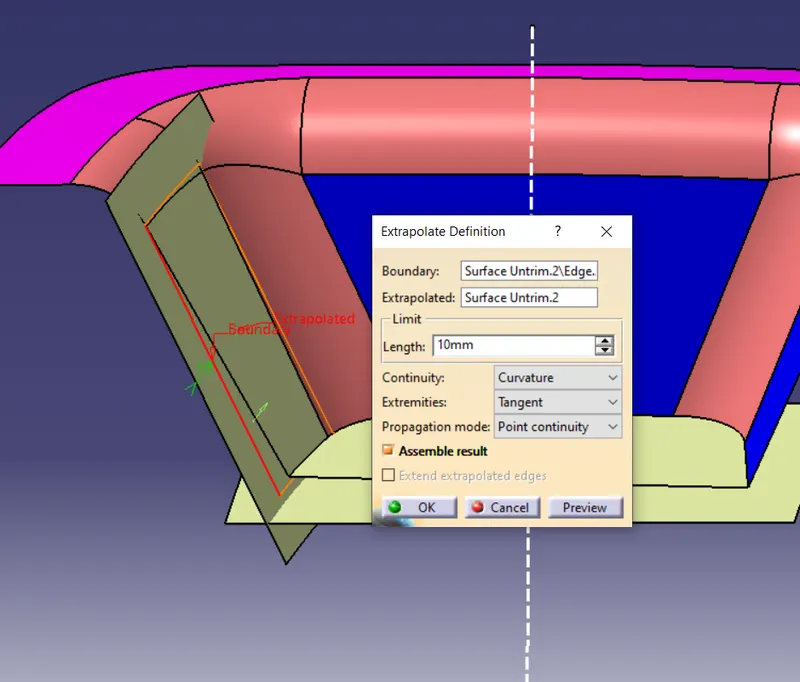

Extroplite That Surface
Ofset The Surface 2.5mm
Back-side Rib

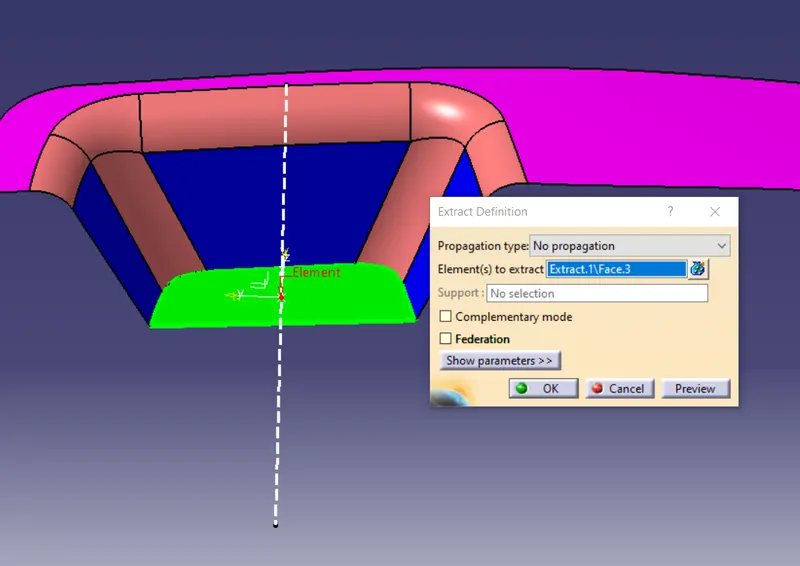

Extract The Base Surface.
Untrim That Extract Surface.
Extroplite That Surface
Ofset The Surface 2.5mm
Top-Surface Rib
Extract The Base Surface.
Untrim That Extract Surface.
Ofset The Surface 2.5mm
Crate Boundery Outer Surface

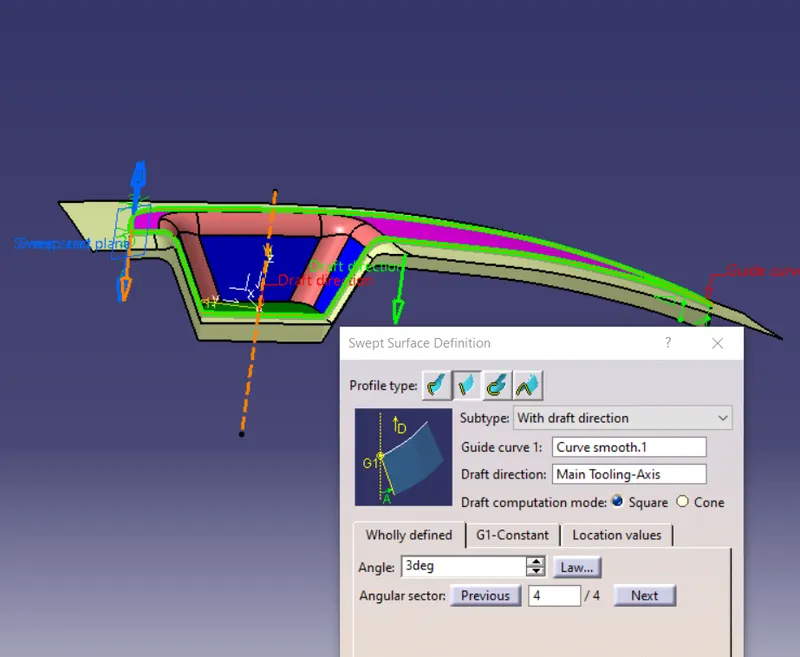

Used Sweep-option For Creating C-Surface

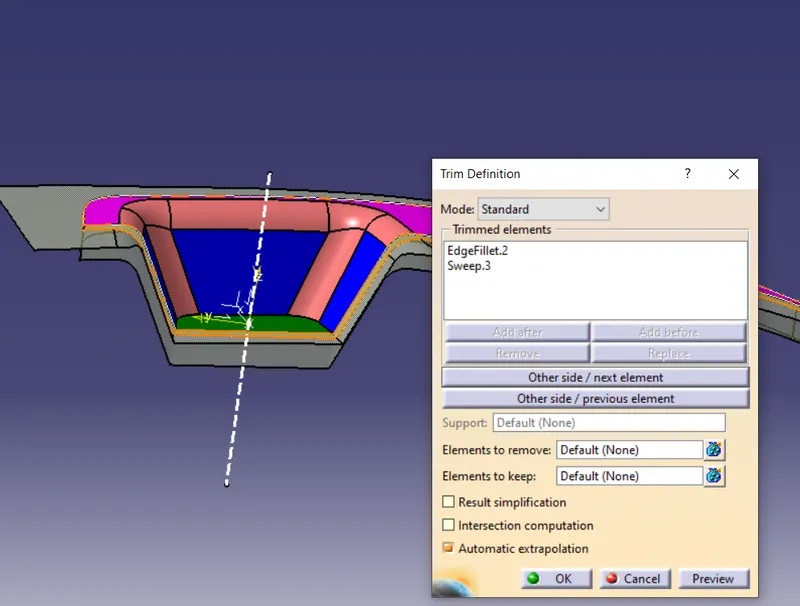

Use Trim Tool (Sweep Surface & B-Surface)

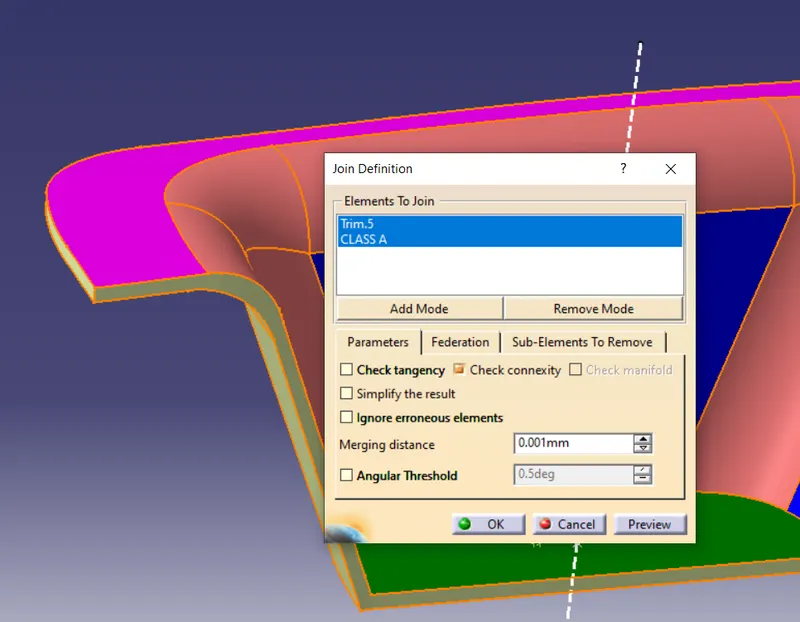

Joint C-Surface & A-surface
How To Cross Check Surface Open are not.

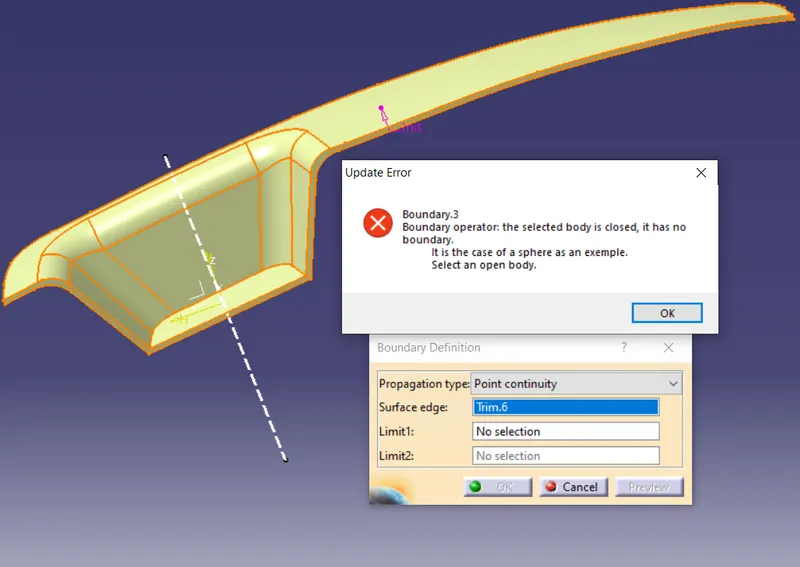

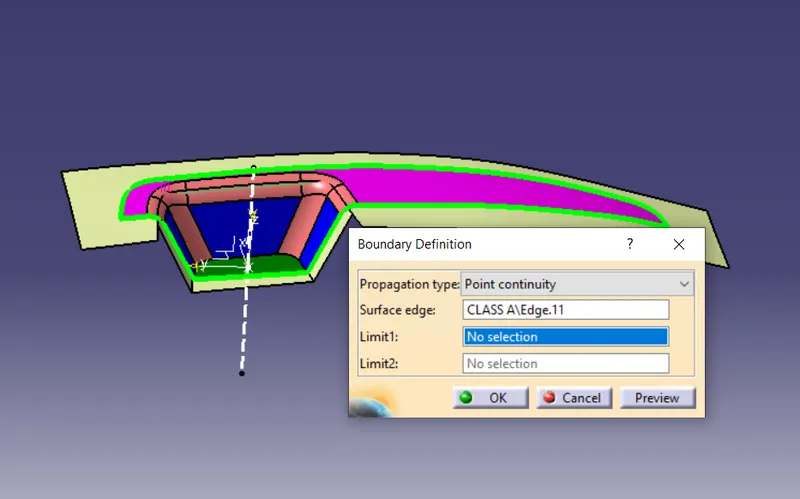

Using Boundery tool, We Ged one Warning pop-up Surface Is Properly closed
Running Point B-rib surface
Runing Point In Back-surface
Runing point in A-Rib Surface

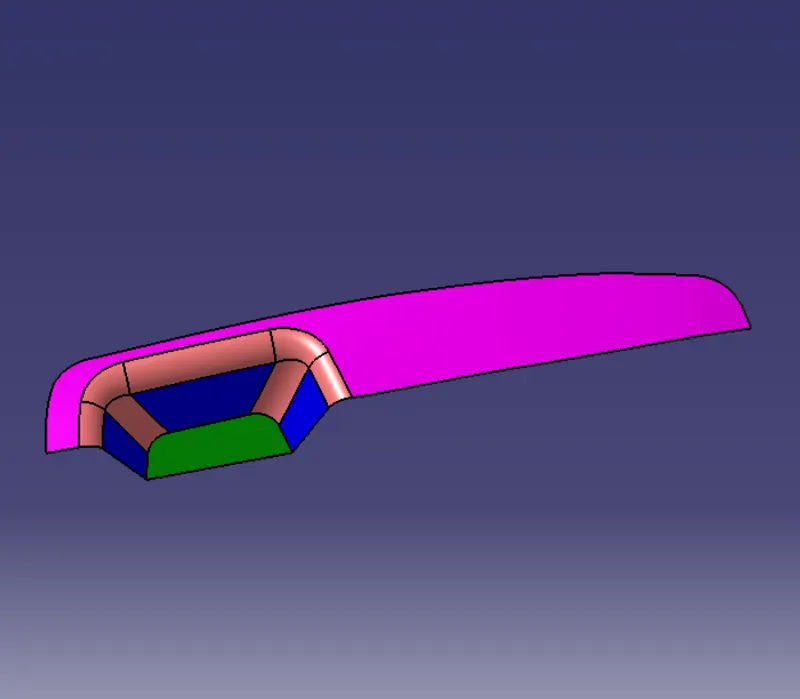

(Isometric, Front, Side, and Top View)
