Week 8 - Challenge 3 - Switch Bezel Design

Draft analysis report for both the given Class-A surface and the final plastic component.

THE DRAFT ANGLE IS "1 DEGREE"

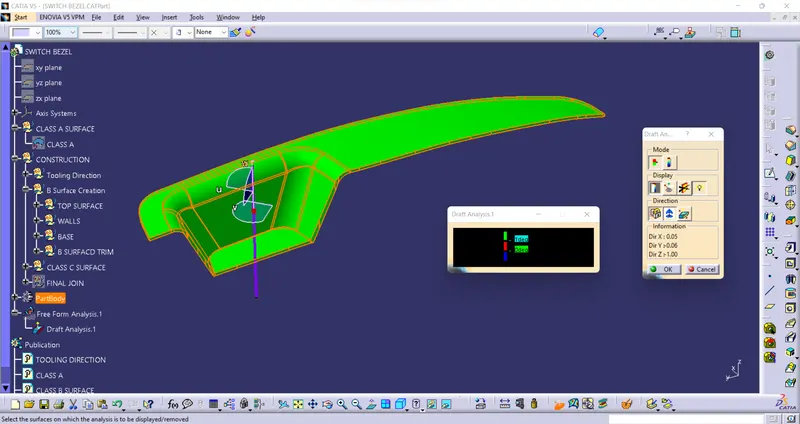

ISOMECTIC VIEW

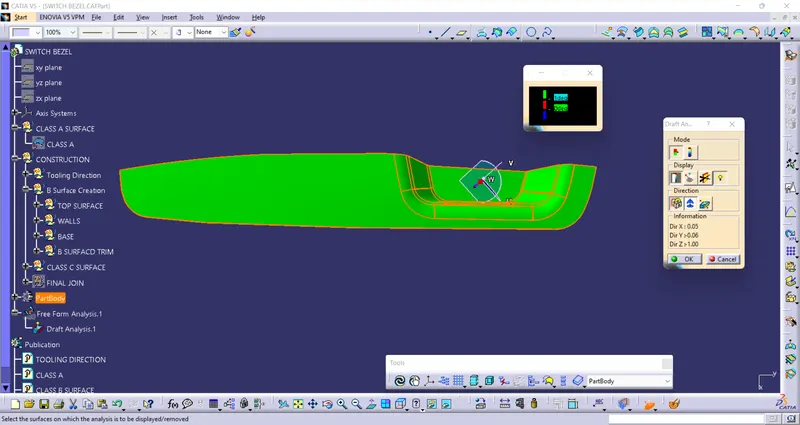

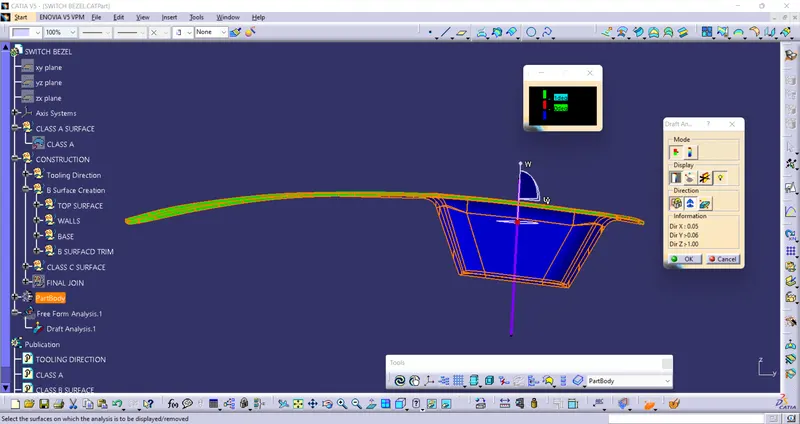

FRONT VIEW

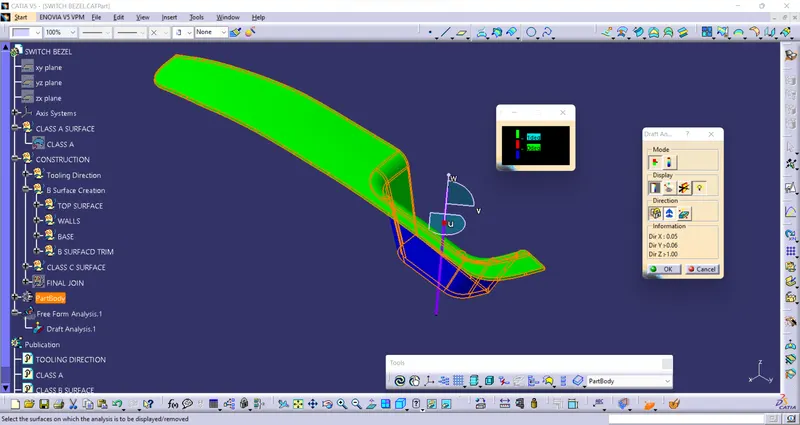

SIDE VIEW

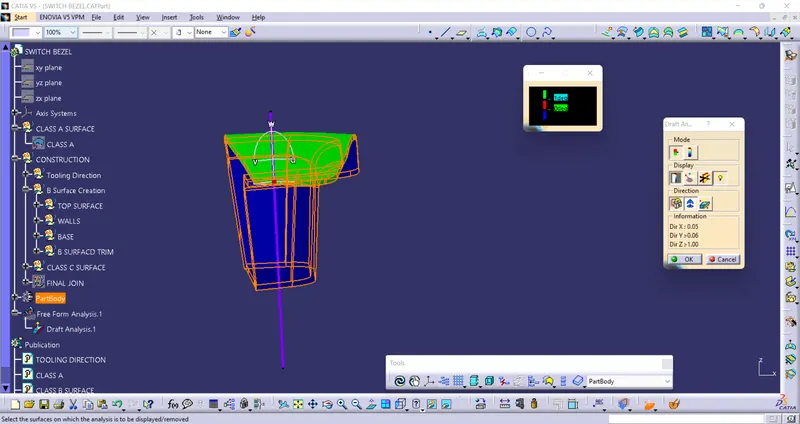

TOP VIEW

REPORT

TOOLING AXIS

First check the connectivity of the Class A surface of Switch Bezel model. With help of Join and Boundary commands to ensure that there is a gap between the surfaces.

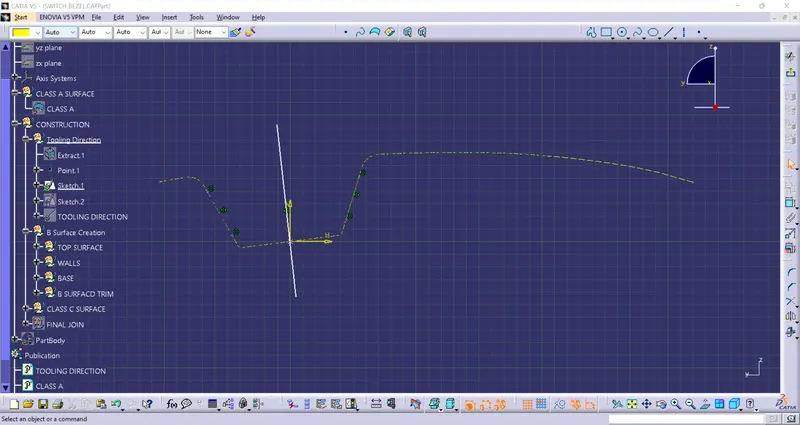

After that create the tooling axis

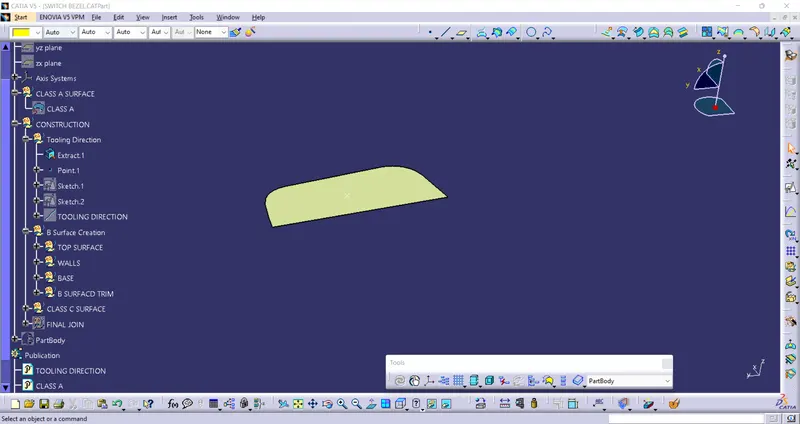

First Extract the Base fo the Class A surface then create a point on the Base center

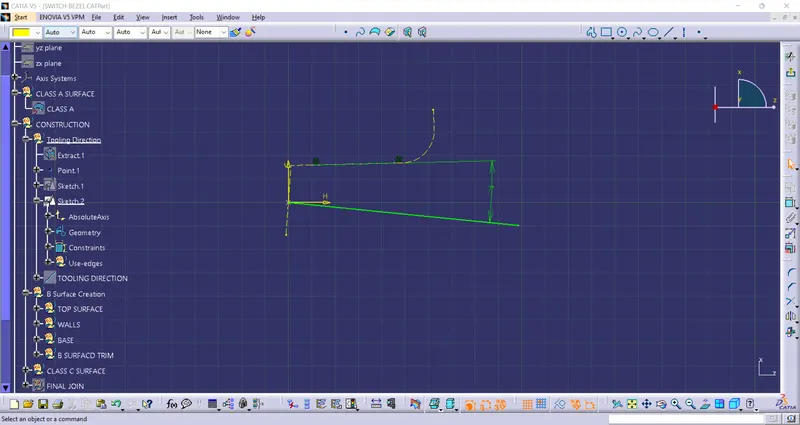

After that create a Bisect line in Y-Z plane

After that Again create a Bisect line in Z-X plane

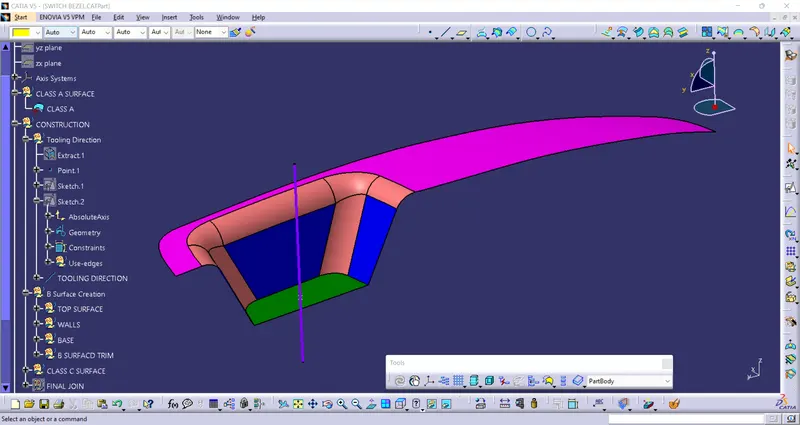

After create Tooling Axis with help of Bisecting the above Bisect lines

After creating tooling axis, open the draft analysis option and it show two dialog boxs colour scale, draft analysis.

enter the minimum draft angle in draft colour scale dialog box and selecte the surface it shows green colour. if it's have any complex shapes don't draft to given angle value it's shows red colour and reenter the draft angle and then press ok. The given Class A surface is drafted.
