Week 8 - Challenge 3 - Switch Bezel Design

Aim: Plastic Trim of Class A ,B and C surface for given styling surface into close surface profile with respest to derving tooling direction using plastic manufacturing standards.

Consideration: Minimum draft angle:3 deg.
Uniform Thickness: 3mm

METHODLOGY

Step-1

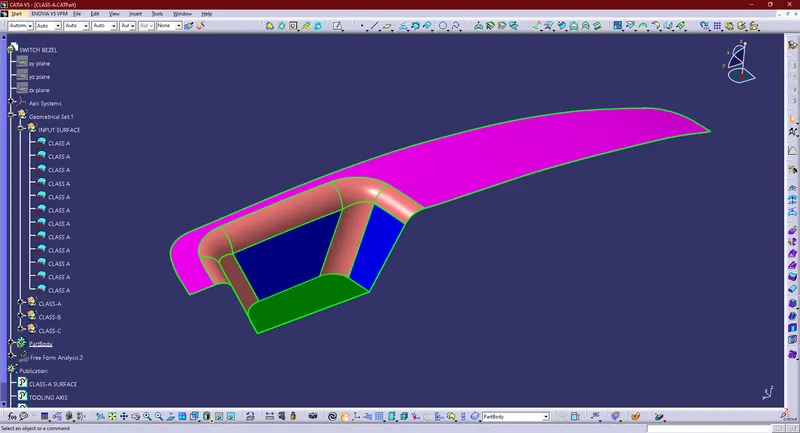

Received Styling Surface and extracting Class A surface.

STEP 2

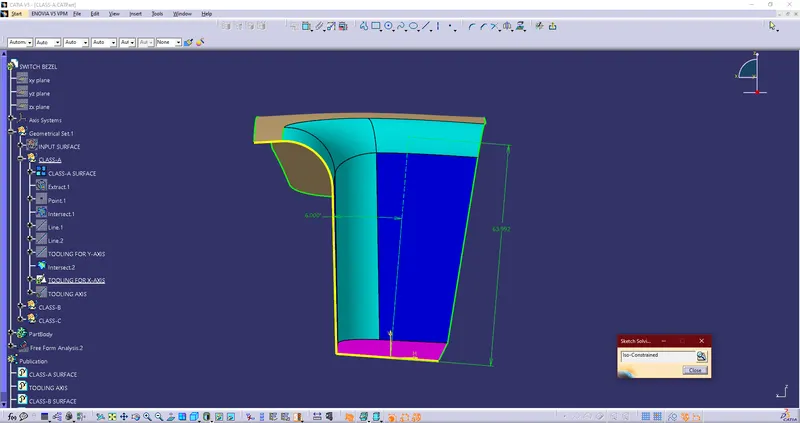

Tooling along Y-axis

Tooling along X-axis

STEP-3

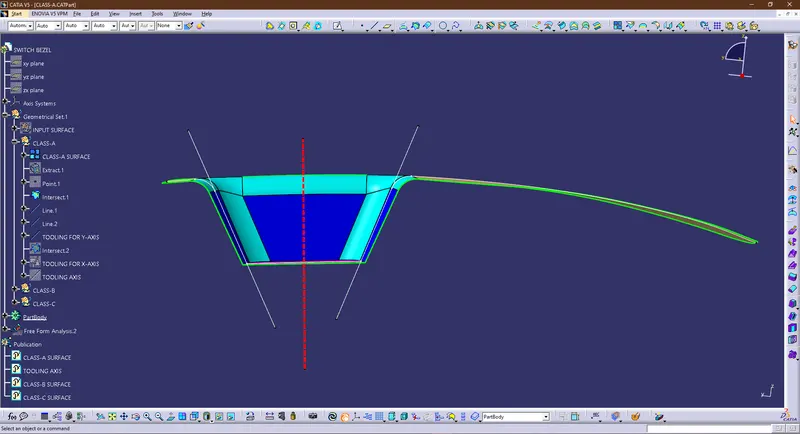

Tooling axis using X & Y axis

STEP-4

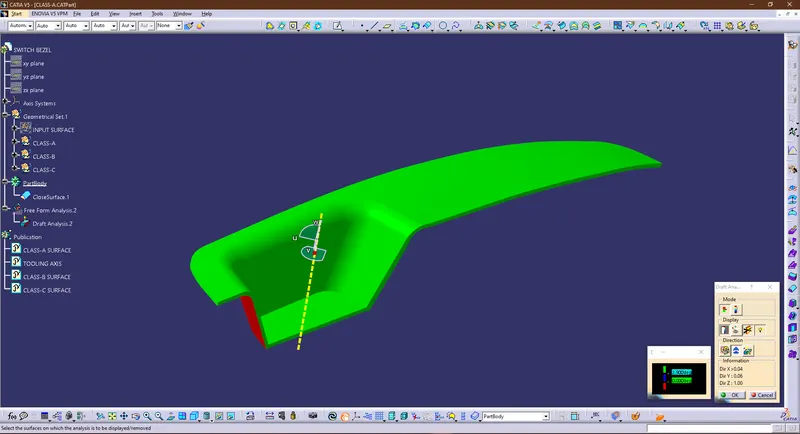

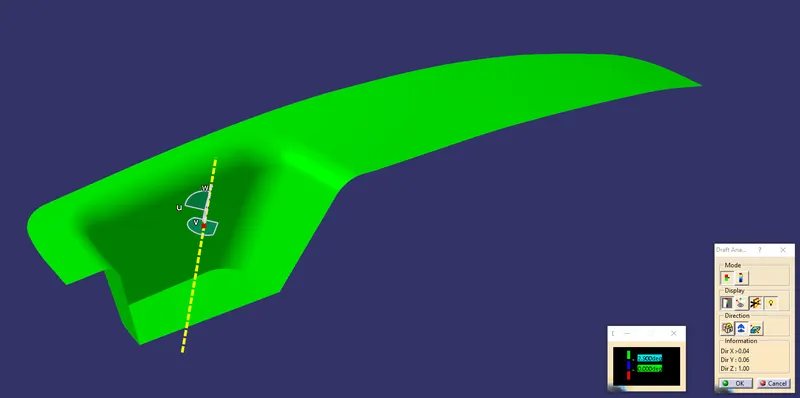

Draft analysis on CLASS-A surface

STEP-5

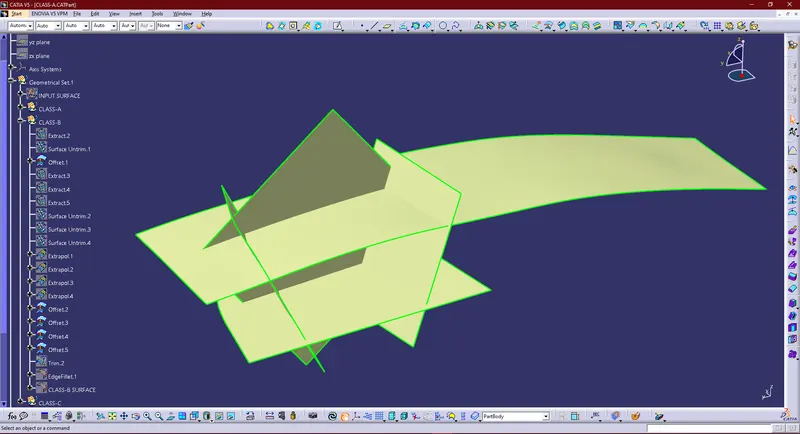

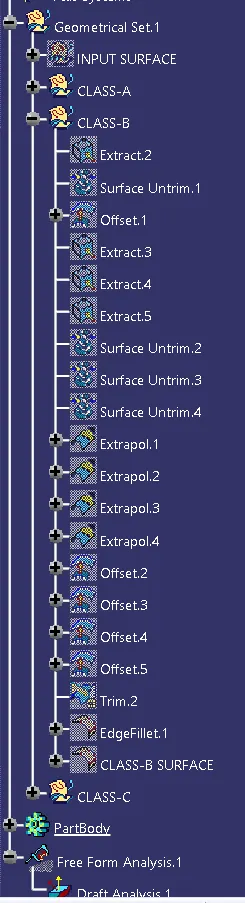

Offsetting the A surface and naming it CLASS-B surface

STEP-6

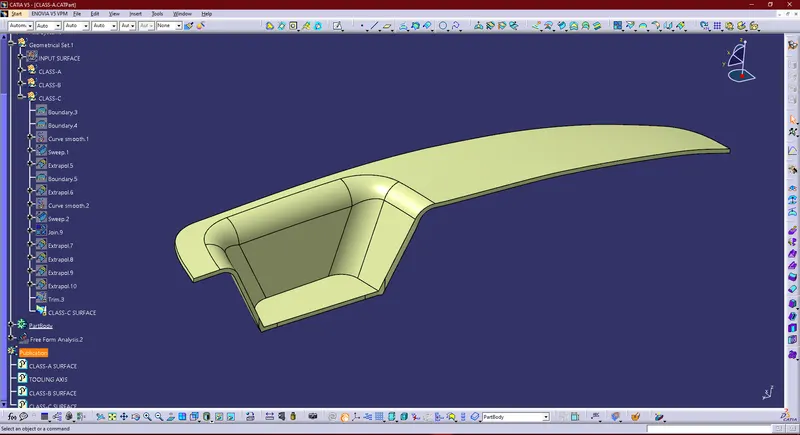

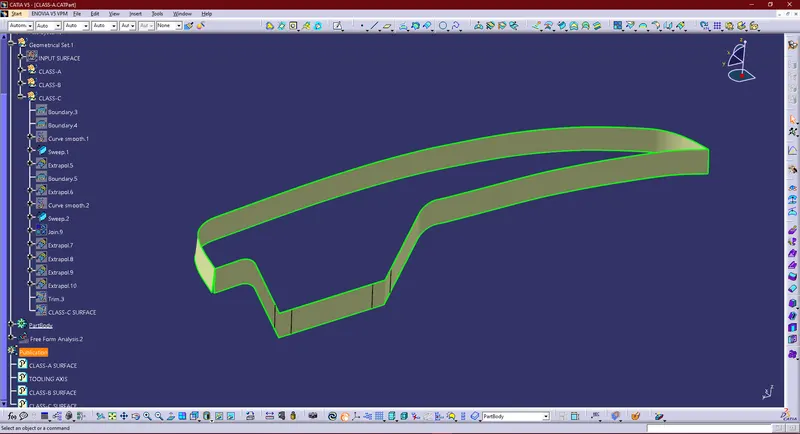

Surface is used to Join CLASS-A & CLASS-B being called as CLASS-C surface.

STEP-7

After Triming and touch-ups.

STEP-8

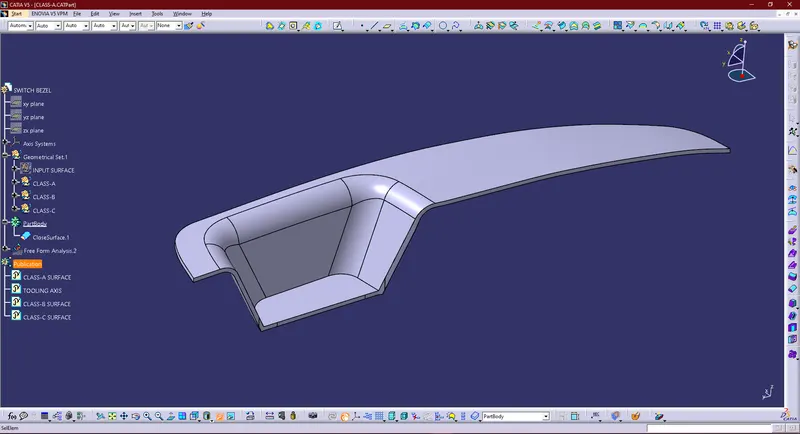

Converting Surface to Solid

STEP-9

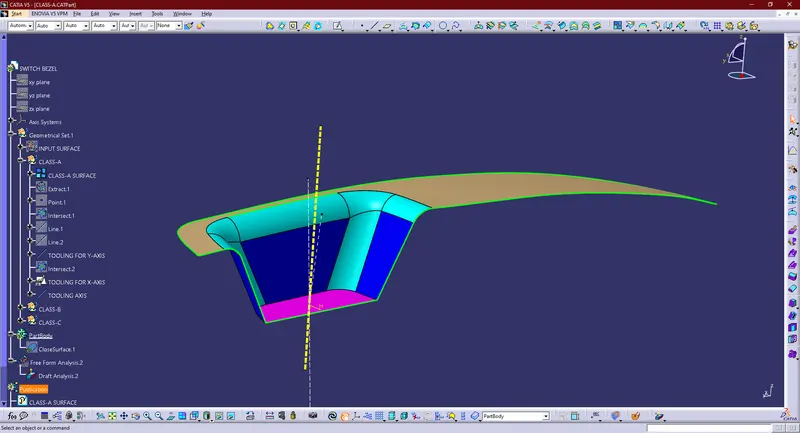

Draft analysis on Solid body

VIEWS

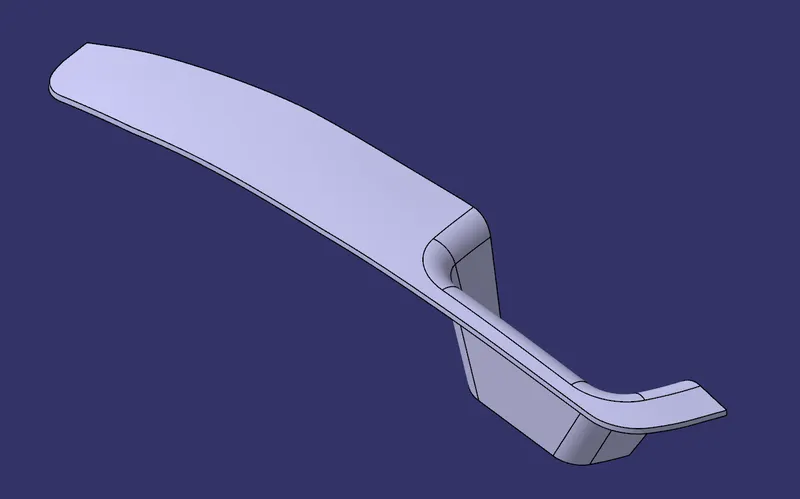

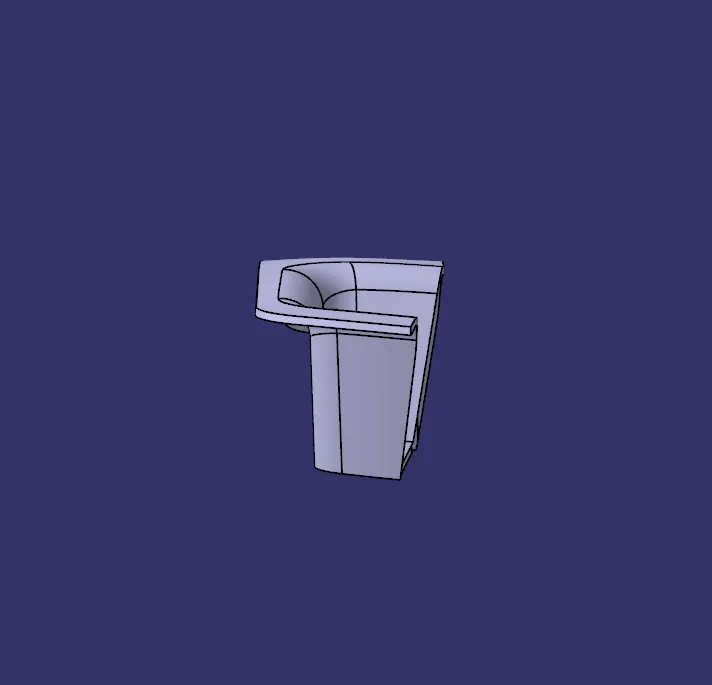

ISOMETRIC VIEW

FRONT VIEW

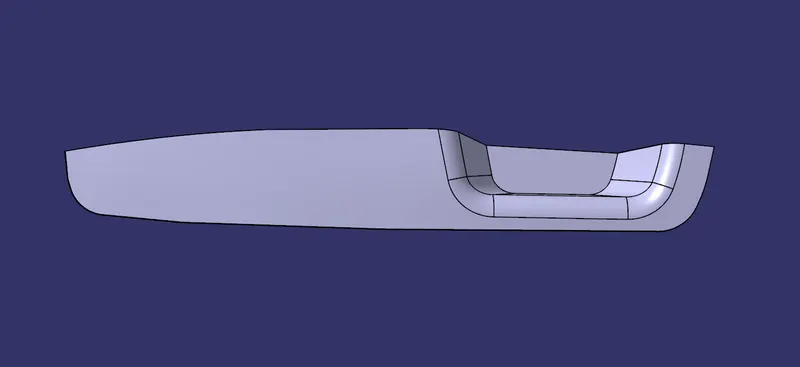

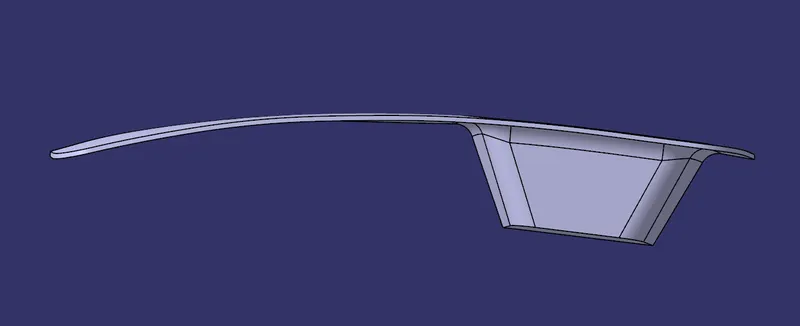

SIDE VIEW

TOP VIEW

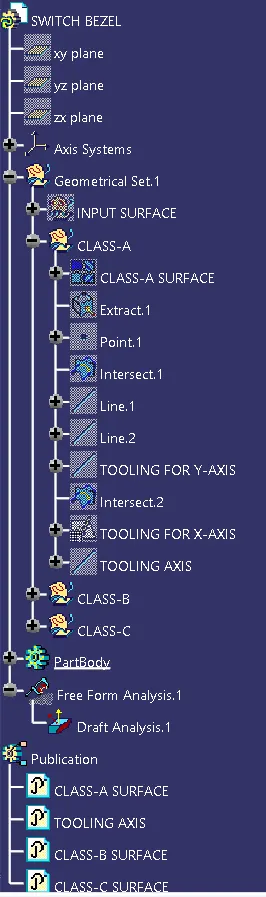

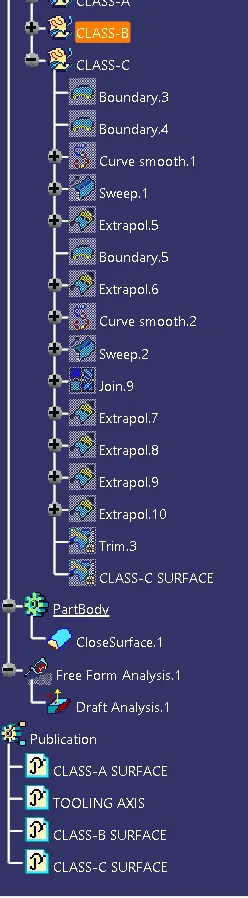

FEATURE TREE

Conclusion:
Hence, Plastic trim surface is acheived for Switch Bezel Design and verified using draft analysis and measured of uniform thickness across the body to meet the plastic manufacturing standards.
