Week 8 - Challenge 3 - Coin Holder Design

AIM

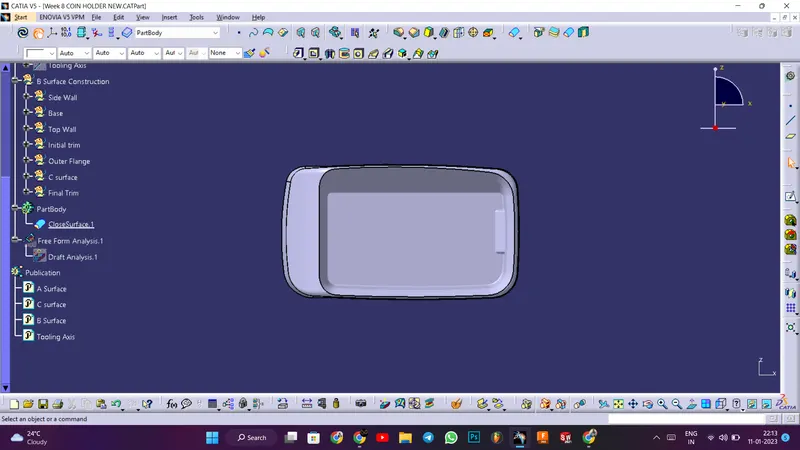

To use the provided Class-A surface to make the Base Bracket Plastic component. The tooling axis for the specified Class A Surface should be developed first, according to the demands of the draft angle, and then the model should undergo a draft analysis.

Procedure

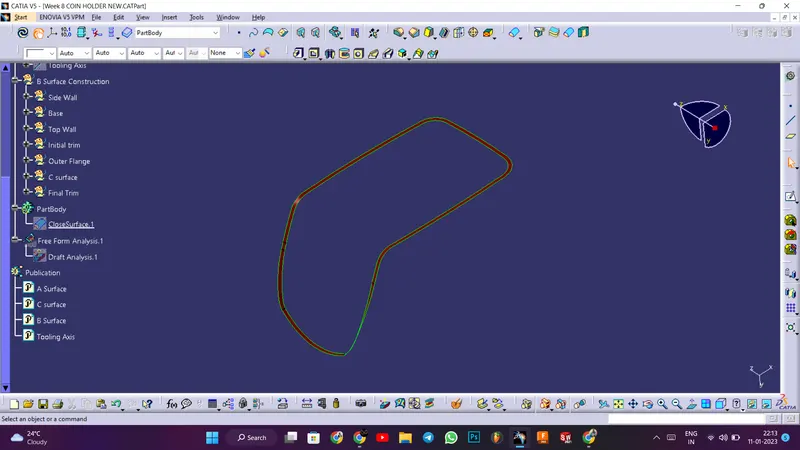

At First, Check the Class A Surface's connection. Using the join command, make sure there are no gaps between the components. We may visually inspect it or use the boundary command to do so. One outside and two inner circular limits make up its three borders. So, the initial check is finished.

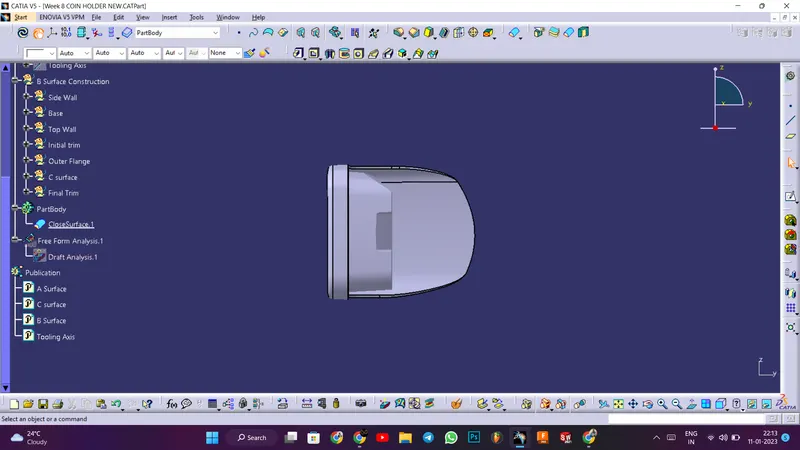

Find the component's tooling axis. The opening of the cavity or of the mould constitutes the tooling axis. Look carefully to determine the ideal tooling axis. Verify each axis. X is feasible, but it is costly, and Y is not feasible. The optimal tooling axis is z.

Creating a Tooling axis along z : Usually we draw the tooling axis using the bisecting line method, but in this model we create the tooling normal to the base and at centre because we have 0 degree surface on the side, we can request to change the class A surface or do it like this.

BISECTING LINE METHOD: Using a dummy tooling axis, the bisecting line method is essentially used to identify the correct tooling axis. When using the bisecting line method, a line is utilised to either bisect the two lines or indicate an error, indicating that the two lines are parallel to one another. We intersect the surface with the appropriate plane to determine whether or not the surface is toolable. This produces a drawing with two lines, which we can then bisect to produce a third line at the intersection of the two lines. If there is no plane at the other side draw the line with appropriate angle, so that it satisfies the draft angle

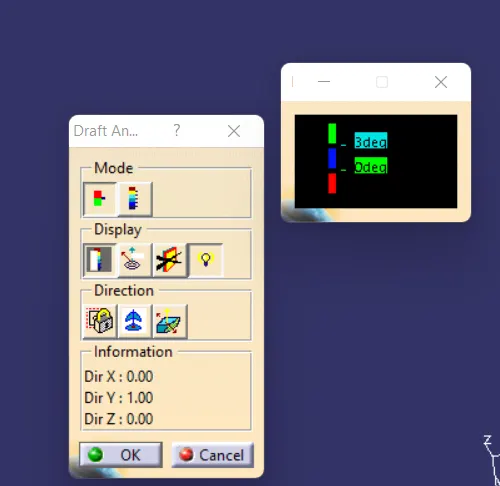

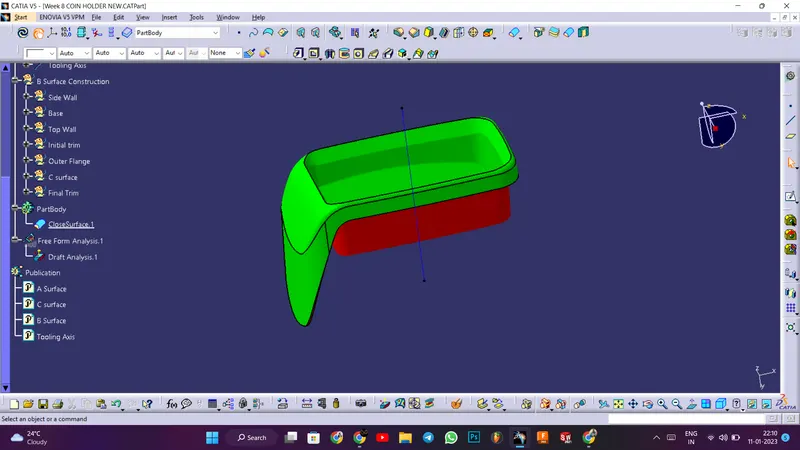

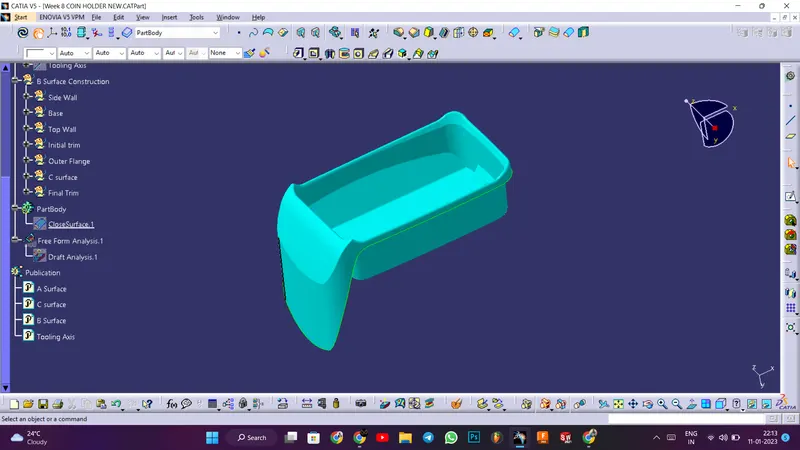

Draft Analysis : Use the Featured Draft Analysis tool in the tools to now analyse the draft. After locating the compass and aligning it with the tooling axis, click on the lock symbol after aligning, and then click again on the surface after opening the draft analysis tool box.

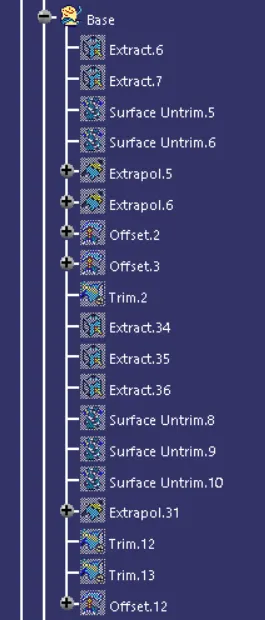

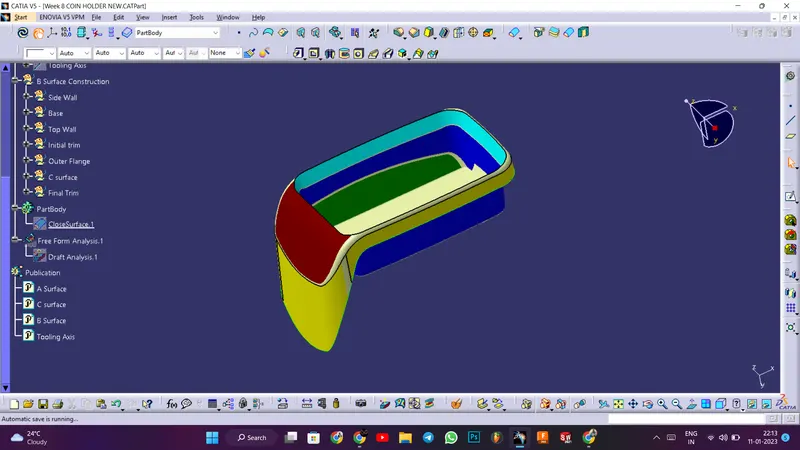

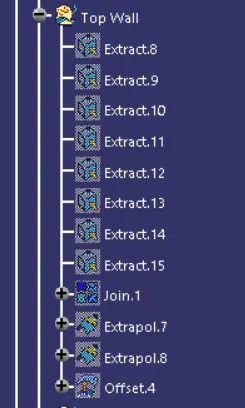

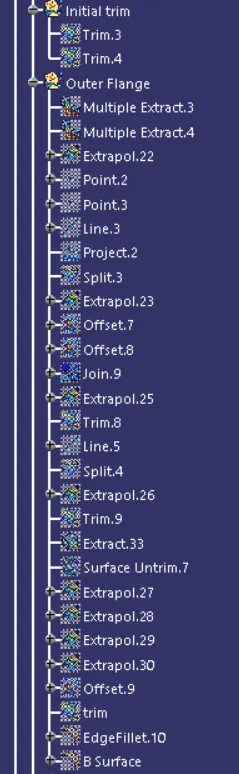

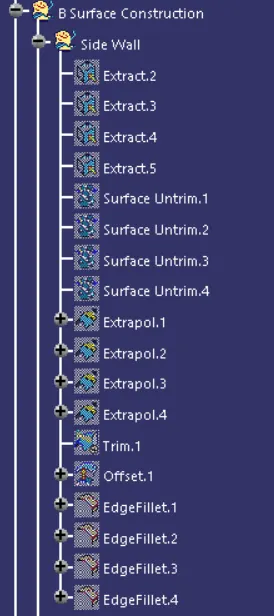

Creating Class B Surface: Utilising the extract option on the Class A surface to firstly extract the base and the adjacent wall. Extrapolate is then used to extend the length. Trim the surfaces now to the appropriate surfaces.Then repeat this for the top walls. Then, offset the surface to obtain the necessary thickness. Similarly, obtain the front flat surfaces and offset them to the appropriate value. And now, trim to get the desired surface. Fillet the surface now to the necessary amount.

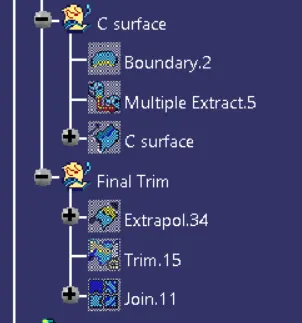

Creating Class C Surface: At first extract the boundaries of the Class A surface using multiple extract and sweep it normal to top walls of B surface using sweep with reference surface.

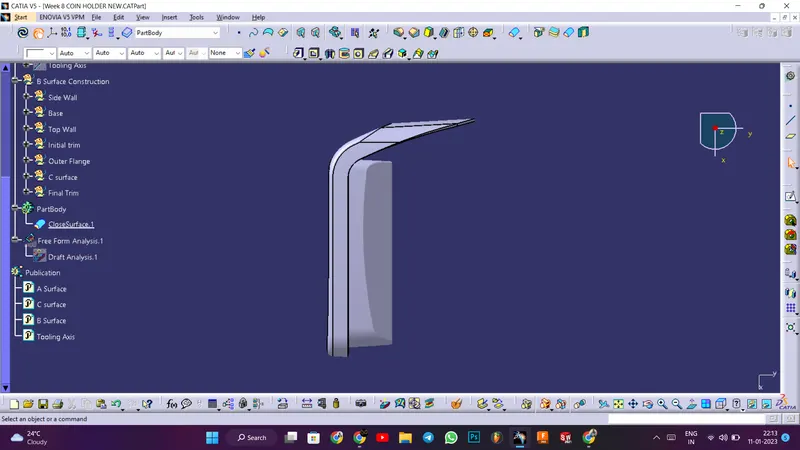

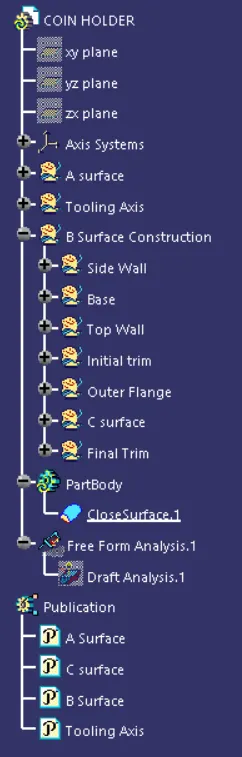

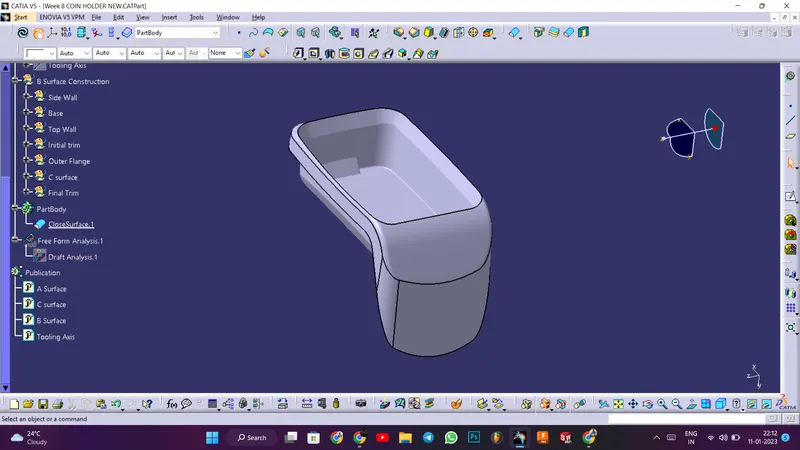

Final output : Now trim the Class B and Class C surfaces and join with class A to get the desired output.
