Week 8 - Challenge 3 - Coin Holder Design

REPORT:

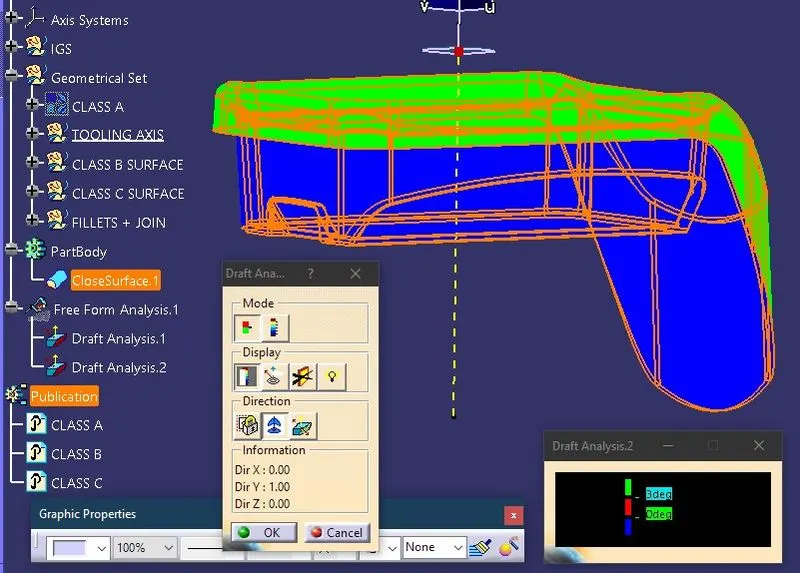

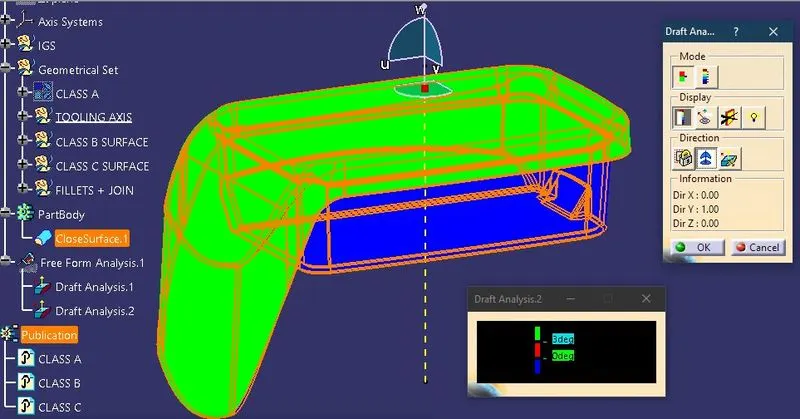

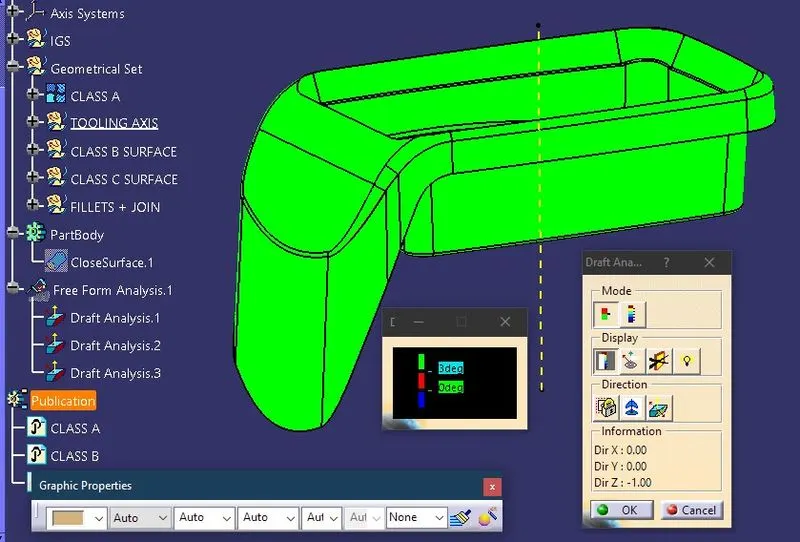

As visible in above figures, draft analysis is done considering 3 degree as thereshold. Angles between tooling axis and the surfaces, which lie between 0 to 3 are assigned with red colour. As there are no red surfaces, draft analysis is cleared.
Creation of tooling axis:

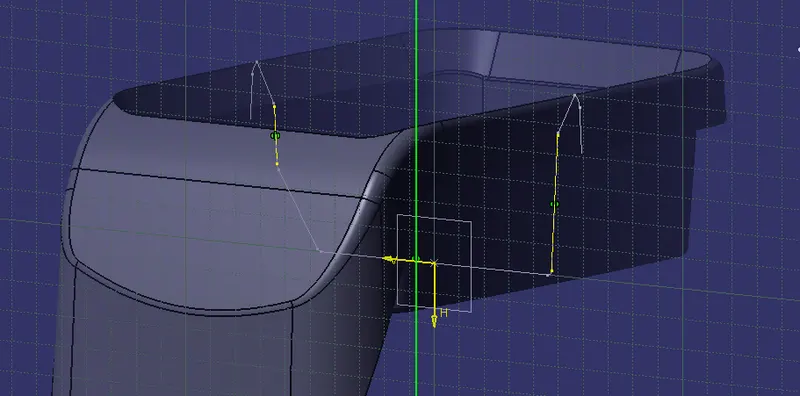

As shown in figure, a line perpendicular to base is generated when the the lines extracted from side walls are bisected.
Also, no part feature interferes the ejection of moulded tool when this tooling axis is considered.
