Week 8 - Challenge 3 - Coin Holder Design

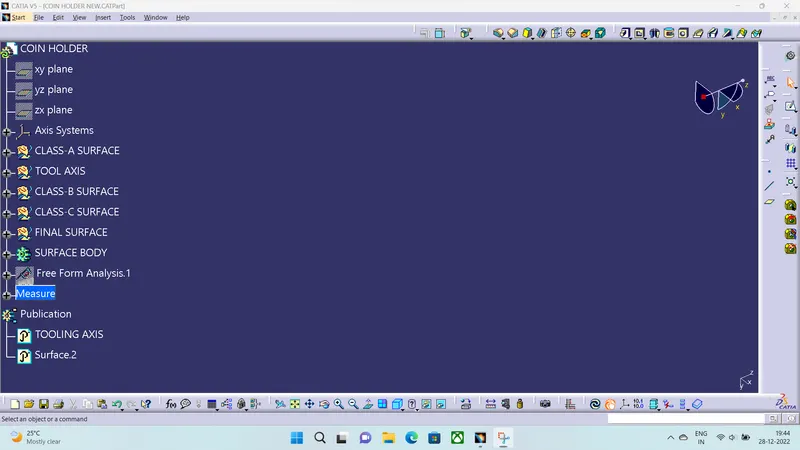

COIN HOLDER

Aim

To Create a Thickened suraface and dpplying Draft Analysis for the given Class-A surface.

Procedure

First we have to study the Class-A and finding its Tooling Axis.
First we are splitting the surface into several parts and create the Class-B and Class-c Surface.

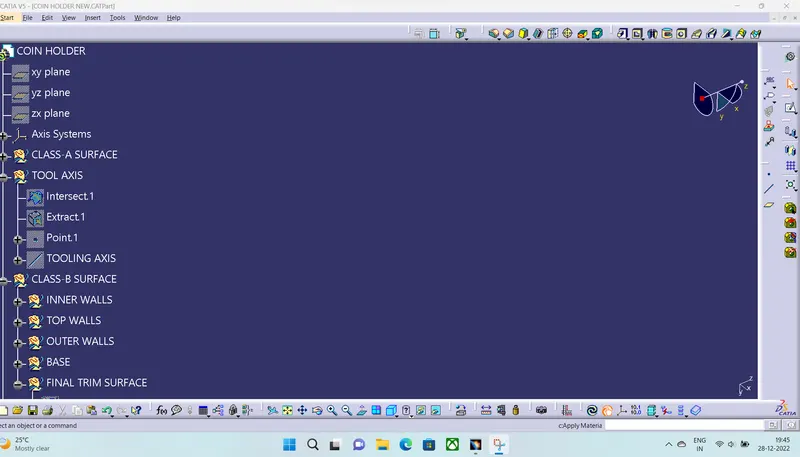

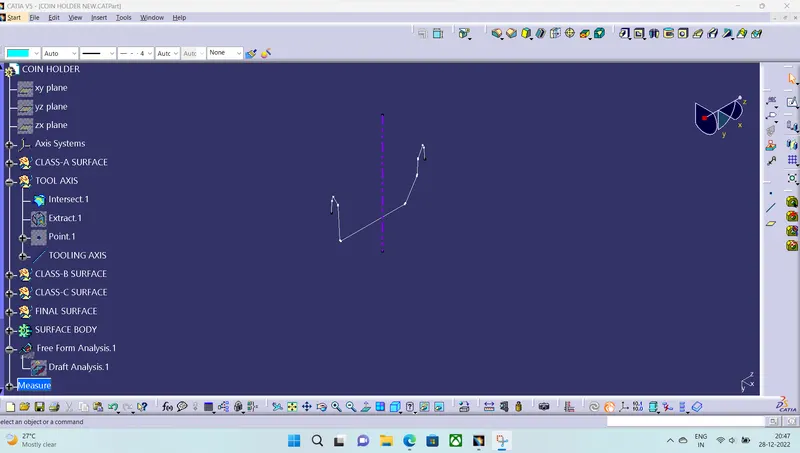

TOOLING AXIS

We are Creating the tooling axis for the above normal to the surface of the base of the as it is not much of a deviation of then surface.

After Creating the Tool axis we are going to create the Class-B and Class-C surface.

CLASS-A SURFACE

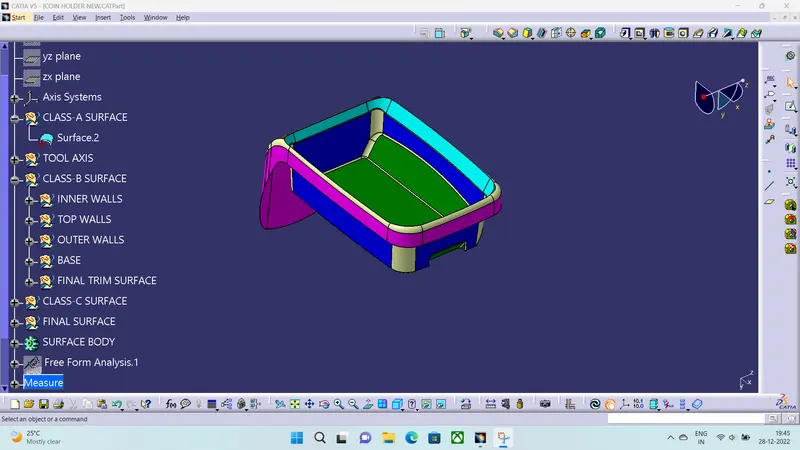

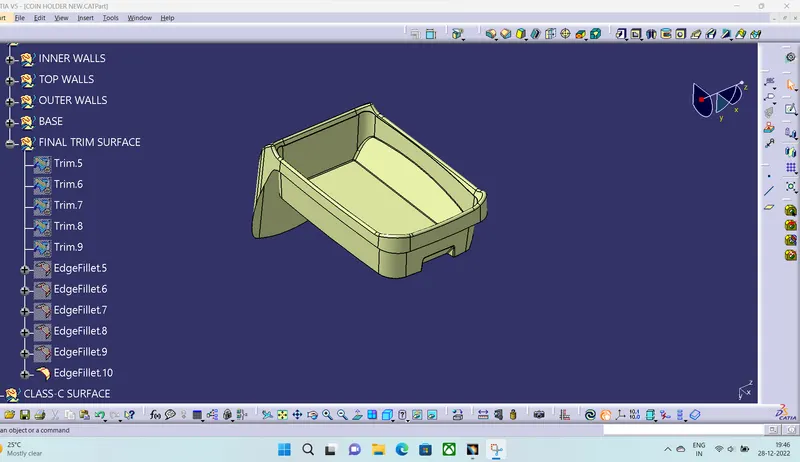

CLASS-B SURFACE

The Class-B is Created by Extracting The Seperate parts of the Class-A surface.
After Extracting We Will untrim the components and extrapolate them to a certain distance with point continuity.
Then we will trim to get the required shape and we will give fillets in required areas and the Offset it to A distance of 2.5MM.

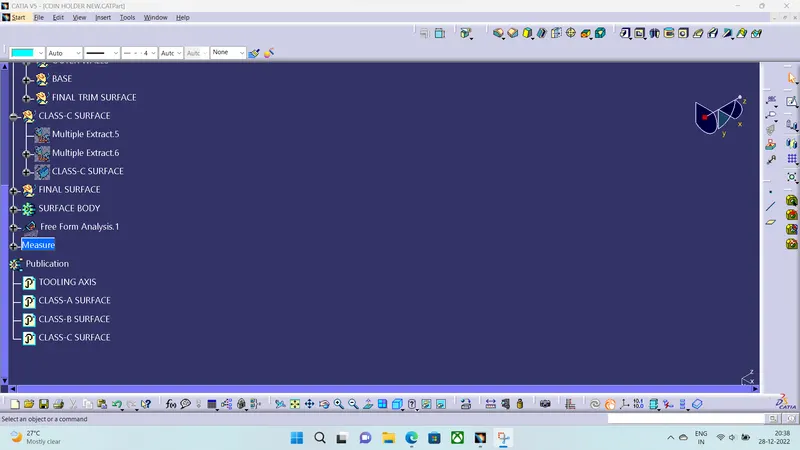

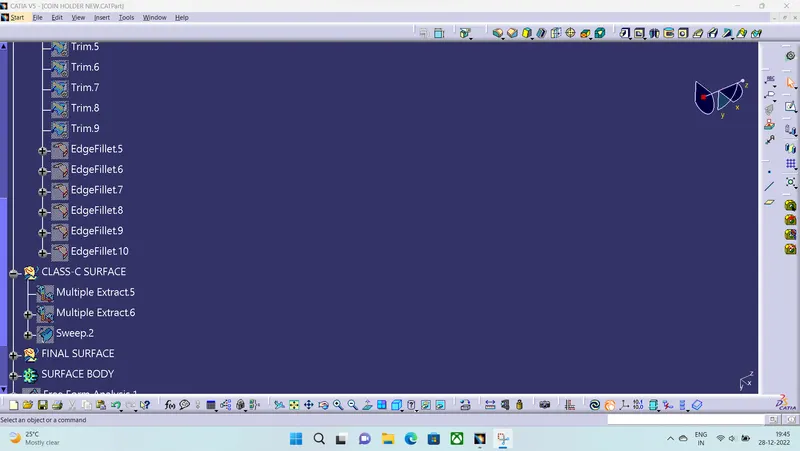

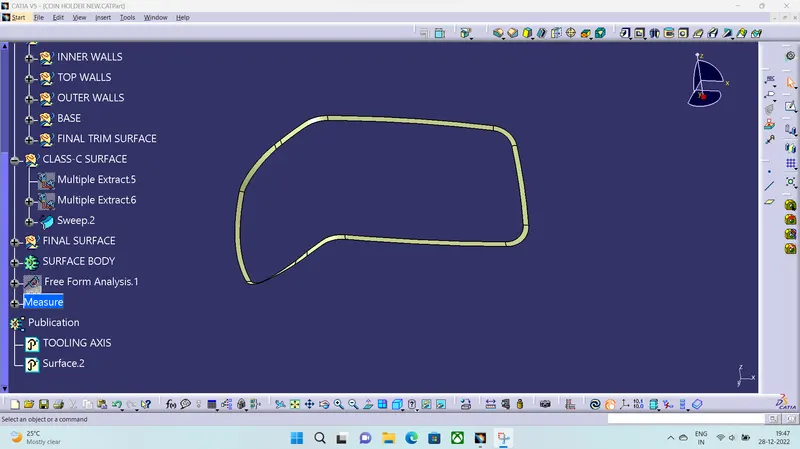

CLASS-C SURFACE

In Class-C we are going to take boundary from the Class-A surface and by Using Sweep Command Along the surfacewhich is adjacent to the boundary and we are doing the sweep at 90°.

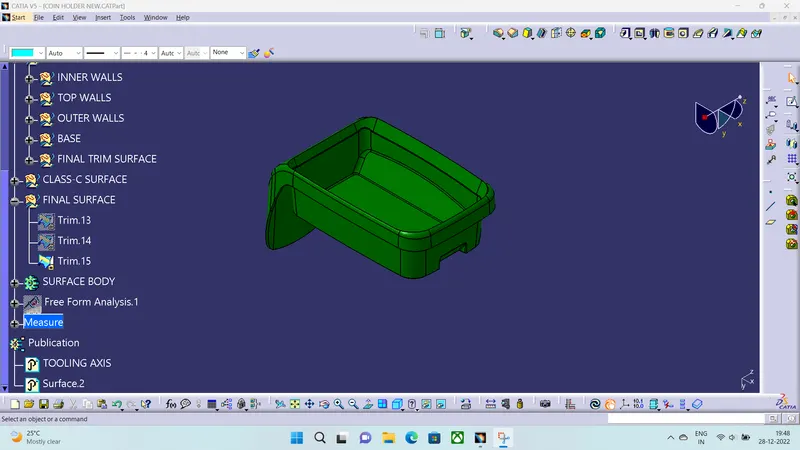

FINAL SURFACE

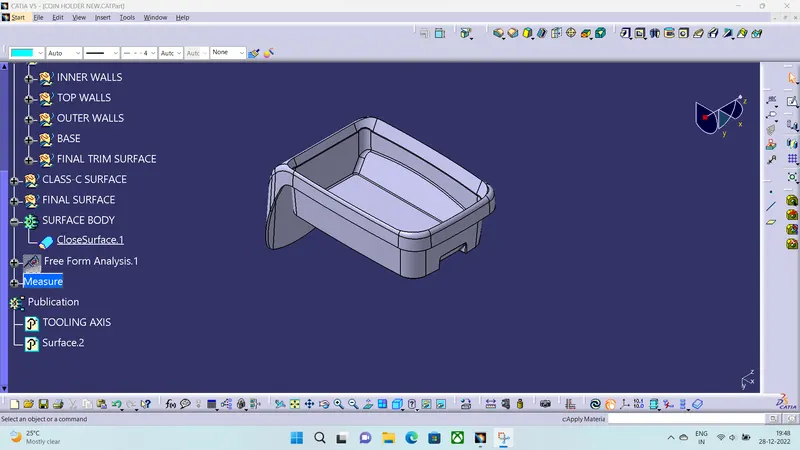

CLOSED SURFACE

ISOMETRIC VIEW

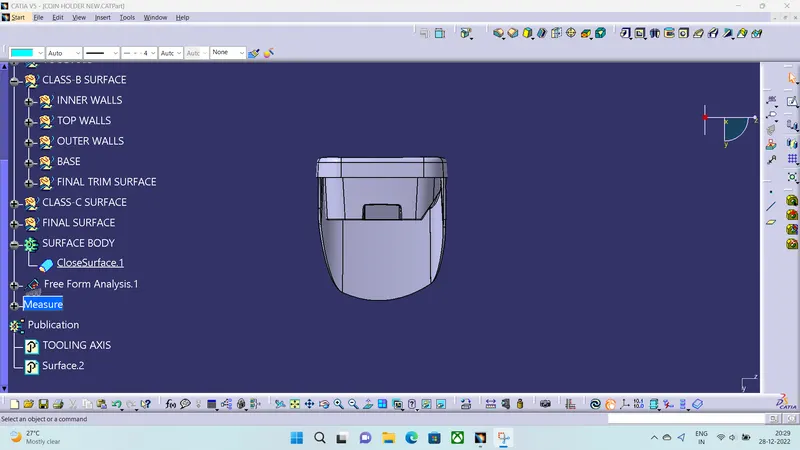

FRONT VIEW

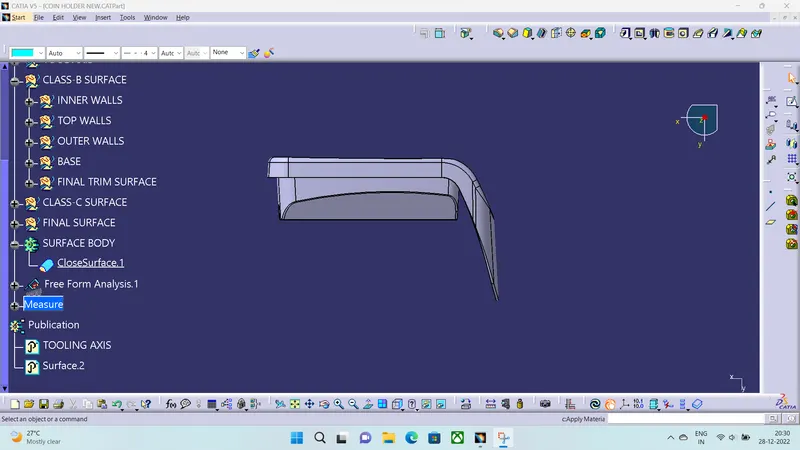

SIDE VIEW

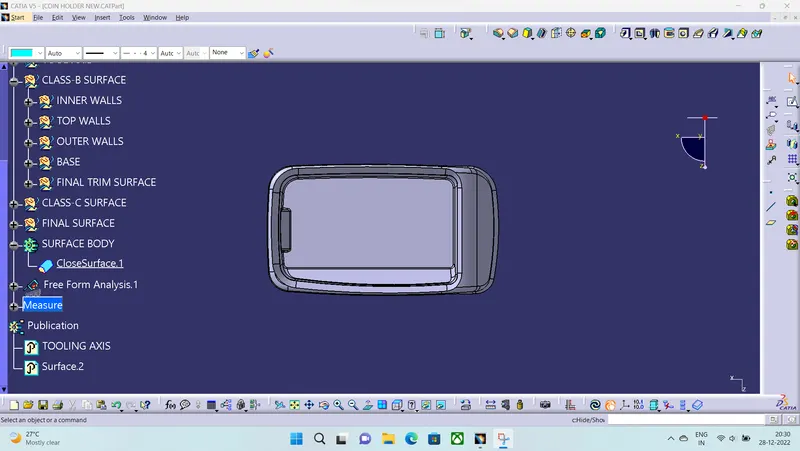

TOP VIEW

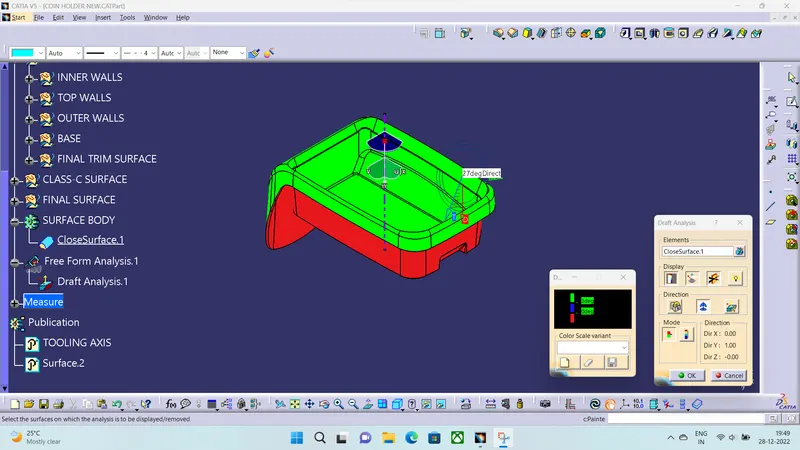

DRAFT ANALYSIS

We are going to perform draft analysis on the closed surface along the Tool axis which should be in between 0°-3°.

From the above diagram the draft analysis is within our Range.
