Week 8 - Challenge 3 - Coin Holder Design

AIM:

Create the Coin Holder Plastic component through the given Class-A surface. Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

OBJECTIVE:

  • To crate a tooling axis for the plastic component
  • To create a Coin Holder of plastic component from given Class A surface.
  • To perform the draft analysis over the plastic component.

IMPORTING THE MODEL

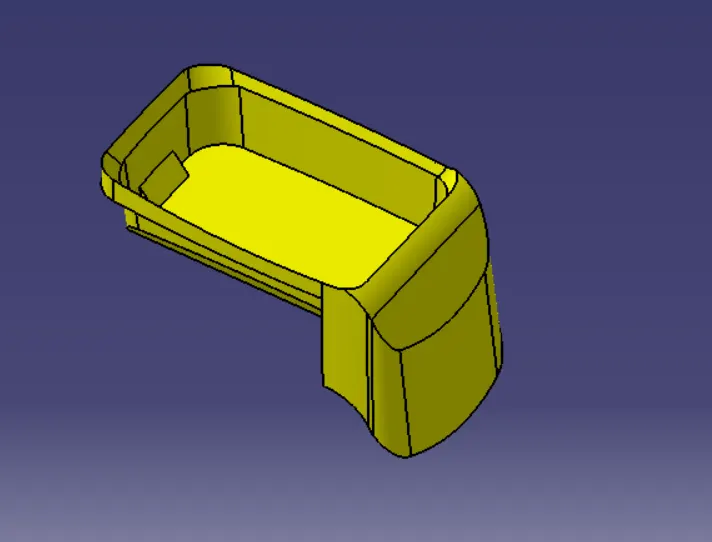

  • Open the downloaded IGES file make it has class A surface by jioning all the surfaces

PROCEDURE:

  • Doing the continuity check to ensure whether given class A surface is continuos or not.By using Boundry/jion method,It seems there is no dis-continuos boundry

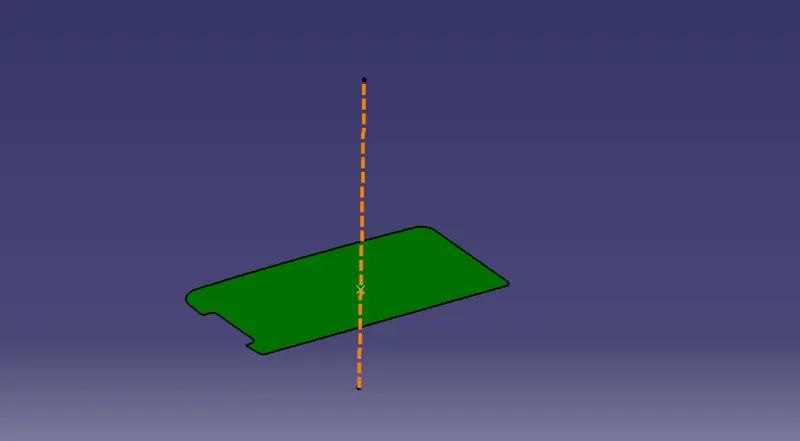

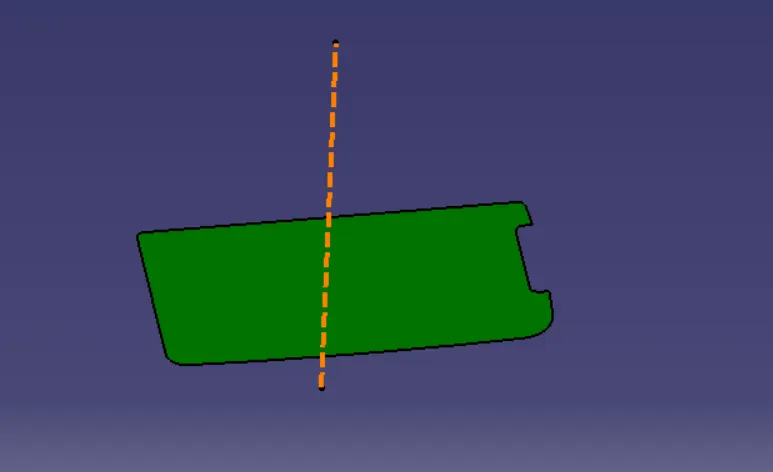

  • create point on base plane & create tooling axis on point & normal to base surface (On surface method)

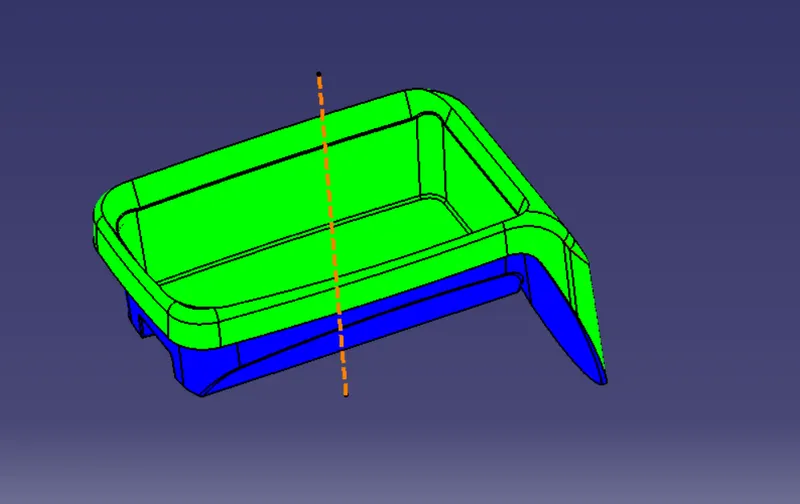

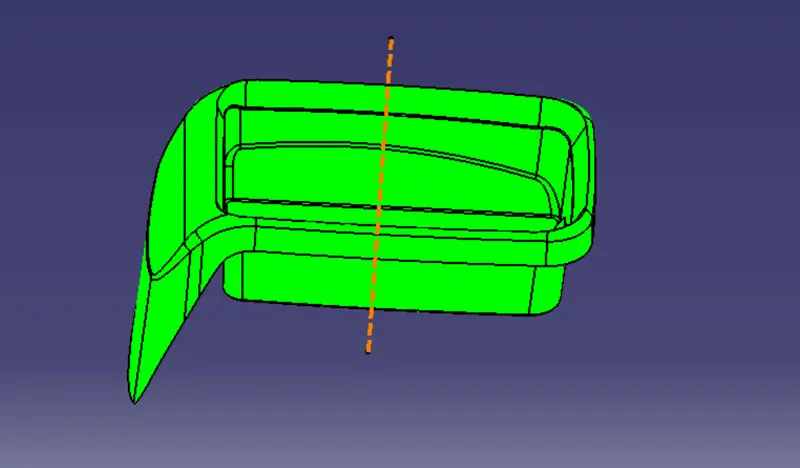

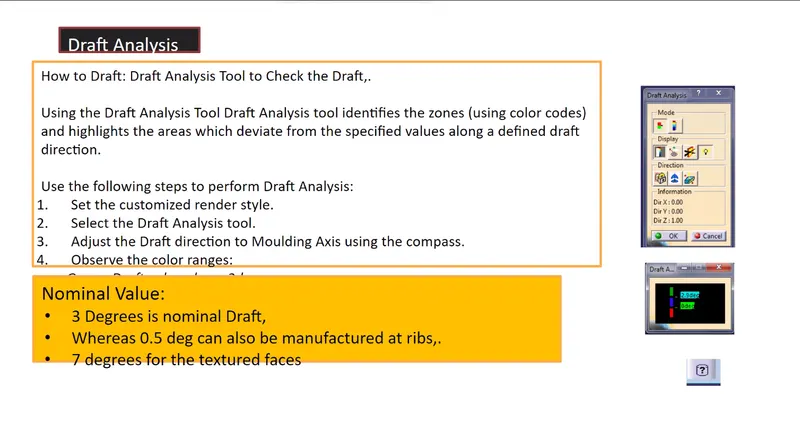

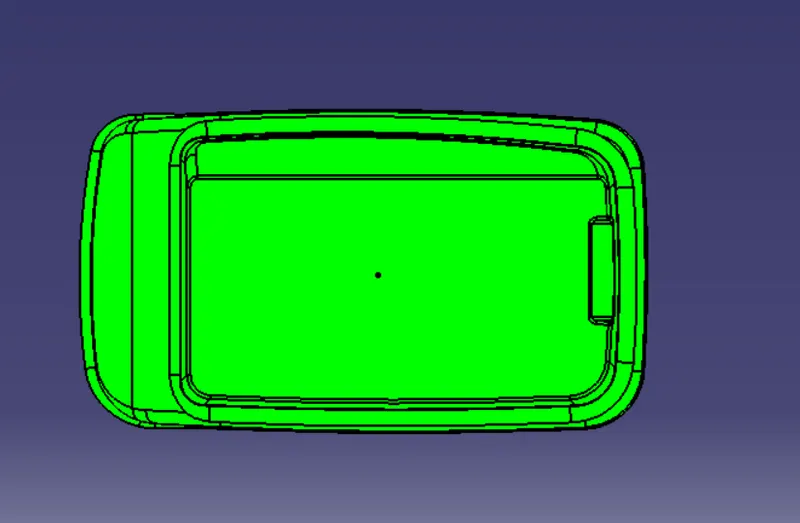

  • Perform draft analysis on the given class A surface,Below pic shows the result of draft analysis,It cleares that it has 3^0 draft throughout the surface with respect to tooling axis as it is in green color

Creating Class B surface:

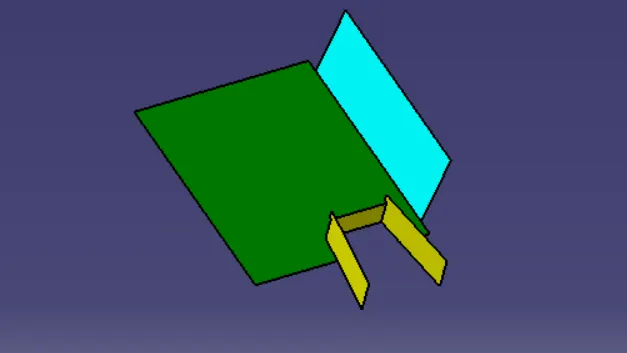

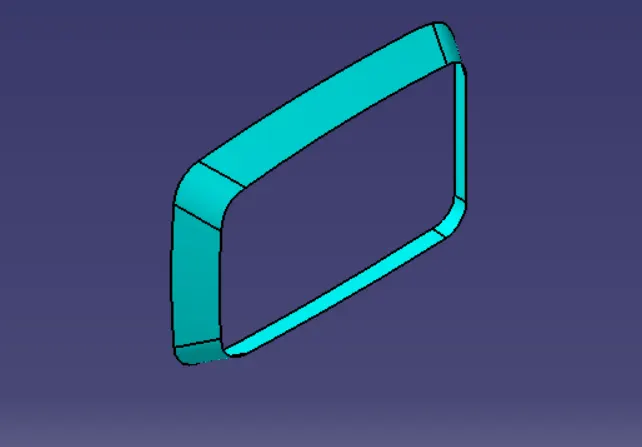

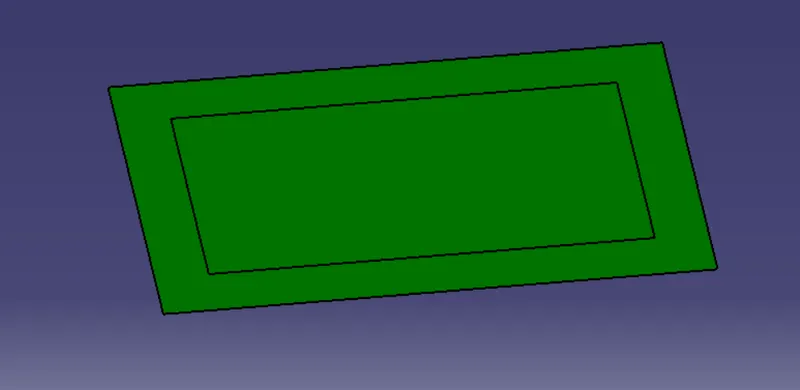

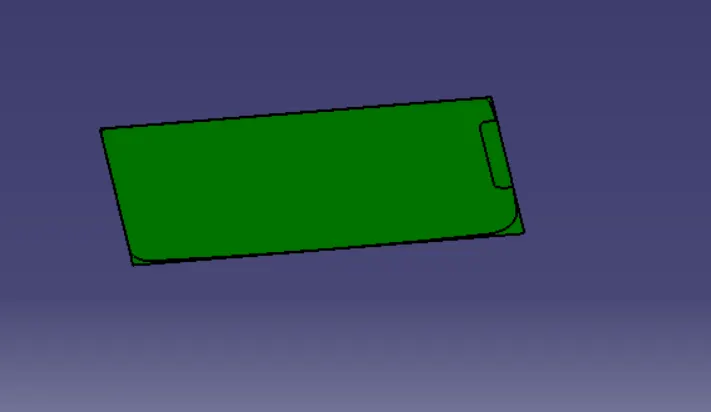

  • First Extract the surface base

  • untrim the surface base

  • Then extrapolite wherever required

  • Off set ClaasA surface to 2.5 mm ,then we will get desired class B base surface

  • Similarly do the above procedure for All the sides , Top Surface & Outre flanges
  • Trim the base surface with other base related surface by doing the above procedure

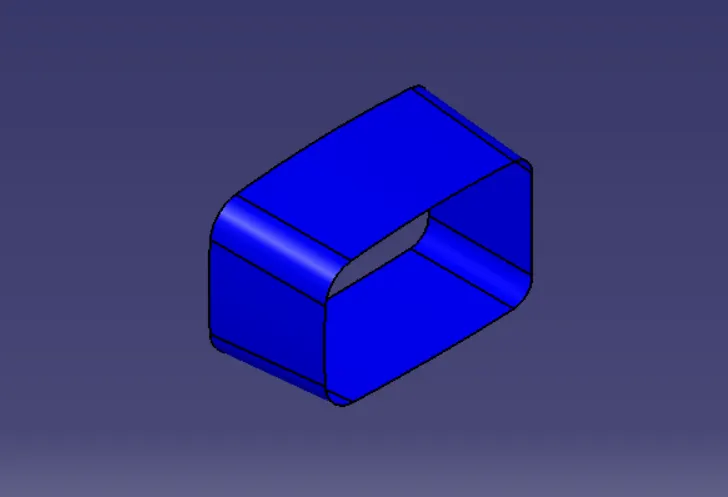

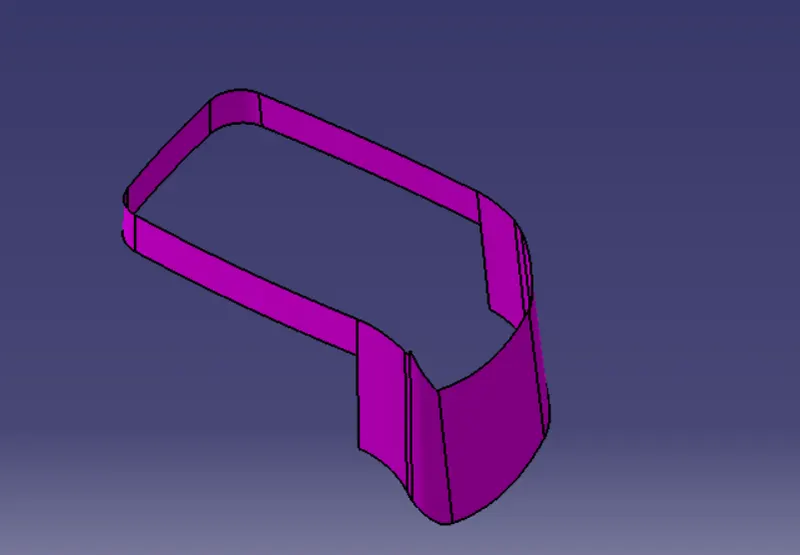

  • Side surfaces walls of Coin Holder

  • Top Surface

  • Outer surface flanges

  • Then trim all the surfaces together

  • Give the Fillets in required region And It's the finle Class B

Creation of Class C:

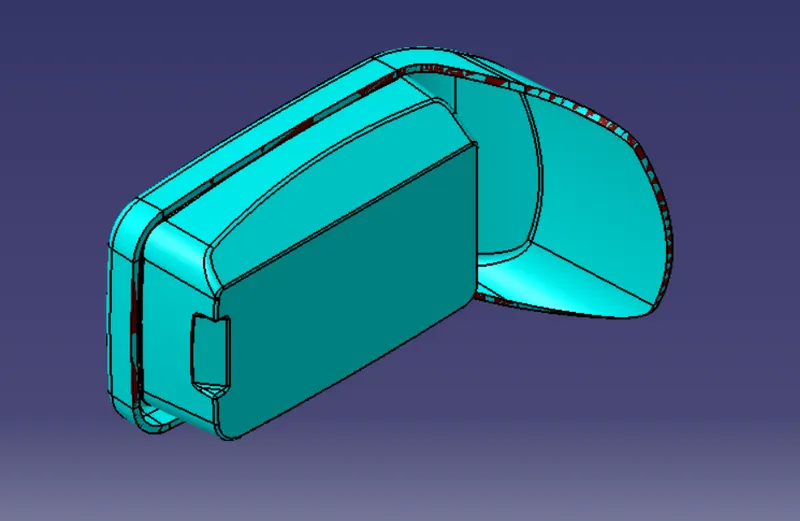

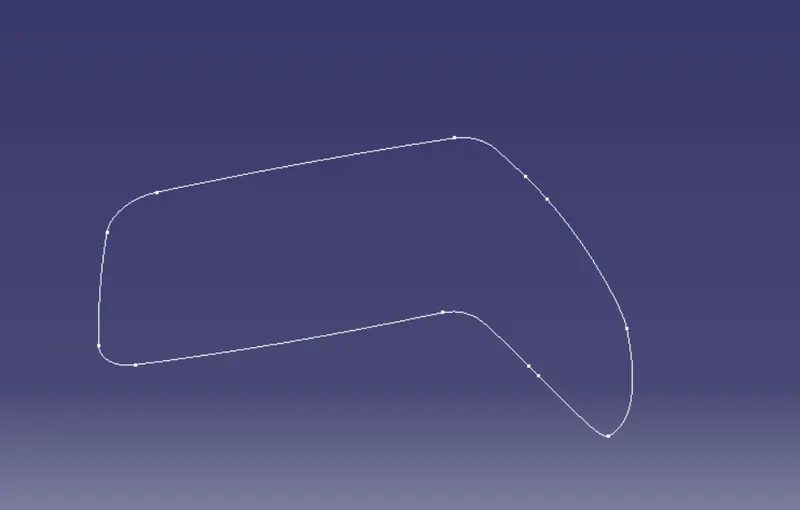

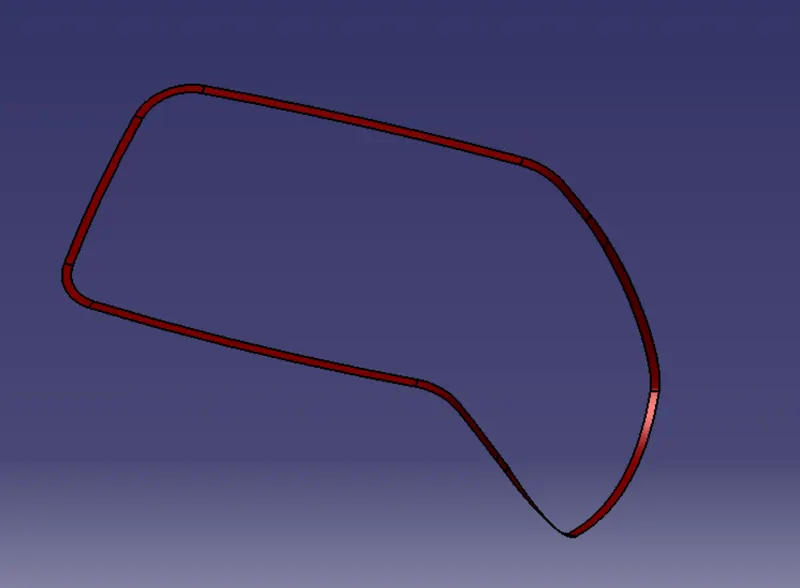

  • Extract all the boundry of class A surface Then sweep it
  • Trim them together then we will get Class C surface

  • Jion the class A & class C surface(by trimming)

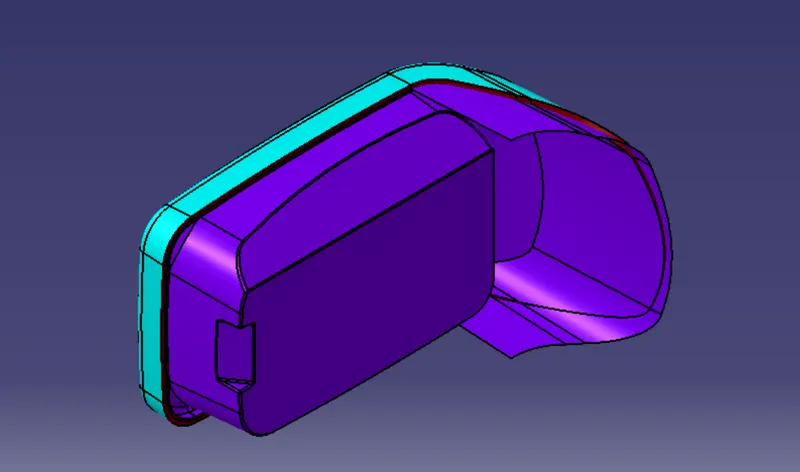

  • Then jion all the Class A,B & C Surfaces

  • Then convert this closed surface to part body in the part workbench,we will get the required base bracket plastic component

  • perform the Draft analysis on the Finle model.

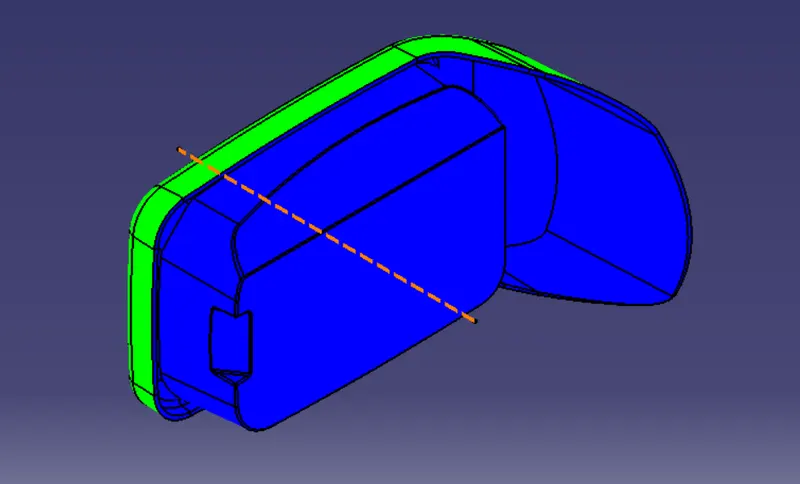

From the above figure we can observe it is satisfying 3^0 nominal draft

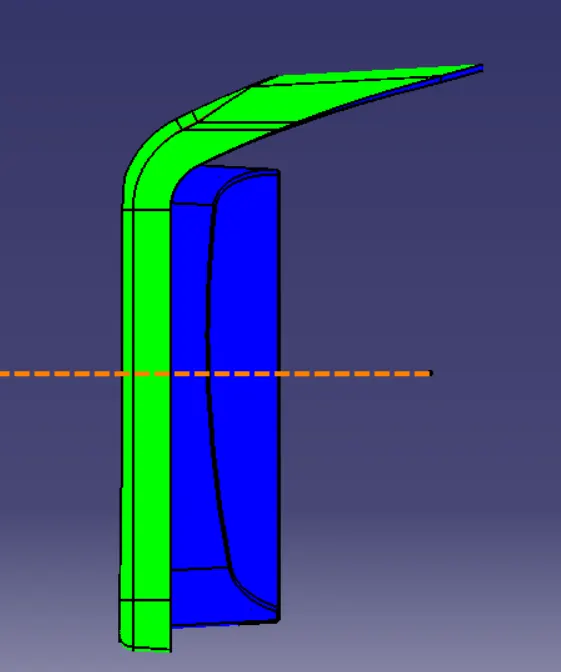

In C surface it is blue too due to it's perpendicular Relation b/w A&B & it is also in negative side

we can observe if we reverse thw composs c surface is in green

Hence plastic component can be created

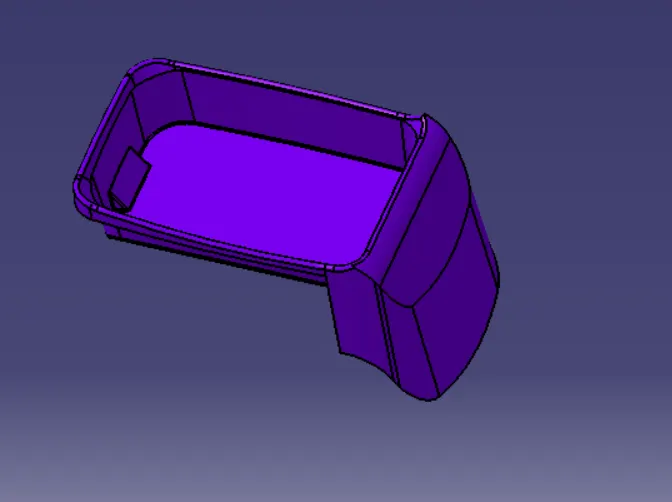

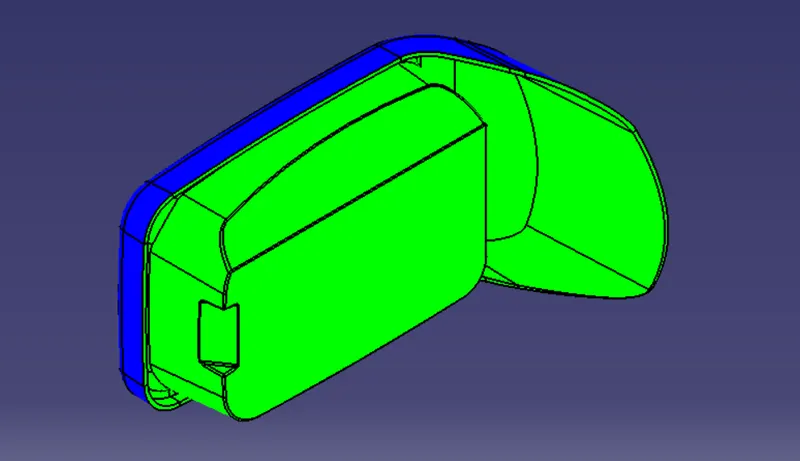

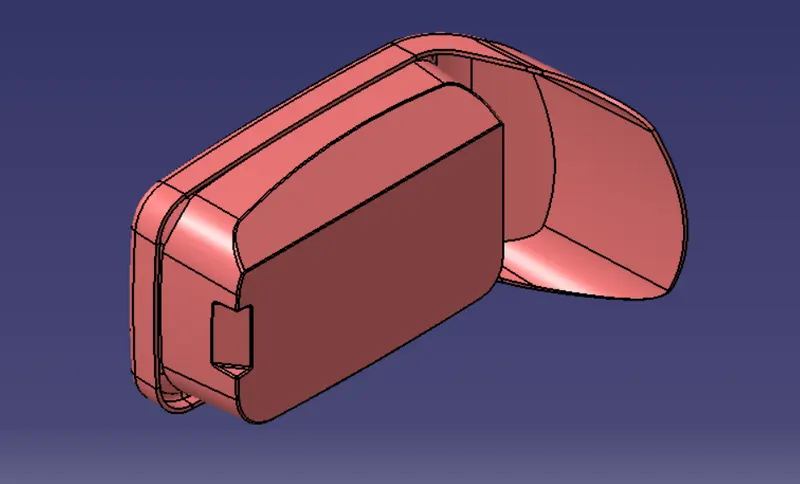

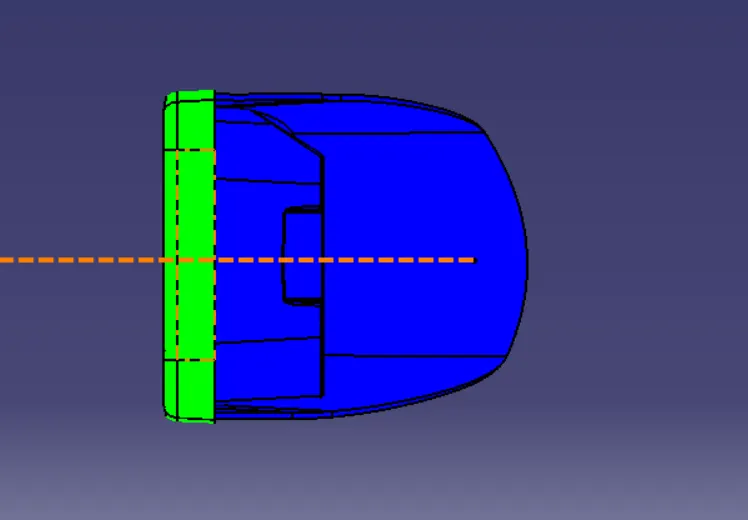

  • solid model with the proper color code of the draft angle in various orientations
    • green- 3^0
    • Red- 0^0
    • Blue- negative side & in this case C sur face is also bliue beacause it is having 90^0

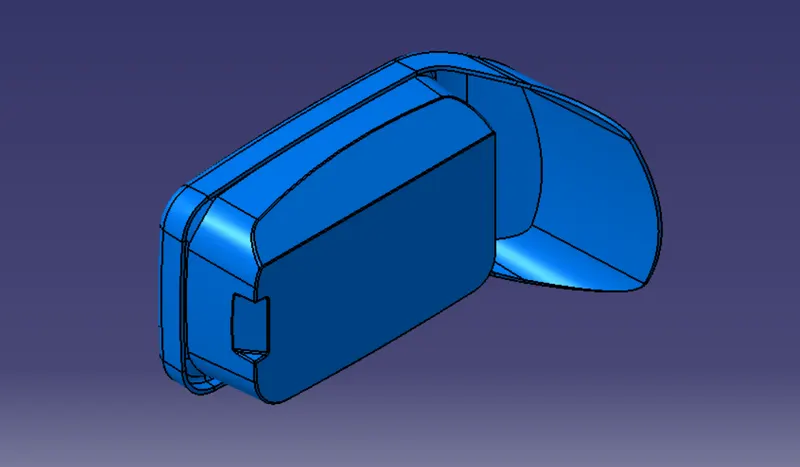

  • Isometric view

  • Front view/Back view

  • Side view

  • Top view

CONCLUSION:

The Plastic Component is created & Draft analysis is Done
