Week 8 - Challenge 3 - Coin Holder Design
COIN HOLDER - CLOSED SURFACE FEATURE
AIM:
To create a Coin Holder Plastic Component using a Class 'A' Surface and by using the Closed Surface Feature to create a solid part from the surface.
OBJECTIVE:
- To Create a Plastic Component by using the Class 'A' surface.
- To create a Tooling axis for a class 'A' Surface, which meeting the requirement of the draft angle and to analyse the solid model.
- To create a solid model from the surface using the Closed Surface Feature with the thickness of the component wil be 2.5mm.
- To create a report which explains the Draft analysis and Tooling Axis cration and colour scale varient.
- To attach the screenshots of the expanded Tree Structure for the Geometrical Sets .
- To attach the screenshots of the 3D Part Model in different orientations.
PUBLICATION:
- Class 'A' Surface.
- Tooling Axis.
- Class 'B' Surface.
- Class 'C' Surface.
INTRODUCTION:
TOOLING DIRECTION:
The Tooling Direction is the direction that the mold pulls apart. The mold is built in two separate pieces,
- A Cavity side and
- The Core side.
The Core pulls apart from the Cavity and that's the Dyeline or the Tooling Direction. The direction in which the mold or core and cavity opens is the tooling axis.
FEATURES OF TOOL:
- Cavity half – The cavity half is the side of a tool that does not move. It is typically attached to the side of the molding machine.
- Core half – The side of the tool that opens and closes with the mold machine against the cavity half. It opens when removing the part from the tool.
- Cooling lines – Channels that allow coolant to flow throughout the tool and control the cooling of the plastic part.
- Ejector system – Pins on the core half of the tool that helps push the cooled part out after molding.
- Runner – A flow path for the plastic resin allowing the press to inject material directly into the part cavity.
- Side actions – Moving pieces within the part cavity added to allow for undercuts.

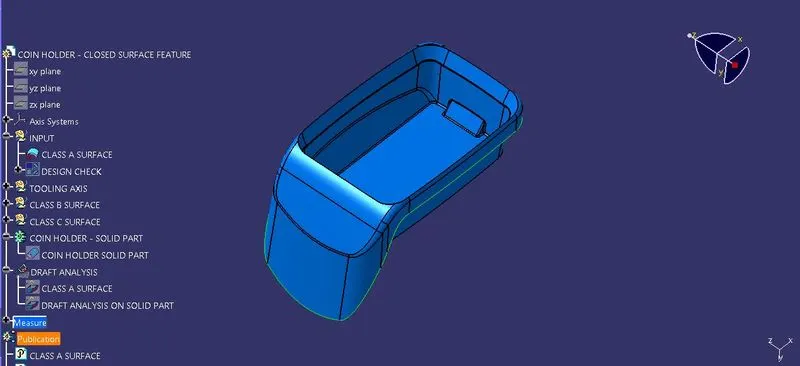

CATIA 3-D SURFACE SOLID PART MODEL - CLOSED SURFACE FEATURE
CLASS 'A' SURFACE:
DESIGN CHECK:

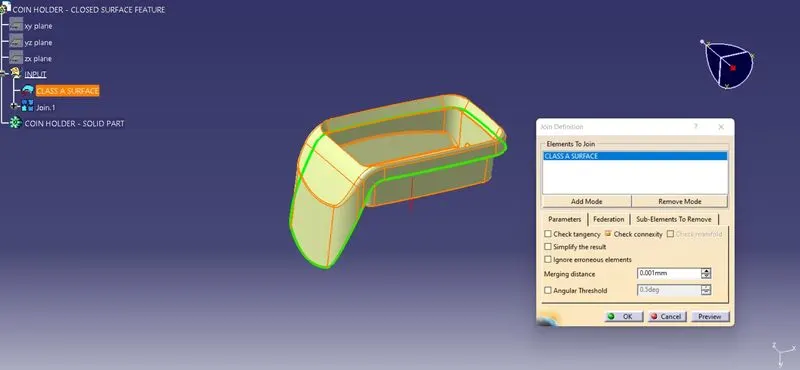

The Class A Surface are Checked Visually by using the Join Feature or by using the boundary feature the Class A surface are selceted and Disassembled the Surface to check the Domain surface are created without the gaps.
The Class A Surface should be created without the boundary Gaps. By using the Join Definition with the Merging distance of 0.001 mm the Class A surface are Joined Together to check the connectivity.
PUBLISHING THE CLASS A SURFACE:

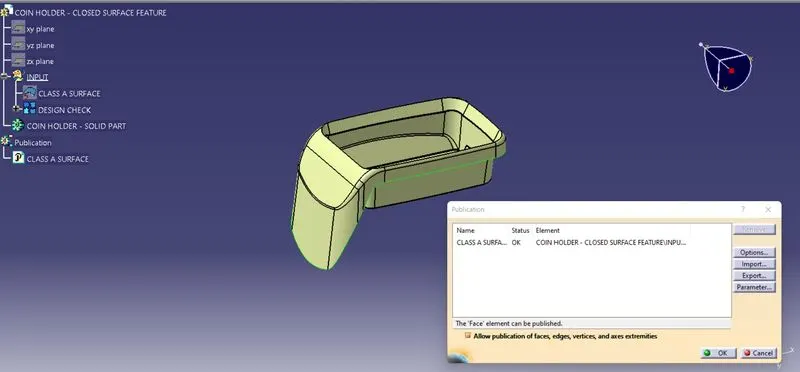

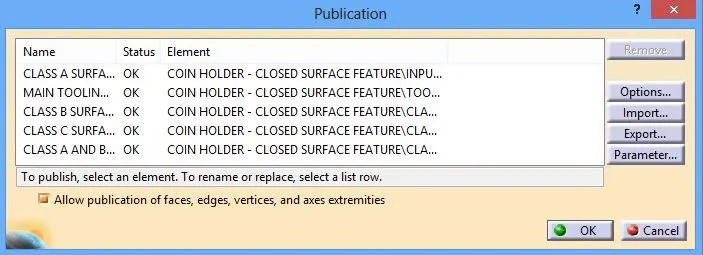

By using the Publication option the Class A Surface are Published. The Publication is used to retrive the Class A surface in the easier way to use from the Structured Tree Implementation.
CREATING TOOLING AXIS:
The Tooling for the Class A Surface are Created in the diection in which the parts are getting Ejected from the Tool. The Tooling Axis which defines the core and cavity pulls apart from the Tooling Direction.

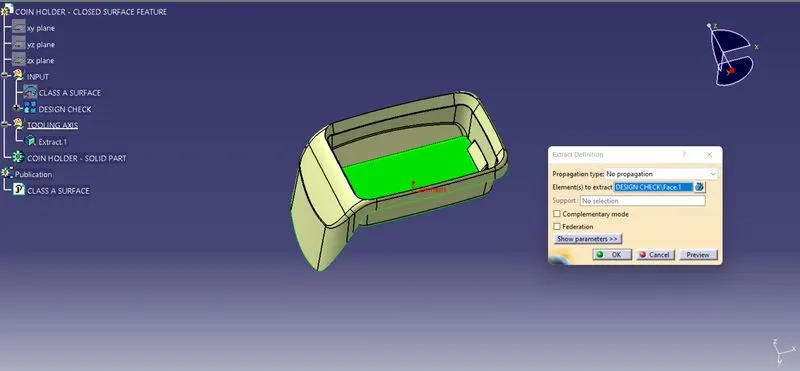

In the Coin Holder plastic component the base on the side walls are been extracted to create a tooling axis on the surfaces.

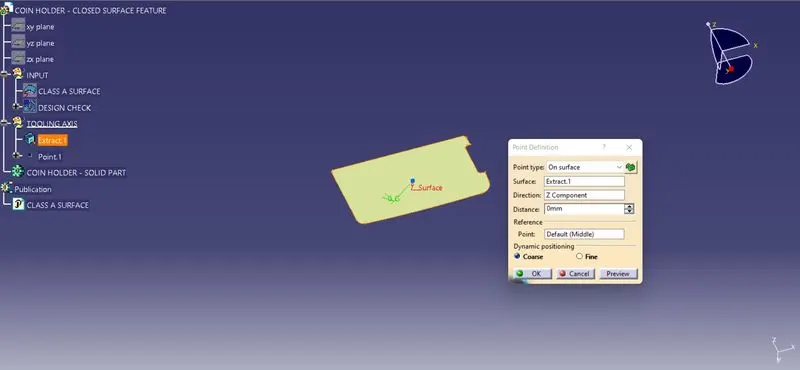

By using the Point Definition, The point type has been selected on surface and direction along Z components are been selected.

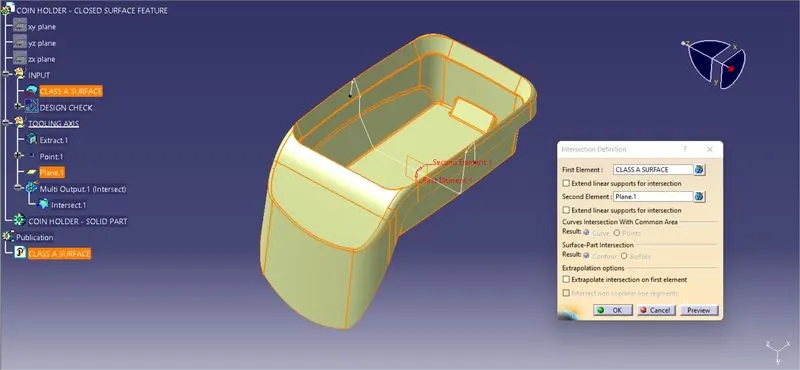

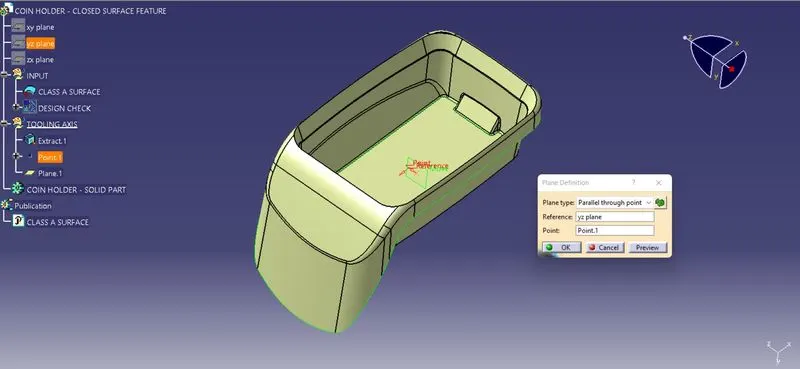

By using the Plane Definition the planes are created from the yz plane and moved through the point created from the origin.

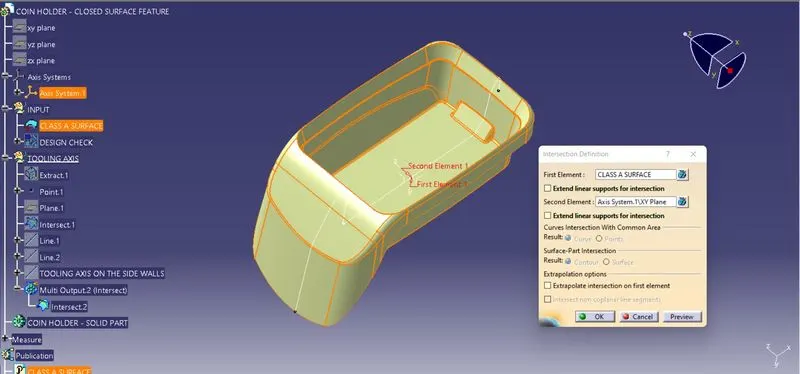

By using the Intersection feature, the first element and second element are selected. The first Element Class A surface are selected and for the second element Plane are selected.

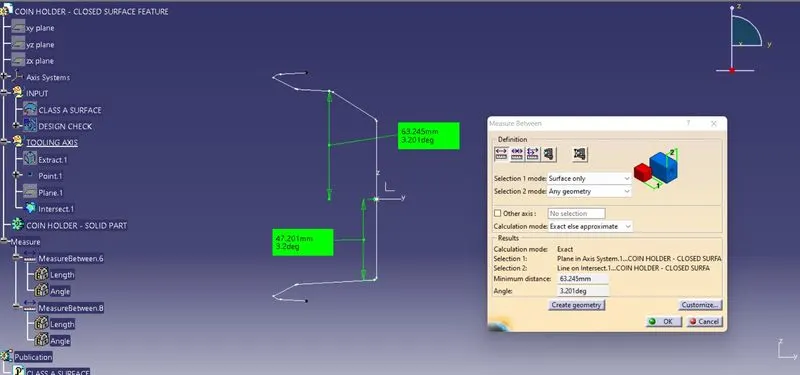

By using the Measure feature the srurface from the geomery lines are bee selected and measured the Angle with the drafting value of 3.201 degeres.

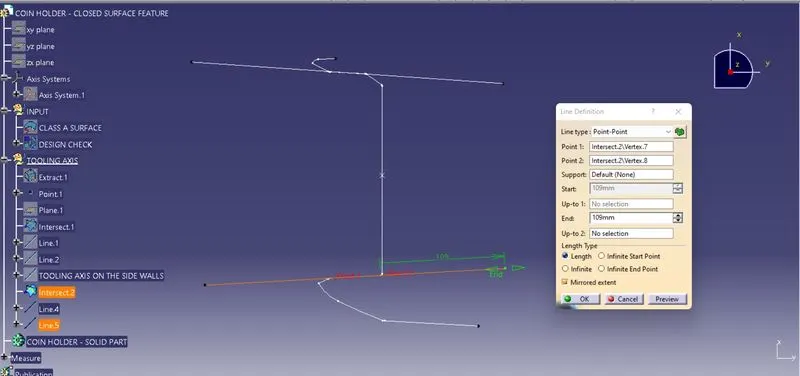

From the Intersection to the plane created. By using the line Definition, point - point type are selected and from the intersection Points, Line type 1 are created and another point - point lines are created. The Two lines are created from the intersection, The lines are created which makes or slightly parallael to the Reference Tooling axis.
By using the Intersection feature, the class A are been intersected along the plane axis and using the bisecting line the Main Tooling Axis along the Y direction walls are been created.
By using the Intersection feature, the first element and second element are selected. The first Element Class A surface are selected and for the second element Plane are selected.
From the Intersection to the plane created. By using the line Definition, point - point type are selected and from the intersection Points, Line type 1 are created and another point - point lines are created. The Two lines are created from the intersection, The lines are created which makes or slightly parallael to the Reference Tooling axis.
By using the Intersection feature, the class A are been intersected along the plane axis and using the bisecting line the Main Tooling Axis along the X direction walls are been created.
BI- SECTING METHOD:

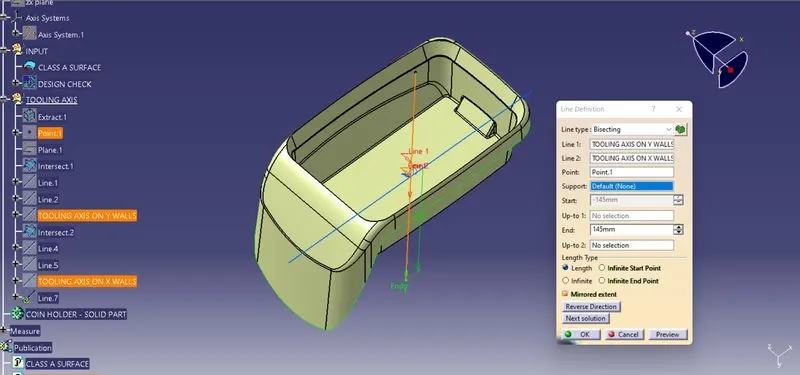

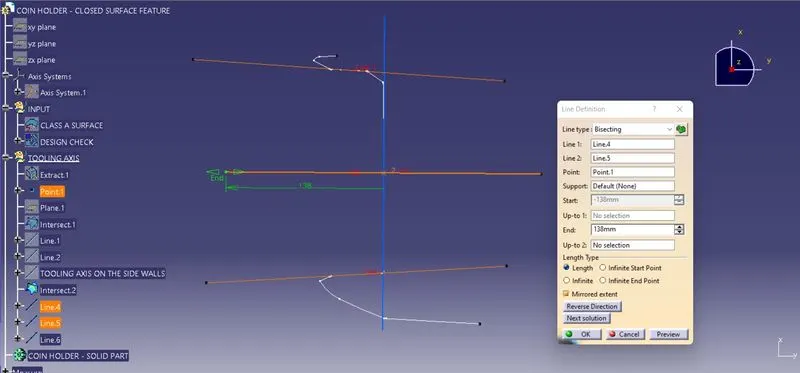

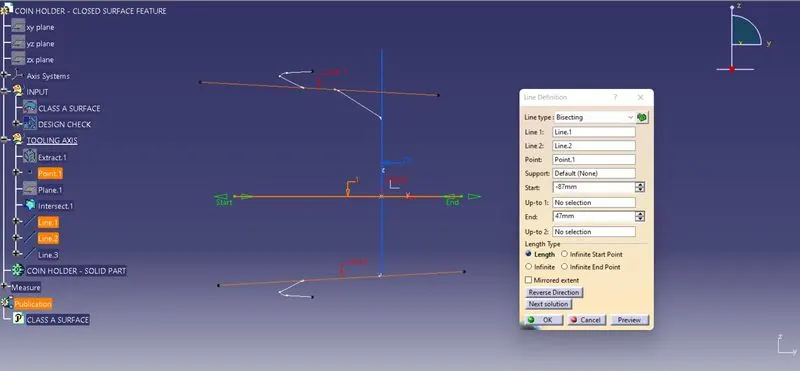

By Using Line Type Bisecting, The Main Tooling Axis are created by selecting the Parallel Lines which are parallel to the tooling Axis. By Selecting the point as a support the Bi- Secting lines are created In- between Two parallem Lines. That line is the Main Tooling Axis.
The Bi- Secting Line divides a line into two equal halves. Thus, the perpendicular bisector of a line segment between lines, it implies: It divides two lines which are parallel/ slightly parallel to the Tooling Axis into two equal halves or bisects it.
MATERIAL MODES:

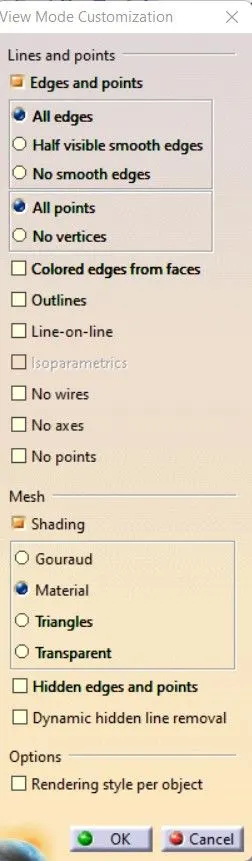

For the Draft Analysis, the material modes are Selected from the Shading Type.
DRAFT ANAYSIS ON CLASS A SURFACE:
For a Class A Surface, The Draft analysis are to be performed in order to meeting te requirement of the draft angle to the required Tooling Axis. For Plastic component the Minimum angle required for the daft to be 3 degrees.

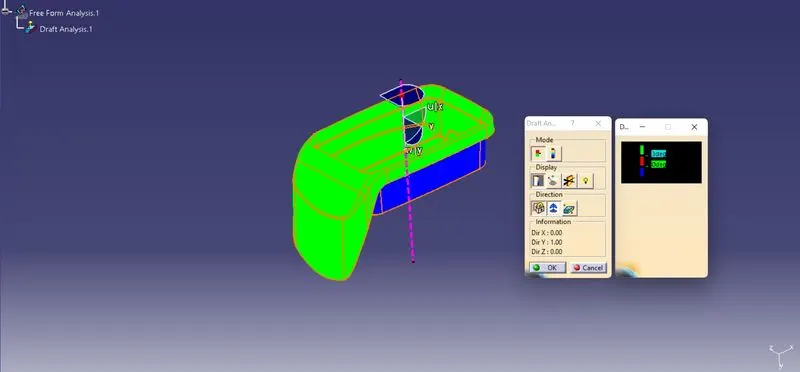

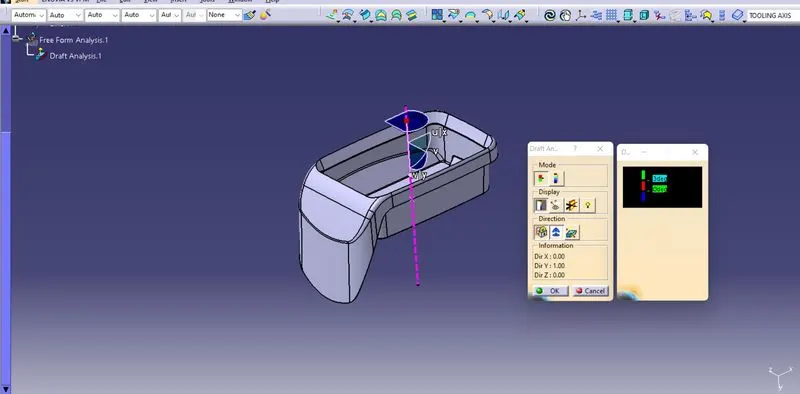

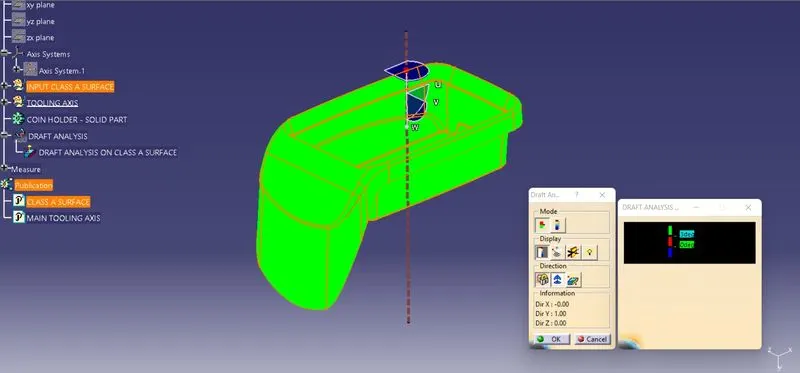

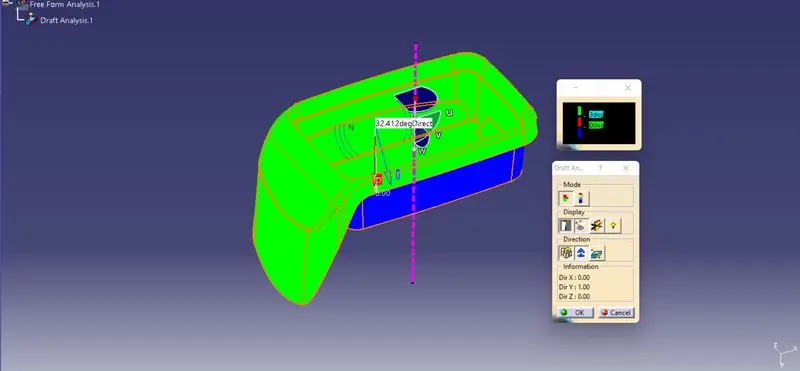

The Direction compass are to be selected and placed it on the Main Tooling Axis line and the compass are been locked using the lock feature in the respective direction.
In the Display window the clour code varients are been selected, to know the range of the draft in the Class A surface. In the Display Window the colour varient shows,
- For 3 degeree - Green Colour Varient (Positive)
- For 0 degeree - Red colour varient.
- For Negative degeree- Blue colour Varient.
DRAFT ANALYSIS ON DIFFERENT ORIENTATIONS:

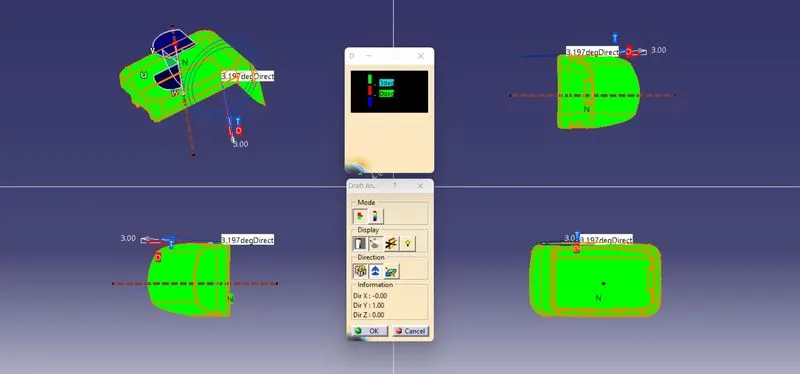

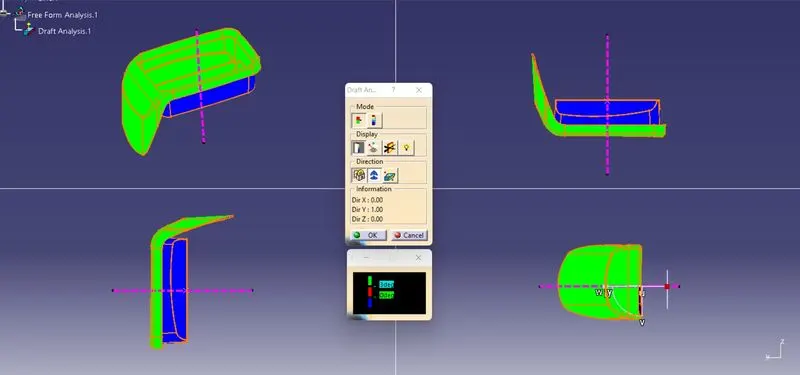

By Using the Running pointer feature in the Display the draft are been analysed for each individual points. The points perpendicular to the toling axis are displayed as 3.197 Degeree Direction.
The Green colour Implies the draft angle are in the positive region. if The draft angle are been inverted the colour of the surface are impled as Blue colour.
CREATION OF CLASS 'B' SURFACE:
SIDE WALL PATCHES:

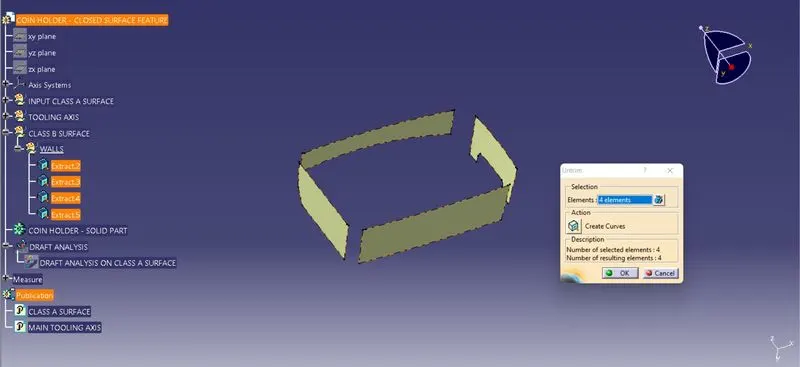

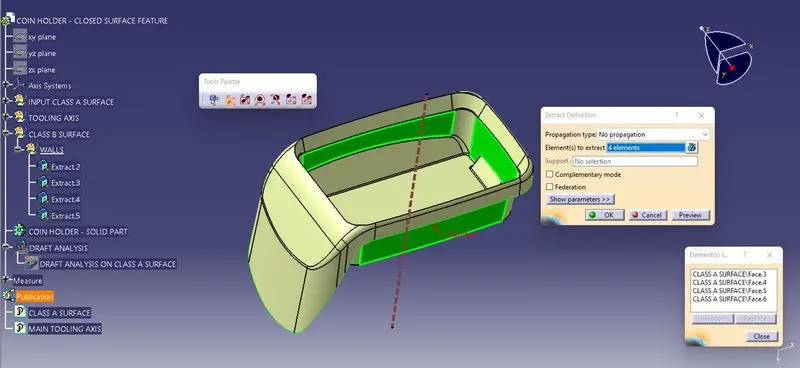

The Side Wall surface are selected from the Class A Surface and are extracted by selecting the elemets to be extracted from the class A Surface.
The Extracted surfaces are been Untrimmed using the Untrim Feature and all the elements which are extracted are been Un trimmed.

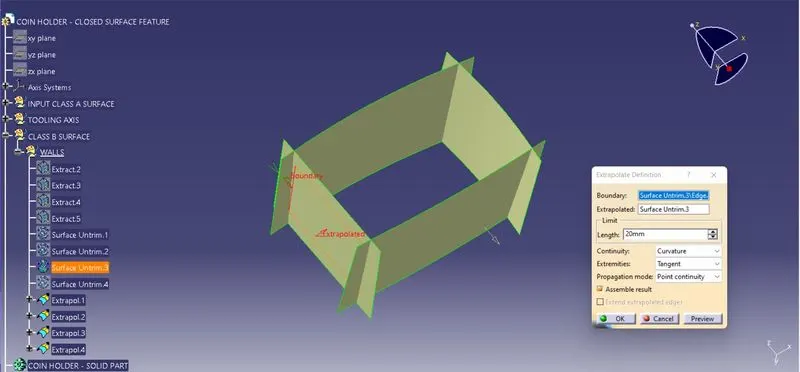

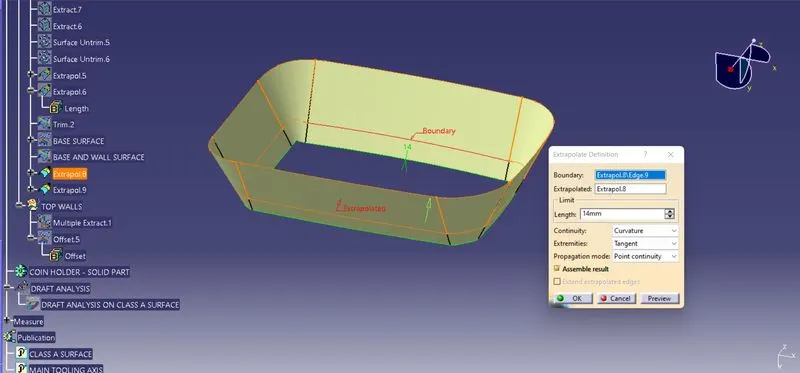

By using the Extrapolate feature the Untrimmed surfaces are been extrapolated by selcting the boundaries and also the extrpolands. The continuty for the extrapolation are selected as curvature and propogation mode are been selected as point continuity. By selecting the features the untrimmed surfaces are been extrapolated to the respectie length provided.

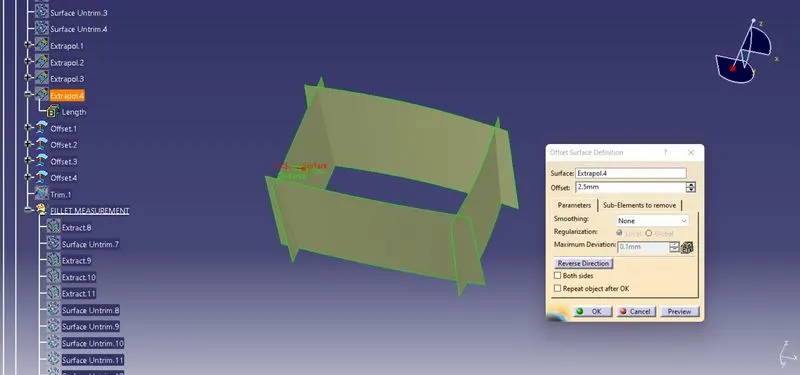

By using the offset feature the created Surface areas are been offsetted to 2.5 mm from the orign.

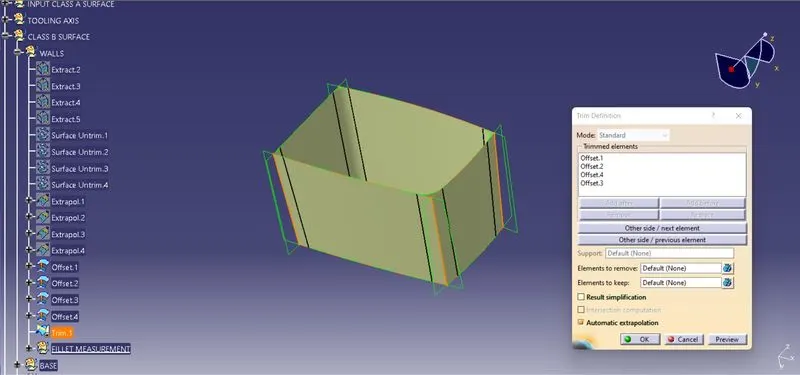

By using the Trim feature the extrapolated surfaces are been trimmed to the sides of the walls which make the side wall surfaces as same as Class A Surface.

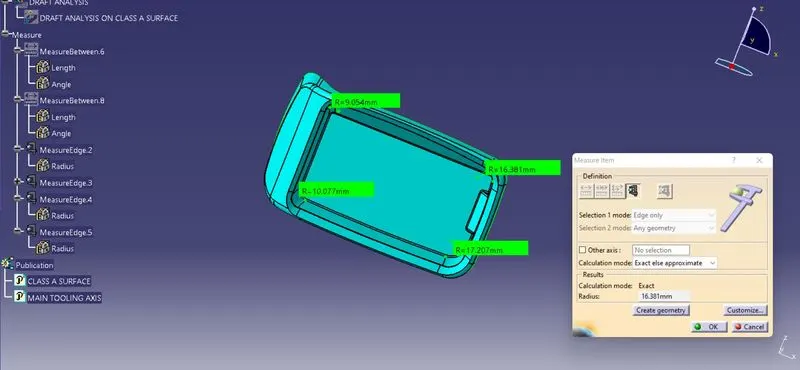

In the Class A Surface, the Edge fillets are been selected and extracted to mesure the value of the fillets in it. By Extracting the fillets, the surfaces are been untrimmed and Fillet values are been measured.

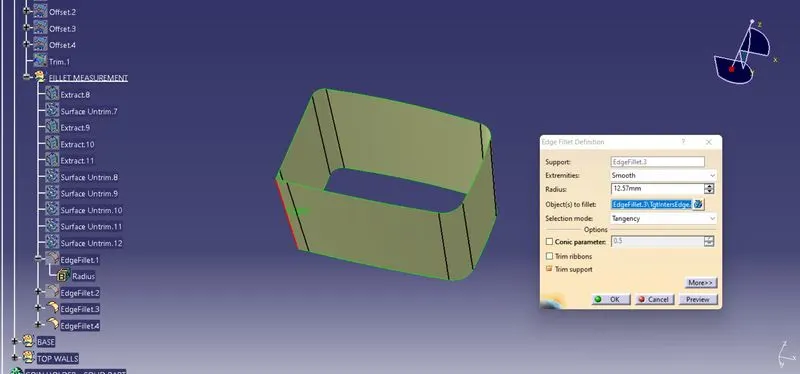

By using the fillet definition the Edge fillets are been performed on the side walls of the Class B surface.

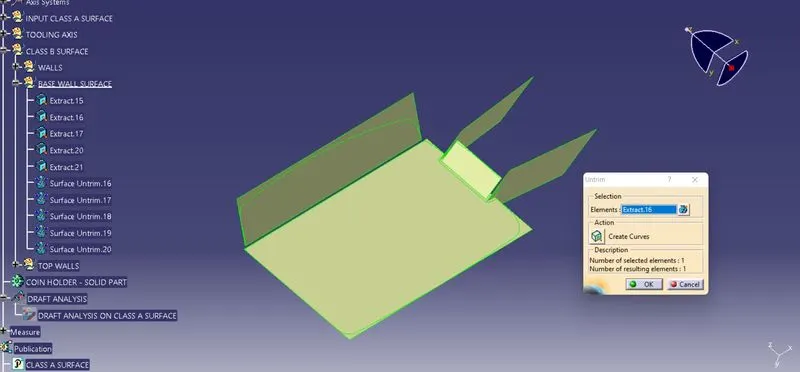

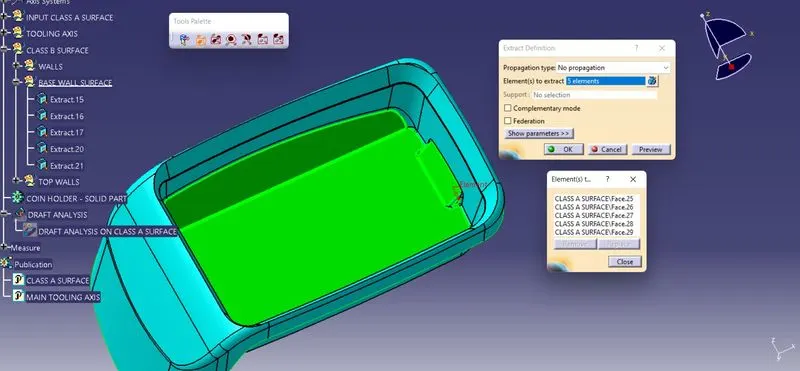

The Base Wall surface are selected from the Class A Surface and are extracted by selecting the elemets to be extracted from the class A Surface.
The Extracted surfaces are been Untrimmed using the Untrim Feature and all the elements which are extracted are been Un trimmed.

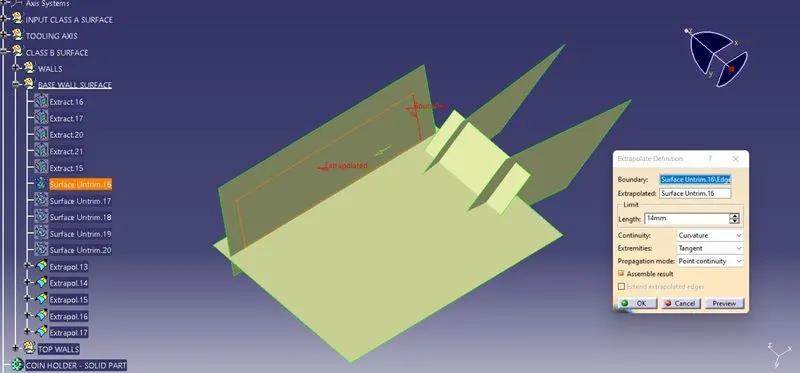

By using the Extrapolate feature the Untrimmed surfaces are been extrapolated by selcting the boundaries and also the extrpolands. The continuty for the extrapolation are selected as curvature and propogation mode are been selected as point continuity. By selecting the features the untrimmed surfaces are been extrapolated to the respectie length provided.

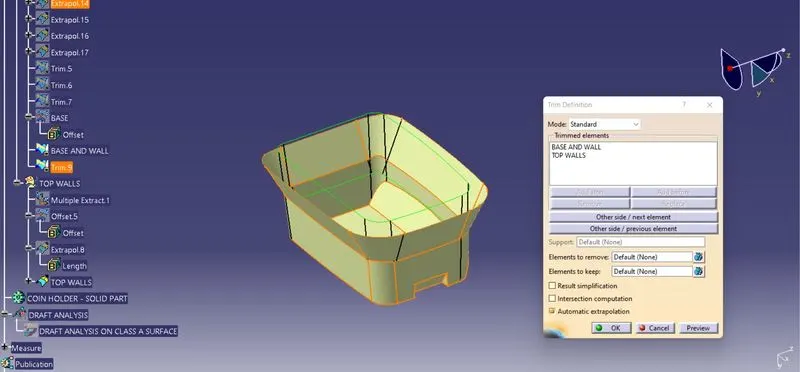

By using the Trim feature the extrapolated surfaces are been trimmed to the sides of the Base which make the Base surfaces as same as Class A Surface.

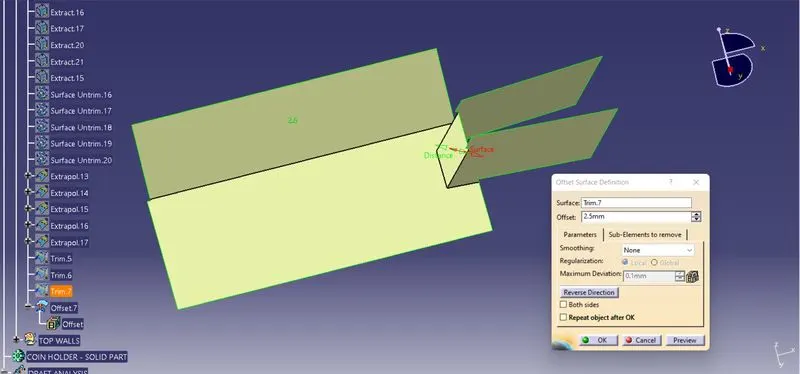

By using the offset feature the created Surface areas are been offsetted to 2.5 mm from the orign.

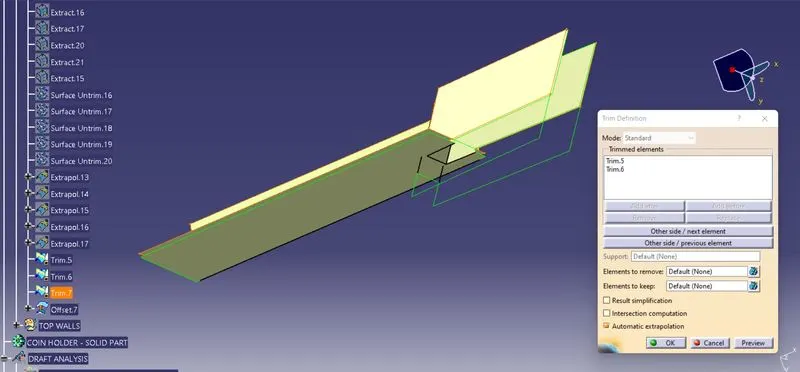

After the Trimming with the Base Surfaces, The base surface are been trimmed with the side wall surfaces in which it make as same as the Class A S urface provided.

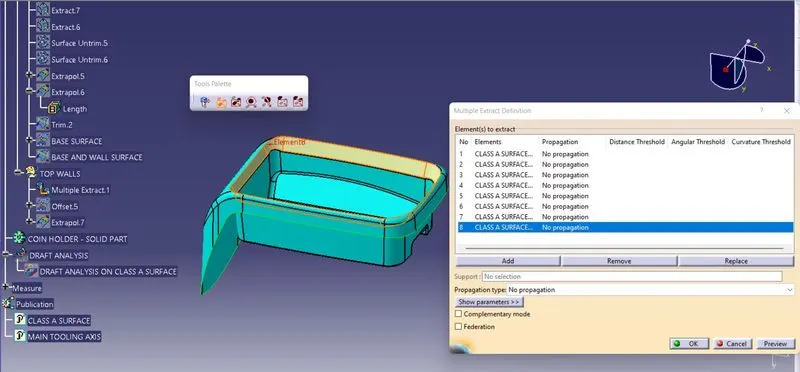

The Top Wall surface are selected from the Class A Surface and using the Multiple extracted by selecting the elemets to be extracted from the class A Surface.

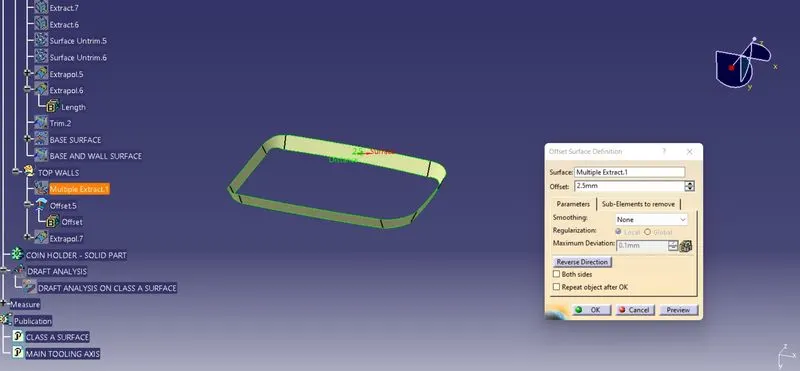

By using the offset feature the created Surface areas are been offsetted to 2.5 mm from the orign.
By using the Extrapolate feature the Untrimmed surfaces are been extrapolated by selcting the boundaries and also the extrpolands. The continuty for the extrapolation are selected as curvature and propogation mode are been selected as point continuity. By selecting the features the untrimmed surfaces are been extrapolated to the respectie length provided.

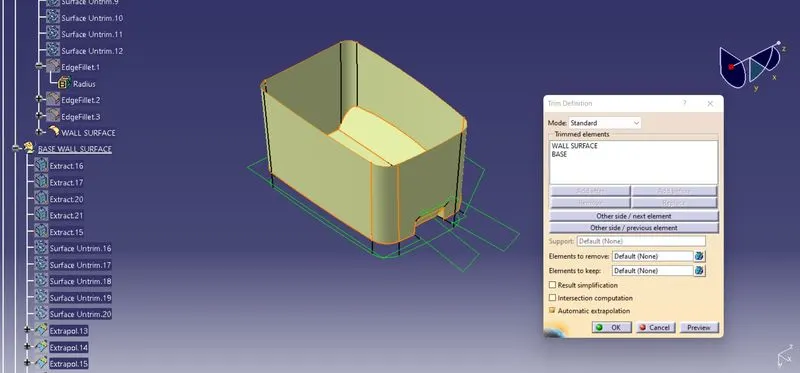

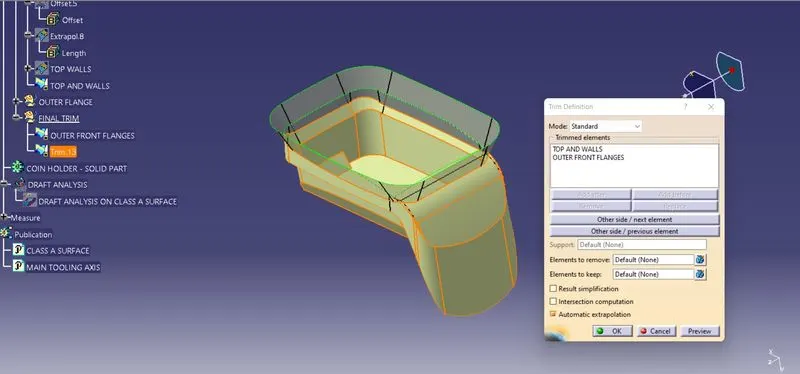

The Top wall surfaces are been trimmed with the side and base surfaces together to form the Class B Surfaces.

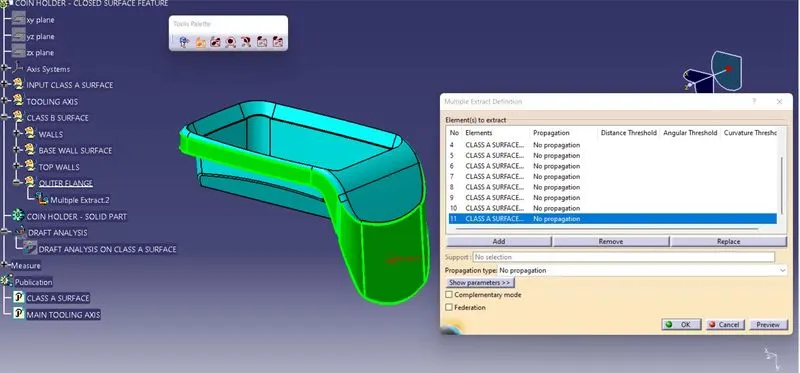

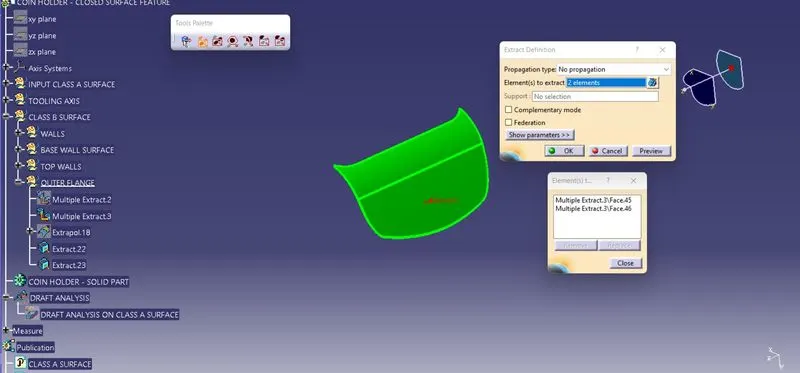

Th Outer flange surfaces are selected by using the Multiple extract definition from the Class A Surface.
The Front Cabinent Surfaces are been Extracted using the Extract Feature, The Front Wall surface are selected from the Class A Surface and are extracted by selecting the elemets to be extracted from the class A Surface.

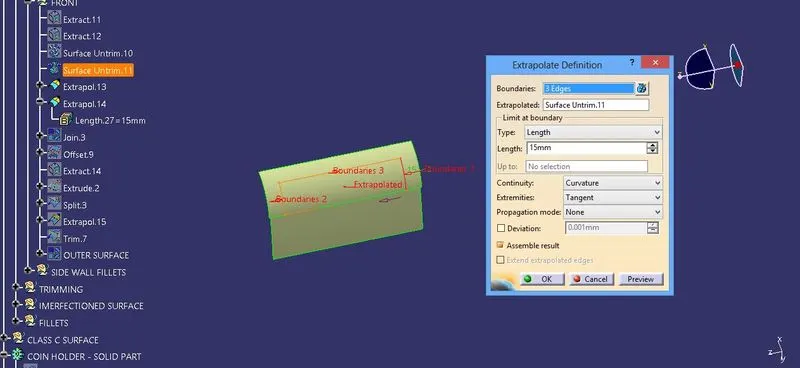

By using the Untrim surface feature the extracted surface are been Untrimmed and Extrpolated to the respective lengths.
By using the Split feature the Surfaces are been extracted and splitted into with the front part and Joinied together using the Join feature.

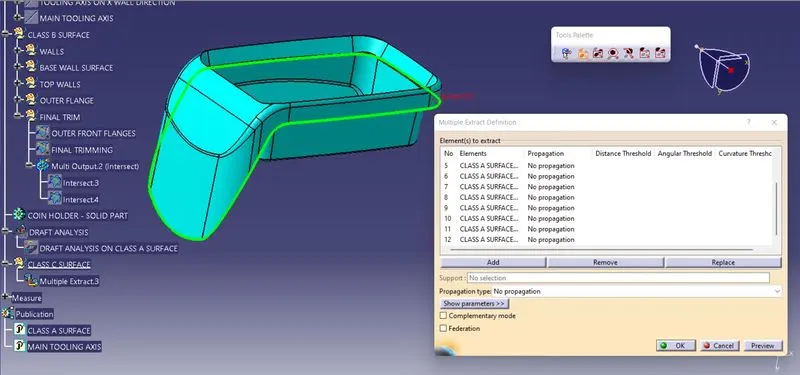

The Trimming Has been performed from the extracted surfaces and final trim with the base side and top wall components.
CREATING CLASS 'C' SURFACE:

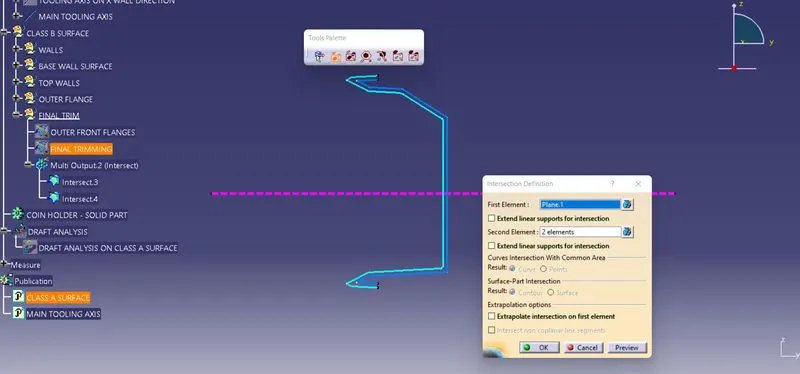

To make the Class C Surface, by using the intersection feature, the plane with respect to the axis normal to the part axis are been intersected to the Class A and B surfaces.
The Boundaries are been Extracted from the Class A Surface to form the guide curve from Class A Surface. The outer Boundary from the coin holder are been selected and extracted using the Multiple Extract feature.

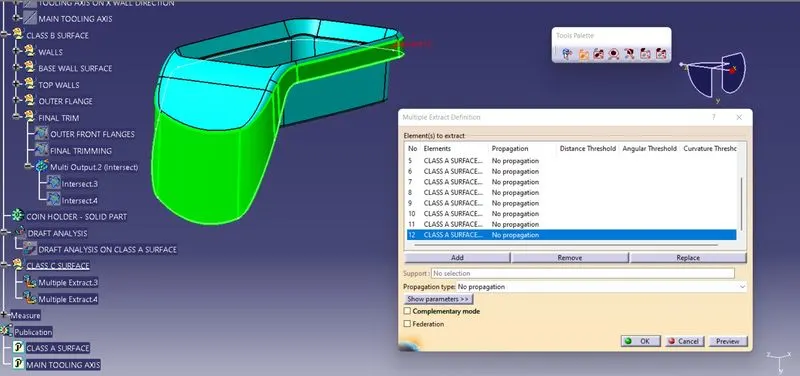

The Outer Flange Surfaces are been Extracted from the Class A Surface to form the profile from Class A Surface. The outer Boundary surfcaes from the coin holder are been selected and extracted using the Multiple Extract feature.

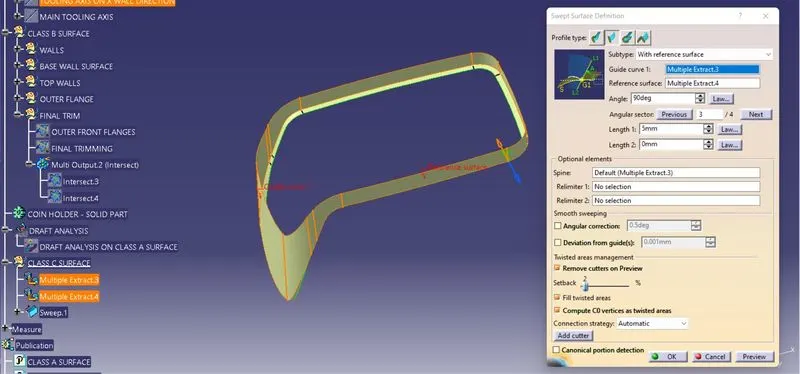

By using the Sweep surface Creation definition, The respective profile type are been selected and subtype with reference surface are been selected. In that the Guide curve are selected as the. Boundary in the Class A Surface, and reference surface are selected as outer surface as a support with the draft angle of 90 degree are perforemed and the creation of Class C Surface.

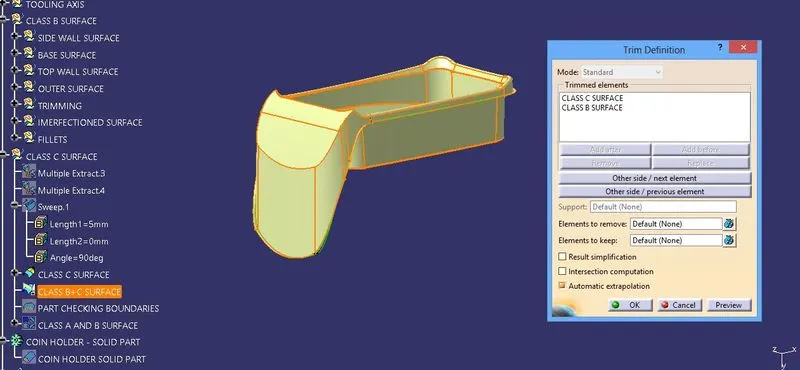

After the creation of class C Surface, By using the trim definition the Class B and C Surfaces are been trimmed together.

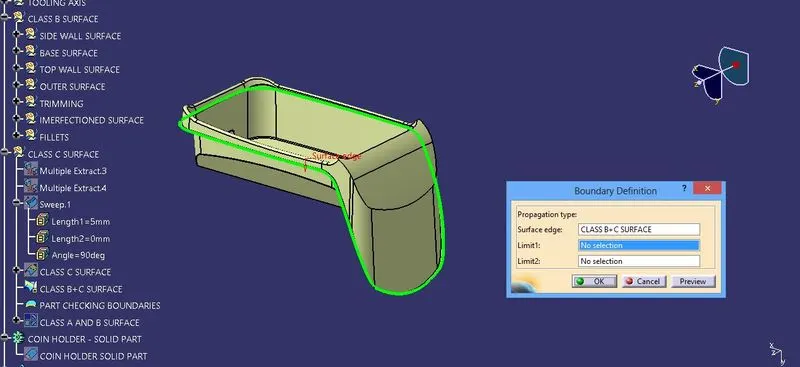

By using the Boundary feature the open surfaces/ Gaps are been identified.

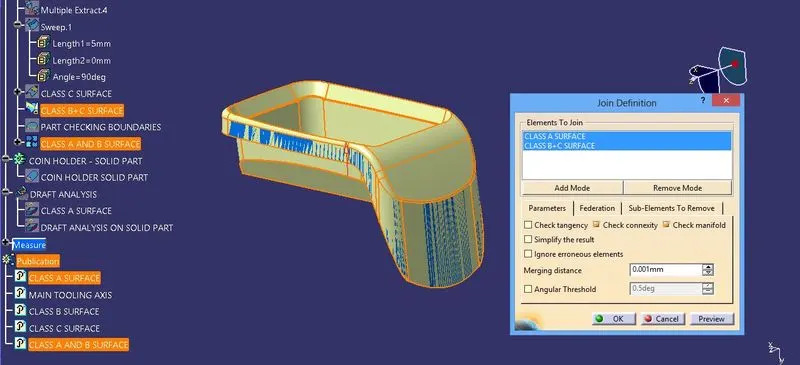

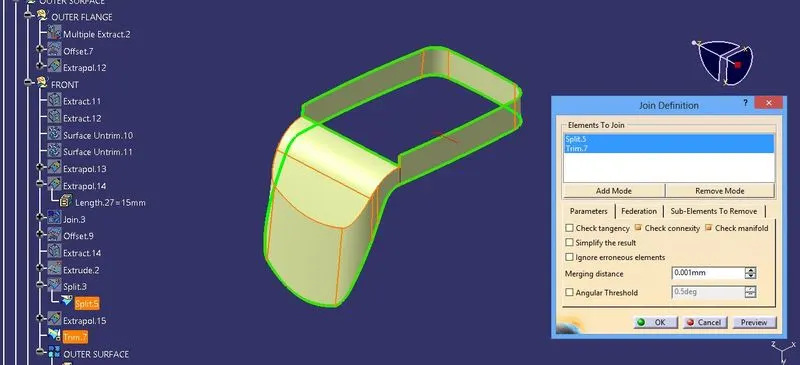

By using the Join feature the Class A and trimmed Class B & C Surface are Joined Together wit the Merging Distance of 0.001 mm.
CLOSED SURFACE:

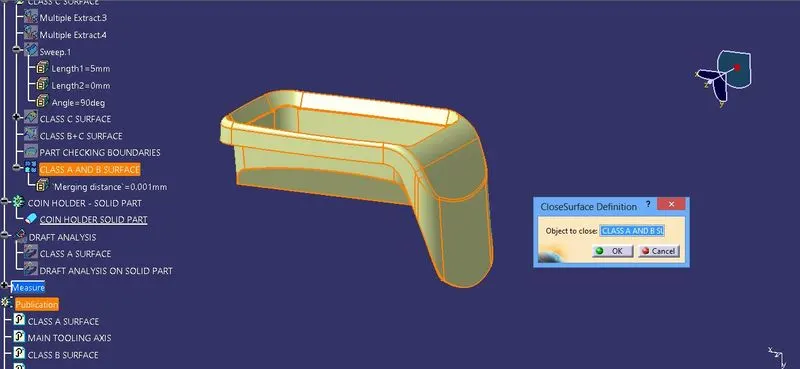

By using the close surface definition the part surface are selected to make them into solid part from the part workbench.
DRAFT ANALYSIS ON SWITCH BEZEL COMPONENT SOLID PART:
The Draft Analysis has been performed on the Fianl component created as a closed body using the part design Closed Surface Feature. For Plastic component the Minimum angle required for the daft to be 3 degrees.
The Direction compass are to be selected and placed it on the Main Tooling Axis line and the compass are been locked using the lock feature in te direction.
In the Display window the clour code varients are been selected, to know the range of the draft in the Class A surface. In the Display Window the colour varient shows,
- For 3 degeree - Green Colour Varient (Positive)
- For 0 degeree - Red colour varient.
- For Negative degeree- Blue colour Varient.
By Using the running pointer feature in the Display the draft are been analysed for each individual points. The points perpendicular to the toling axis are displayed as 90 Degeree Direction and the Wall Surfaces are analysed as 32.412 degeree angle.
The drafting are been performed in both the core and cavity side of Class A Surface. The Green colour Implies the draft angle are in the positive region. if The draft angle are been inverted the colour of the surface are implies as Blue colour.
ISOMETRIC VIEW, FRONT VIEW, SIDE VIEW AND BOTTOM VIEW:

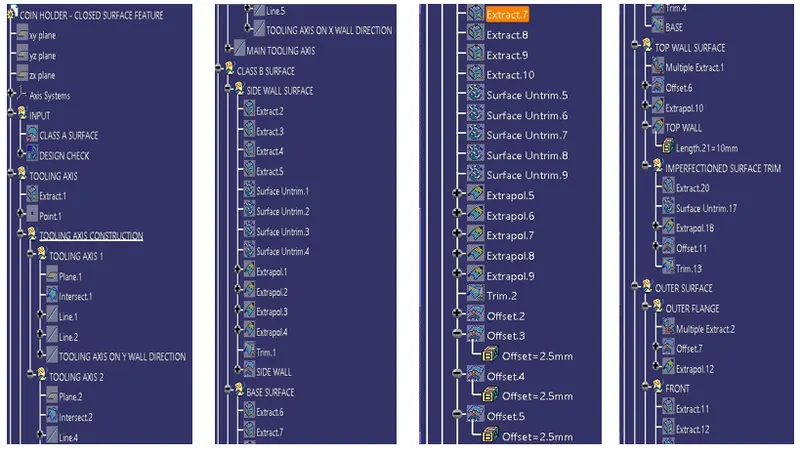

EXPANDED TREE STRUCTURE:
In CATIA the sketches are been defined using the Geometrical sets. By using the profiles like line, circle, hexagon, polygon, arc the 2 -D sketches are been created with reference to the Geometrical sets. According to the selection of plane from the possitioned sketch the 2-D sketch has drawn with the referene plane.

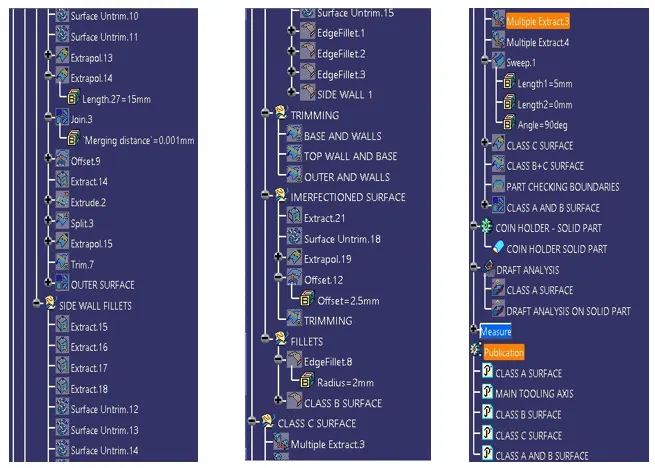

The Publications for the Class A , B and C Surface are Published and also the Min Tooling Axis are been Published using the Publication feature.
3 DIMENSION PART AND ORIENTATIONS:
MEASUREMENT THICKNESS:

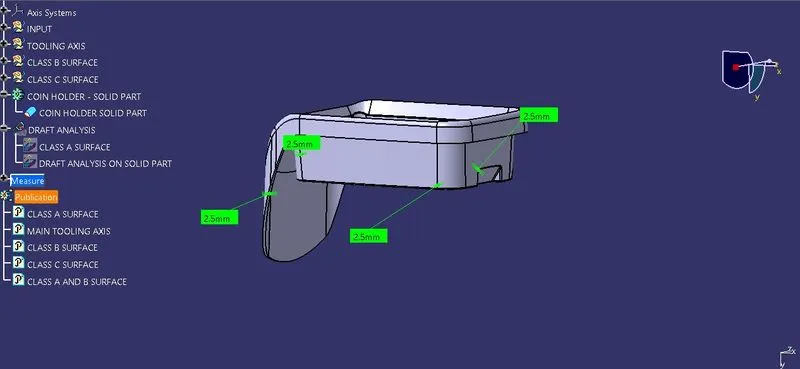

The solid part has been created from the surface using the closed surface feature, and the thickness of the part will be 2.5 mm.

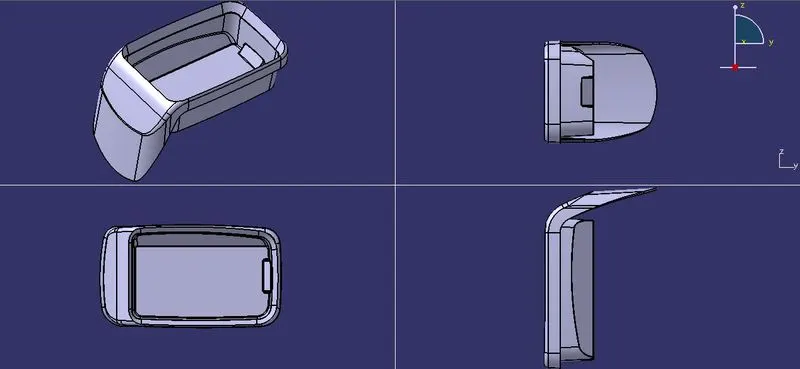

ISOMETRIC VIEW, FRONT VIEW, SIDE VIEW AND BOTTOM VIEW:
CONCLUSION:
- The Coin Holder Plastic Part Component using the Class 'A' surface are Created.
- The Tooling axis for a class 'A' Surface, which meeting the requirement of the draft angle are analysed and perfrmed.
- The solid model from the surface are created by using the Closed Surface Feature to the Thickness of 2.5 mm.
- The detailed report which explains the Draft analysis and Tooling Axis cration and colour scale varient are explained.
- The Class A, B and C surfaces are Published using the publication option.
- The expanded Tree Structure for the Geometrical Sets are explored .
- The expanded tree structure for part design are explored.
- The 3D part Model with various orientations are attached.
