Week 8 - Challenge 3 - Coin Holder Design

PROJECT

COIN HOLDER

Aim:

To create the coin Holder of Automotive Plastic Component through a given input Class A Surface and Tooling axis to Draft Analysis on the A surface and final plastic component.

REPORT:

Coin Holder:

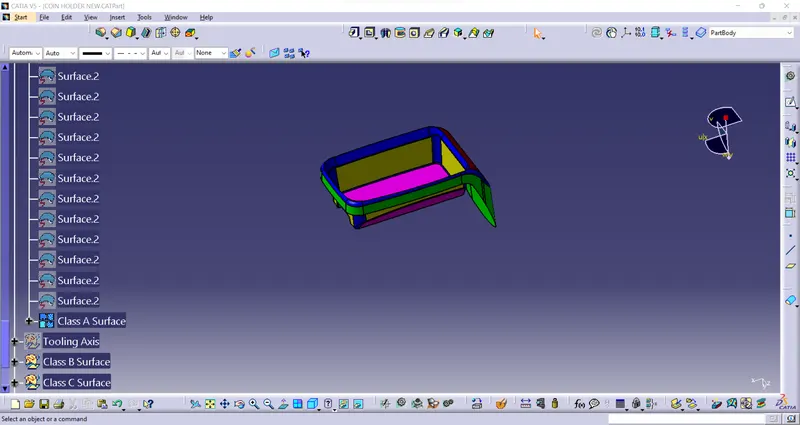

Class A Surface:

• To continue with the design process first we need to find out the tooling axis for the surface and check for all the drafts using the Draft Analysis tool in CATIA.
• And Publicize the A surface.

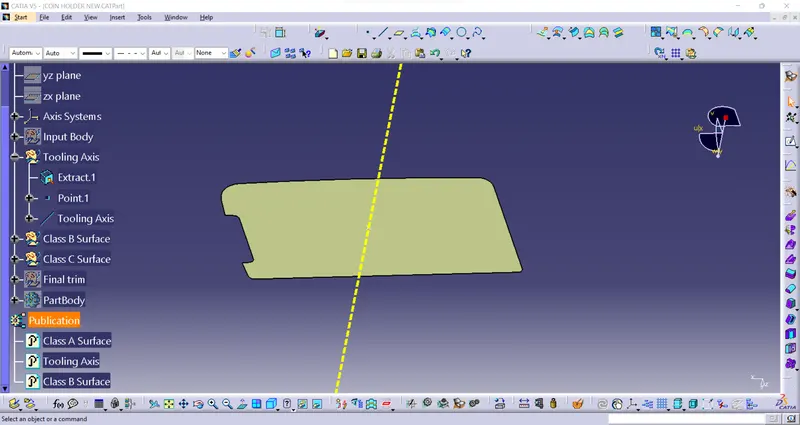

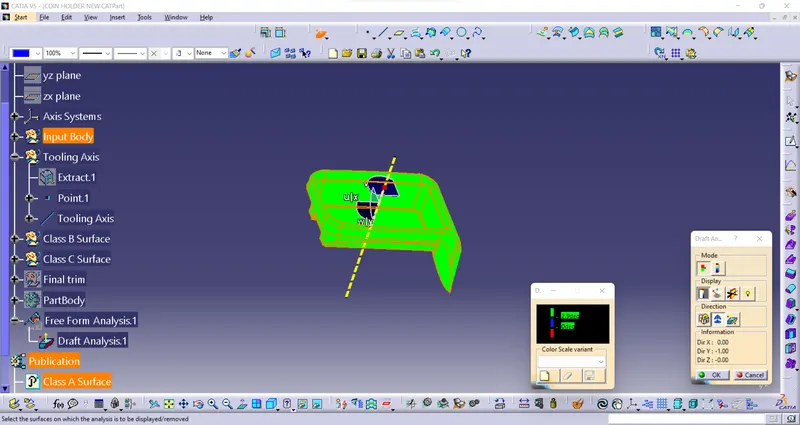

Tooling Axis:

• Extract the Flat surface from A Surface Create a point (Coordinates) 0mm and Create a Line - Point To Direction click on the point and take a reference as Y axis and give some color and make it a dashed line.
• Take a draft analysis with A surface in positive it’s fully green.
• And same thing check with Final analysis in finished solid component it’s seems little deviation that’s fine.
• And Publicate the Tooling Axis.

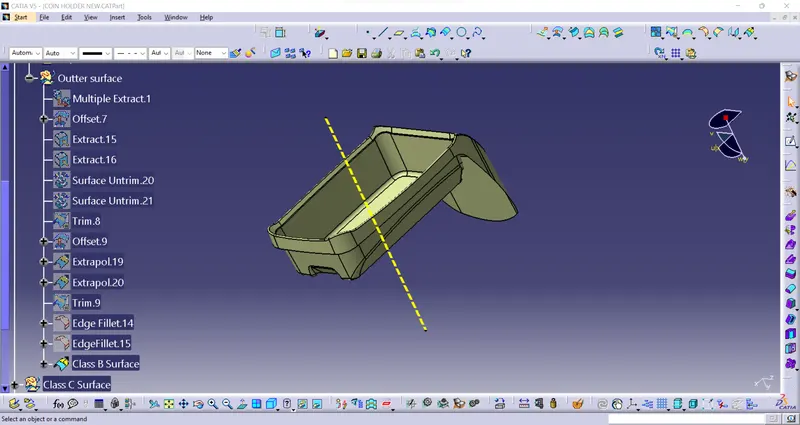

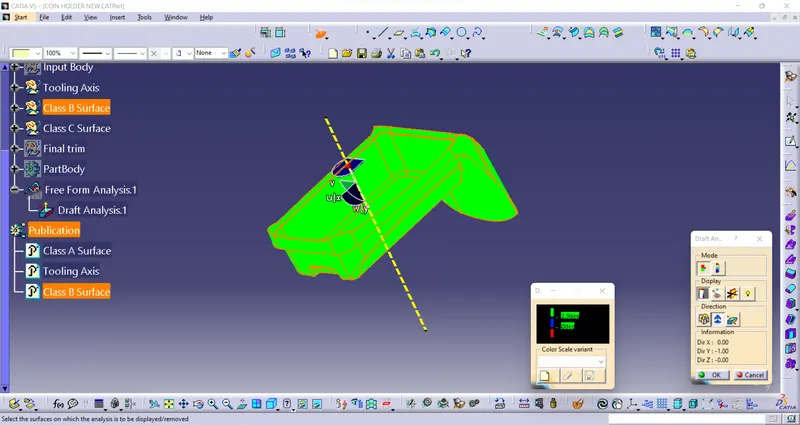

Class B Surface:

• Separatly did Offset the A Surface And Untrim it after extrapolate it and give the fillet radius measure from A surface to Find it to apply.
• Then Publicize the B-Surface.

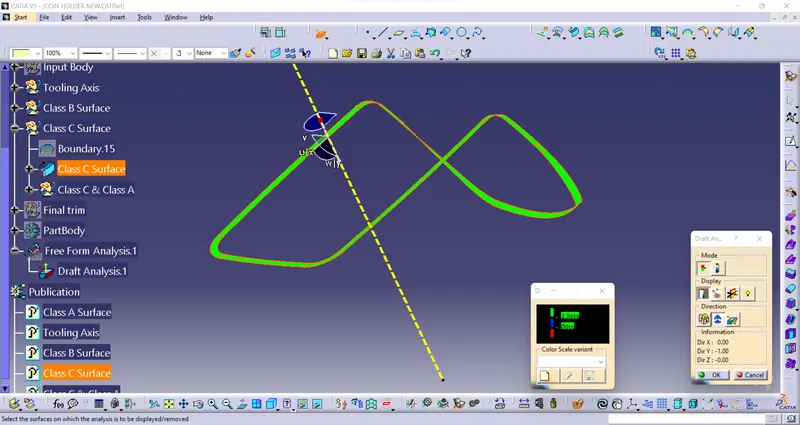

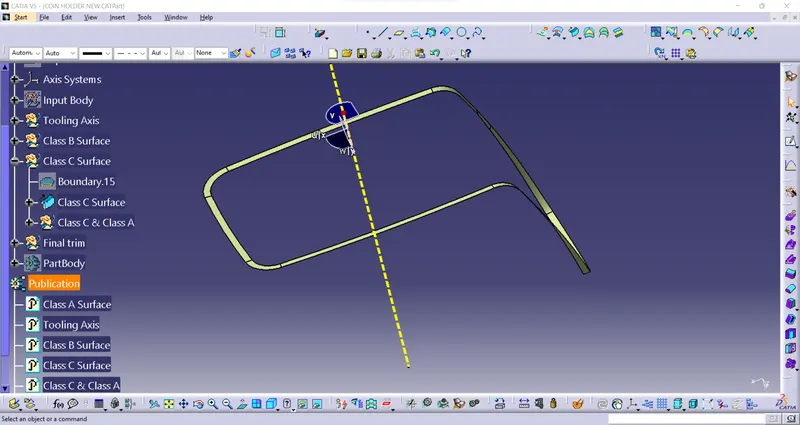

Class C Surface:

• Unhide the A Surface to Take a boundary as a reference to make C surface.
• Go to sweep line-> with Reference Surface 90 degree draft angle.
• Then Publicize it.

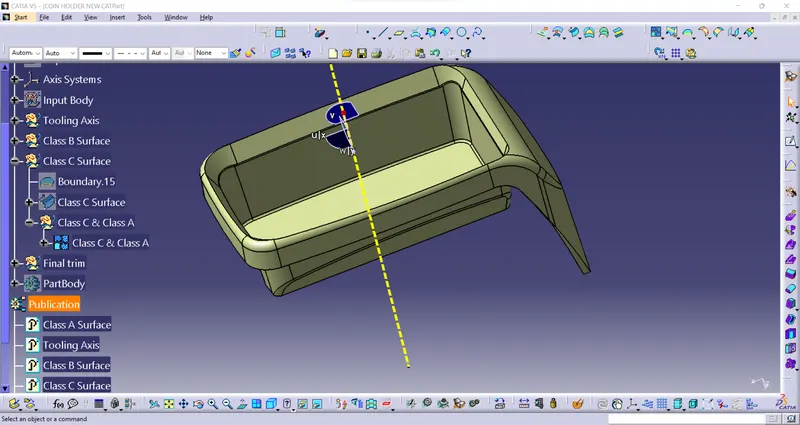

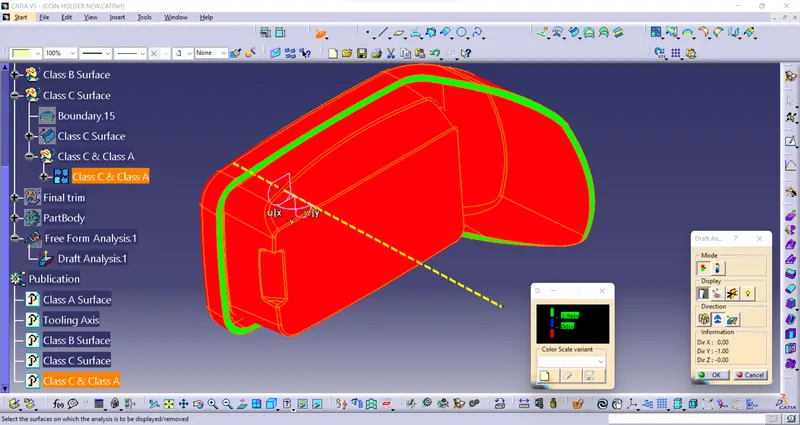

Class C & Class A:

• Join the Class C surface and Class A surface.

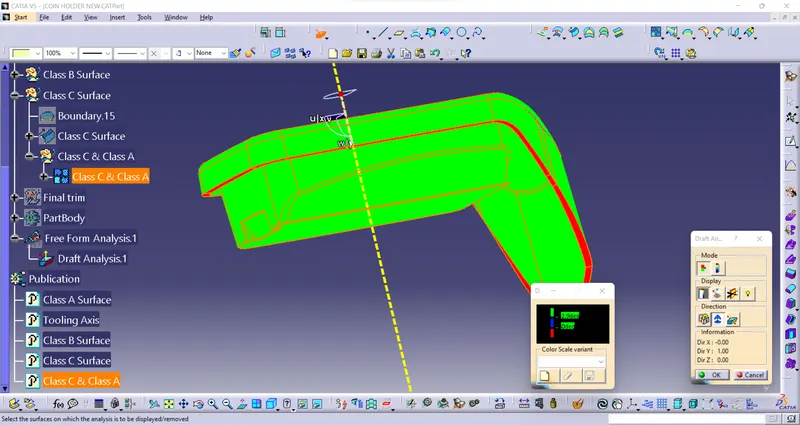

• But I'VE Got The Draft Analysis Like this Below shown in the pictures.

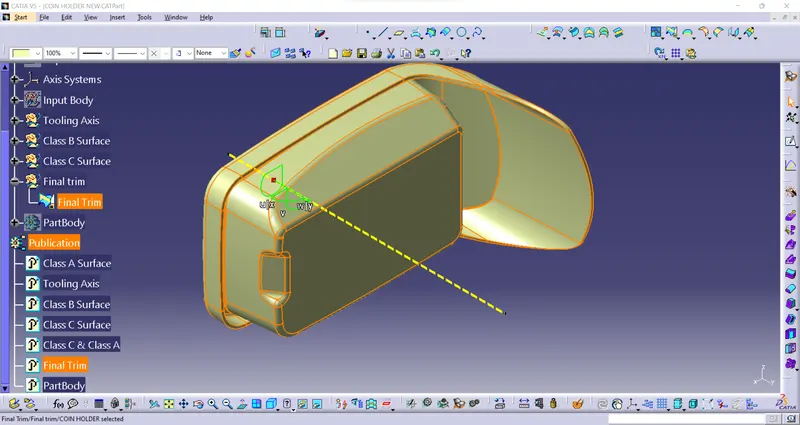

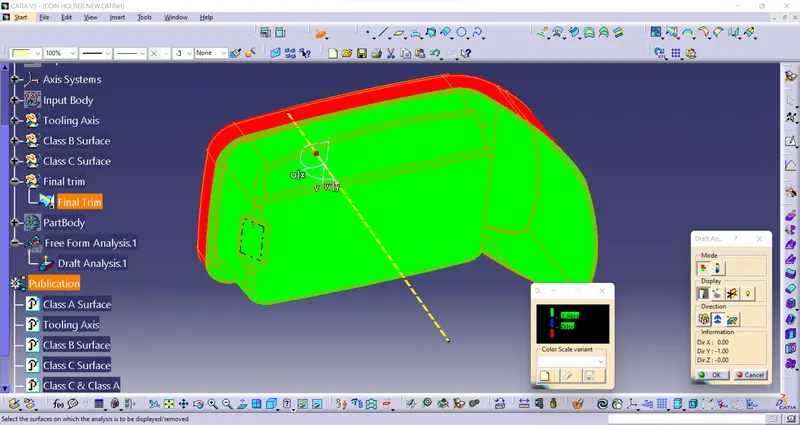

Final trim:

• Take a Joined Class C Surface And A Surface to Trim with B Surface to make it as a Closed Surface Body.

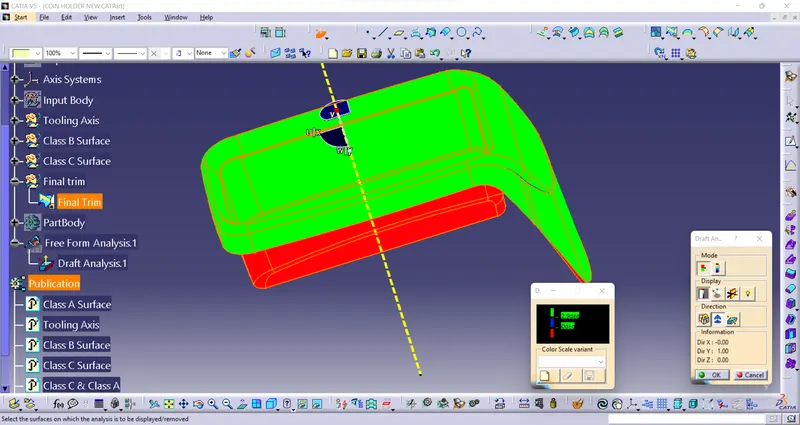

• Then Analyze the Draft with the final Trim.
• Publicize it.

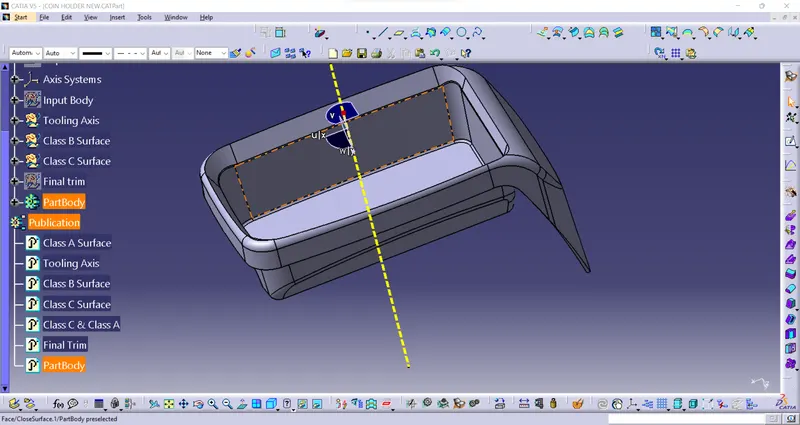

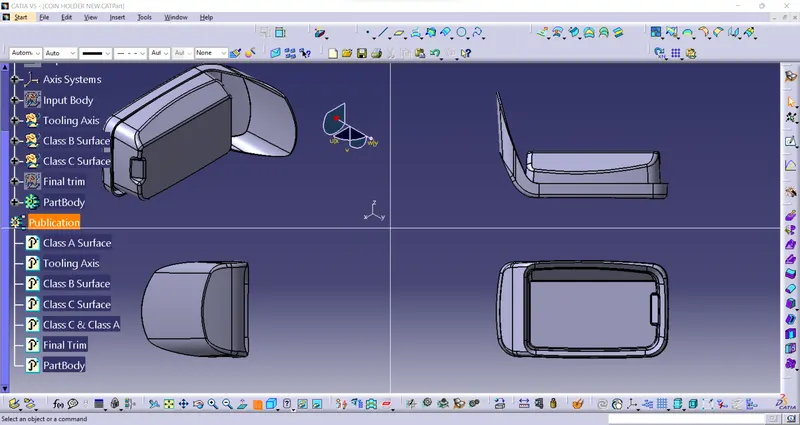

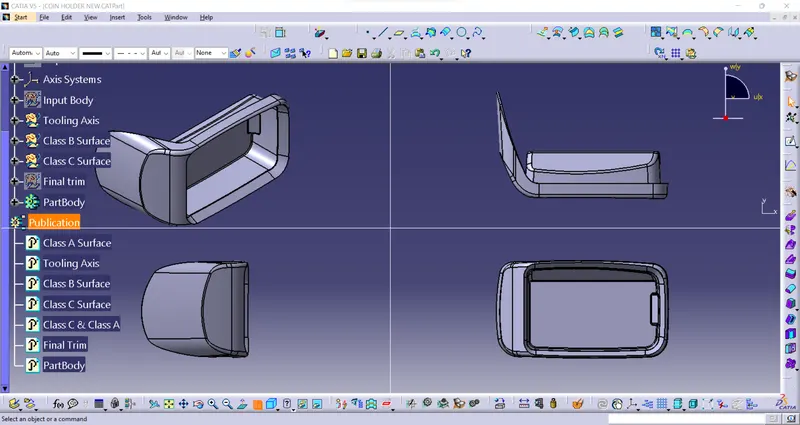

Part Body:

• Go To Part WorkBench-> Close Surface To Make a Solid Body.
• It is a final output and then publicize it.

Conclusion:

The report of 'Coin Holder' Automotive plastic Component of the Project Is Done By Myself and thank you!.
