Week 8 - Challenge 3 - Coin Holder Design

Report

In order to create a tooling axis we need to first look for any hole or pocket or flat surface, in this case we have a flat surface from which we will take the perpendicular line

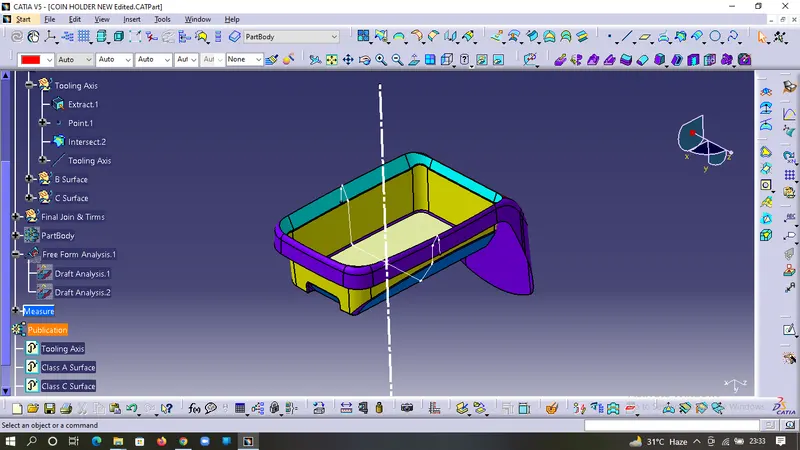

In order to make the perpendicular line we need to extract the base and take the center point and then make the line.

After making the line check for any lines parallel to it

On checking we find that all 4 walls from Class A are parallel to our dummy tooling axis.

So now we do the draft analysis and check that all four walls from Class A already have a draft angle of 3.2 degree.

So after checking we can finalize our dummy tooling axis as our final tooling axis

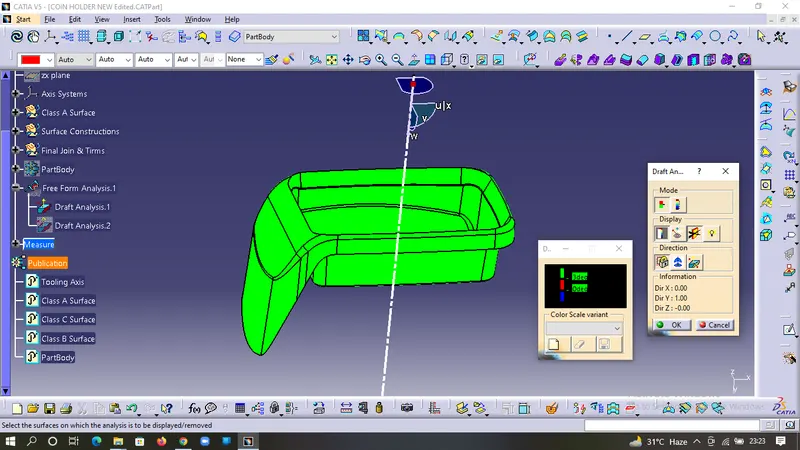

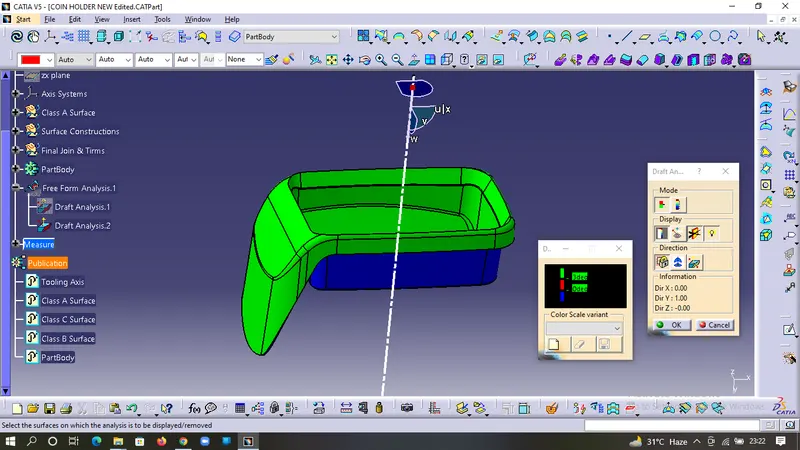

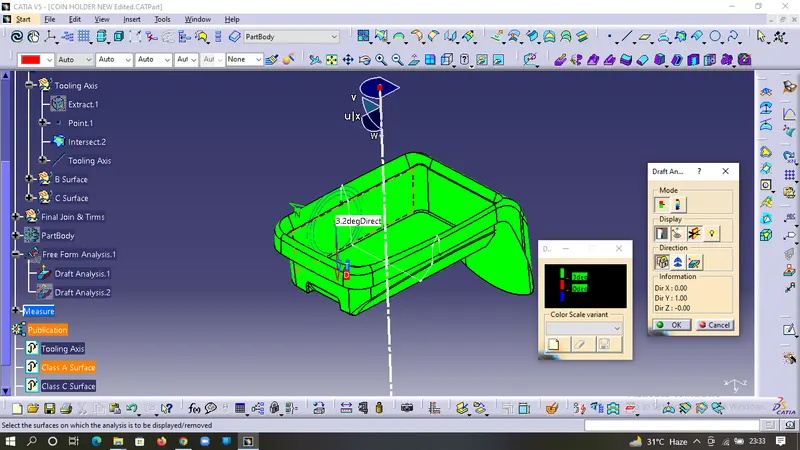

Screenshots of the Draft analysis report for both the given Class-A surface and the final plastic component

Class-A surface

Final Plastic Component

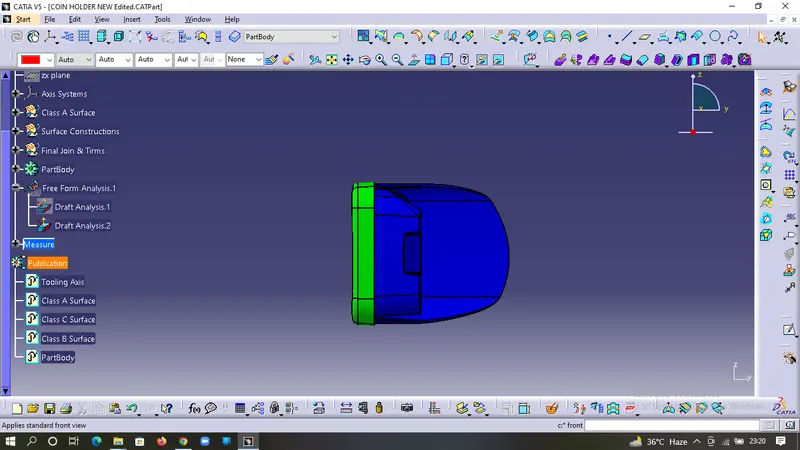

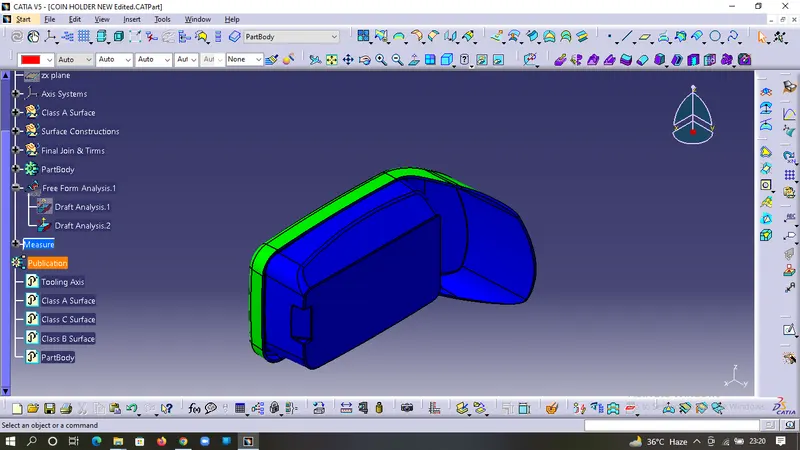

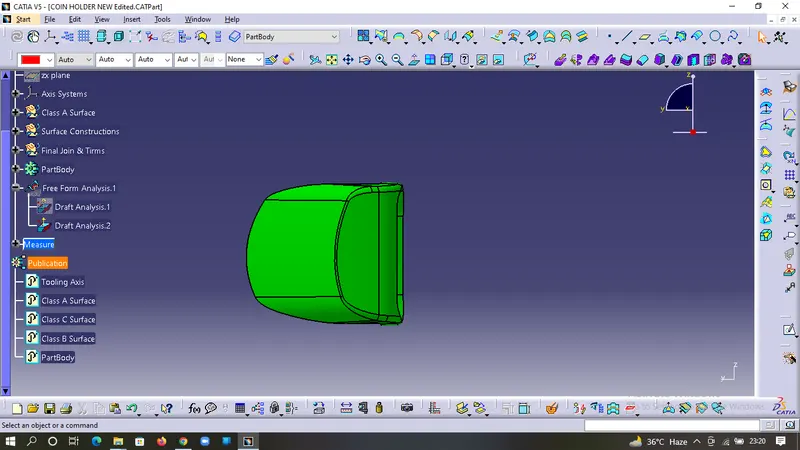

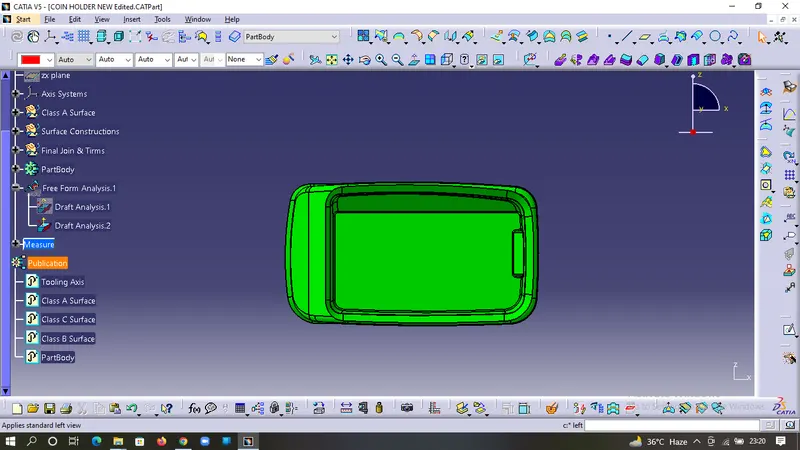

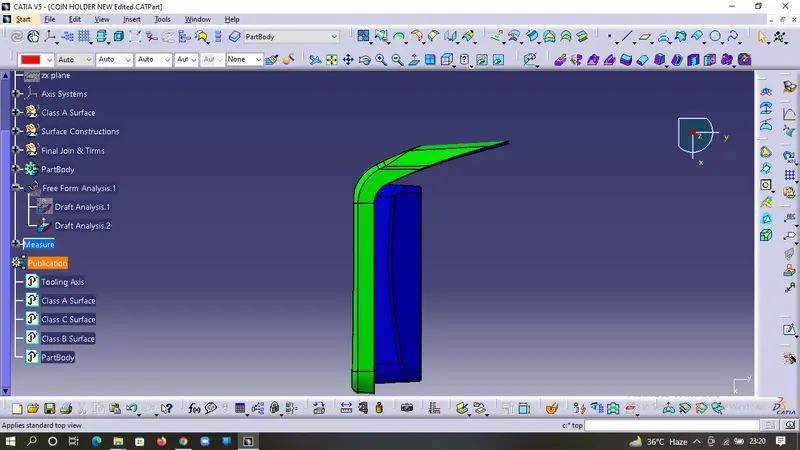

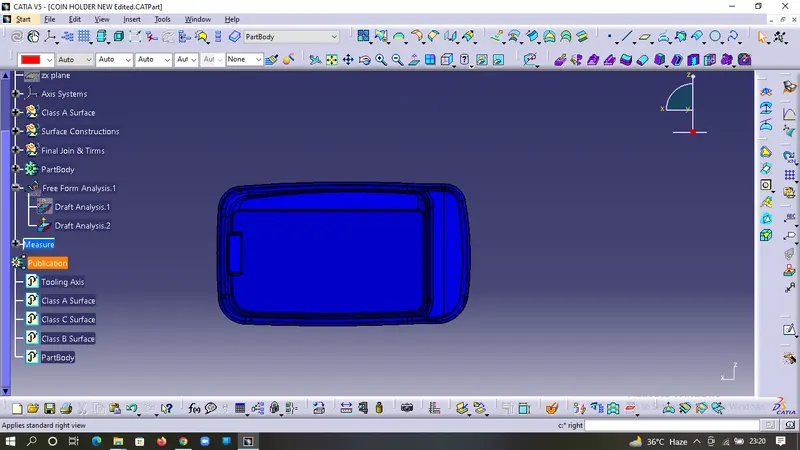

Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)
