Week 8 Challenge

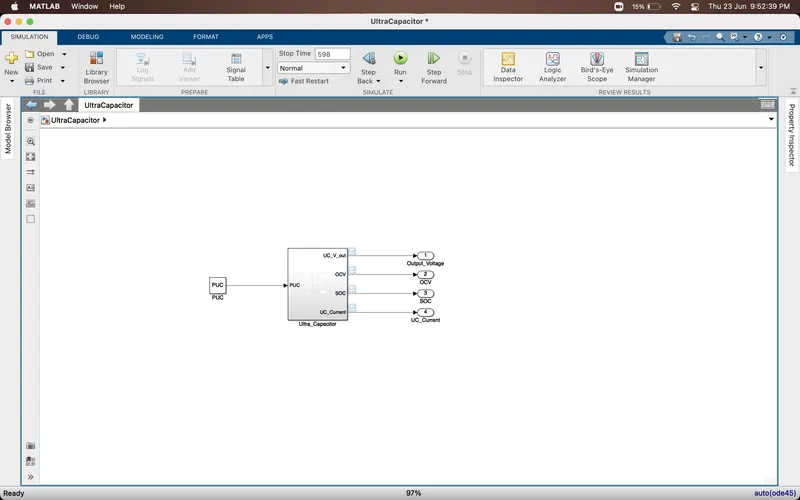

The top level view of the model is shown below. The power request is taken as the input termed as PUC here.

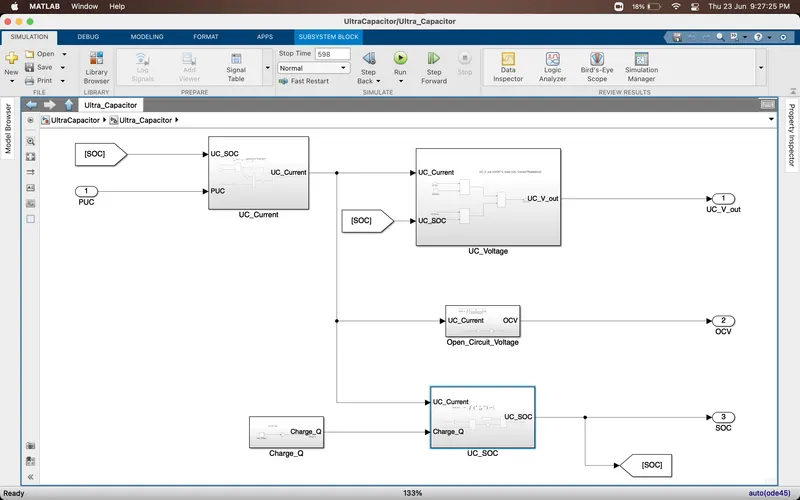

The subsystem consists of current calculation and SOC estimation sub-models.

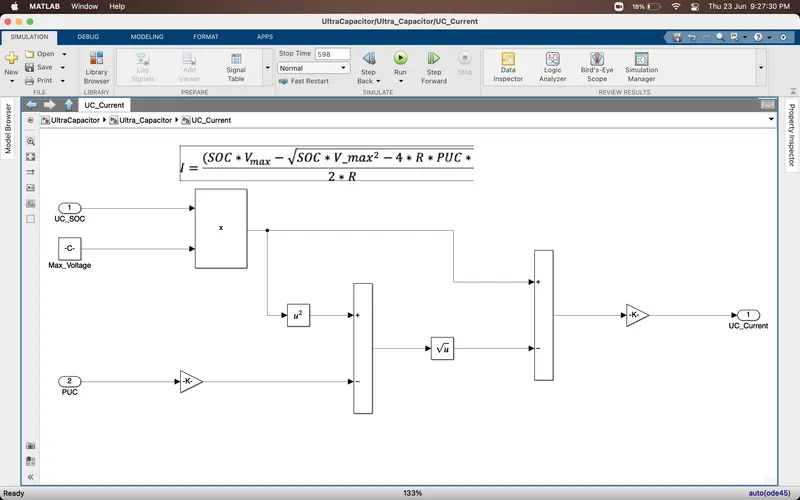

UC_Current(I) is calculated using the formula and model is desgined

where,

SOC = State of charge

V_max = Maximum Voltage

R = Resistance

PUC =Power from ultra-capacitor

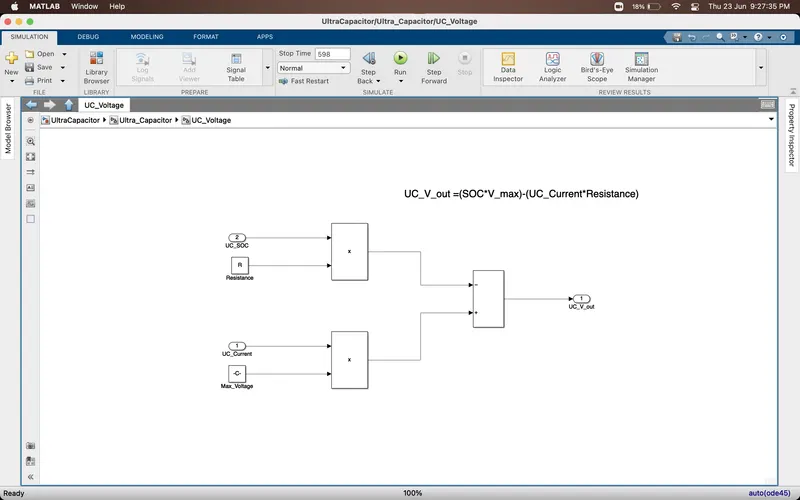

Output voltage is calculated as per the formula and model is designed

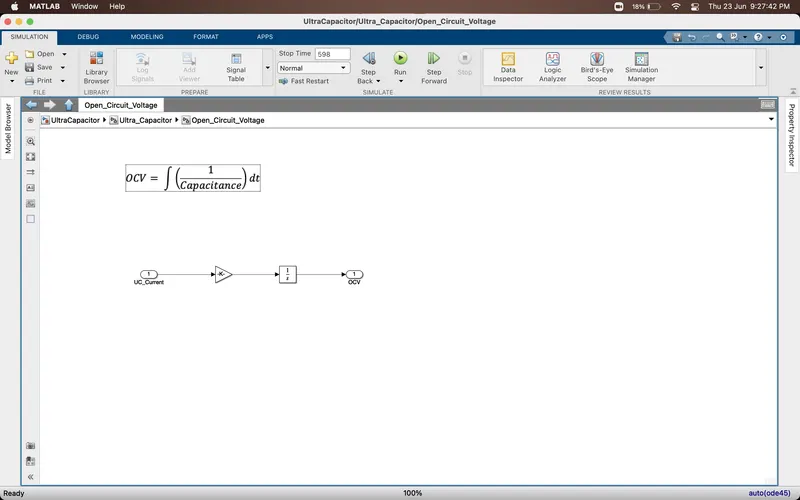

Open circuit voltage is calculated as per the formula and model is designed

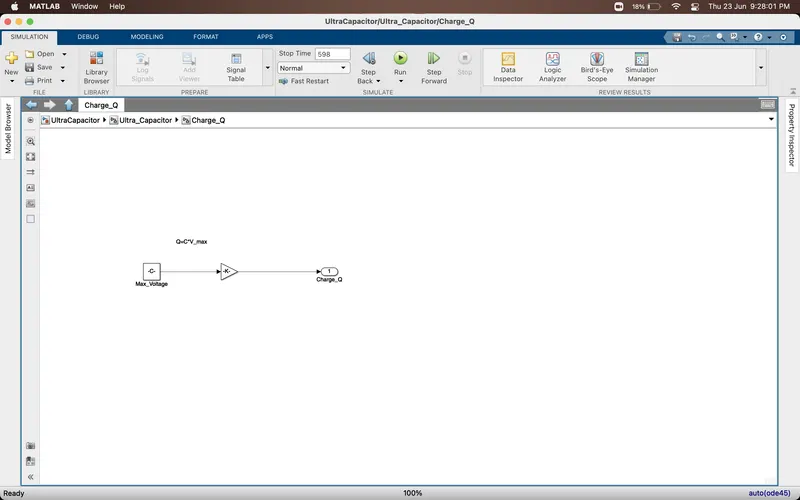

Charge_Q is calculated as per the formula and model is designed

where,

C = Capacitance

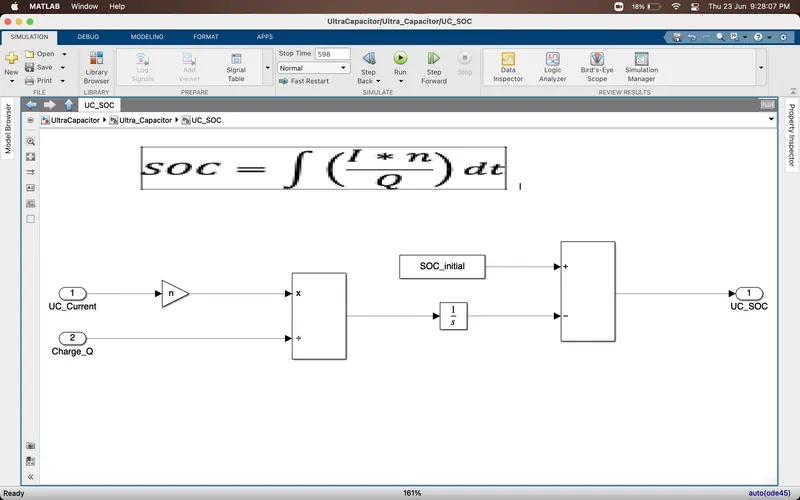

SOC is calculated as per the formula and model is designed

where,

n = efficiency

Results : The simulation is for 598 seconds

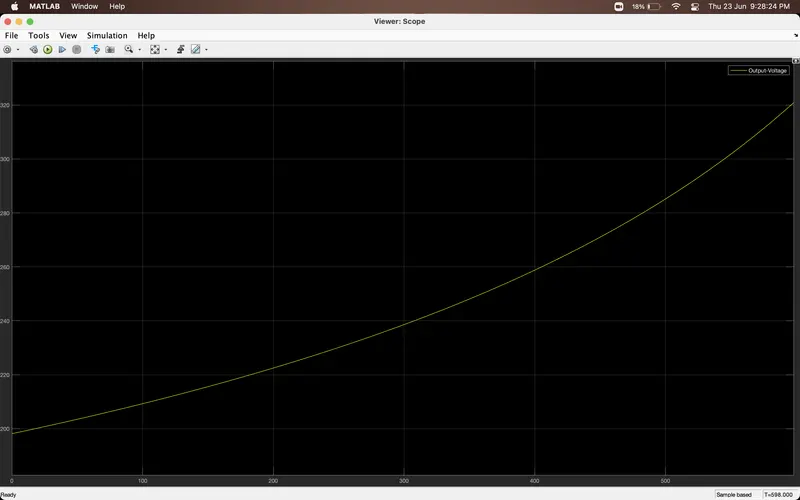

The output voltage obtained

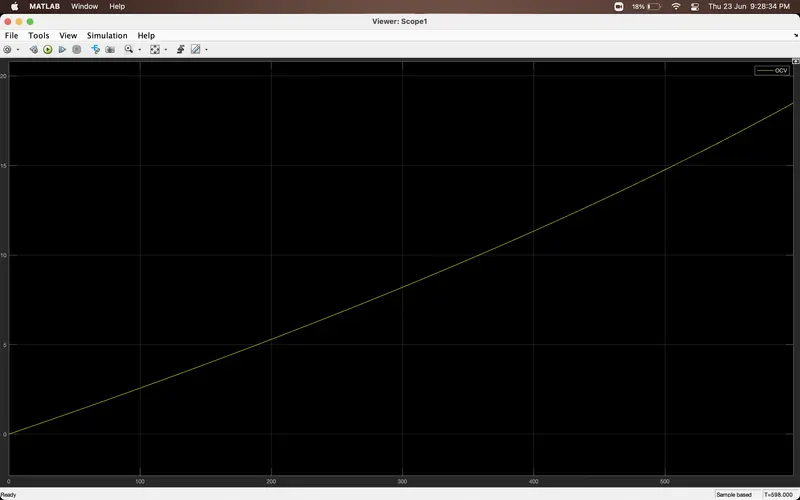

Open circuit voltage

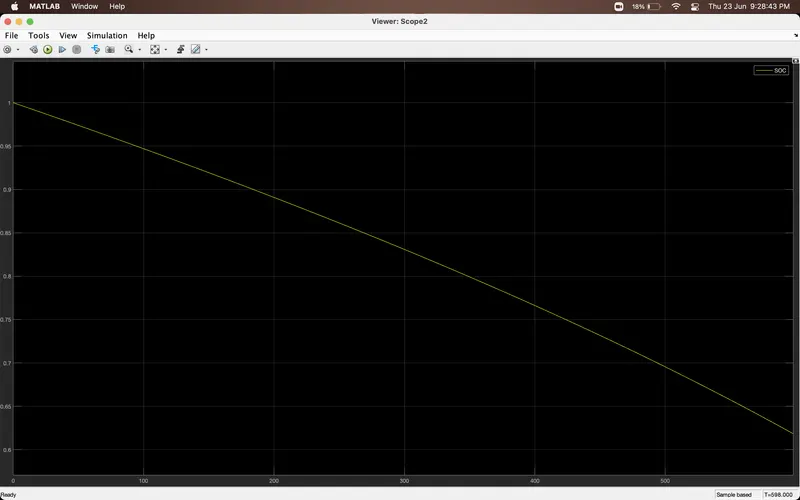

SOC

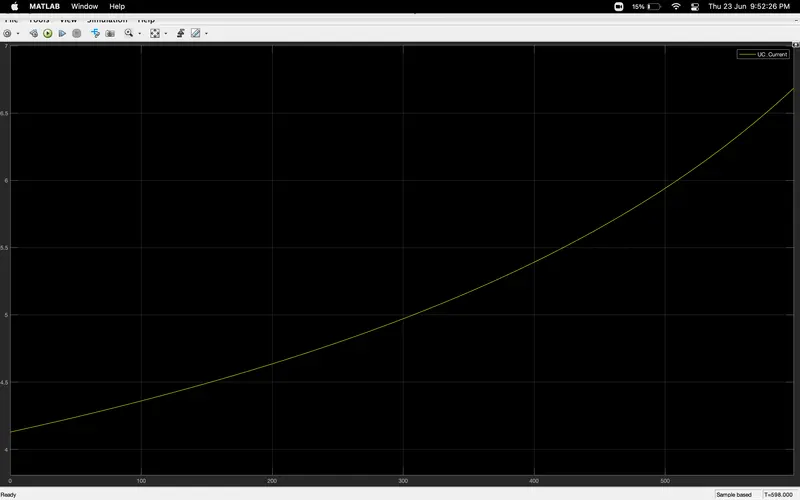

UC_Current

Note : Model and .mat file is zipped and attached.
