Week 8 - Challenge 2 - Switch Bezel Design

AIM

Create the Switch Bezel Plastic component through the given Class-A surface.

Introduction-

The control panel bezel is the frame part of the window switch that holds its switch covers and buttons into place. Moulding is the method used to manufacture the plastic trims of an automotive by most OEM’s, hence by considering the manufacturing consideration the switch bezel is designed.

Design consideration-

• Class – A surface should be aesthetically smooth and good.
• Class – B surface should have all the supporting features like ribs and also have the all engineering features
• Parting Line should coincide with the B surface since flashing couldn’t affect the aesthetic of Class – A.
• Class – C surface should also pass the draft analysis.

• given model

to create the part of so;id by given class A surface with exact tooling axis

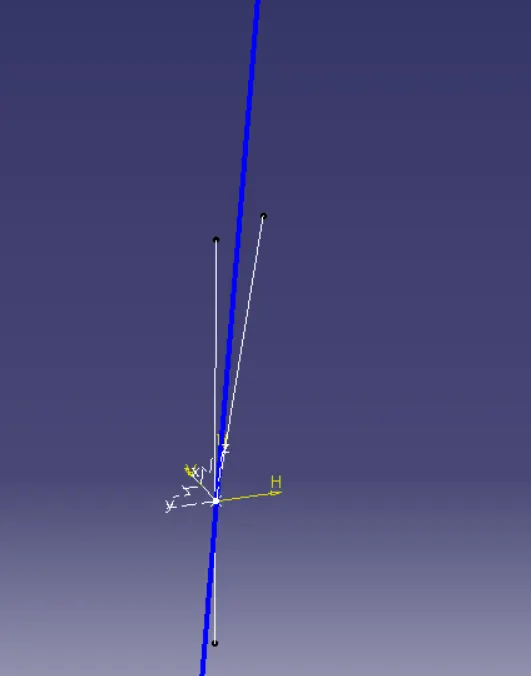

to create the tooling axis using that two refrence axis

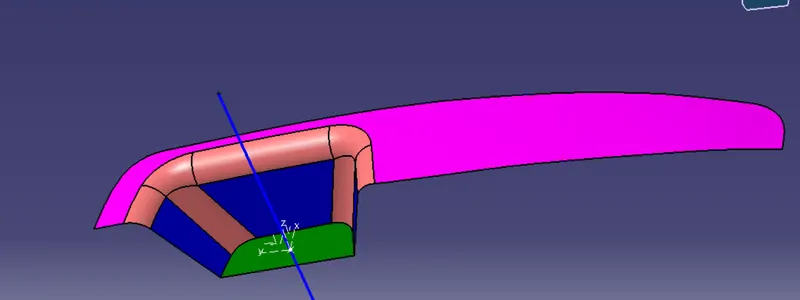

to create that final surface part by given class A surface and to create th class B and class C surface together

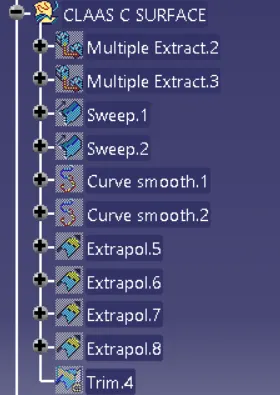

tree structure of class B and class C surfaces

part body of part by creating surface part

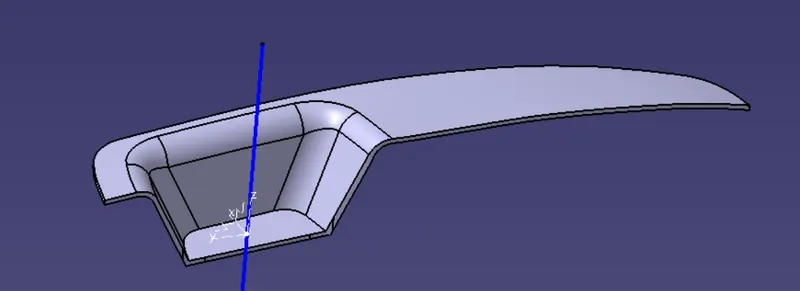

multiple views of that part

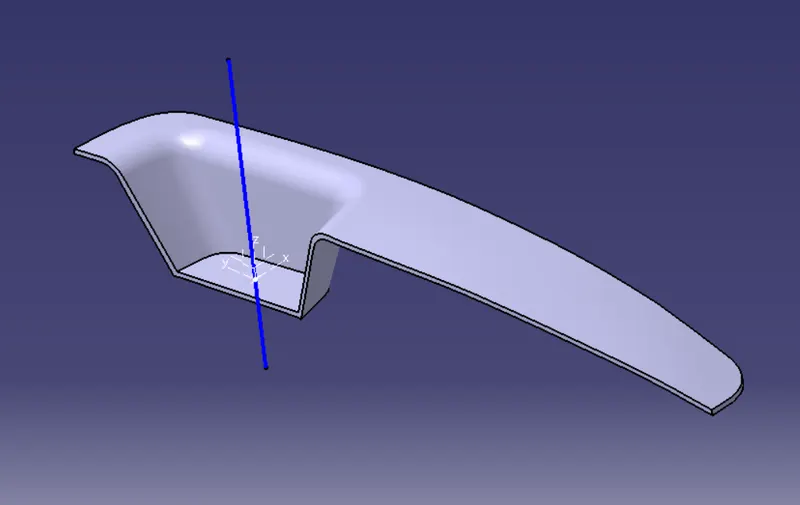

isometric view

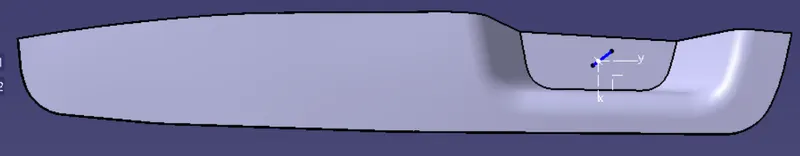

top views

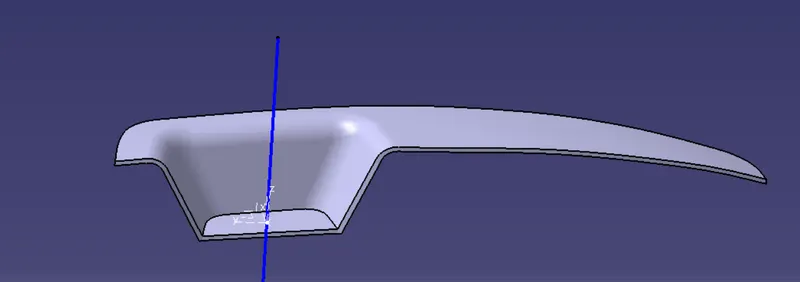

front views

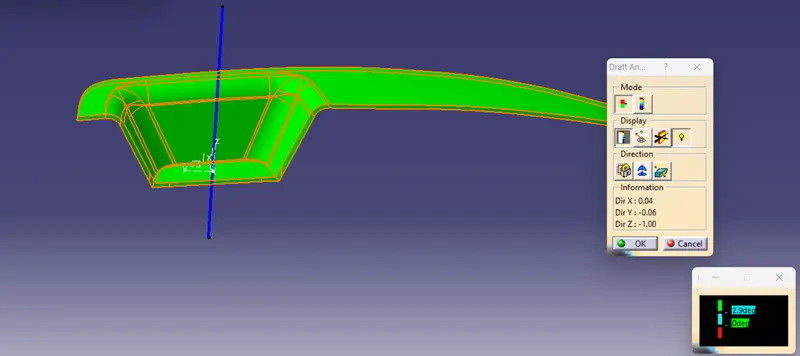

draft analysis

Finally achived that draft analysis is done. that shows its the positive signal.

conculsion

To create the part by using the given surface and also to get draft analysis that gives positive result.
