Week 8 - Challenge 2 - Switch Bezel Design

1. Class A Draft Analysis Results

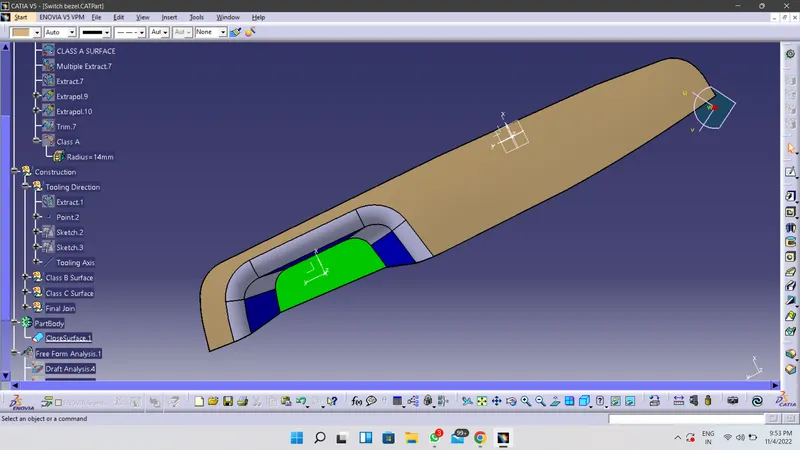

1. Final Product Draft Analysis Results

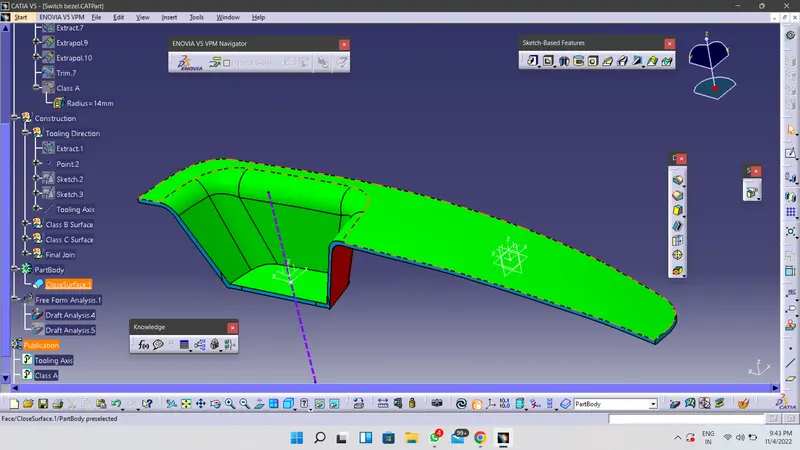

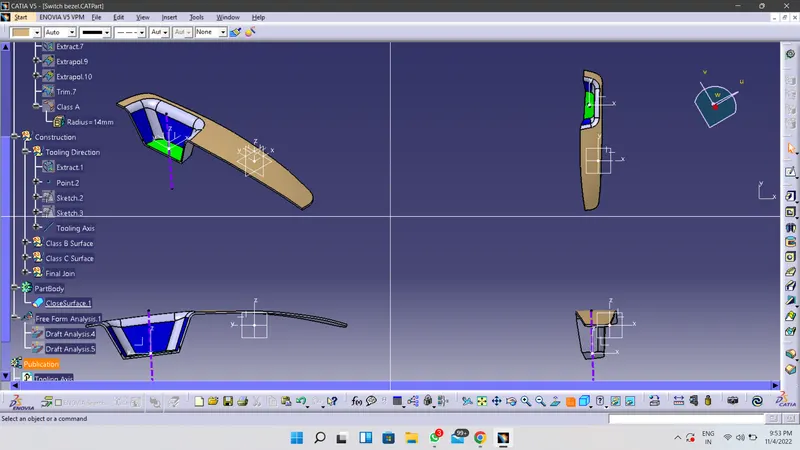

Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)

Normal To tooling Axis

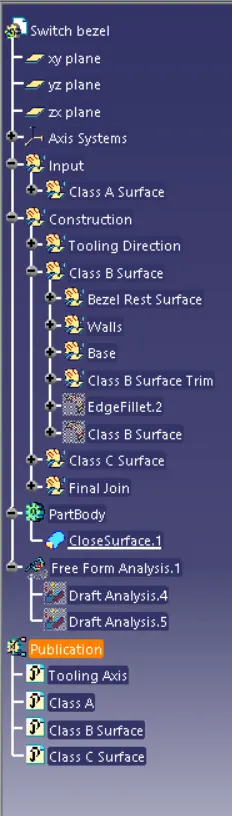

Expanded Tree Structure

Report -

Tooling Axis

Initially Ensure the Provided class is good by applying boundry if issues observed then resolve the same before proceeding ahead
Tooling defines the opening and closing of the core and cavity resulting the formation of mold cavity where the molten plastic is injected and allowed to cool
To define the tooling axis we initially sppose to check the ease of tooling axis for opening and closing of the core and cavity normal to plane for all 3 planes
Consider the hole, Ribs, Slots and other Enginnering to check possible Dummy tooling axis
After the decideing the Dummy tooling axis

1	Take intersection for the one plane on Tooling axis
2	Draw line from intersection to check wether intersecting with tooling axis
3	After draw a bisecting line between two lines drwn on intersection
4	Repeated the above steps for the second plane on tooling axis
5	We get 2 Dummy tooling axis from 2 Planes
6	Now as this 2 Dummy tooling axis are not collinear we extracted the tooling axis by bisecting two Dummy tooling axis
7	Obtained Tooling axis is then considererd for Draft Analysis

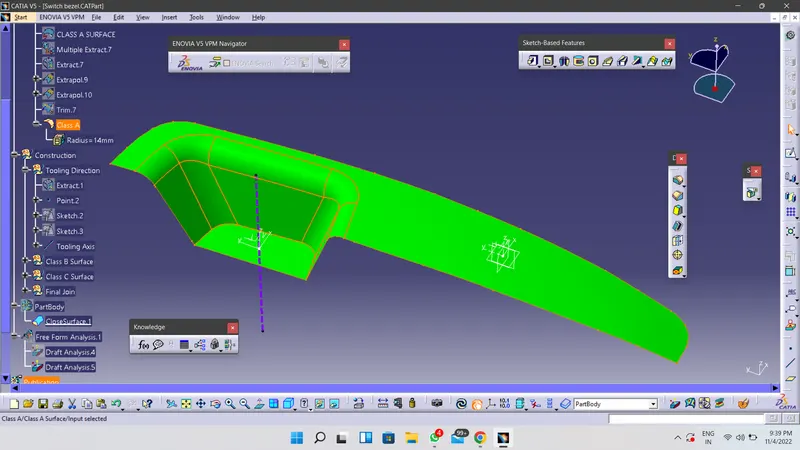

Use Feature draft analysis by providing pulling direction, surface, draft angle and draft angle direction

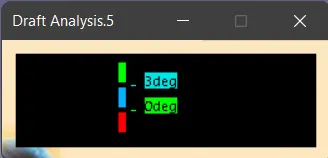

Green results are ok, blue results shown negative draft (for angle use colour scale)
Once tooling axis is ok procees the B Surface and C Surface by offseting class A Input
at the end we observe that the walls are not attaing draft angle of 3 deg hence we manage the dummy tooling axis to attain the walls at draft angle 3 degree
