Week 8 - Challenge 2 - Switch Bezel Design

Report

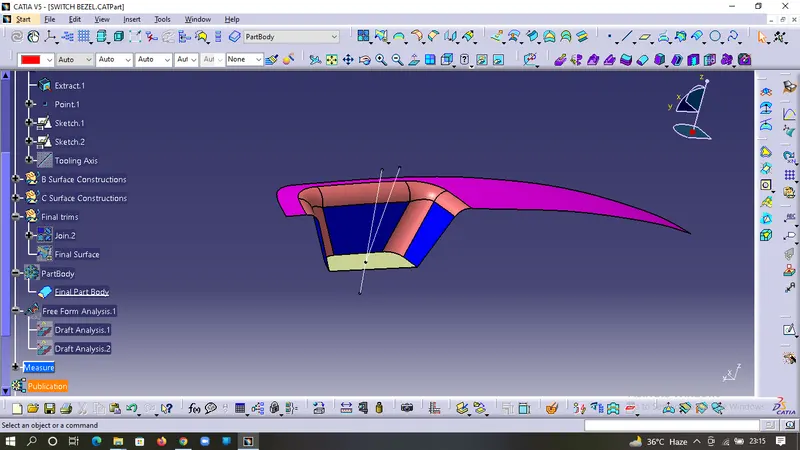

In order to make the tooling axis we must identify the a hole/pocket, in this case we have a pocket,

So we take the center of the base of the pocket as the surface for the tooling axis and make a line perpendicular to it.

As we have identified that only 1 wall is almost parallel to our dummy toolind axis so now we make as line that is at a angle to atleat 6 degree to 8 degree from the wall (as we have to make a bisecting line the angle will reduce after making the bisecting line ).

Now make a bisecting line betwee the dummy tooling axis and the 8 degree line, the final outcome is our Tooling Axis.

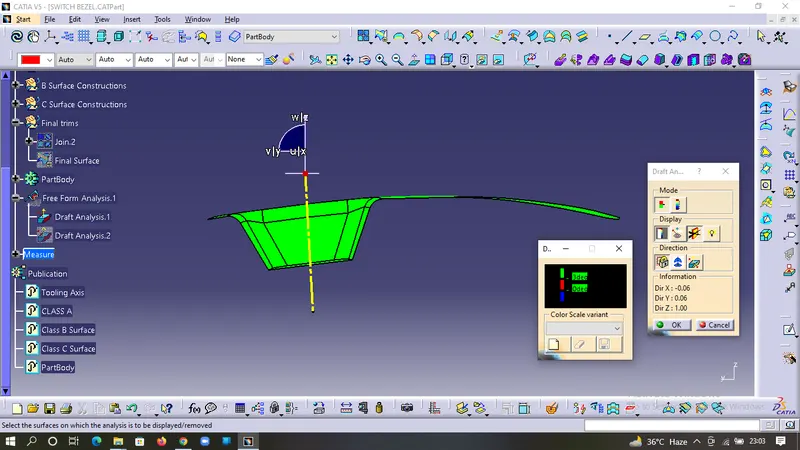

Now to validate the tooling axis we do the Draft Analysis

For Draft analysis we need to change to material mode and then start the draft analysis.

First move the axis flag on the top of the tooling axis and lock it.

Then pick the part body and select & customise the color scale, if any surface shows abnormalality then correct the tooling axis otherwise finalize the tooling axis.

Screenshots of the Draft analysis report for both the given Class-A surface and the final plastic component

Class-A surface

Final Plastic Component

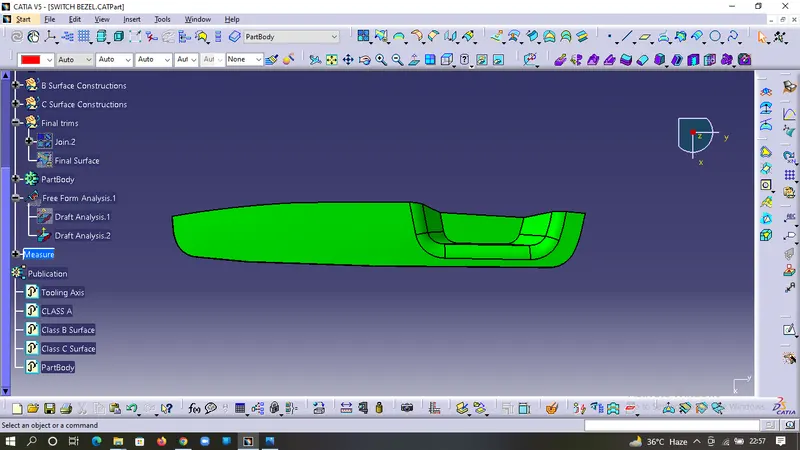

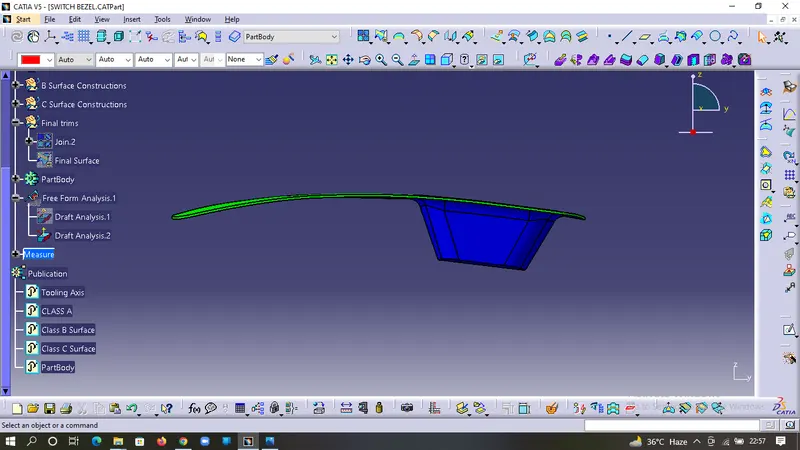

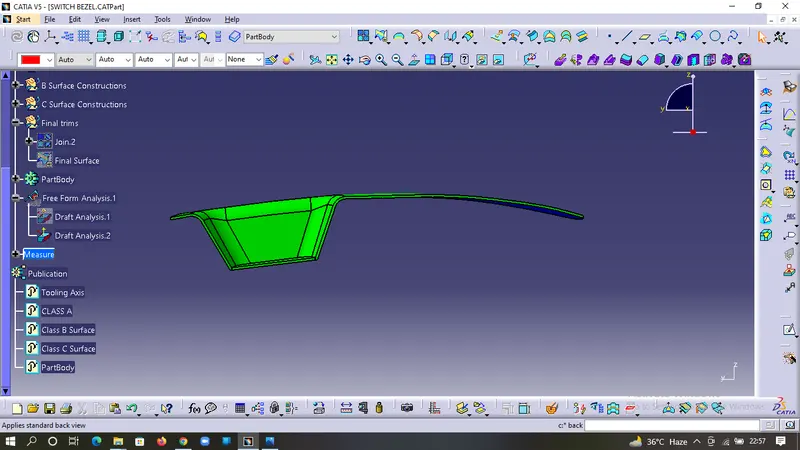

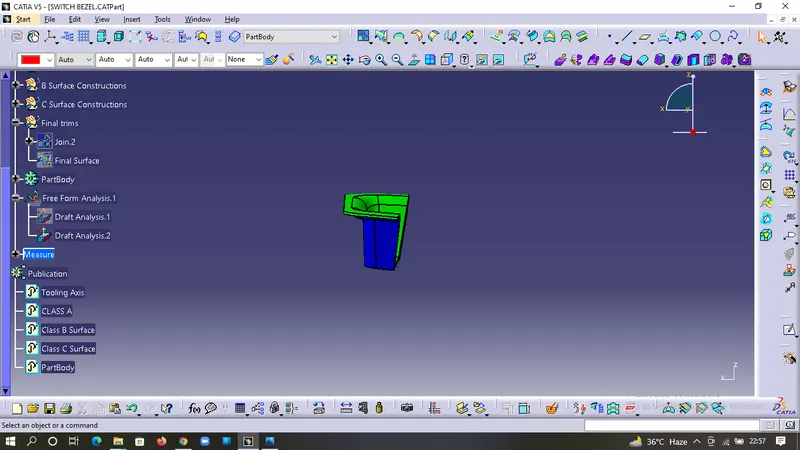

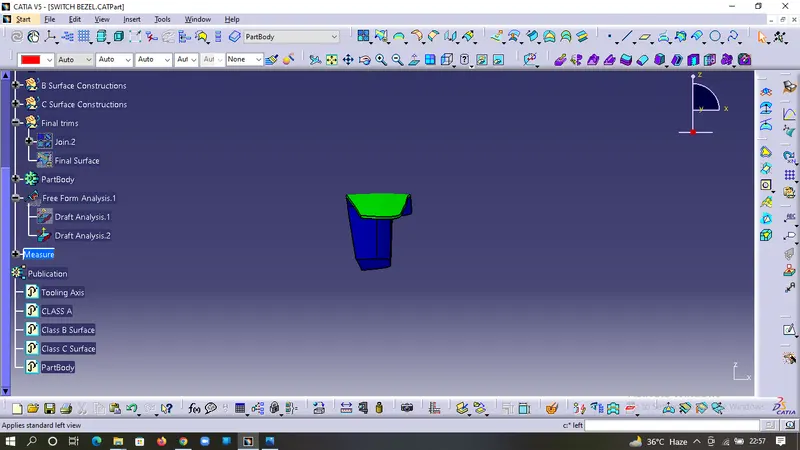

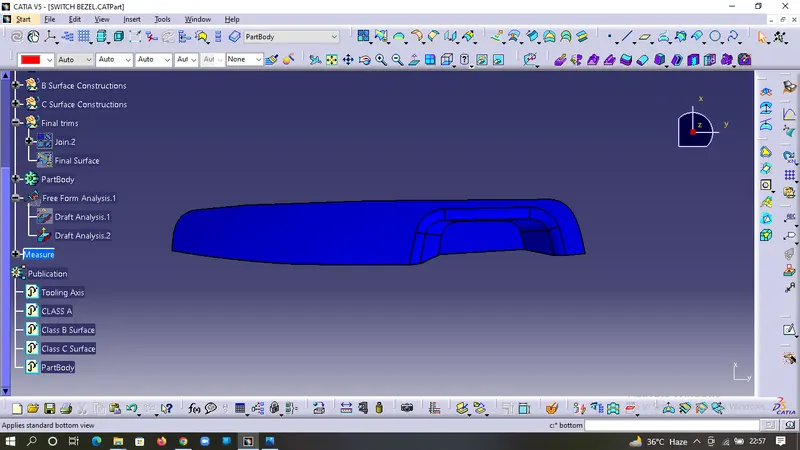

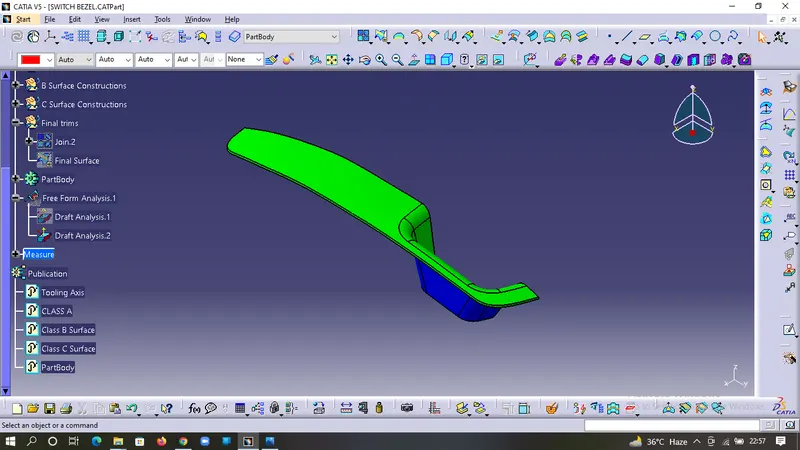

Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)
