Switch Bezel Design

Switch Bezel Design:

Objective :

• To design switch bezel as per automotive OEM Standard.
• Create B Class and C Class and tooling axis.
• Converting close surface into the solid inside part workbench and providing the thickness of 2.5mm.

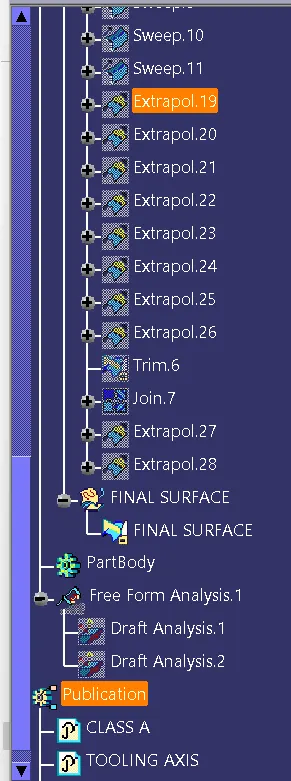

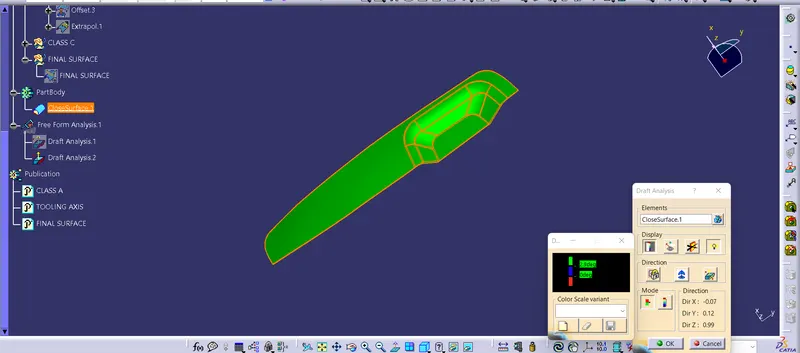

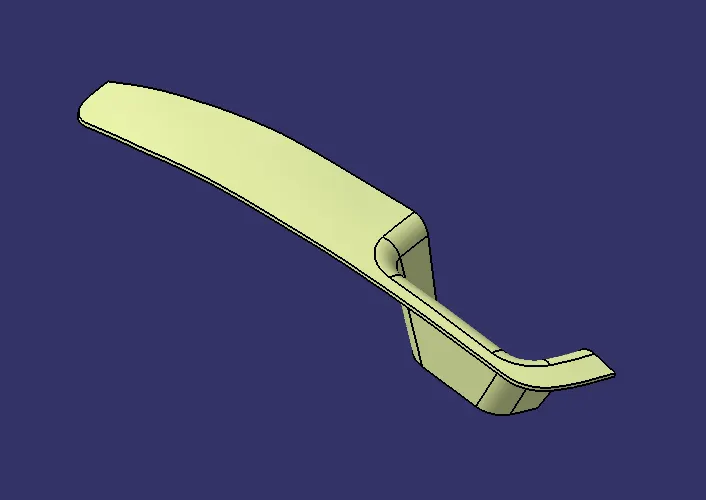

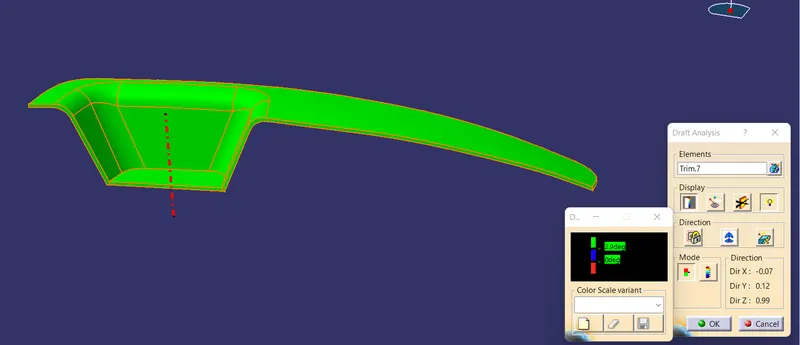

• Performing draft analysis to verify the creation of the Tooling axis and C Class surface.

Software :

• CATIA V5 (Generative Shape Design)

Abstract:

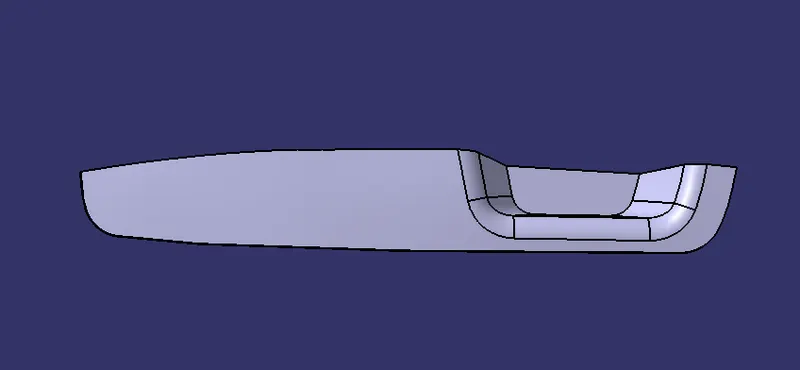

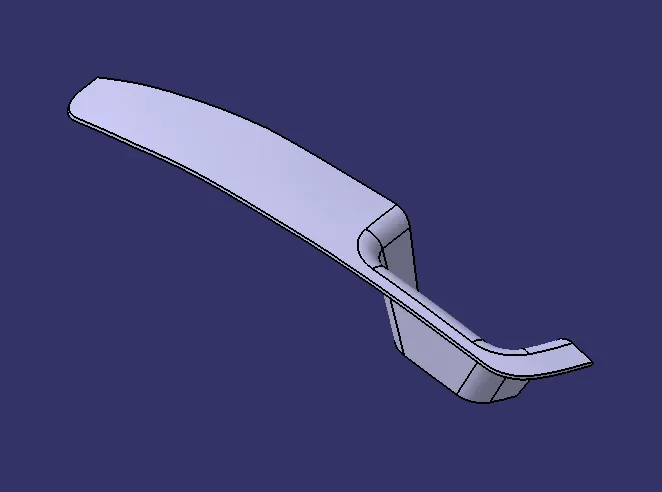

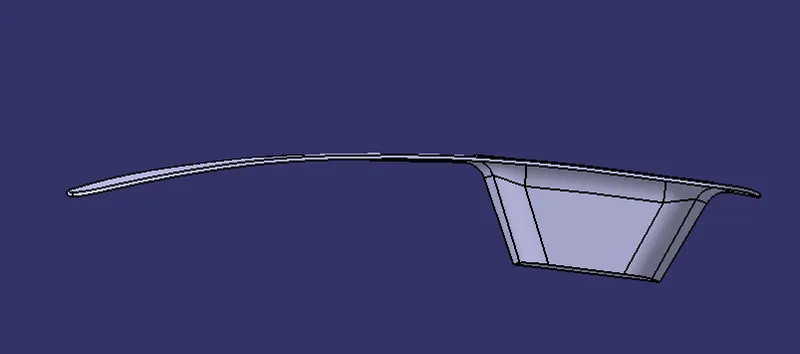

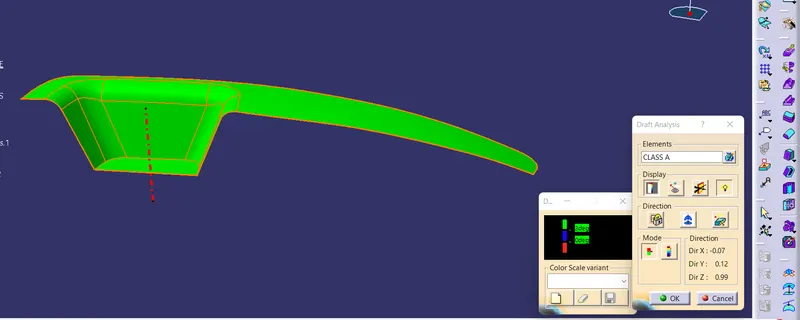

In this project, I design a Switch Bezel using Catia v5. I received input as Class A Surface. I Check the direction to eject the tool based on the component design. Later I checked whether all faces that intersected will clear the direction based on the tooling axis. I started working on the Draft Analysis tool to check if our tooling direction clears the path for easy removal of material from the tool. After that, I go class B creation using Advance tools from the surface followed by class C creation using the sweep command. after design A B C class surface, converting close surface into solid inside the part workbench.

Design Methodology with images:

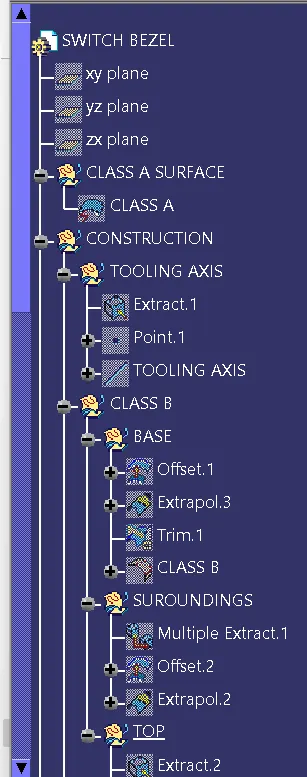

Procedure for creating Tooling Axis

• A Reference Point is created along the Surface zero and a new Axis system is created
• The X Direction along Class A and Y direction along Class A was used to create the Tooling direction
• Finally the Tooling axis is created by bisecting the two lines and it is published. Class A Surface as input using surface operation commands Class B is developed
• The tooling Axis determines the direction of the Class C boundary swept with draft direction.
• When viewing from the tooling direction normal all the parts that are drafted should be visible so it gives a rough idea to determine product manufacturing in Injection molding.

Procedure for B Surface Creation

• The next step is to design the B surface for the input which is usually the surface where all engineering aspects and support creations are done.
• The B surface Creation is performed using surface operations in CATIA which is an offset from Class A with dimension proportional to the thickness of the part
• In the Switch bezel the B surface is offset 2.5mm from the input which is the thickness of the part
• The B surface is extrapolated compared to the A surface and forms the bottom skin of the part.

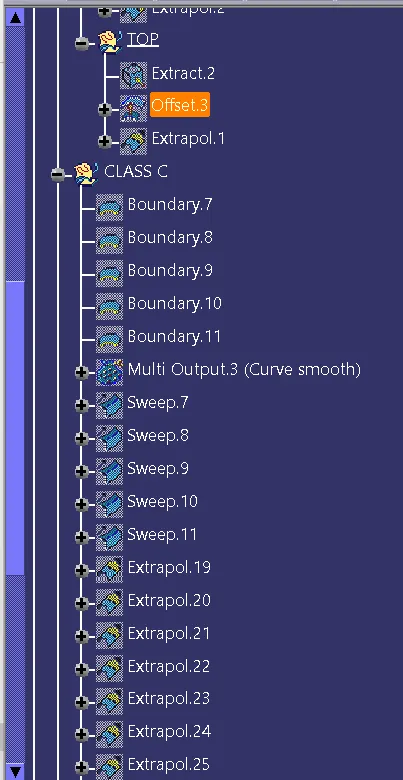

Procedure for C Surface Creation

• The Next step is to form the C surface which is an intermediate surface between A and B and is used to give the closed surface appearance to the design
• The C Surface is swept using the profile as the boundary line of Class A which is the Guide curve with a subtype along the draft direction.
• The Direction of the sweep is the tooling direction formed earlier
• The draft angle for the sweep operation is provided which is 3 Degree and the surface is swept for length above the thickness of the specified part
• The C surface is refined using smooth Curve options to remove the complexity and patches along the swept surface
• Finally the Class A and Class C surfaces are joined together and the connexity of surfaces should be less than 0.003mm and the surfaces are merged.

Learning outcome:

• How to form the tooling axis when there are constraints on the number of walls.
• To capture classes B and C properly.
• To check the feasibility of the component.
