Bumper Design
BUMPER DESIGN
AIM: to make a model from the provided class-A surface.
INTRODUCTION:
CLASS-A SURFACE: a surface made by the designer which is given as input to the plastic modeler to work on. It is an aesthetic surface
and the outermost surface.
CLASS-B SURFACE: a surface below a certain thickness from the class-A surface is a class-B surface. This is the surface that contains
engineering aspects of a model.
CLASS-C SURFACE: a surface that joins class-A and class-B surfaces is a class-C surface.
METHODOLOGY:
In this model we have focused on the following things:
Tooling axis
Draft analysis
Class-B surface
Class-C surface
Making a solid model from the surface.
The following tools were used to reach the final step:
Extract
Un-trim
Trim
Extrapolate
Offset
Edge fillet
Boundary
Sweep
Join
Close (part design)
FOR DRAFT ANALYSIS:

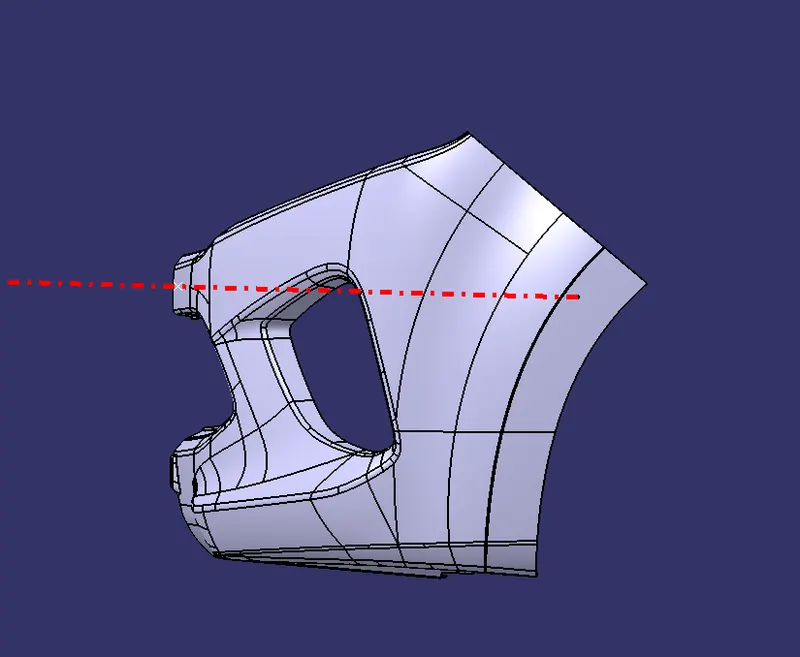

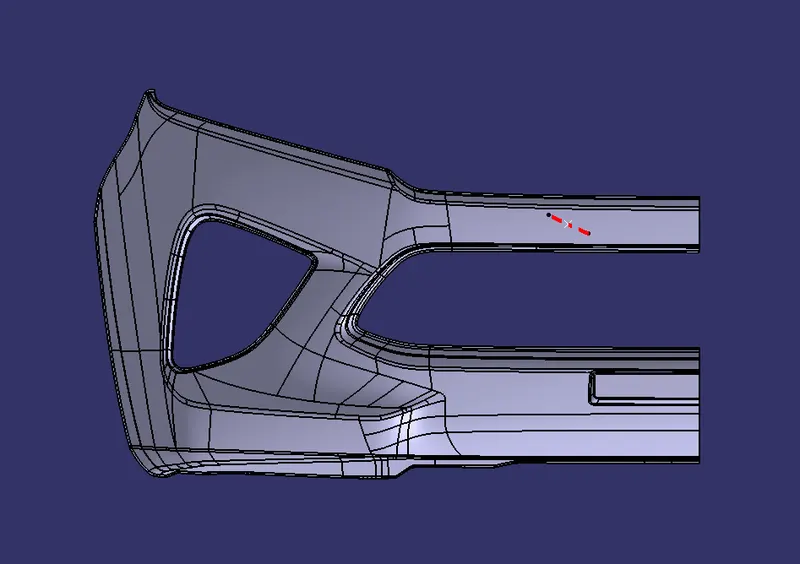

First, we analyze the model and then choose a dummy axis in the x and y direction.
As we intersected to proceed we observed that the side walls are not given any draft. Hence we assume the axis normal to the base surface and parallel to the side walls. This surely will create problems because a minimum draft has to be provided.
As the class-A surface is made by another designer only he is authorized to make changes, so we look over this to complete the coin holder for practice.

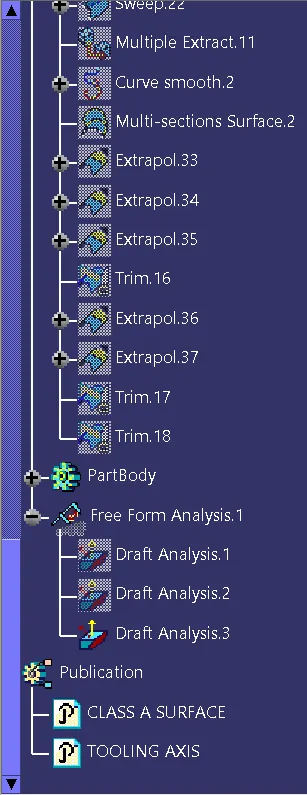

Now we go to insert< analysis< draft analysis and follow the usual procedure to do the analysis.

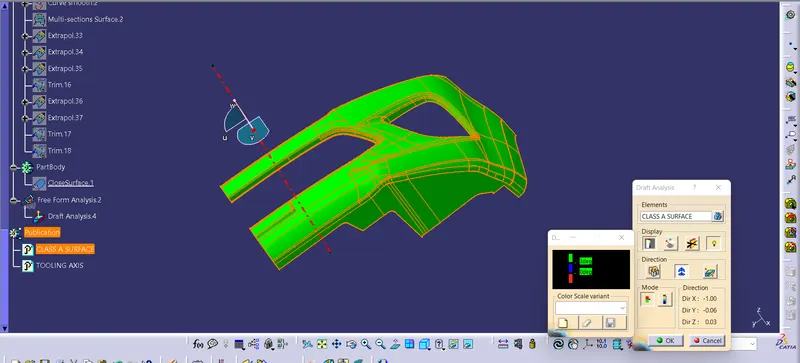

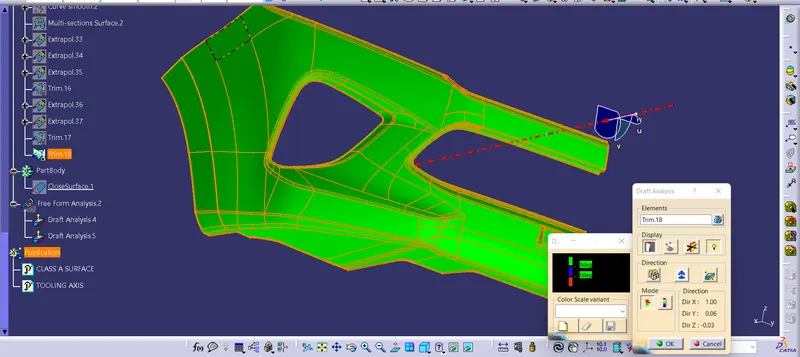

Align the compass and click on the surface and as expected the model is mostly in red i.e. negative draft concerning the axis.

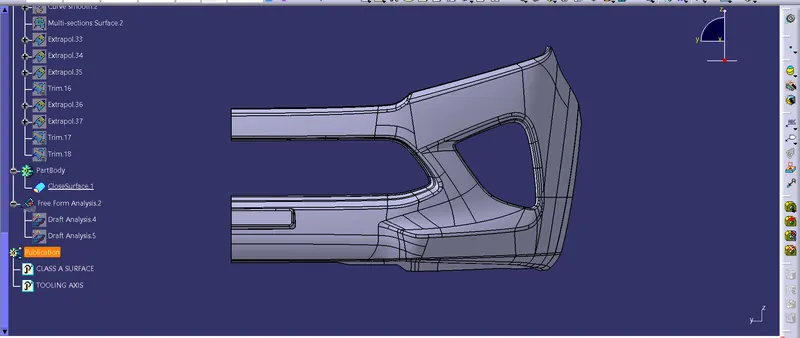

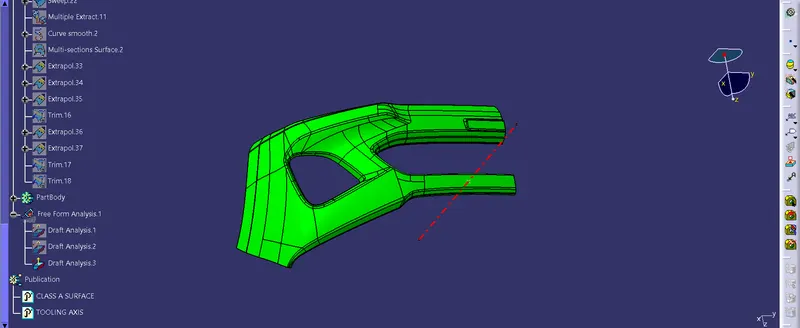

To correct it as best as we can we moved the compass a bit till we got most of the surfaces in green and locked that position.

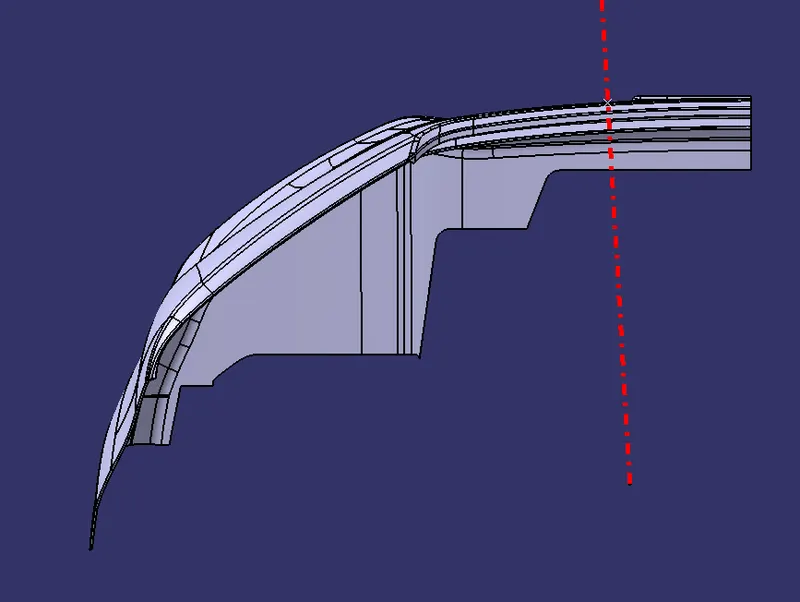

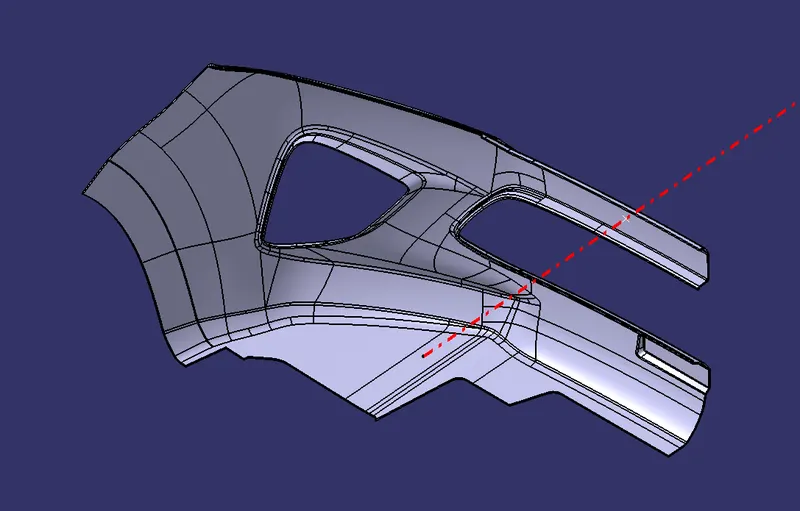

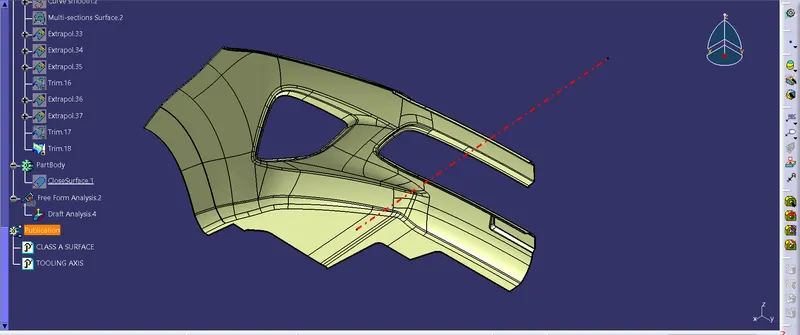

After hitting ok, we change the direction of the line from the z-axis to the compass direction. The axis will align itself accordingly.
NOTE: as the side wall does not have a draft, this result was expected and a few areas need correction. But still, we are moving forward to
complete the model
FOR CLASS-B SURFACES

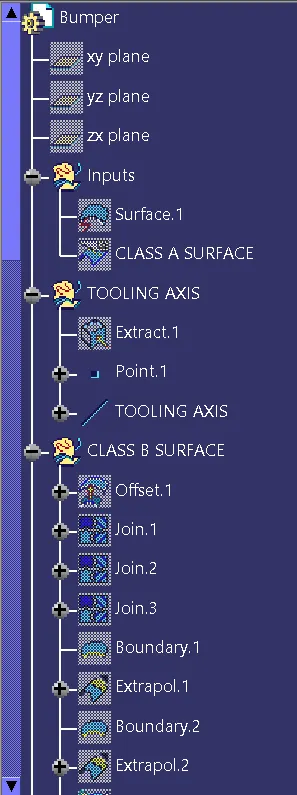

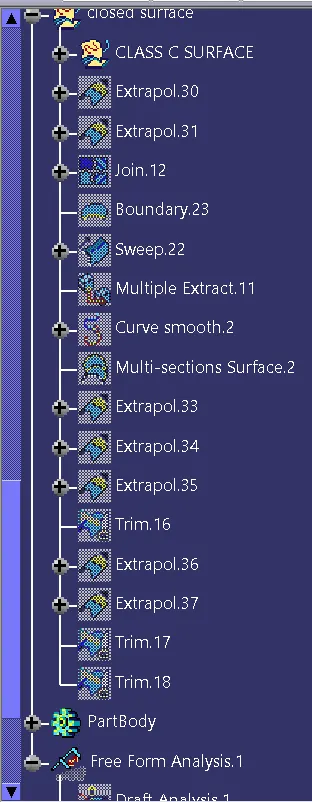

We have divided the entire model into the base, side walls, inside side walls, and outer flange and worked on them one by one
Everywhere we follow the same procedure i.e. extract, un-trim, extrapolate, trim and offset.
First base, then side walls. To avoid confusion, we trimmed both together and made them one. Also, the fillet was given.
FOR CLASS-C SURFACES
In this model, unlike the earlier models, we have used a parallel tooling axis. Hence we cannot use the ‘with draft direction’ option under
sweep.

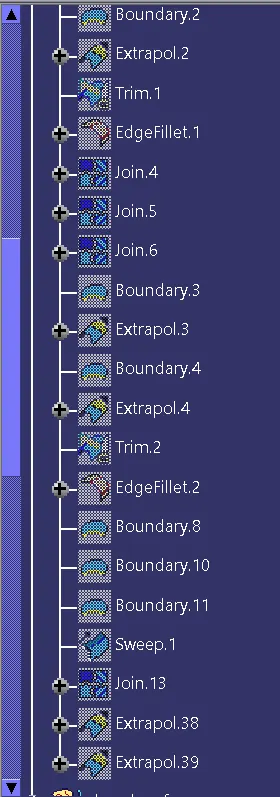

The C surfaces will mostly be created as shown below.
Conclusion:- In this project, we learned how to find the tooling axis inappropriate way and how to create Class B and Class C Surface from Class A Surface.
