Photo Realistic Rendering
DESIGN AND RENDERING OF AMERICAN CHOPPER BIKE
- OBJECTIVES
TO CREATE MODELLING AND PHOTOREALISTIC RENDERING OF AMERICAN CHOPPER BY SOLIDWORKS.
- INTRODUCTION
SOLIDWORKS IS A SOLID MODELING COMPUTER-AIDED AND COMPUTER-AIDED ENGINEERING PROGRAM PUBLISHED BY DASSAULT SYSTEMS. SOLIDWORKS HAS THREE BASIC ENVIRONMENTS NAMELY (PART, ASSEMBLY, AND DRAWING).
- DESIGN METHODOLOGY
STEPS FOR DESIGN:
- OPEN A NEW FILE
- SELECTION OF PLANE
- SKETCH AS PER DIMENSION
- SURFACE MODELING OR SOLID MODELING
- FILLET OR CHAMFER
- SAVE THE DESIGN OR MODEL
THE CHOPPER CONSIST OF THE FOLLOWING PARTS:

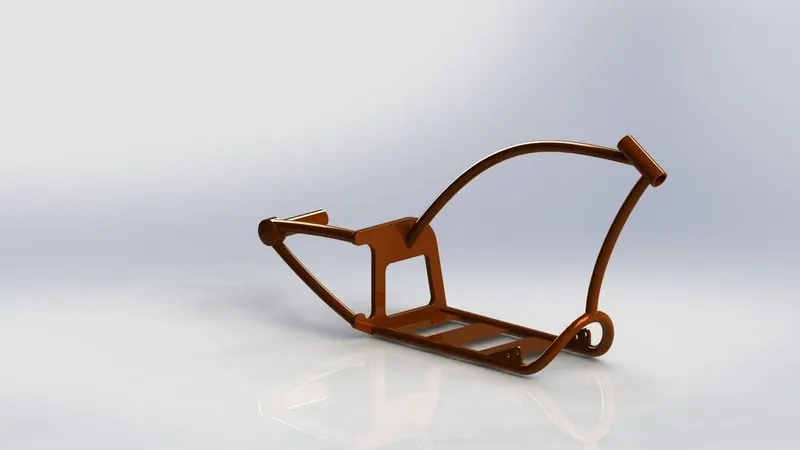

- CHASSIS

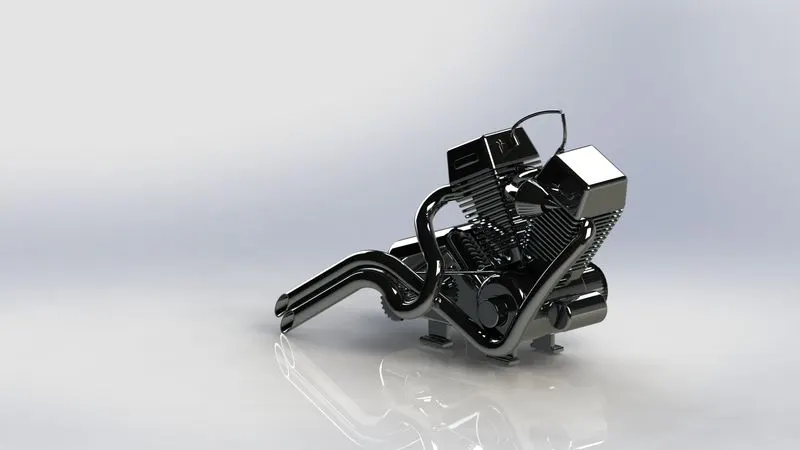

- ENGINE

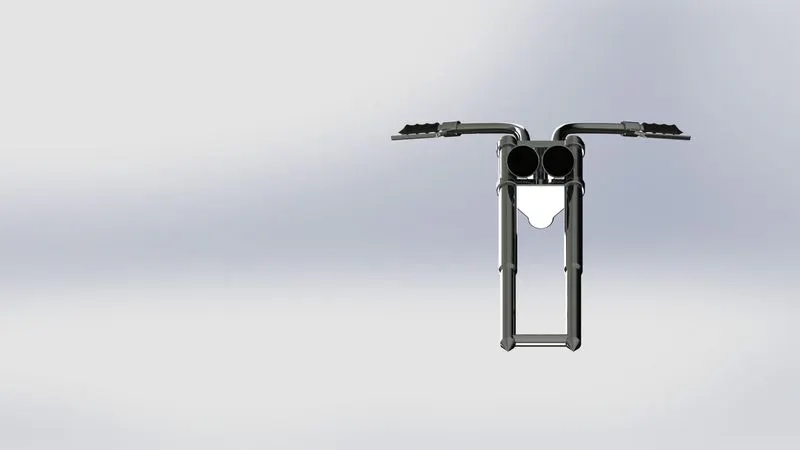

- FRONT FORK
- PEDAL

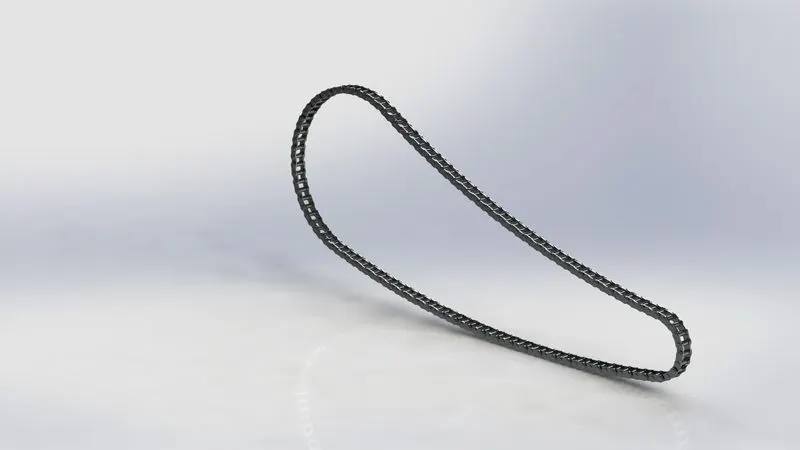

- CHAIN
- OIL TANK

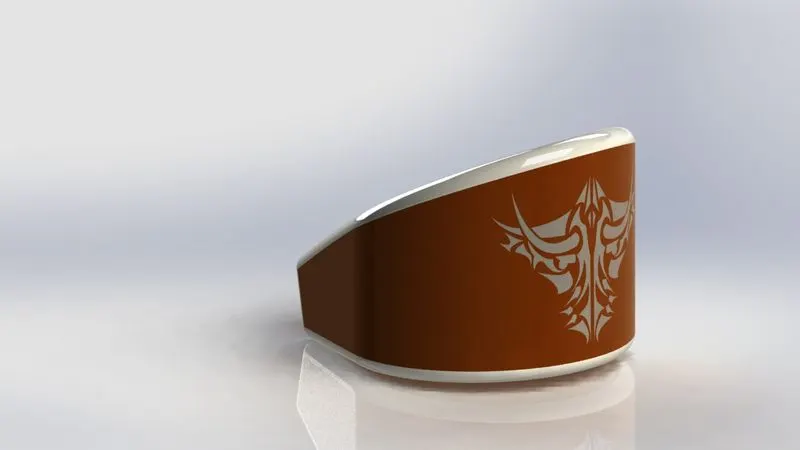

- GAS TANK
- TRANSMISSION BELT

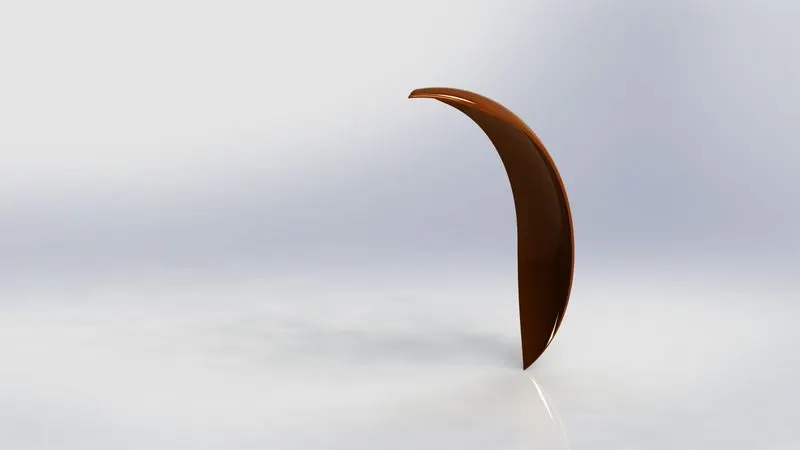

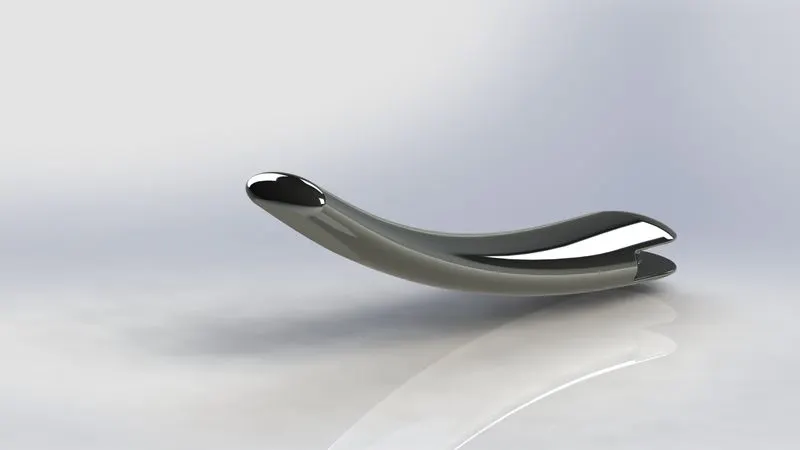

- FRONT FENDER

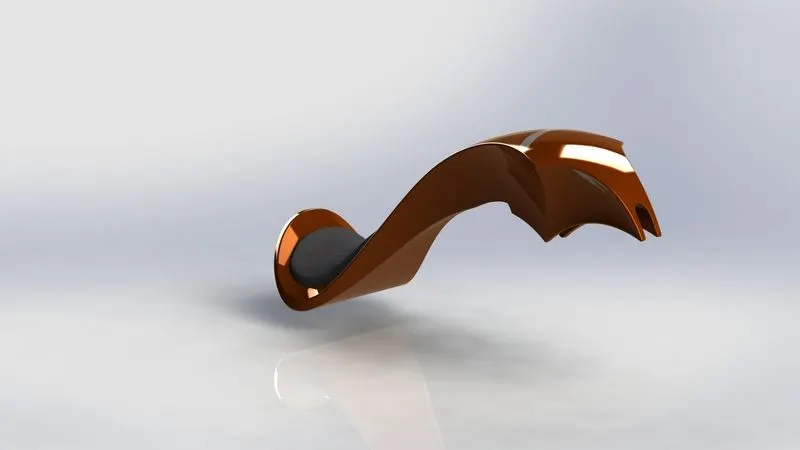

- REAR FENDER

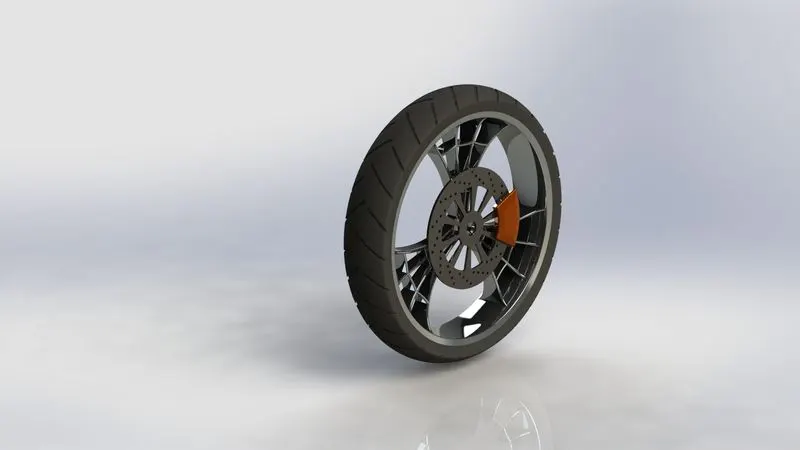

- FRONT WHEEL
- REAR-WHEEL
- KICKSTAND
SOLID MODELING OF ALL THE PARTS OF THE AMERICAN CHOPPER BIKE AND THE SKETCHES USED AS WELL AS ITS FEATURE IS EXPLAINED BELOW.

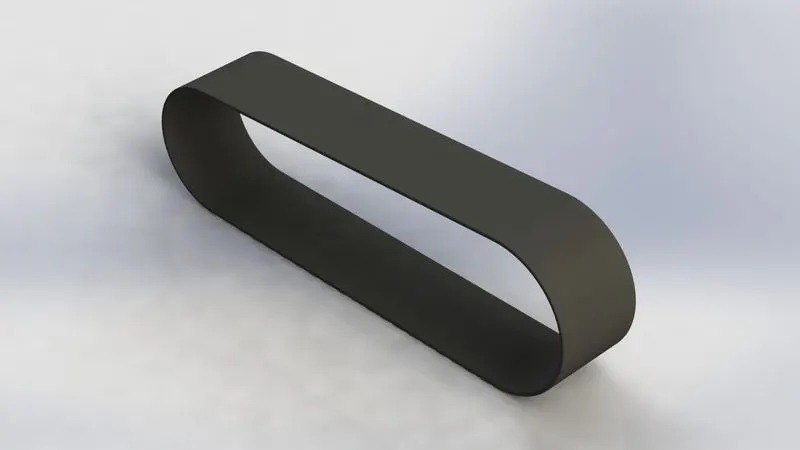

- TRANSMISSION BELT:
TOOLS USED :
- 3 POINT ARC
- LINE
- SKETCH OFFSET
- EXTRUDE
- FILLET
- APPEARANCE

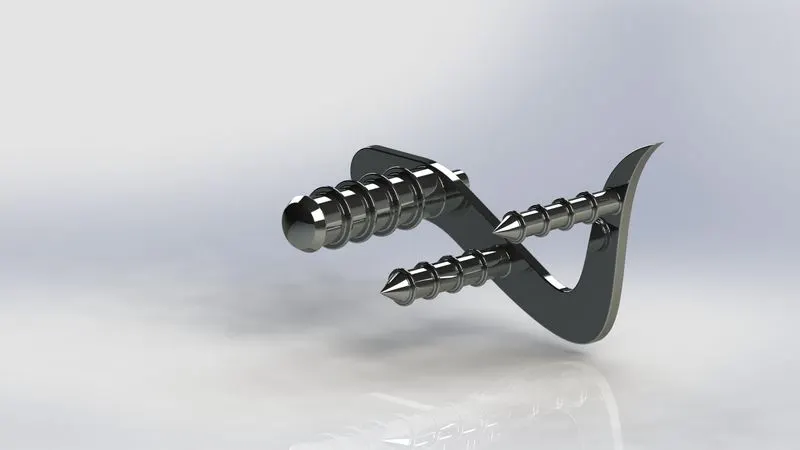

- KICKSTAND
TOLLS USED
- ELLIPSE
- SPLINE
- PIERCE
- LOFT
- SPLIT
- DOME
- EXTRUDED BOSS
- EXTRUDED CUT
- FILLET
- APPEARANCE
- FRONT FENDER
TOOLS USED
- 3 POINT ARC
- SKETCH OFFSET
- LINE
- SPLINE
- REVOLVE
- SPLIT
- DYNAMIC MIRROR ENTITY
- FILLET
- APPEARANCE

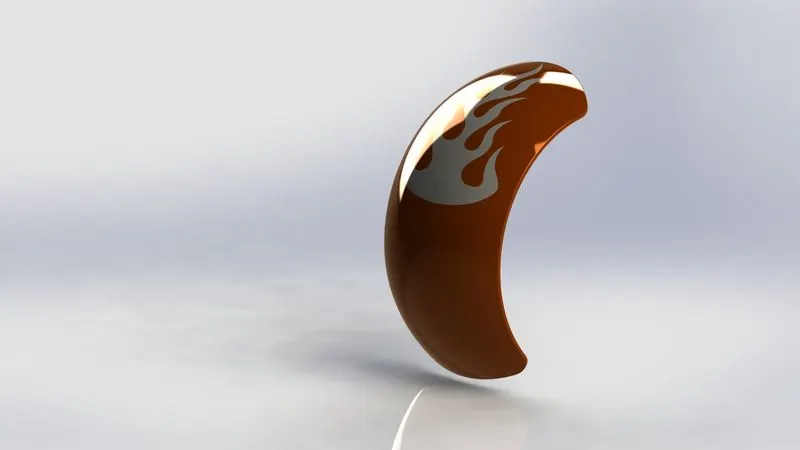

- REAR FENDER
TOOLS USED
- 3POINT ARC
- SKETCH OFFSET
- LINE
- SPLINE
- REVOLVE
- SPLIT
- SHELL
- DYNAMIC MIRROR ENTITY
- FILLET
- APPEARANCE
- CHAIN
TOOLS USED
- 3 POINT ARC
- CENTREPOINT SLOTS
- CIRCLE
- EXTRUDED BOSS
- MAKE AND SAVE BLOCK
- FILLET
- CURVE DRIVEN PATTERN-TANGENT TO CURVE
- MIRROR
- APPEARANCE
- OIL TANK
TOOLS USED
- 3 POINT ARC
- LINE
- EXTRUDED
- FILLET
- COMBINE
- SHELL
- APPEARANCE
WITH THE USE OF THE ABOVE FEATURES THE CHAIN PART WILL BE CREATED
- PEDAL:
TOOLS USED:
- 3POINT ARC
- CIRCLE
- SPLINE
- LINE
- SKETCH FILLET
- EXTRUDED BOSS
- REVOLVE
- FILLET
- DOME
- CHAMFER
- LINEAR PATTERN
- APPEARANCE
- FRONT WHEEL
TOOLS USED
- 3 POINT ARC
- LINES
- SPLINES
- MIDPOINT LINE
- CIRCLE
- SKETCH FILLET
- TRIME
- EXTEND
- 3 POINT CENTER RECTANGLE
- REVOLVE BOSS BASE
- EXTRUDE BOSS BASE
- EXTRUDE CUT
- REVOLVE CUT
- CIRCULAR PATTERN
- COMBINE
- FILLET
- CHAMFER
- APPEARANCE

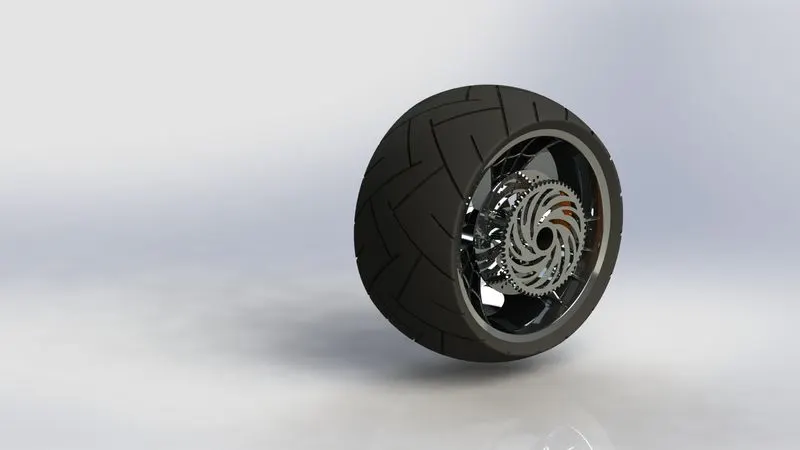

- REAR-WHEEL
TOOLS USED
- 3 POINT ARC
- LINES
- SPLINE
- MIDPOINT LINE
- CIRCLE
- SKETCH FILLET
- REVOLVE BOSS BASE
- EXTRUDE BOSS BASE
- EXTRUDE CUT
- REVOLVE CUT
- CIRCULAR PATTERN
- COMBINE
- CHAMFER
- APPEARANCE
- FRONT FORKS
TOOLS USED
- 3 POINT ARC
- LINES
- SPLINES
- CIRCLE
- TRIM
- REVOLVE BOSS BASE
- EXTRUDE BOSS BASE
- LINEAR PATTERN
- EXTRUDE CUT
- REVOLVE CUT
- DOME
- BODY MOVE COPY
- CURVES PROJECTED
- SWEEP
- REFERENCE GEOMETRY- PLANE
- MIRROR
- COMBINE
- FILLET
- CHAMFER
- APPEARANCE
- CHASSIS
TOOLS USED
- SKETCH PICTURE
- LINES
- SPLINE
- CIRCLE
- TRIM
- EXTRUDE BOSS BASE
- EXTRUDE CUT
- REVOLVE
- DOME
- CURVES PROJECTION
- SWEEP
- SPLIT
- REFERENCE GEOMETRY PLANE
- MIRROR
- COMBINE
- FILLET
- CHAMFER
- APPEARANCE
- ENGINE
TOOLS USED
- SKETCH PICTURE
- LINES
- SPLINES
- CIRCLE
- CIRCLAR SKETCH PATTERN
- CONSTRUCTION LINE
- 3 POINT RECTANGLE
- TRIM
- EXTRUDE BOSS BASE
- EXTRUDE CUT
- REVOLVE
- DOME
- CURVES PROJECTED
- COMPOSITE CURVE
- SWEEP
- SPLIT
- REFERANCE GEOMETRY PLANES
- CIRCULAR PATTERN
- LINEAR PATTERN
- MIRROR
- COMBINE
- FILLET
- CHAMFER
- APPEARANCE
- FUEL TANK
TOOLS USED
- SKETCH PICTURE
- LINES
- SPLINES
- COMSTRUCTION LINE
- TRIM
- SURFACE SWEEP
- SURFACE LOFT
- SORFACE TRIM
- BOUNDARY SURFACE
- SURFACE KNIT
- SURFACE EXTRUDE
- CURVES
- PROJECTED CURVES
- SPLIT LINE
- SWEEP CUT
- REFERANCE GEOMENTRY PLANE
- MIRROR
- SHELL
- FILLET
- APPEARANCE

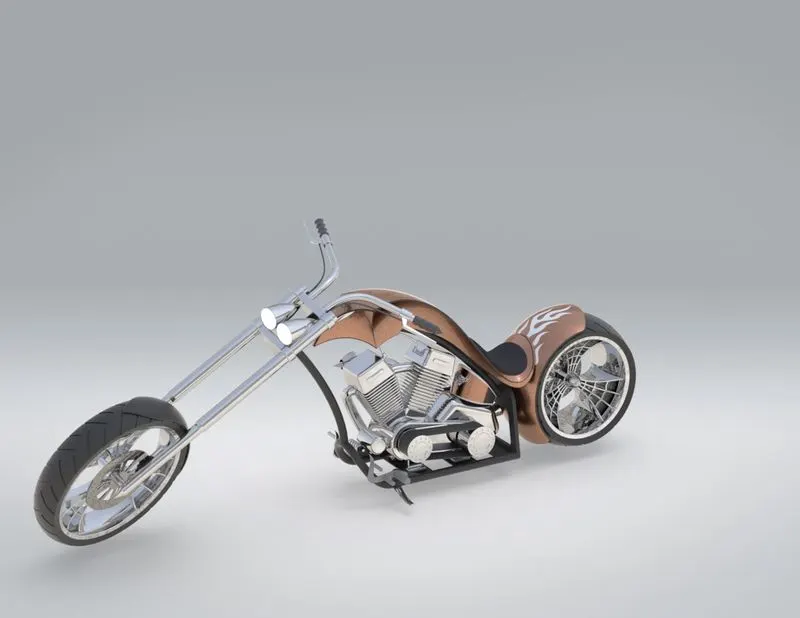

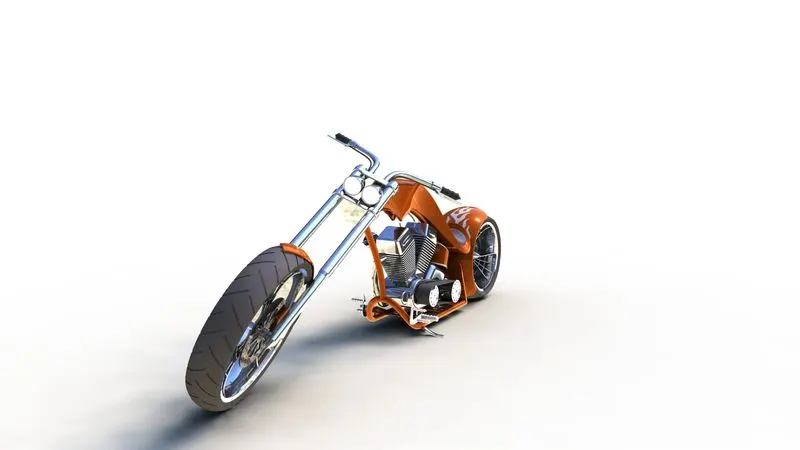

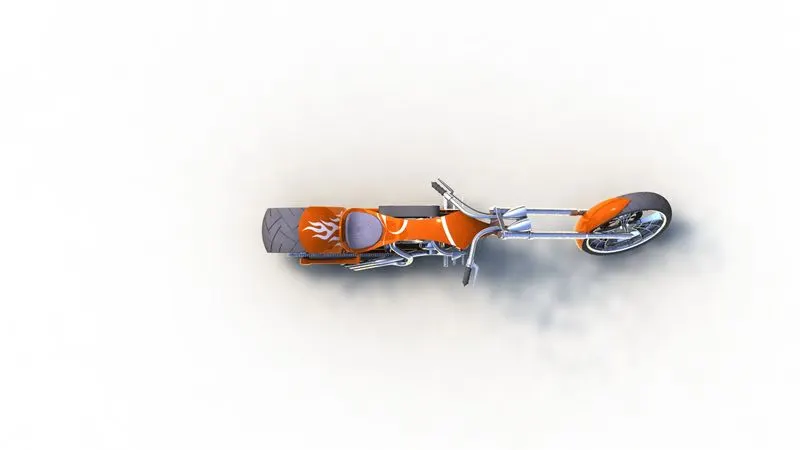

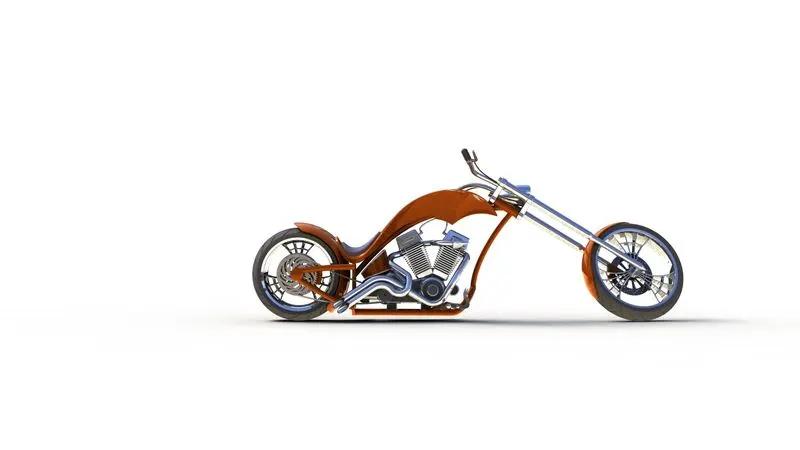

- ASSEMBLY OF AMERICAN CHOPPER
THE ASSEMBLY OF THE CHOPPER CONSIST OF ALL THE PARTS ATTACHED IN APPROPRIATE MANNER WITH PROPER MATES.
THE MAIN COMPONENT CHASSIS IS FIRST FIXED AND OTHER PARTS ARE MATED WITH RESPECT TO ITS POSITION.
- PROCEDURE FOR ASSEMBLY
- FIX THE CHASSIS ON THE FRONT PLANE OF THE ASSEMBLY COINCIDENT TO MIND PLANE CHASSIS
- GIVE RELATION COINCIDENT MID PLANE CHASSIS AND FRONT PLANE ENGINE
- MAKE THE ENGINE MOUNT COINCIDENT TO THE BASE PLATE OF CHASSIS AND 20MM BEHIND THE VERTICAL FACE OF PLATE
- MAKE THE PEDALS CONCENTRIC TO THE MOUNTS AMD MIRROR THE PART APPROPRIATLY
AFTER MAKING ALL THE PARTS MATERIAL FOR EACH PART ARE GIVEN BY APPEARANCE OPTION IN SOLIDWORKS. THIS IS USEFUL TO GIVE THE MORE REALISTIC OUTLOOK OF THE PRODUCT.
TO MAKE THE ASSEMBLY OF AMERICAN CHOPPER WE HAVE TO USE SOME OF THE MATEA .THEY ARE FOLLOWING BELOW
- CONCENTRIC MATE
- PARALLEL MATE
- ANGLE MATE
- DISTANCE MATE
- ADVANCE MATE

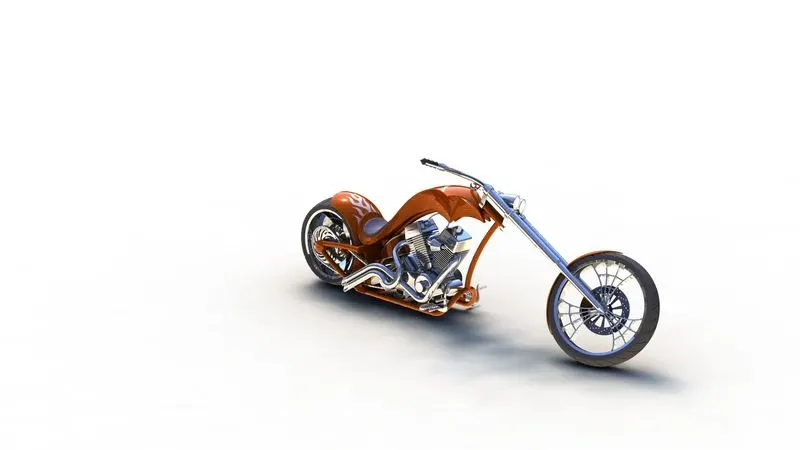

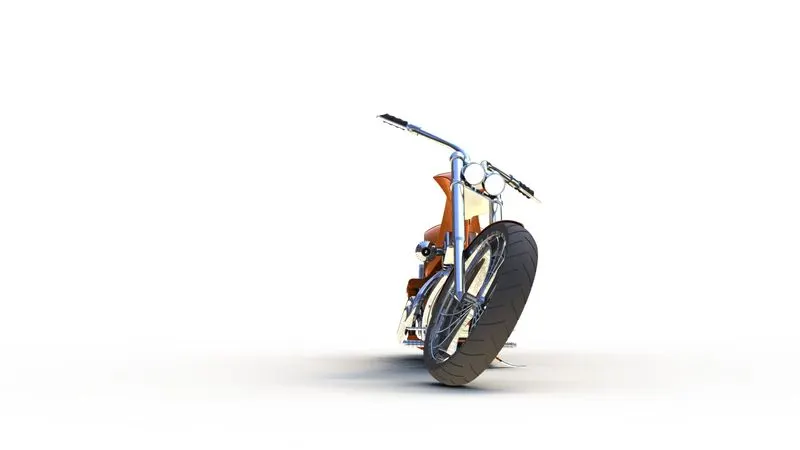

- PHOTOVIEW 360
AFTER ADDING PHOTOVIEW 360 THE RENDER TOOL TAP CAN BE BROUGHT IN
IT HAS VARIOUS OPTIONS LIKE PREVIEW WINDOW RENDER REGION FINAL RENDER EDIT APPEARANCE EDIT SCENES AND OPTIONS ,FOR MANAGING RENDER QUALITY BLOOM CARTOON DIRECT CAUSTNICS NETWORK RENDERING AND FINAL IMAGE TYPE
- SOLIDWORKS VISUALIZE
SOLIDWORKS VISUALIZE PROVIDES A SUITE OF STANDALONE SOFTWARE TOOLS THAT COMBINE INDUSTRY LEADING RENDERING CAPABILITIES WITH VISUAL DESIGN ORIENTED FEATURES AND WORKFLOWS ALLOWING EASY AND FAST CREATION OF VISUAL CONTENT THAT COMMUNICATES A DESIGNS VISION PASSION AND EMOTION.
- CONCULSION
DESIGN,ASSEMBLY AND PHOTOREALISTIC RENDERING USING SOLIDWORKS WAS SUCCESSFULLY COMPLETED
