Week 8 - Challenge 5 - Door Trim Lower
AIM:
TO THE DOOR TRIM PLASTIC COMPONENT THROUGH THE GIVEN CLASS-A SURFACE. TO BEGIN WITH, THE TOOLING AXIS FOR THE GIVEN CLASS A SURFACE SHOUKD BE CREATED MEETING THE REQUIREMENTS OF THE DRAFT ANGLE AND END PERFROM THE DRAFT ANALYSIS O THE MODEL.
THICKNESS OF THE COMPONENT 2.5 mm
CLASS A SURFACE

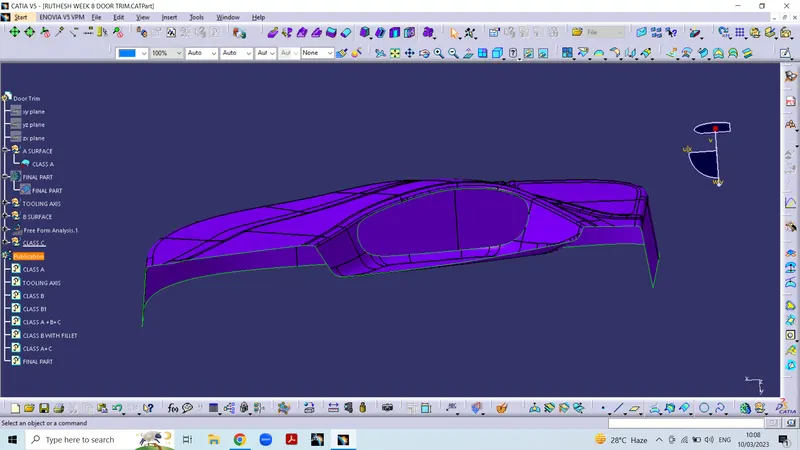

THE GIVEN CLASS A SURFACE IS
TOOLING AXIS:

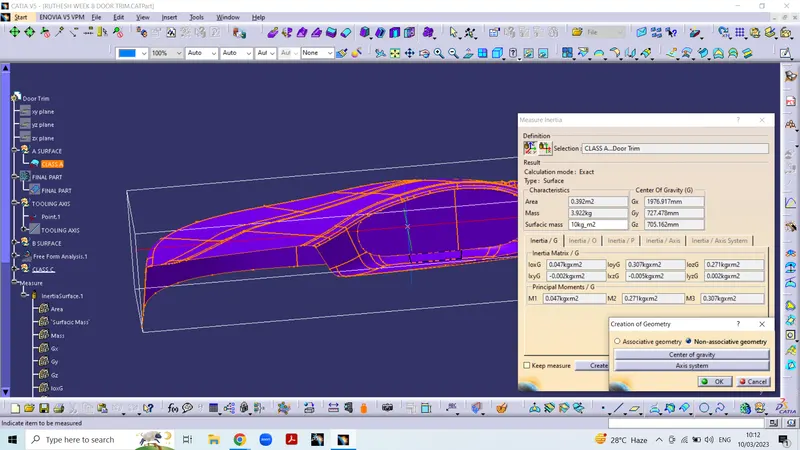

USING MEASUE INERTIA OPTION SELECT THE CLASS A SURFACE UNDER THE DIALOUGE BOX CLICK CREATE GEOMETRY IN MEASURE INTERIA WINDOW , NOE SELECT NON ASSOCIATIVE GEOMETRY AND CLICK CENTRE OF GRAVITY
AND A POINT IS CREATED UNDER A NEW GEOMETRICAL SET
IT IS TAKEN AS REFERNCE FOR TOOLING AXIS

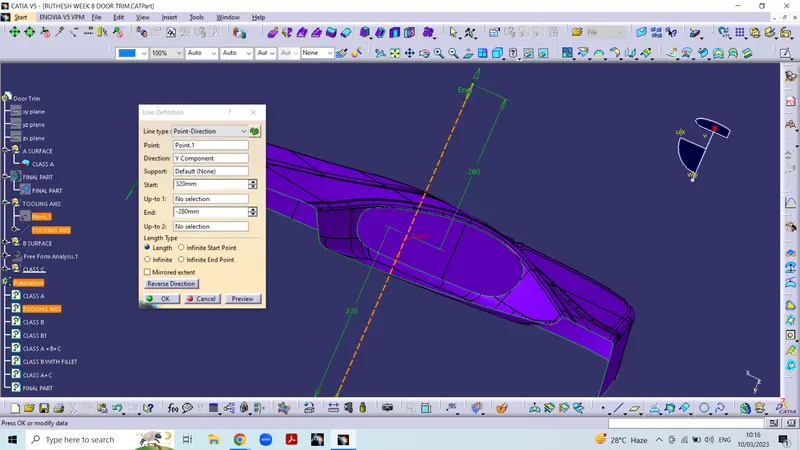

THE INERTIA POINT IS CREATED AND WANT TO CHECK THE COMPONENT IN ALL DIRECTION AND USING Y-DIRECTION AS LINE DIRECTION THE TOOLING AXIS IS CREATED USING LINE OPTION

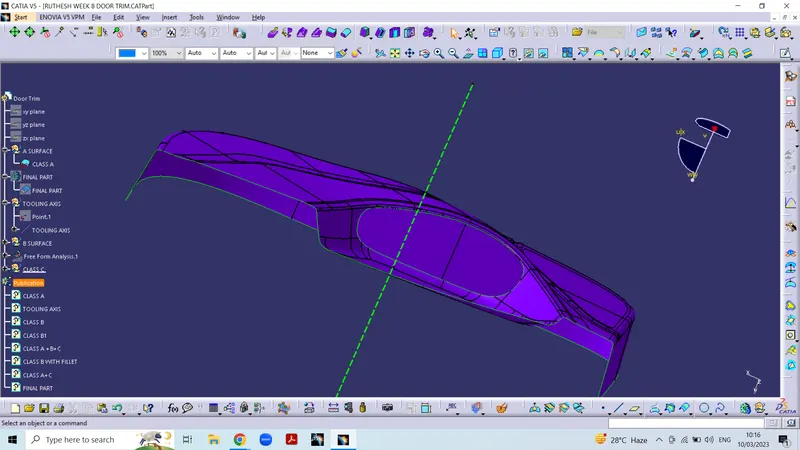

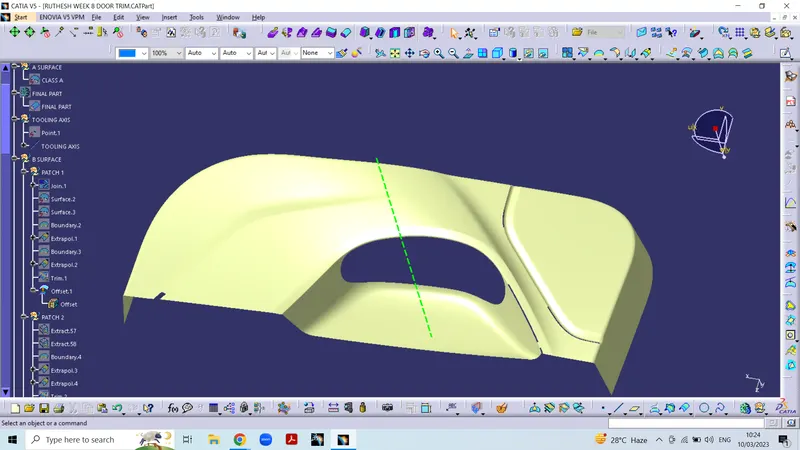

THE TOOLING AXIS IS CREATED
DRAFT ANALYSIS OF CLASS A:

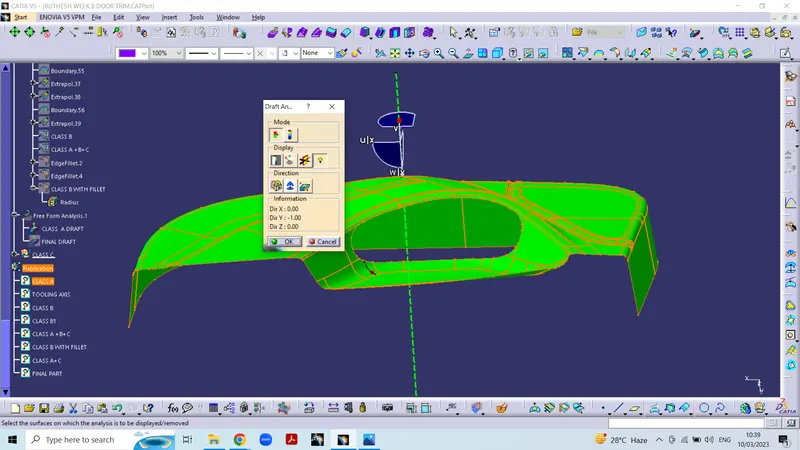

CHANGE THE VIEW MODE TO MATERIAL AND CLICK ON THE DRAFT ANALYSIS
MOVING THE COMPASS TOWARDS THE TOOLING AXIS AND PLACED ON THE TOOLING AXIS
AND BY CLICKING THE SURFACE THE DRAFT ANALYSIS IS DONE
CREATION OF CLASS B:

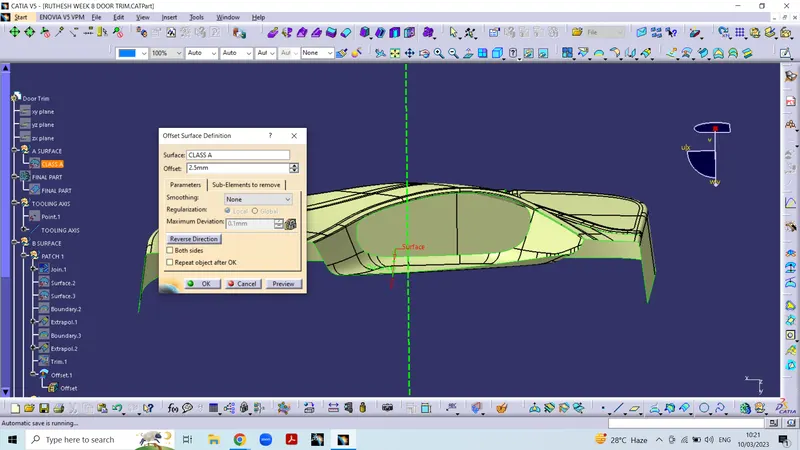

THE GIVEN CLASS A SURFACE IS USED TO CREATE THE CLASS B SURFACE IT IS SELECTED AND OFFSETTED FOR 2.5MM THE GIVEN REQUIRED THICKNESS IS 2.5MM
AFTER CREATING THE OFFSET
WE HAVE FOUND SOME MISSING PATCHES
WE HAVE TO CLEAR THOSE PATCHES USING
- JOIN - REMOVED MODE- SUB ELEMENTS TO REMOVE
- TRIM
- EXTRAPOLATE
- BOUNDARY COMMANDS
- EXTRACT
- MULTISECTIONS
- INTERSECT AND EDGE FILLETS USING THESE COMMANDS THE CLASS B SURFACE IS CREATED WITH NO MISSING PATCHES

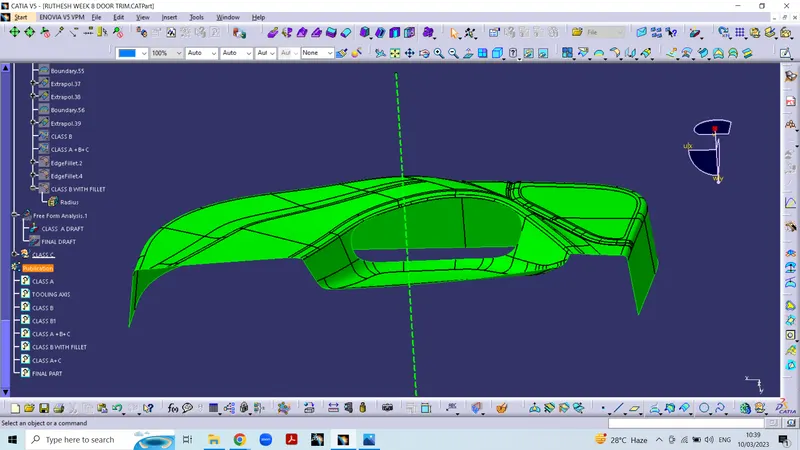

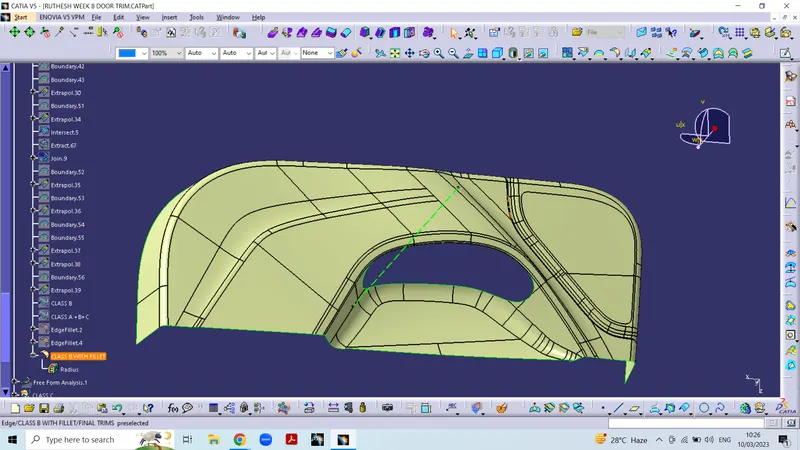

AFTER DOING THESE OPERATIONS CLASS B SURFACE IS CREATED
CREATION OF CLASS C SURFACE:
CLASS C SURFACE IS CRETAED USING THE CLASS A REFERENCE

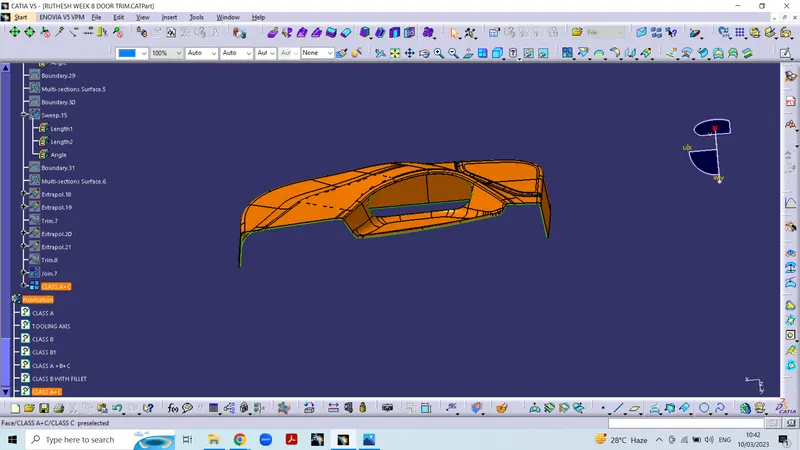

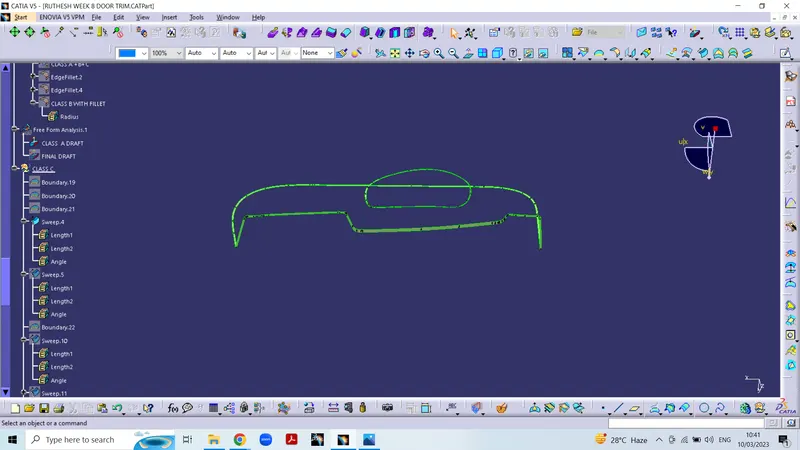

USING BOUNDARY COMMAND THE BOUNDARY IS CREATED AND USING BOUNDARY SWEEP COMMAND THE CLASS C IS CREATED
SURFACE WHICH IS PARALLEL TO TOOLING AXIS SWEEP IS CREATED WITH REFERNCE SURFACE WITH 90DEGREE
FOR PERPENDICULAR TO TOOLING AXIS SWEEP IS CREATED WITH DRAFT DIRECTION WITH 3 DEGREE

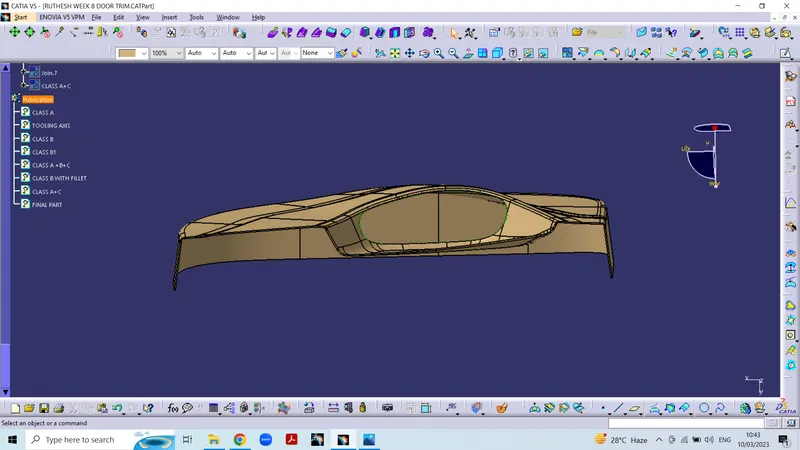

AND THE CLASS A AND CLASS C IS JOINED TOGETHER WITH JOIN COMMAND
ONCE IT IS JOINED IT IS AGAIN JOINED WITH CLASS B
AND USING INTERSECTION COMMAND SURFACE IS CHECKED IS THERE ANY ISSUES

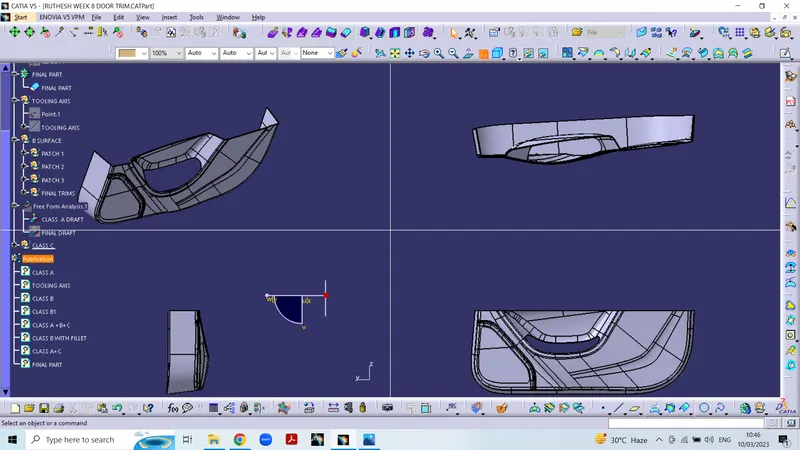

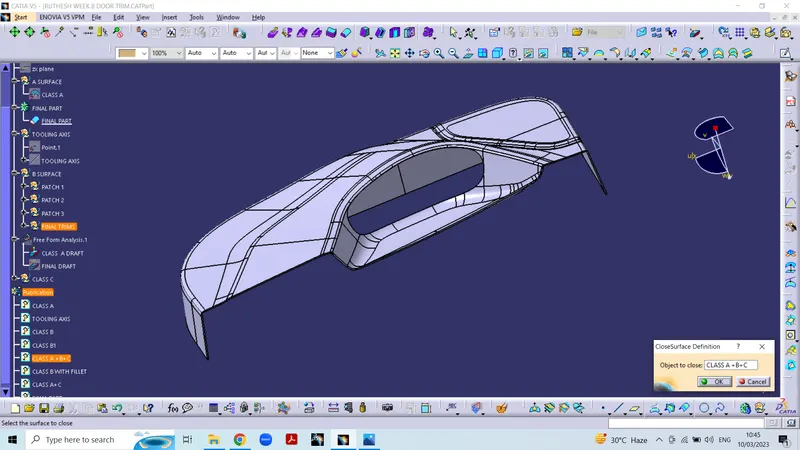

AND FINALLY USING CLOSE SURFACE THE FINAL OBJECT IS CREATED AND MOVED FOR FINAL DRAFT ANALYSIS

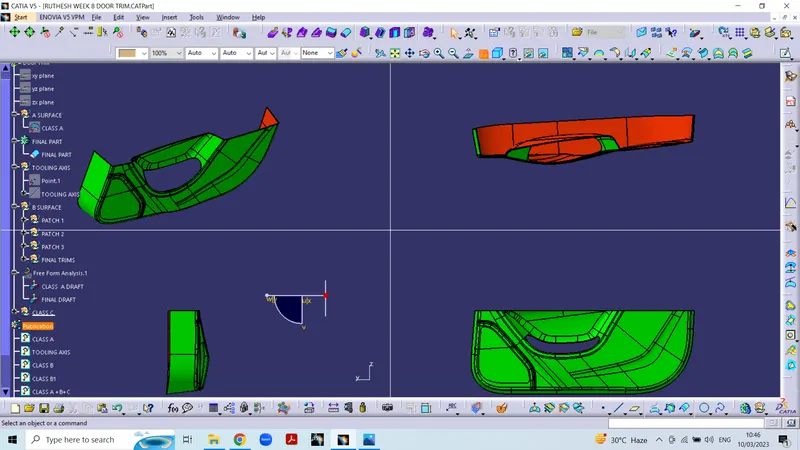

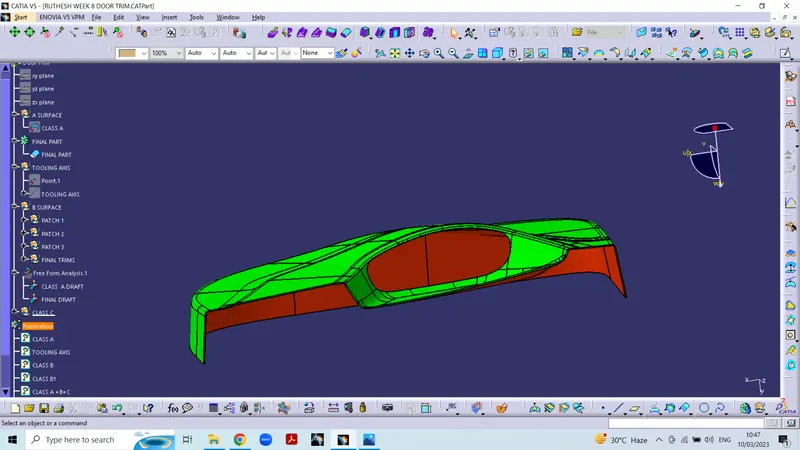

DRAFT ANALYSIS OF CLOSE BODY:
SAME METHOD FOR CLASS A OF DRAFT ANALYSIS METHOD IS FOLLOWED HERE
CHANGE THE VIEW MODE TO MATERIAL AND CLICK ON THE DRAFT ANALYSIS
MOVING THE COMPASS TOWARDS THE TOOLING AXIS AND PLACED ON THE TOOLING AXIS
AND BY CLICKING THE SURFACE THE DRAFT ANALYSIS IS DONE
