Week 8 - Challenge 2 - Switch Bezel Design
Aim: To create a Base Bracket Plastic Component through a given Class A Surface and perform Draft Analysis on the final plastic component.
Objective :-
- Create of tooling axis
- Creation of class B and class C surface
- Creation of solid part out of surface modeling.
- Draft analysis of class A surface and final plastic components.
Introduction :- In this project we are designing SWITCH BEZEL using class A surface.
To continue with the design process first we need to find out the tooling axis for the surface and check for all the drafts using Draft Analysis tool of CATIA.

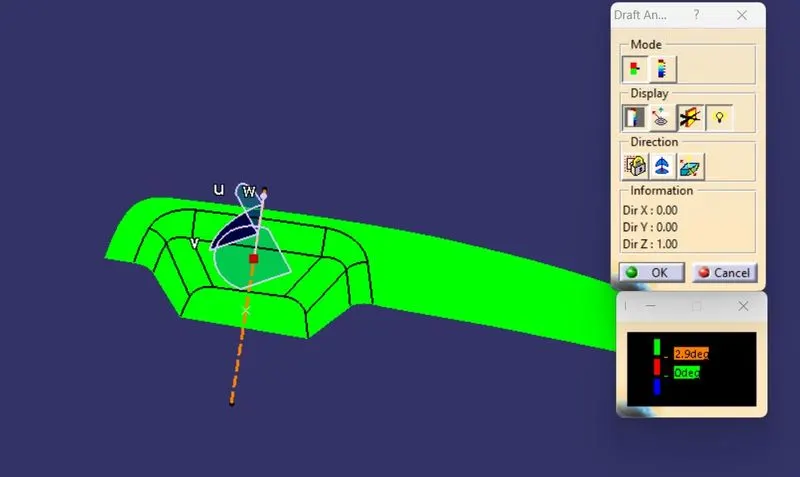

Creating of Tooling Axis:-
Fast we need extract the base surface and create a point select in base surface & create a simple axis normal to surface now we have got the plane.
- Here, Line shown in dotted orange clour is our tooling axis.

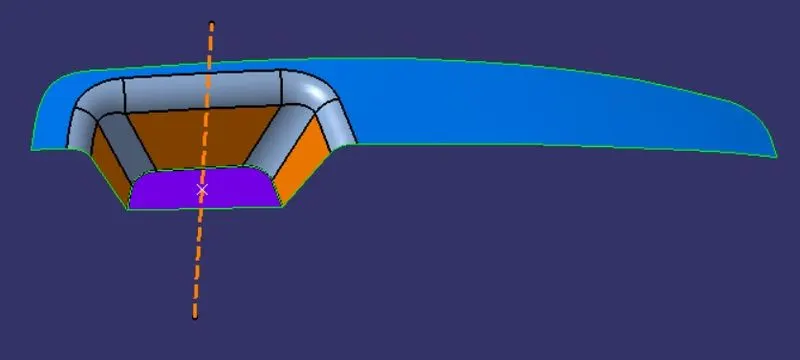

Draft Analysis for Surface A:-
The analysis is done for 3degree draft. So as can be seen all the surfaces are more than 3deg.

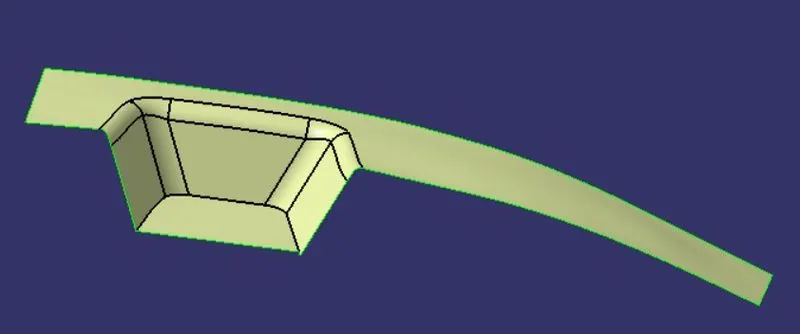

Creation of Class B:
- Now for Class B creation, we have extracted surface from Class A and untrimmed them to obtain the original parent surface.
- These surfaces are then offset to the required thickness.
- After offsetting, all the surfaces are trimmed into the required shape.
- Required fillets are given to the surfaces.

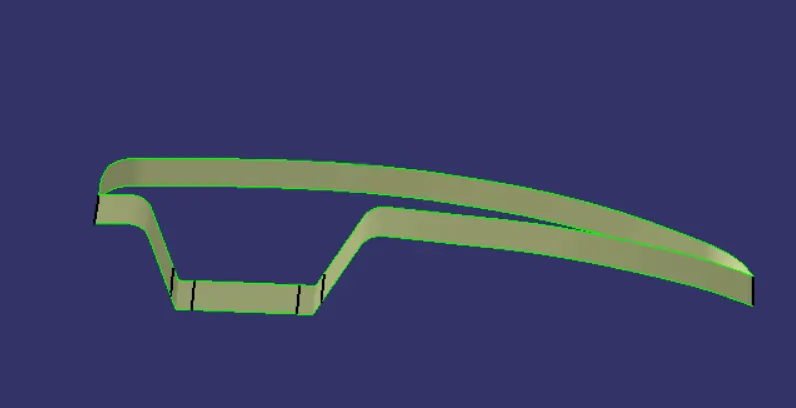

Creation of Class C:-
- For creating this surface we have extracted the boundry of Class A using multi-extract and then converted to smooth curve.
Class A + Class C join:-
To make sure that there is not any open boundry between class A and class C, we have used join option to created the single body. This is done to make sure that the parting line doesn't lie between the these two surfaces.
Class A + Class B + Class C & final trim:-
For this we have trimmed the above shown surface with the Class B surface using trim feature

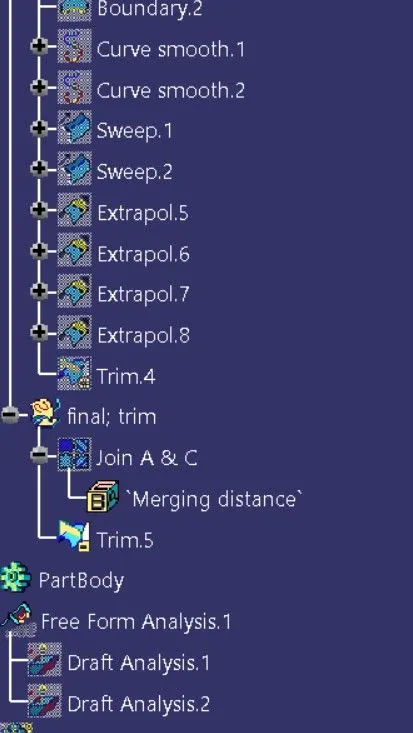

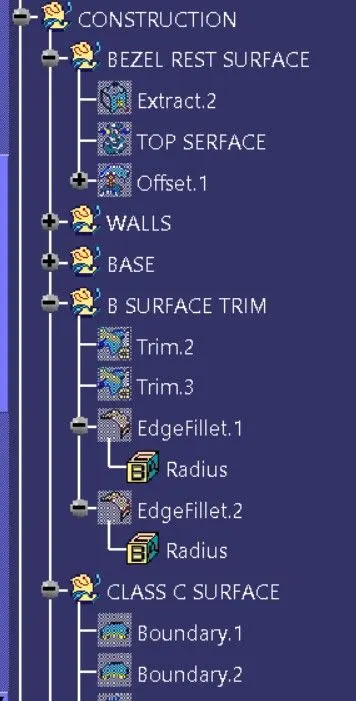

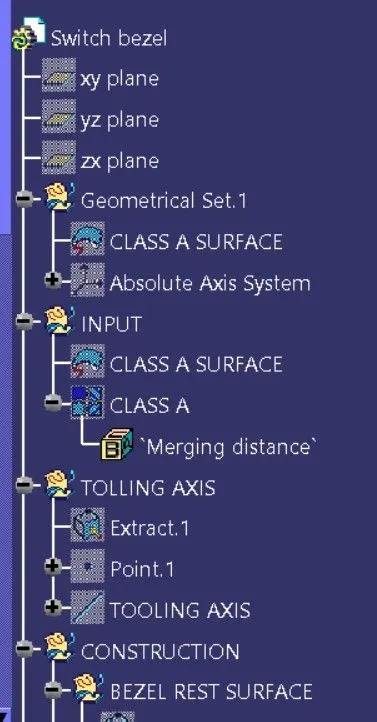

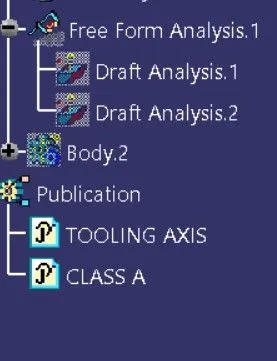

All the main features are published as can be seen in the image shown above.

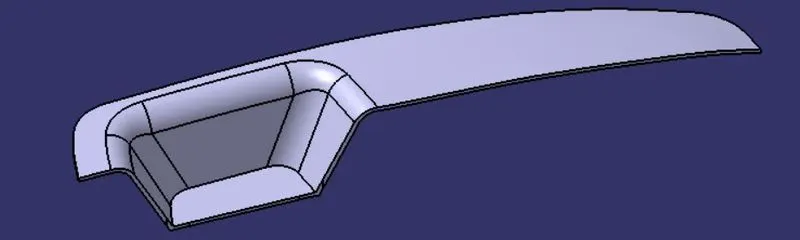

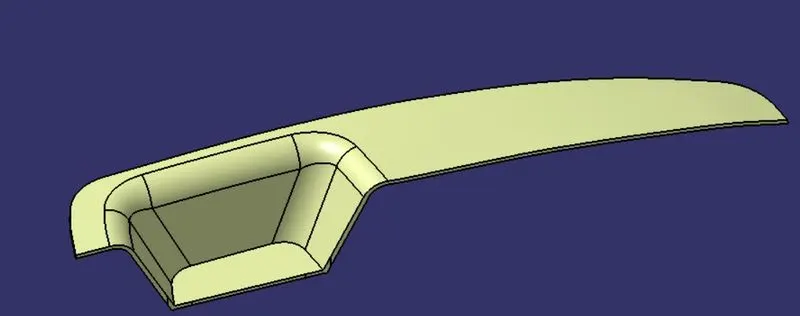

Final Part Body:- Now we got the final body

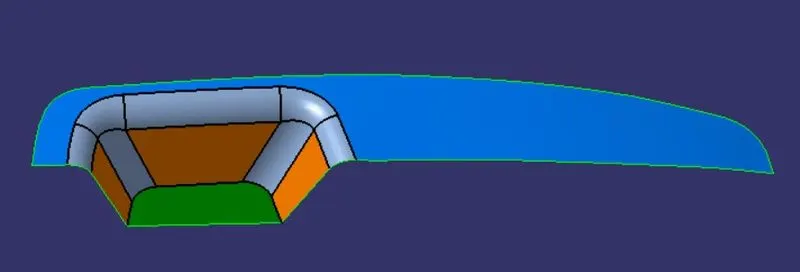

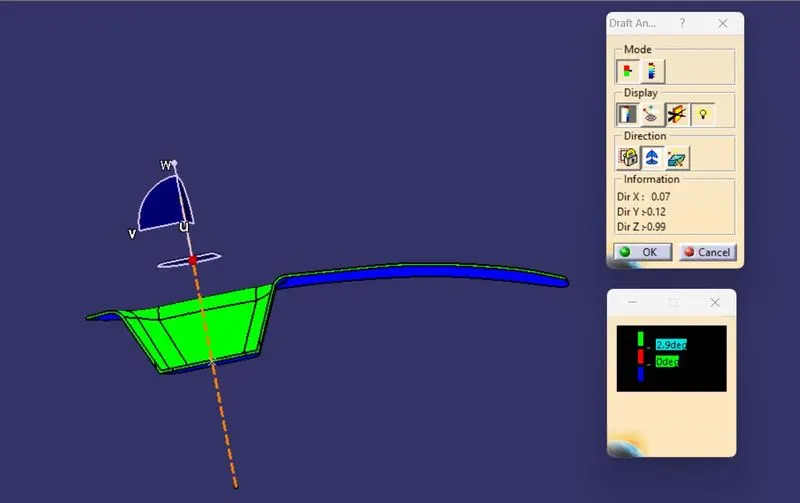

Draft Analysis on the Final Component:-
For this analysis, main tooling axis is taken draft reference.
Following results were obtained:

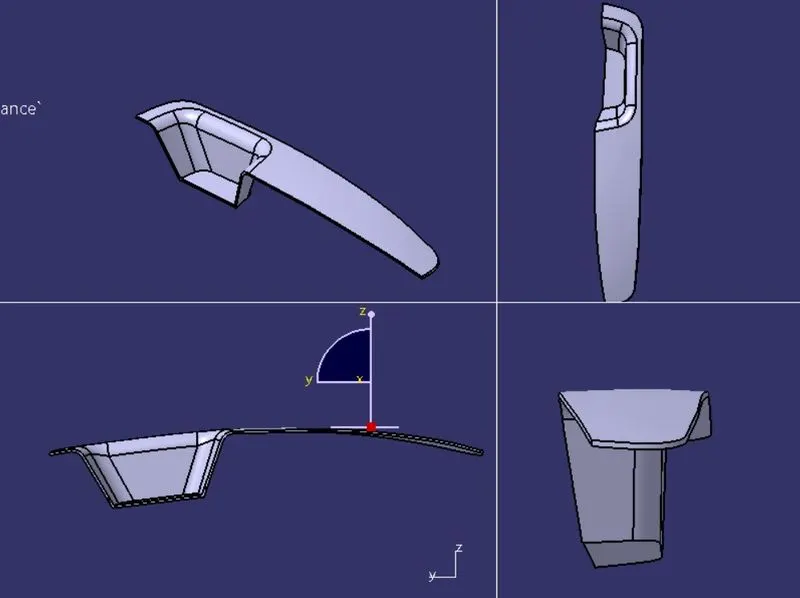

All views
