Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

REPORT WRITING FOR ROUTE THE HARNESS LAYOUT IN ELECTRICALLY WORKBANCH.

Accroding to the given question at fast we need to download the CAD files given the link Harness A & and Harness B then download. Define Harness A & Harness B all Connectors define mechanical part design and electrical part design work bench.

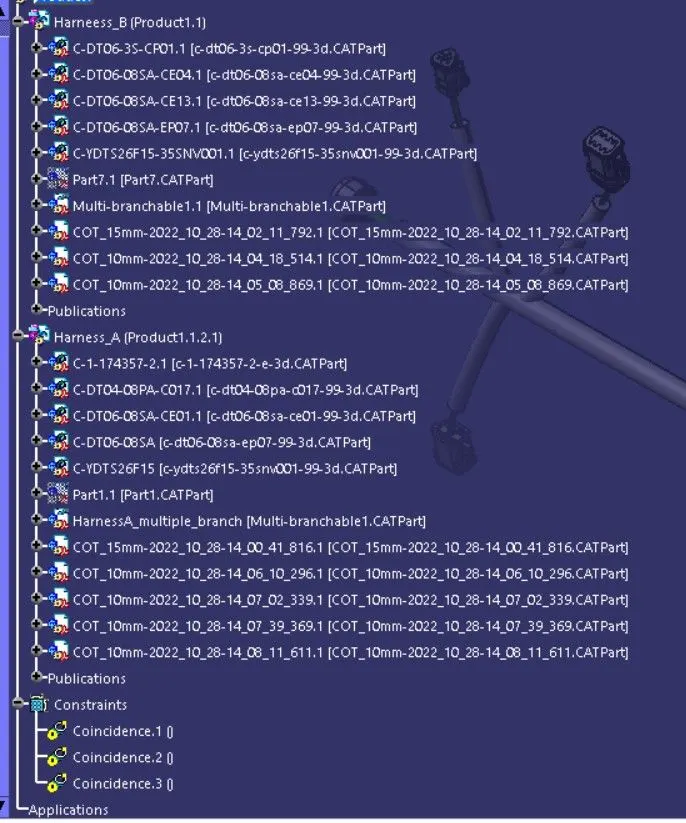

I have two harness A&B and thous are inter connected. The connectors which are placed center are basically the inter connected and Harness B have a five connectors and three connectors branches coming for the same branch point. Were as the two connectrors are placed at the lift side and right side the harness. In harness a we have again five connectors there are two branches define and one more sub branch define so total we have create three branches point into the harness A Assembely.

Let Create Harness A & B Routing.

I have both the product ready with Harness A & Harness B we have five connectors thus are placed the same aragement Harness A & Harness B And added protective covering on all branches conneceted To all connectors. Keep end Extremity at 30mm from connectors end.
