Week 8 - Challenge 1 - Base Bracket Design

BASE_BRACKET_CREATION

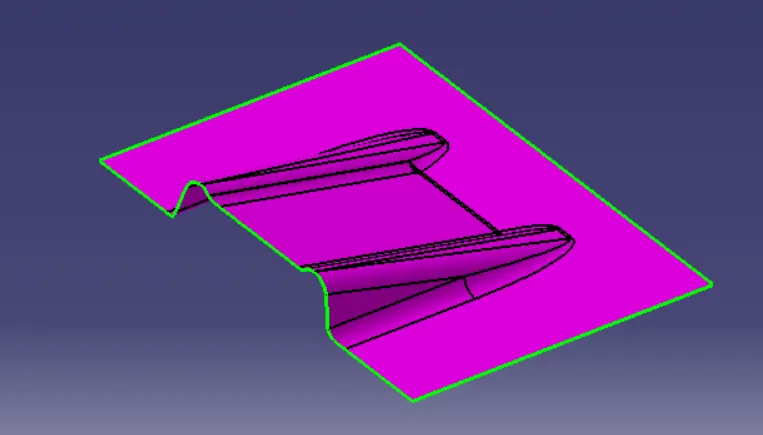

INPUT :- CLASS A

1. QUALITY OF THE CLASS A (BY SEEING THE CONTINUITY )

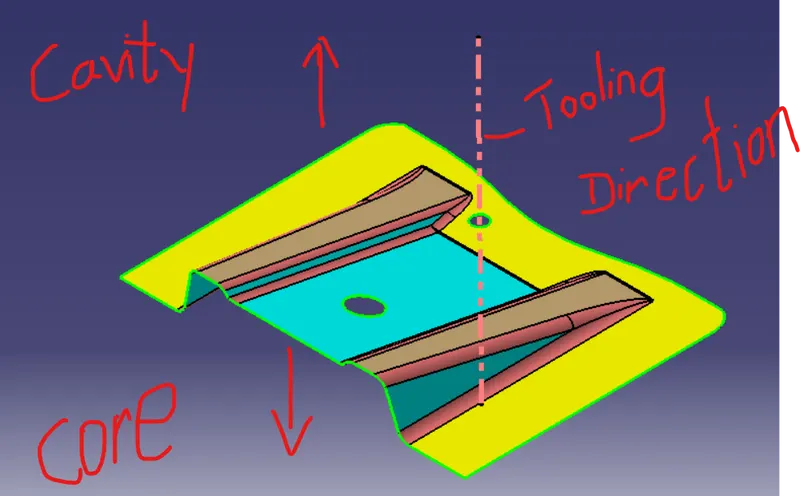

2. TO FIND THE SPECIFIED TOOLING AXIS FOR THE PRODUCT TO BE MANUFACTURED ( IN ALL X,Y,Z DIRECTIONS ), USING THE DUMMY TOOLING AXIS

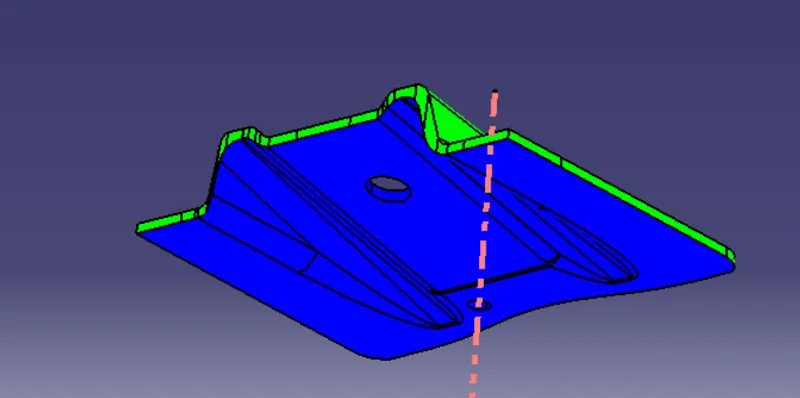

1. AS THERE WAS A HOLE ON THE FLATE SURFACE I DIRECTELY TOOK THE MAIN TOOLING AXIS

1.

1. CHECK FOE THE DRAFT ANALYSE :- (ENSURING THE MINIMUM DRAFT PROVIDED TO THE DRAFT IS 3 *DEGREE
2. START CREATION FOR THE CLASS B SURFACE :- (WITH THE MEETING REQUIREMENTS)

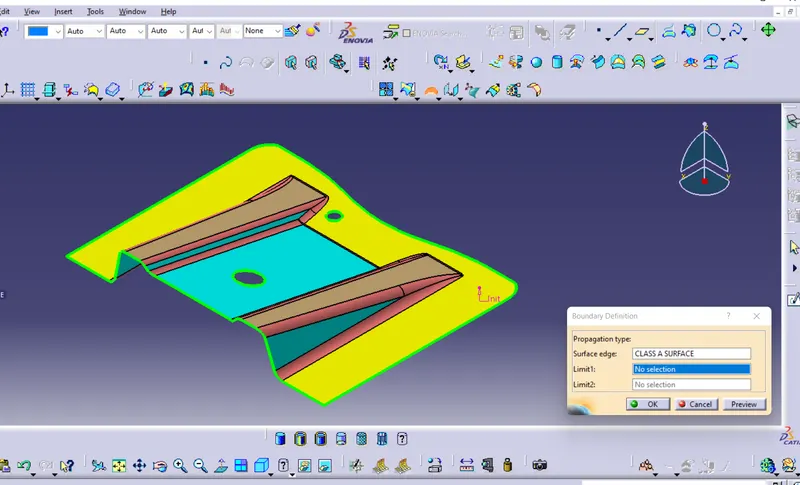

1. USE THE CLASS_A BOUNDARY AND CREATE FORE CLAASS_C SURFACE

1.

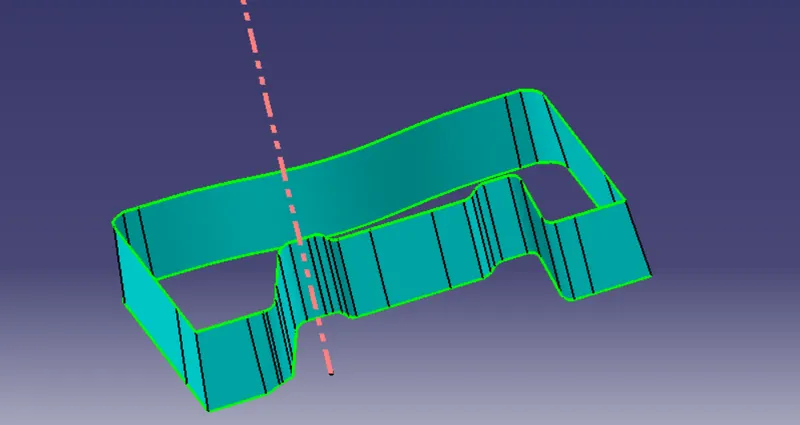

2. CREATE THE CLASS_C SURFACE

1.

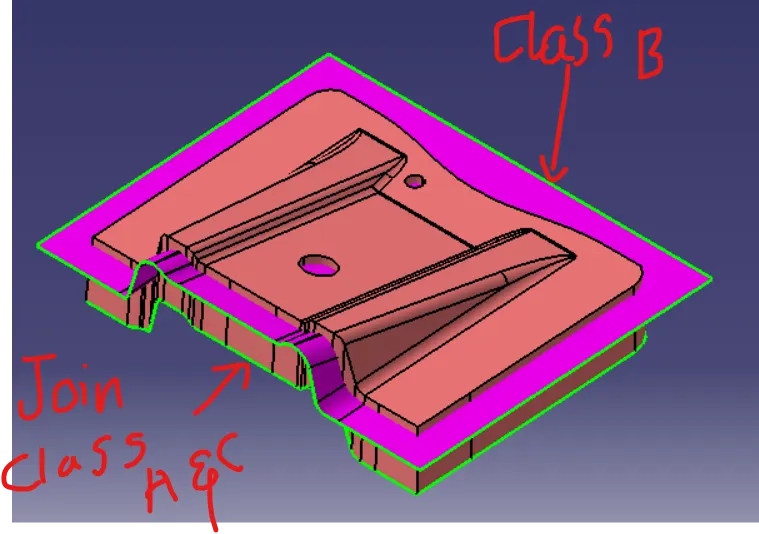

2. BY JOINING BOTH CLASS_A & CLASS_C SURFACE DO THE FAINAL TRIM WITH THE CLASSS_B SURFA

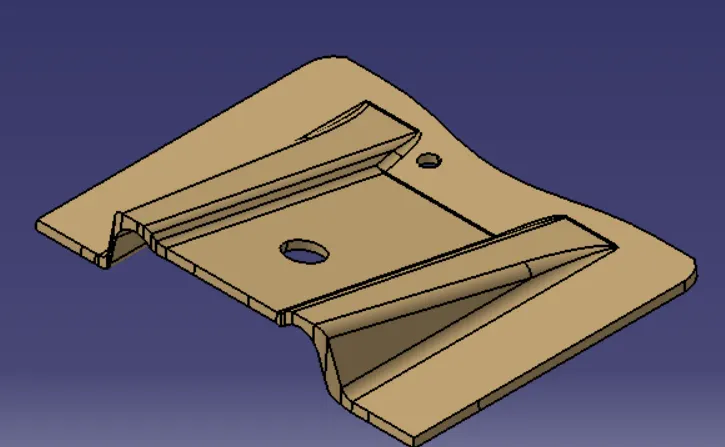

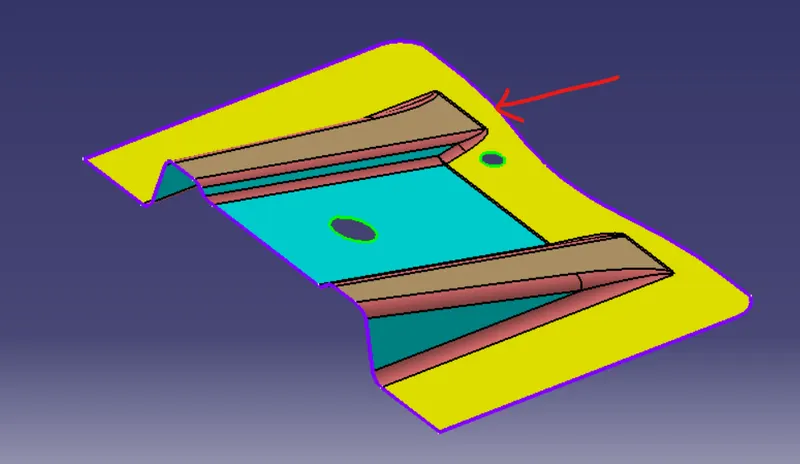

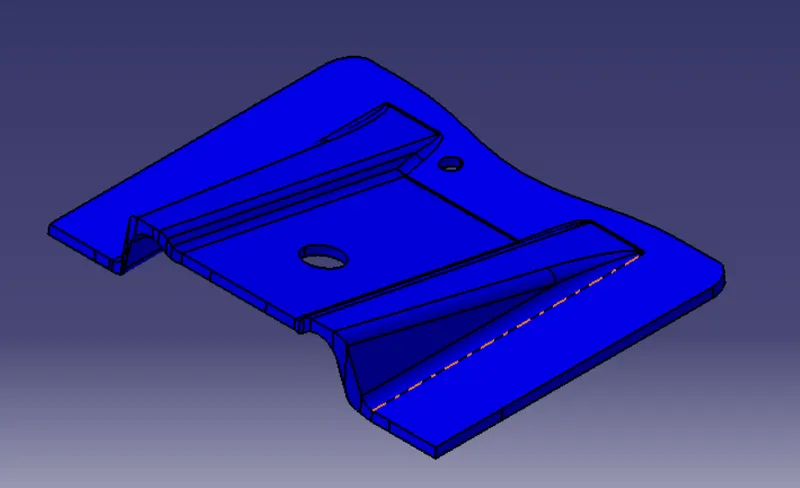

3. FAINAL PRODUCT SURFACE
4. -

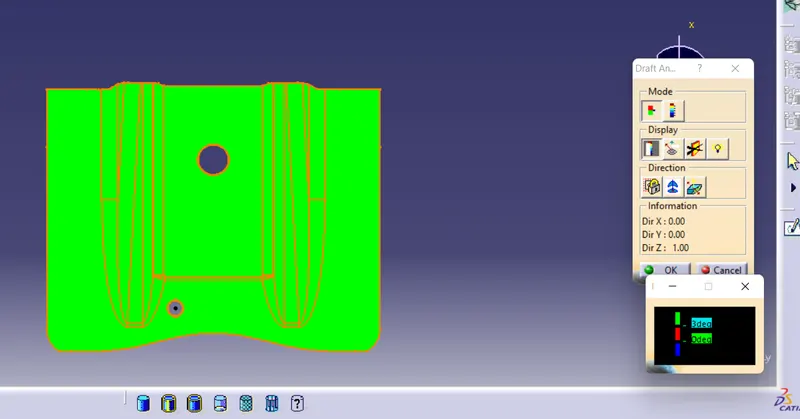

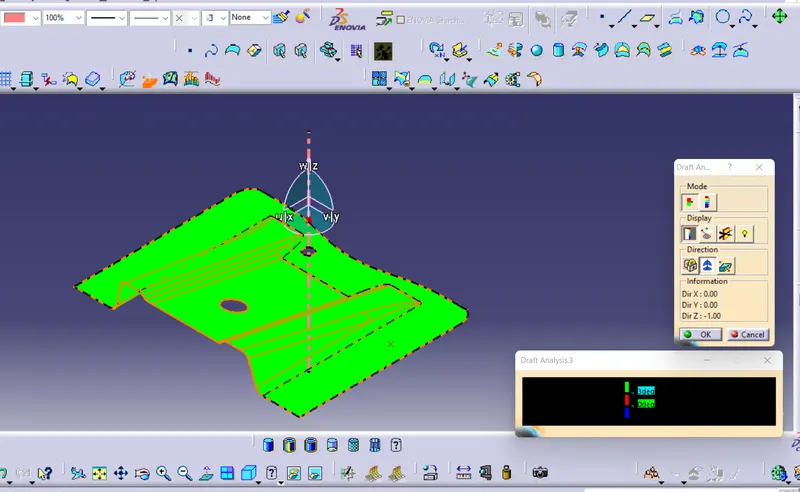

5. DRAFT ANALYSE
6.

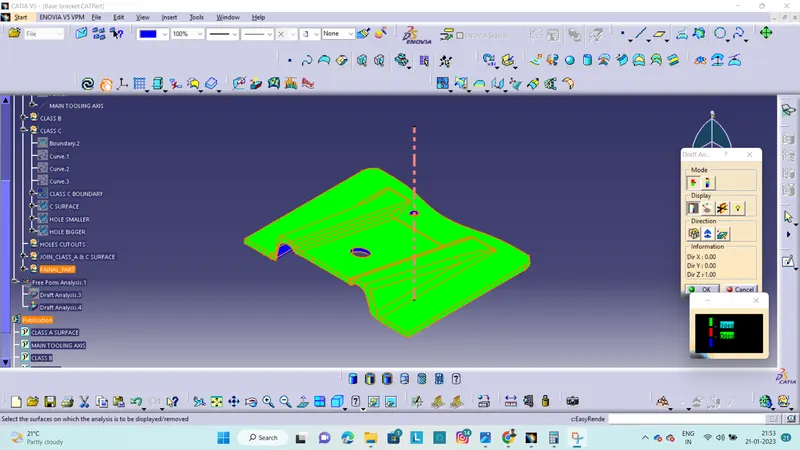

REVERSE DIRECTION

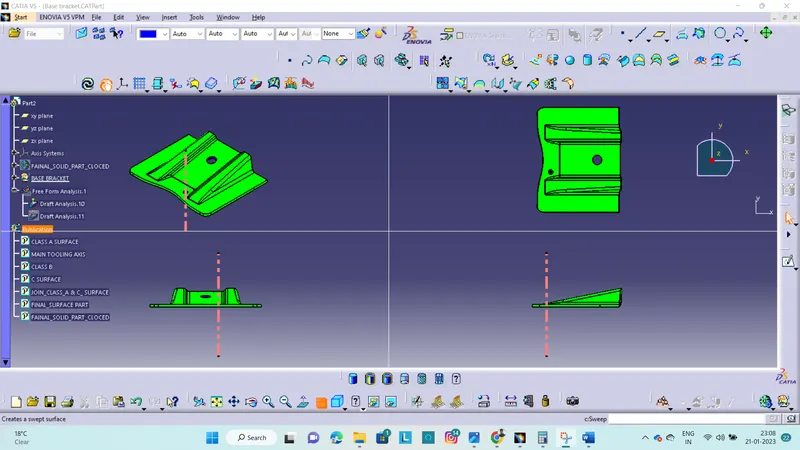

DIFFERENT ORIENTATIONS

1.

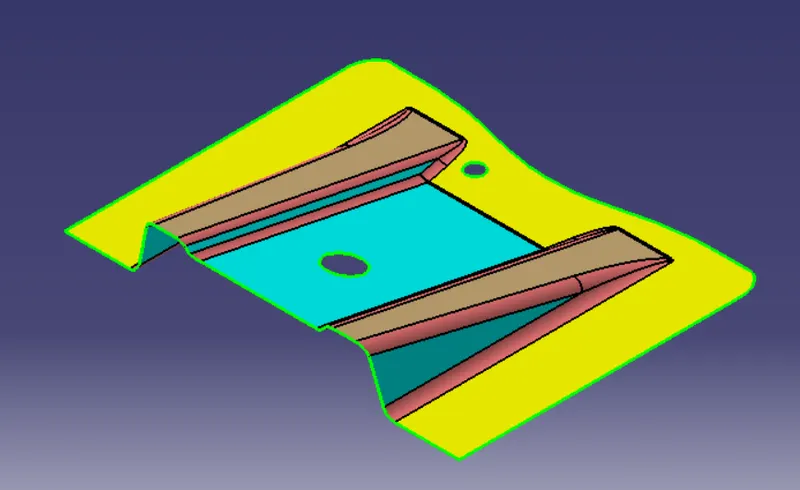

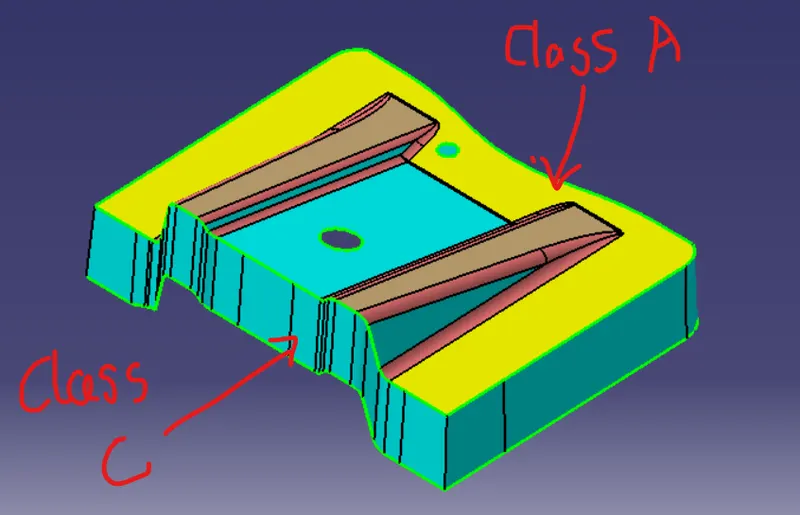

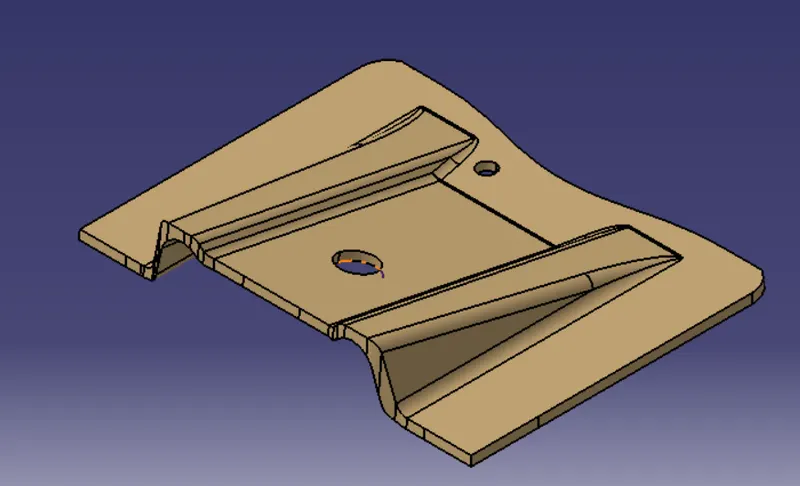

FAINAL CLOSED PART :-

CLASS A

CLASS B

CLASS C

PART IN SURFACE

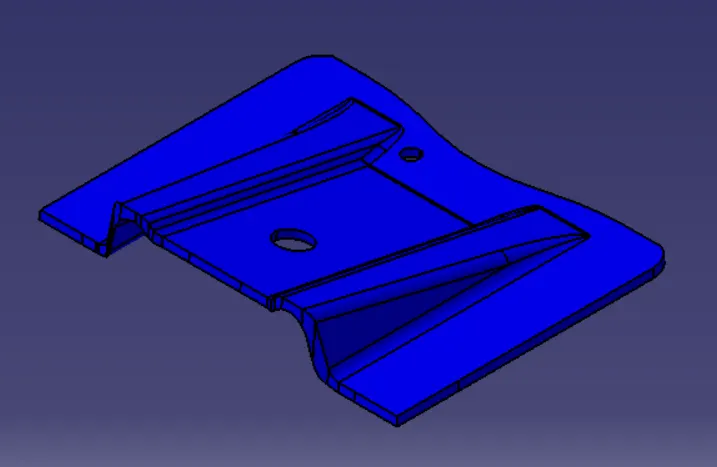

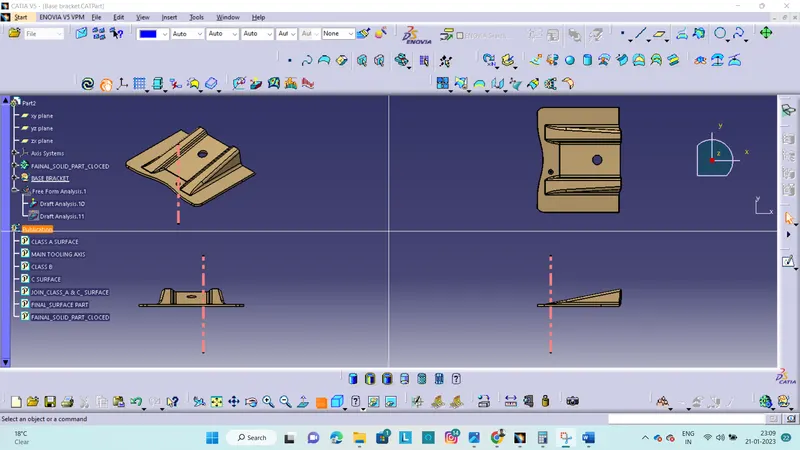

PART CLOSED

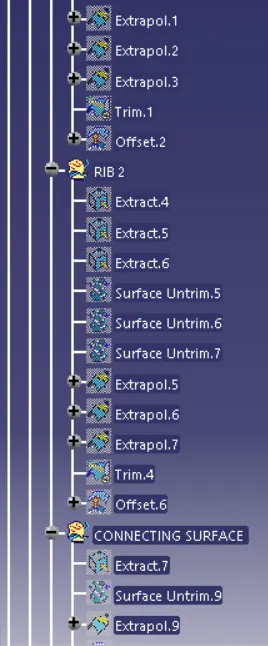

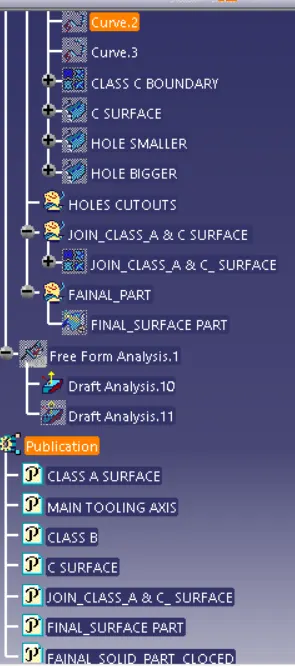

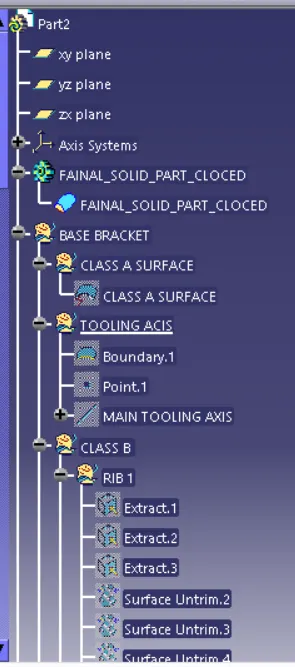

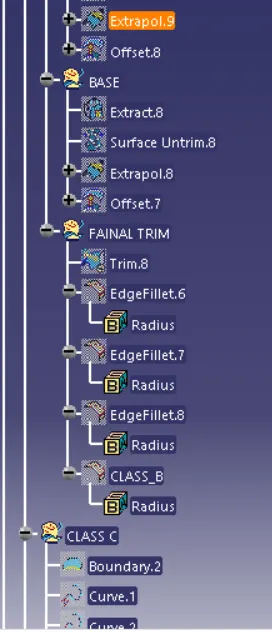

TREE STRUCTURE
