Week 8 - Challenge 1 - Base Bracket Design

Title: Base Bracket Design Using CATIA V5

Objective: To create the Base Bracket Plastic component through the given Class-A surface. As well as, creating the tooling axis for the given Class-A Surface which is meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Specifications:

Base Bracket Thickness = 2.5mm

Minimum Draft Angle = 3 Degrees

Definitions:

1. Class-A Surface: it is a surface created by the styling team which is then given as input to the plastic designer to create the plastic component. It is the aesthetic surface and the outer most surface.
2. Class-B Surface: it is the surface below a certain thickness from the Class-A surface created by the plastic designer. This surface contains all the engineering aspects of a model.
3. Class-C Surface: it is the surface which joins the Class-A and Class-B surfaces together.
4. Draft: it is the amount of taper or slope given to cores or other parts of the die cavity to permit easy ejection of the casting from the die casting die.

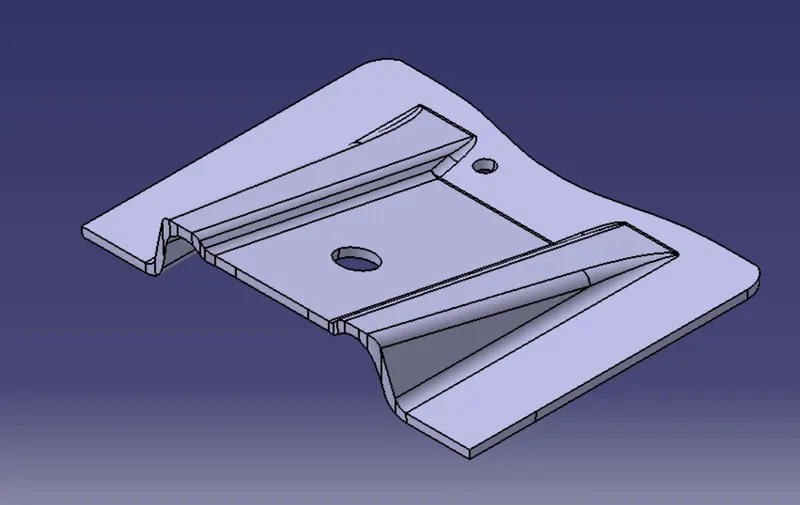

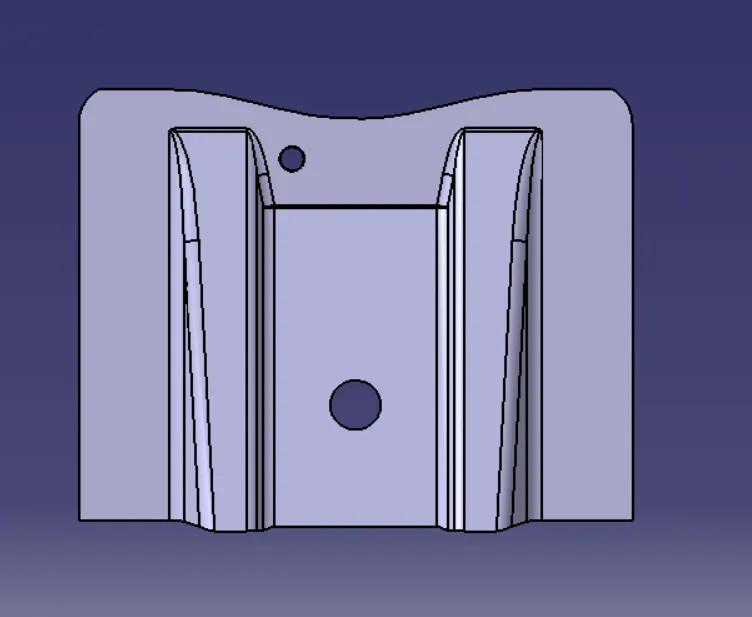

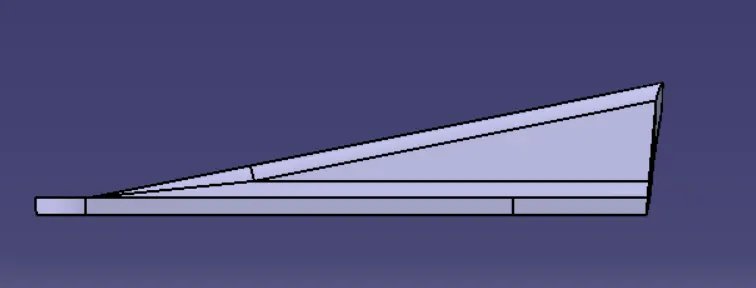

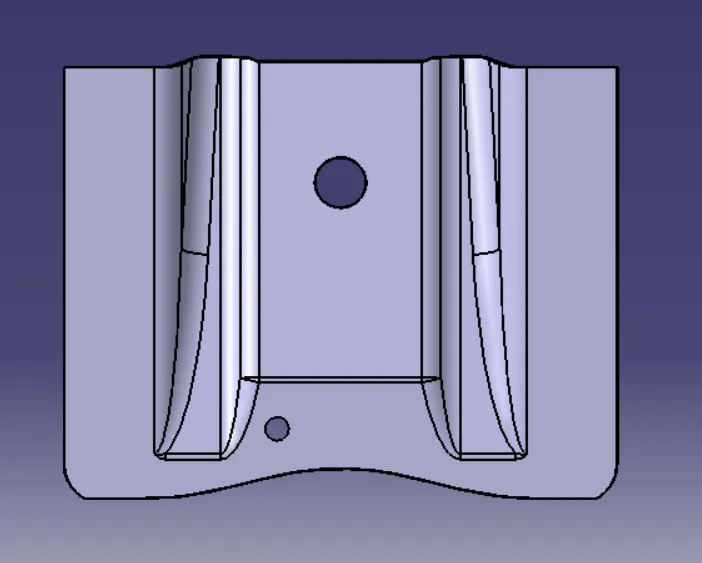

provided class A Surface :

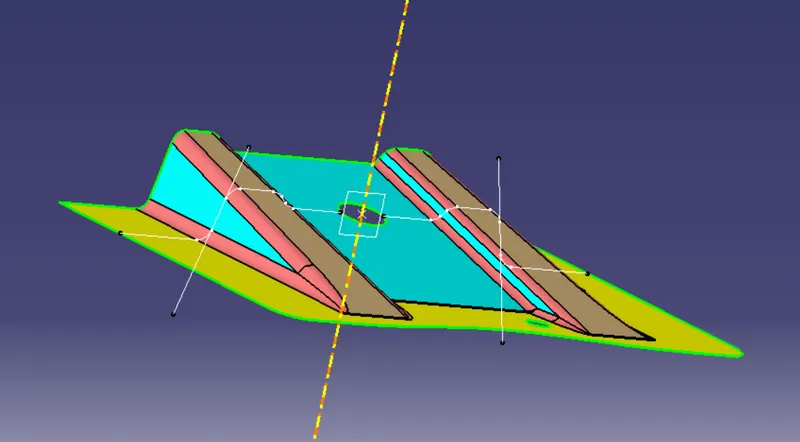

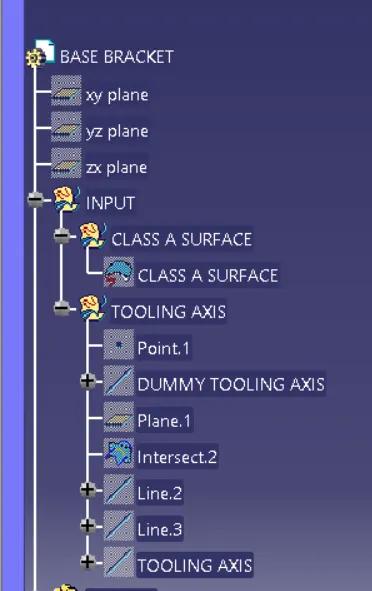

1. Tooling Axis: first creat tooling axis using bisecting line methode

1. First, ensure that the Class-A surface is properly joined and has no discontinuity. Select the boundary command from the toolbars and then select the Class-A surface. A boundary should only appear on the outer edges of the component.

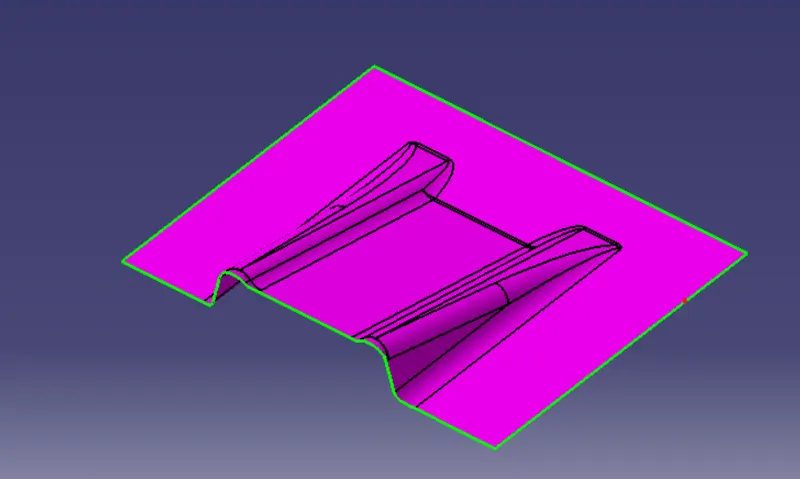

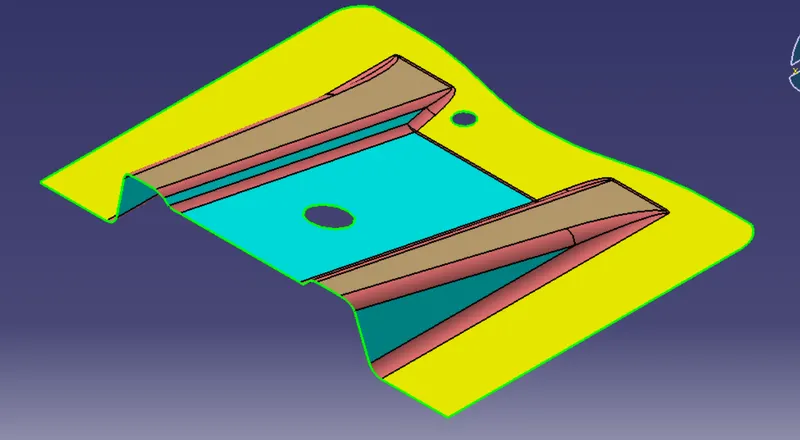

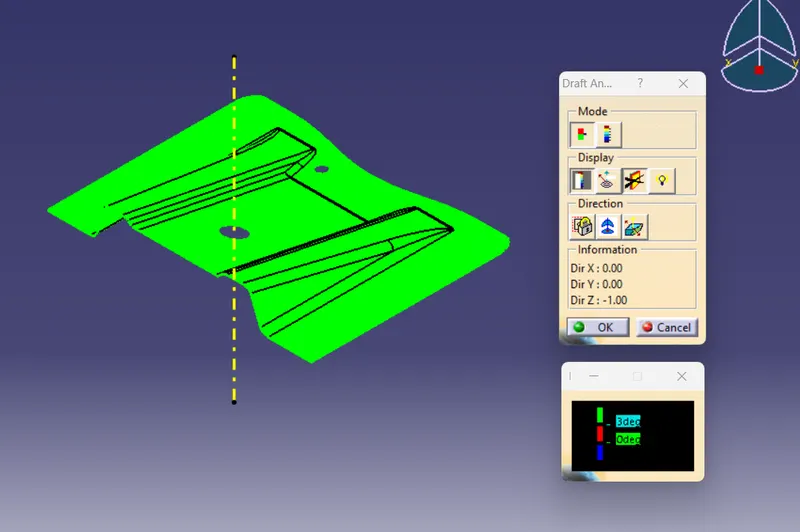

2. Draft Analysis: to check whether our tooling axis is proper or not we do the draft analysis.

1. Go to insert > analysis > feature draft analysis.
2. Align the compass with the tooling axis.
3. Then, click on the Class-A surface to see if it is within the permissible limit of the draft values.
4. The Class-A surface should turn green and then the draft value should be given as 3 degrees.

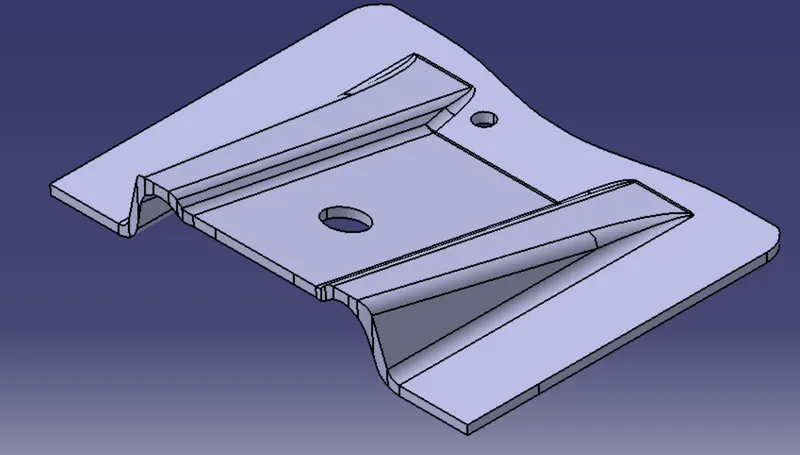

3. Class-B: We create the Class-B surface by extruding the Class-A surface by 2.5 mm

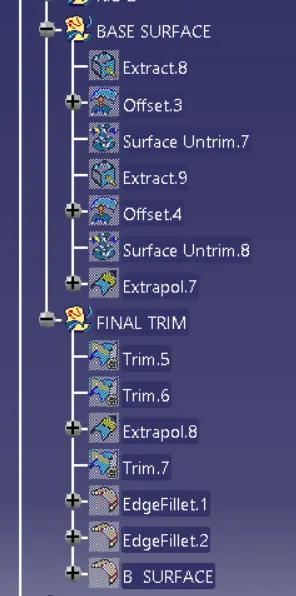

1. First, we will use the Extract, Un-trim, Extrapolate, Trim and Offset commands on the base surface, the two side ribs and the top plate of the Class-A surface separately to create the desired Class-B surface.
2. After that, we will use the Trim command to get our proper desired Class-B surface.
3. We will give proper fillets to the edges of the Class-B surface.

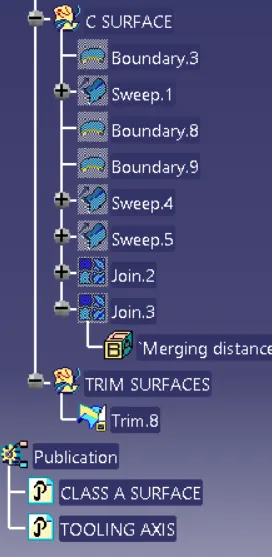

4. Class-C: we create the Class-C surface by extruding the outer edge boundary of the Class-A surface by 2.5 mm.

1. First, we extract the outer edge boundary of the Class-A surface and also the boundaries of the two circles.
2. Then, we sweep each of these boundaries using the sweep command. We select the Line option on the sweep command menu, the extracted boundaries as Guide curve 1 and the tooling axis as the draft direction.
3. After that, we join all the Class-C surfaces with the Class-A surface by using the Join command.
4. Lastly, we use the trim command to join the Class A, B and C surfaces together and obtain the proper desired surface.

close surface body

Part Body: we create the final solid body using the Closed Surface command.

1. Go to the Boundary command and click on the new surface. An error dialog box should pop-up.
2. Go to the Part Design workbench.
3. Select the Closed Boundary option and then click on the generated surface.
4. A closed solid body is obtained.

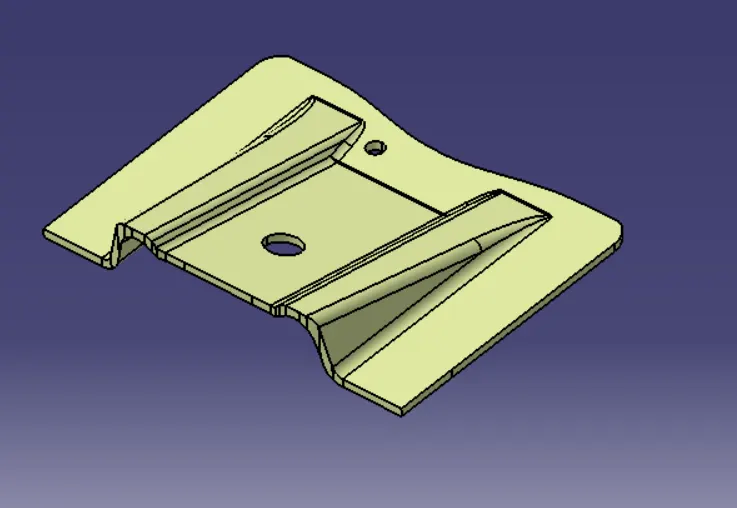

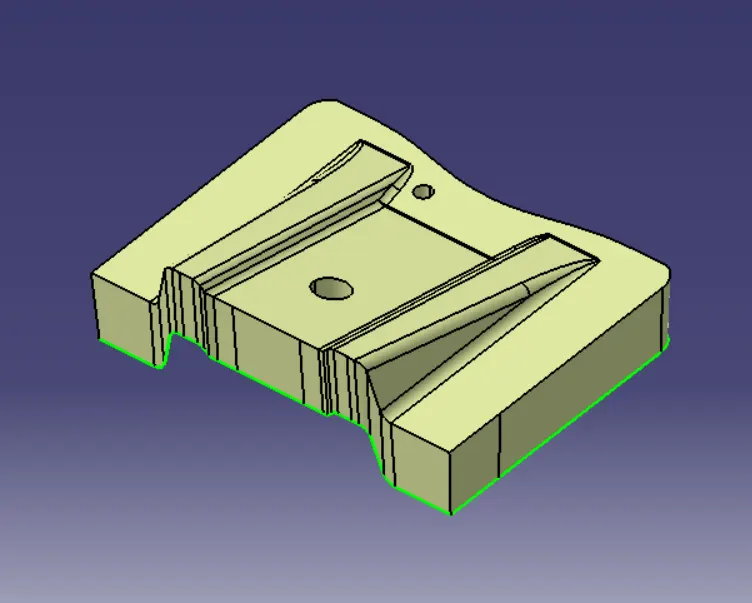

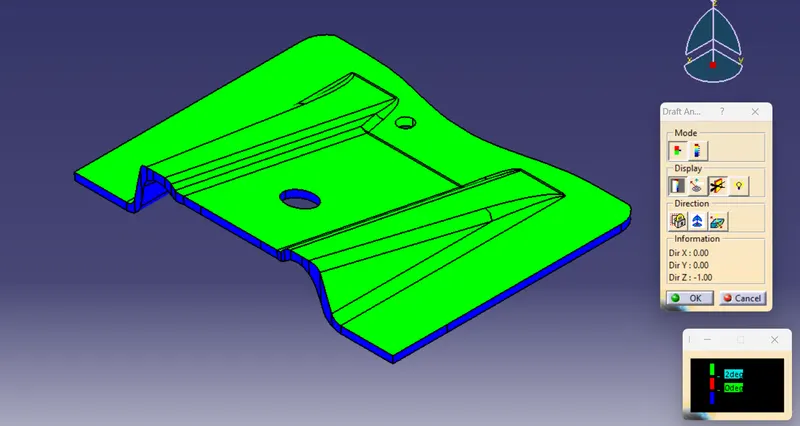

Draft Analysis of the final solid body:

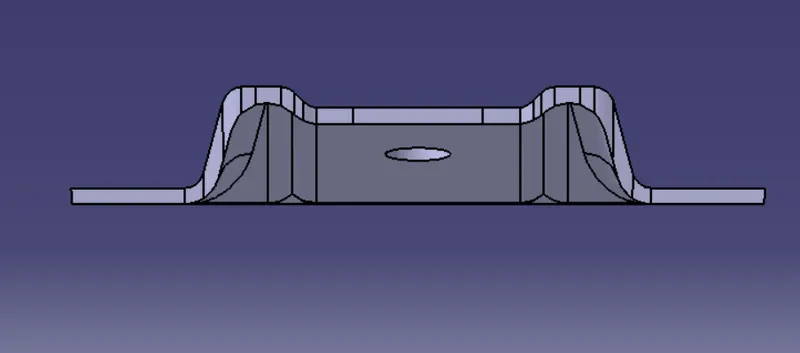

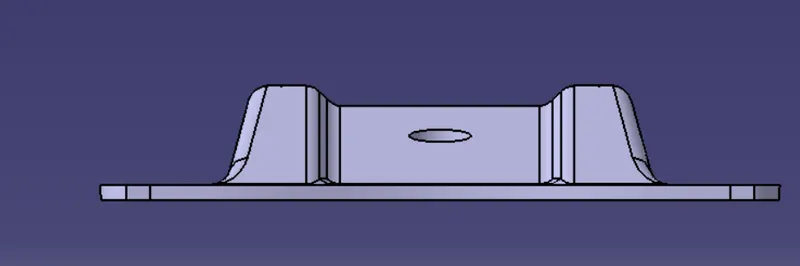

SOLID BODY VIEW

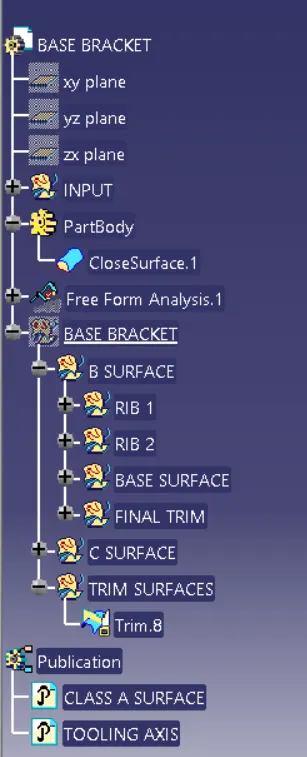

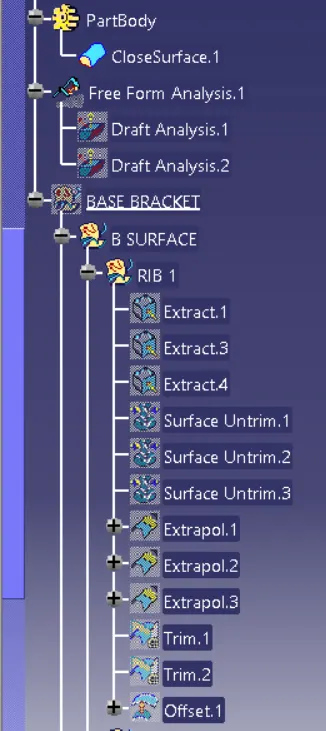

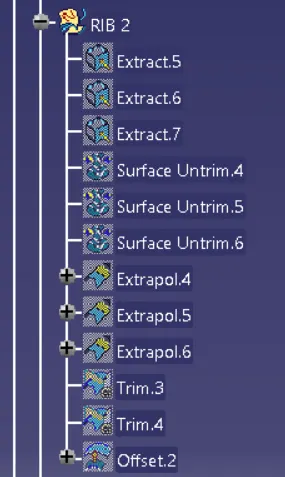

FEATURE TREE
