Week 8 - Challenge 1 - Base Bracket Design
Tooling Axis
The tooling axis is created by selecting the line command and bisecting onto the tooling line in Y direction,point.The tooling along z axis is acheived.
Tooling clearing x direction
The x direction based cross section is not consideredfor creating tooling axis as the cross section lies parallel to the tooling direction.Therefore x direction is not used bisecting method.
Tooling clearing Y direction
A cross section intersection along y direction is taken the edges which are parallel that may intersect with tooling axis is taken into consideration and elongated line is created for respective edges.Further using line command,selecting bisecting where the elongated line is selected and a point.

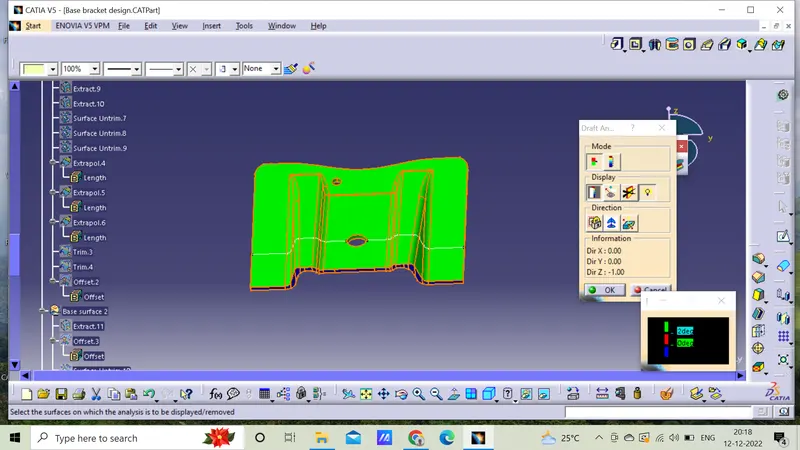

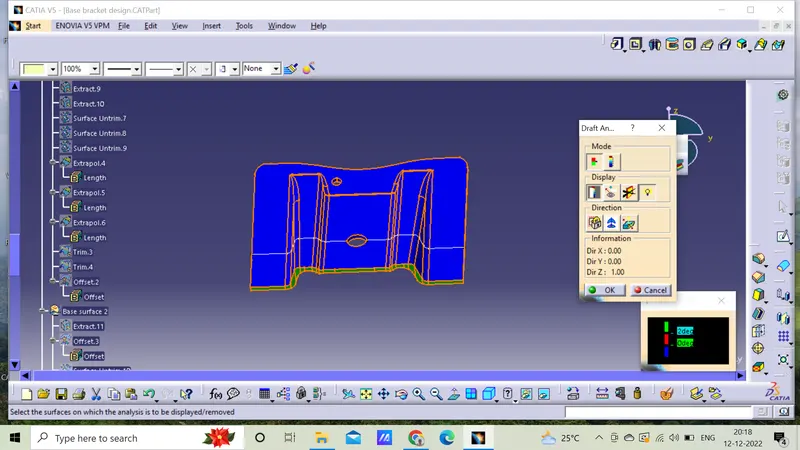

Draft analysis

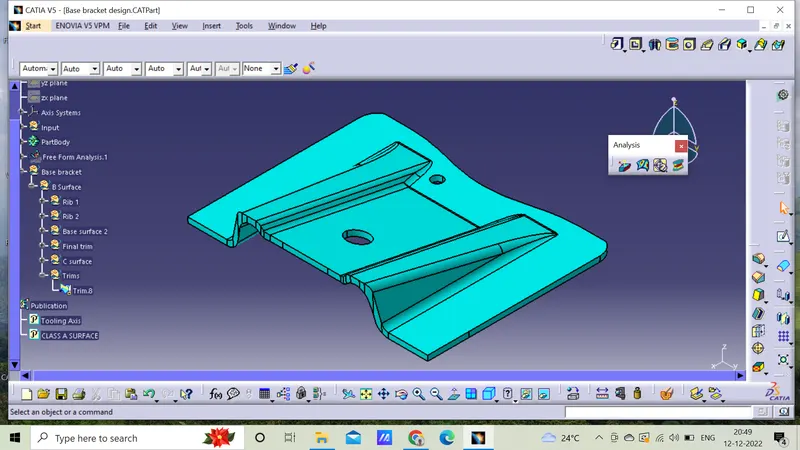

Isometric view
As from the isometric view the surface is analyzed with x,y,z axis.
X axis tooling direction analysis-It can be seen the holes cannot be cleared and requires side core hence the x axis based tooling is not considered.
Y axis tooling direction analysis-It can be seen that holes and mainly inner portion cannot be cleared hence the y axis based tooling is not considered.
Z axis tooling direction analysis-It can be seen that all portion of the partis cleared through this tooling direction,though z axis is considered for tooling.

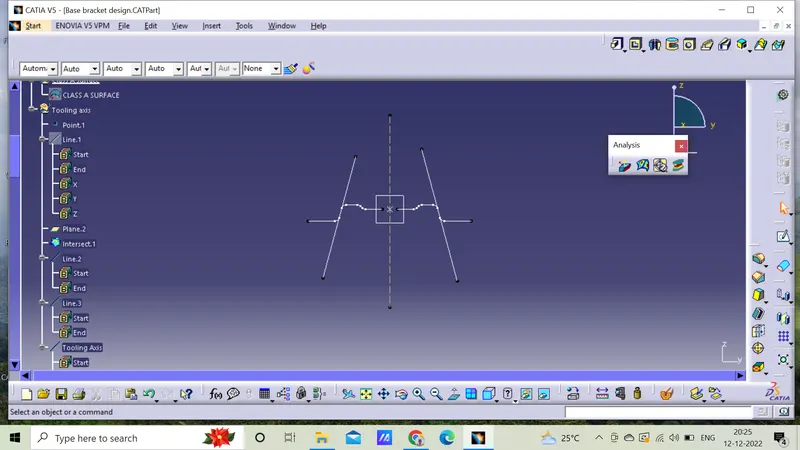

Bisecting is created for tooling axis along z axis

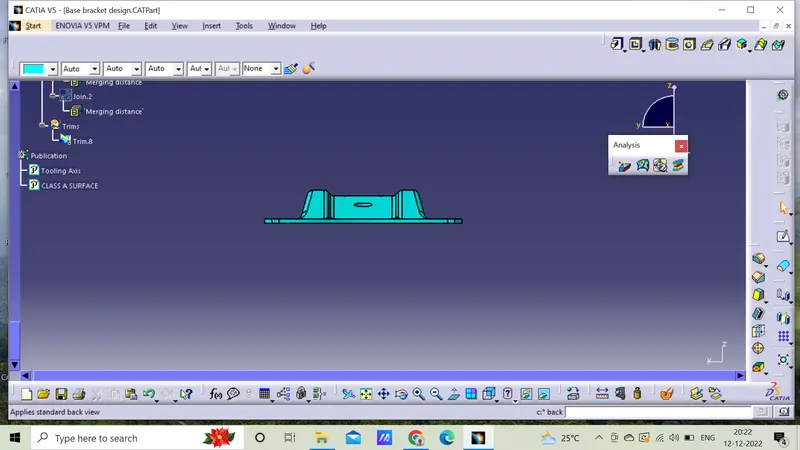

Back view

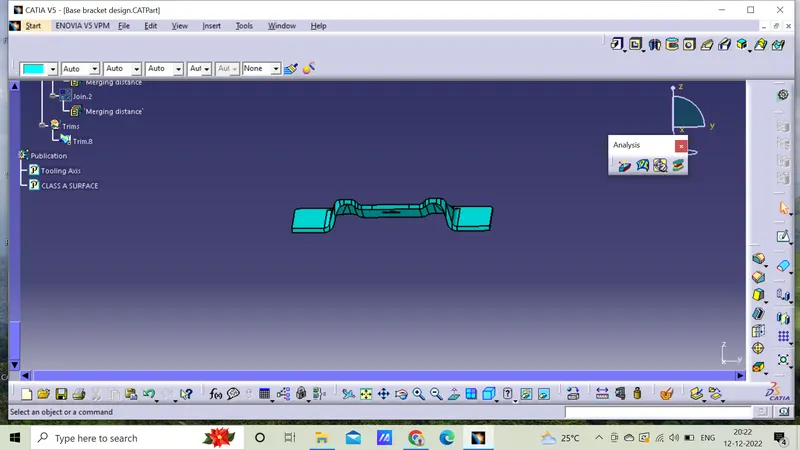

Front view

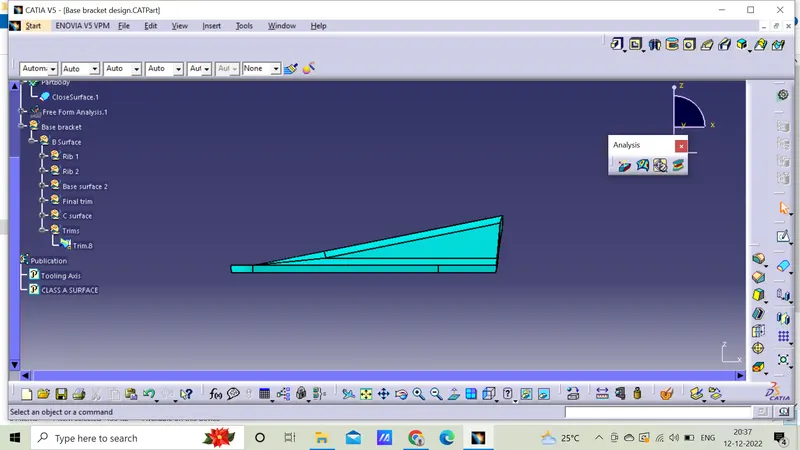

Left view

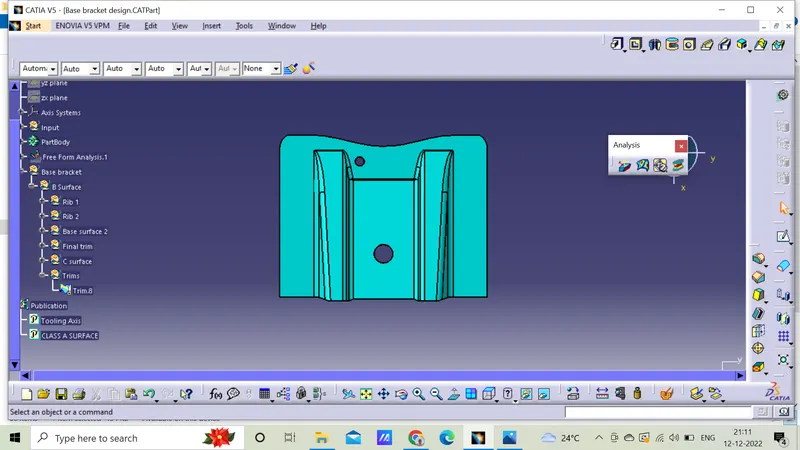

Top view
