Week 8 - Challenge 1 - Base Bracket Design

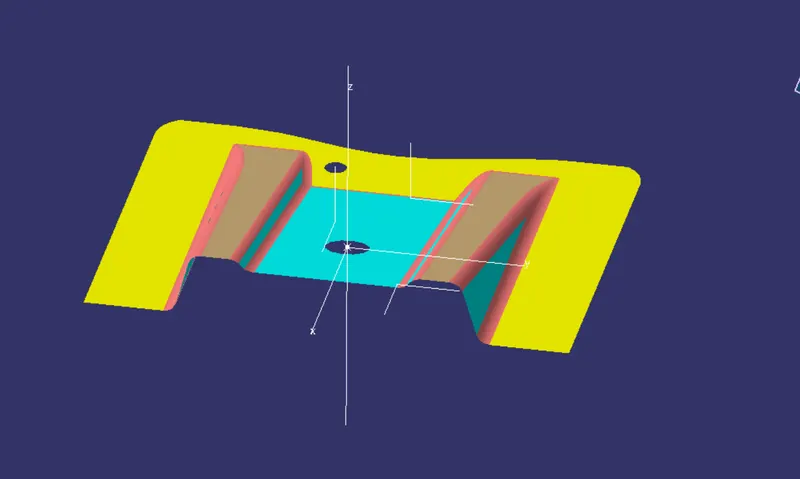

CREATION OF MAIN TOOLING AXIS : BISECTING METHOD

STEP FOLLOWED :

1) Create a point on the bigger hole / circle of the class-A surface.

2) Insert a axis system on that point.

3) Create a dummy tooling axis on that point in appropriate direction.

4) Create intersection b/w class-A SURFACE and axis plane.

5) Now create the line in both side of intersection where the intersection is inclined.

6) Find the bisecting line of both above line.

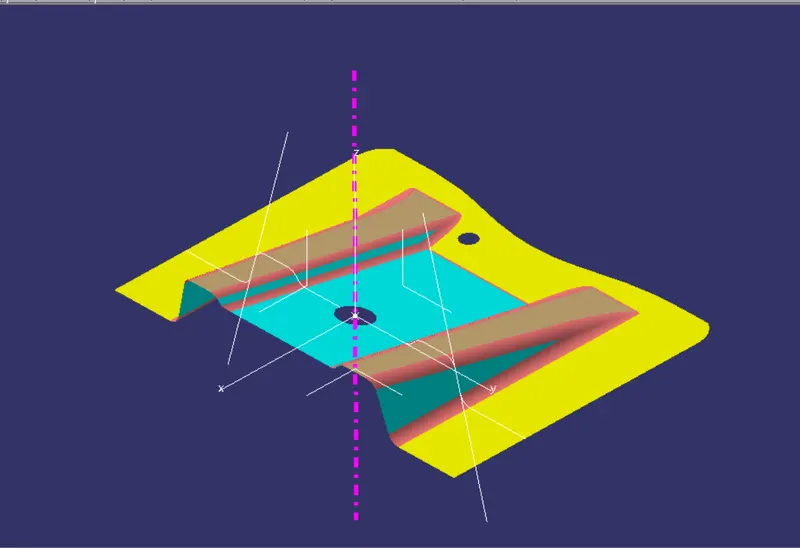

7) This bisecting line is the desired main tooling axis, now we can change the properties of main tooling axis.

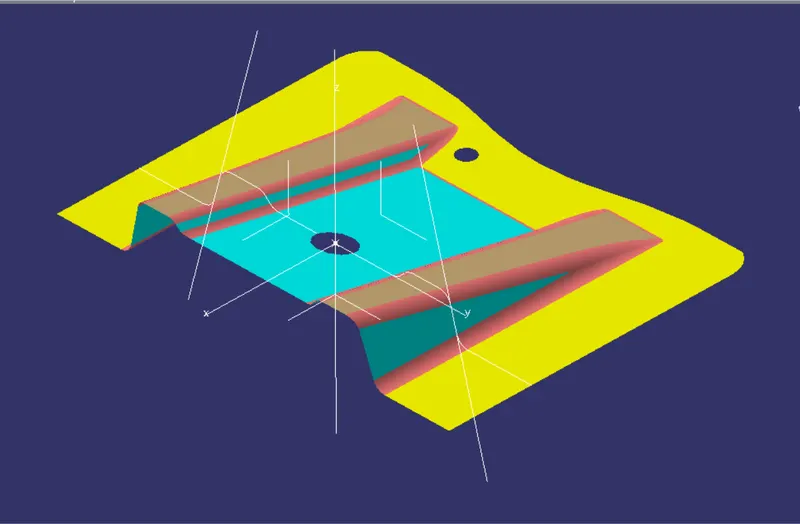

DRAFT ANALYSIS : DRAFT ANALYSIS FOR CLASS-A SURFACE

STEP FOLLOWED :

1) Create the main tooling axis

2) Change the view mode : Material mode

3) Select the draft analysis tool , set the angle to check the draft angle & click on part ( class-A surface )

4) Drag the compass on main toolig axis , activate the compass and lock the compass position

5) Now we can perform the draft analysis in various mode.

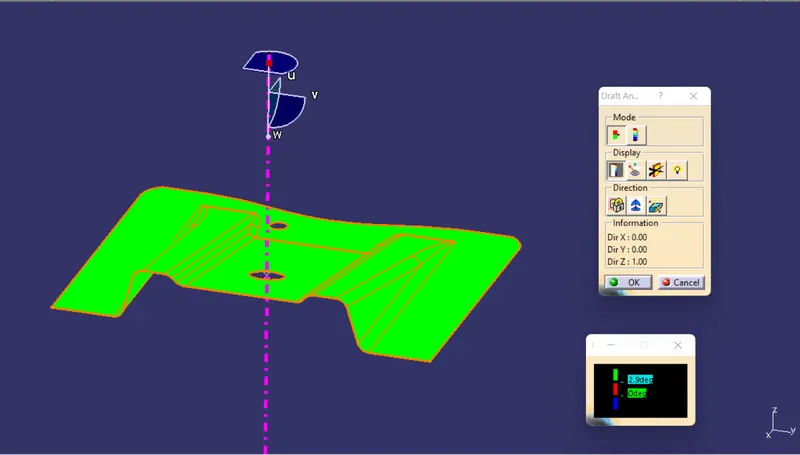

Quick analysis mode

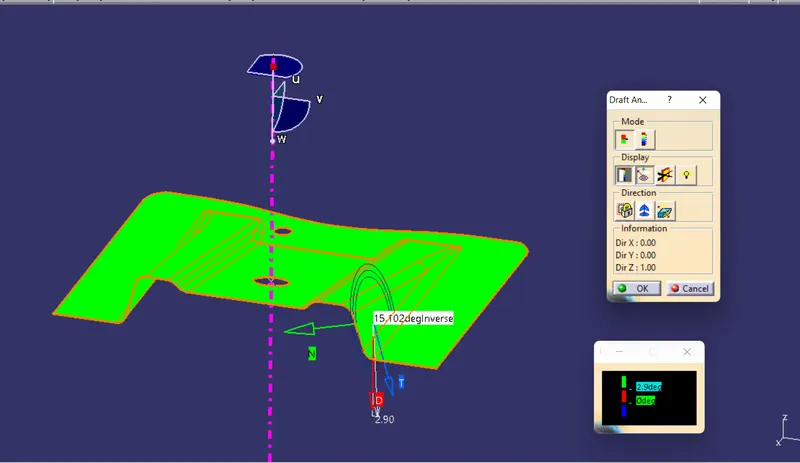

Analysis under running point

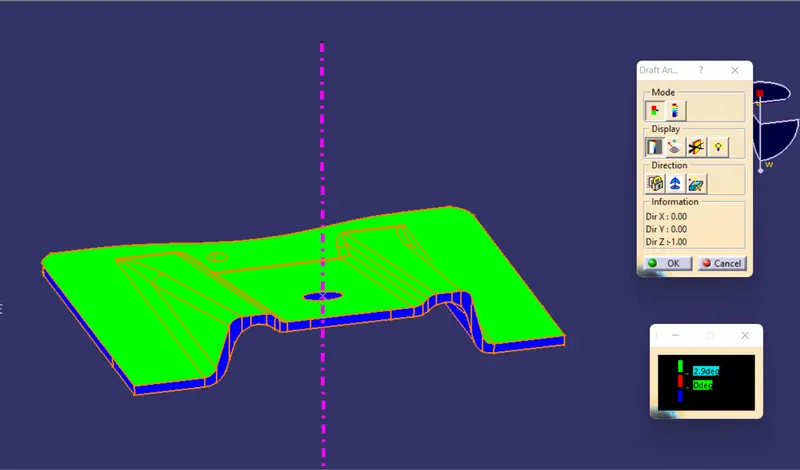

DRAFT ANALYSIS FOR COMPLETE PART BODY

VARIOUS ORIENTATION OF PART :

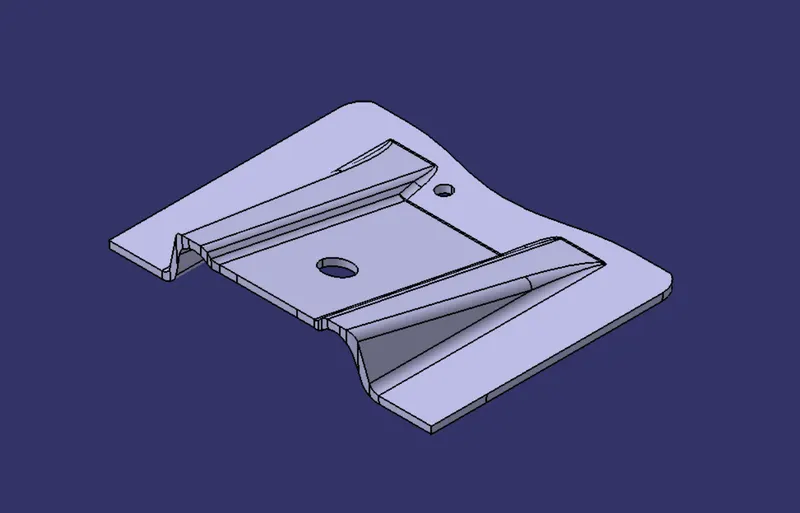

ISOMETRIC VIEW :

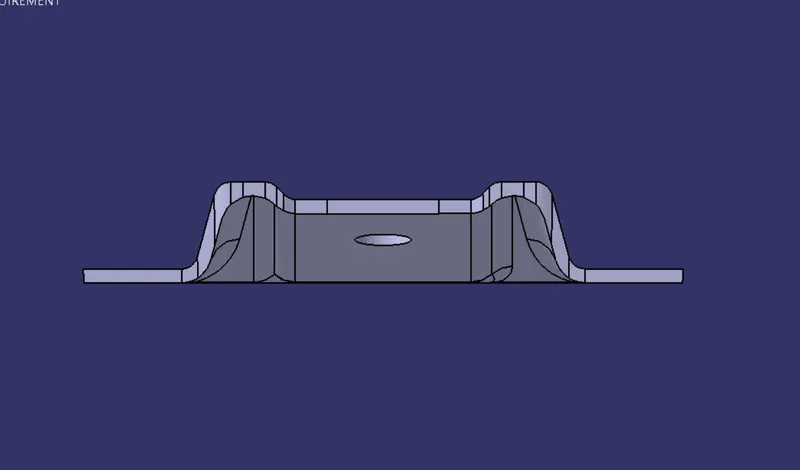

FRONT VIEW :

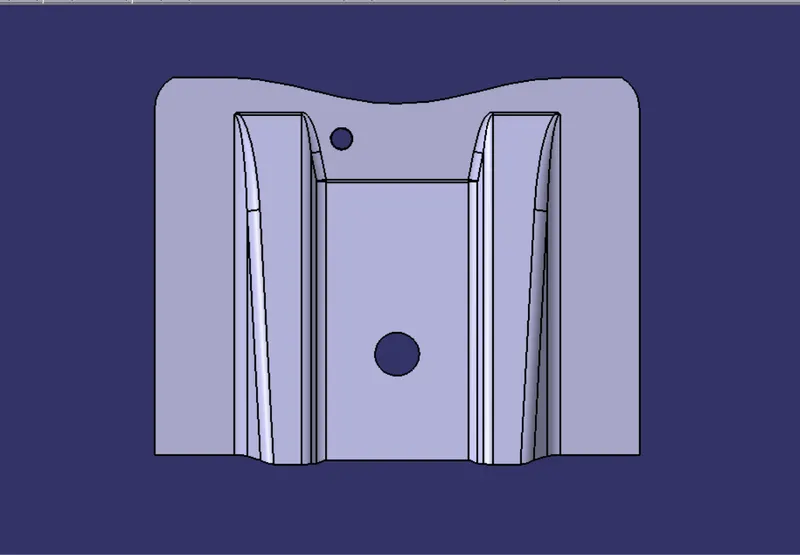

TOP VIEW :

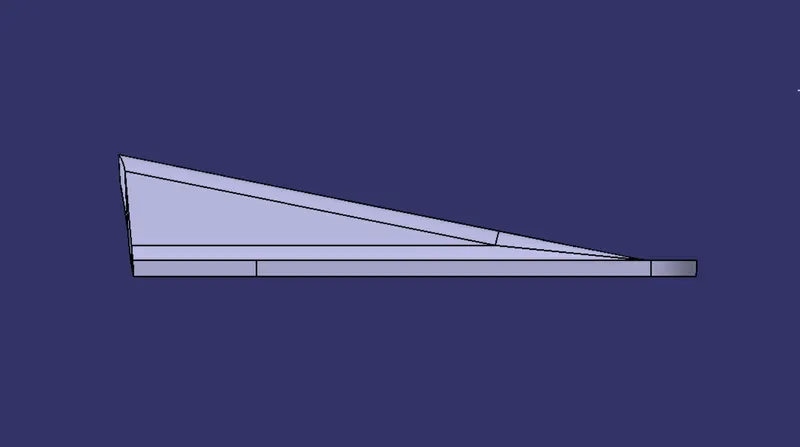

SIDE VIEW :
