Week 8 - Challenge 6 - Core & Cavity Design

REPORT :

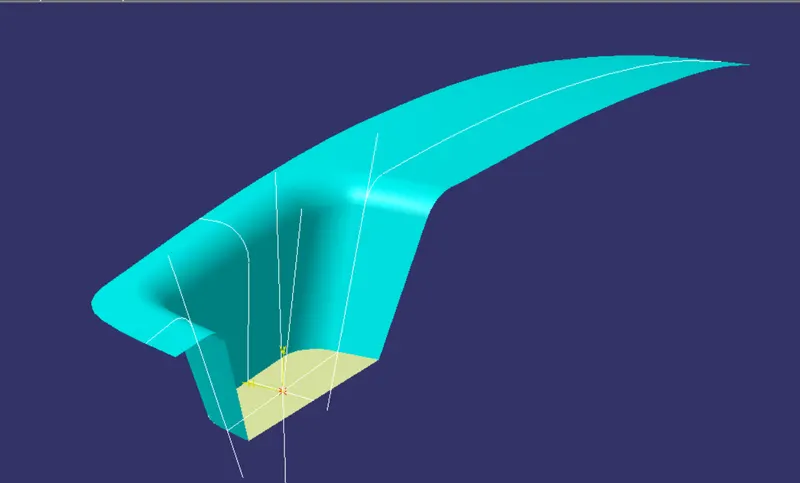

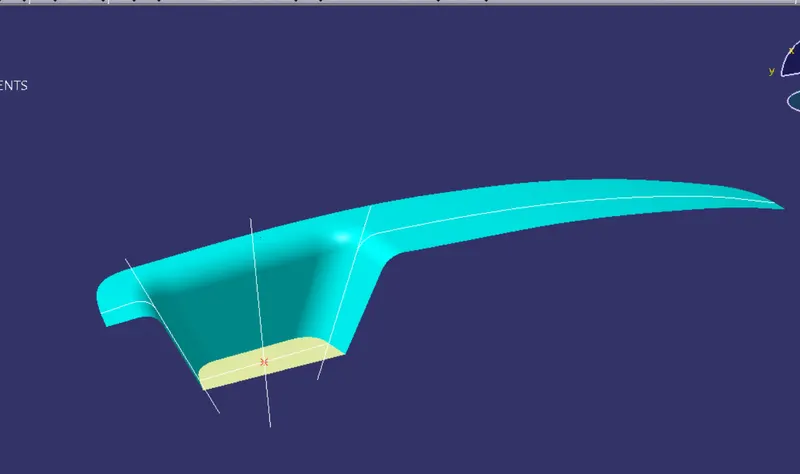

TOOLING AXIS CREATION : BISECTING METHOD

STEP FOLLOWED :

1) Create a point on base surface

2) Insert an axis system at that point

3) Find the intersection of Z-X plane at the A-Class surface.Then find the bisecting line of both line of intersection curve.

4) Find the intersection of Y-Z plane in the CLASS-A surface ,and create a line at 3-6 degree from it.(initally 3 degree)

5) Find the bisecting line of this inclined line and above found bisecting line in Z-X plane

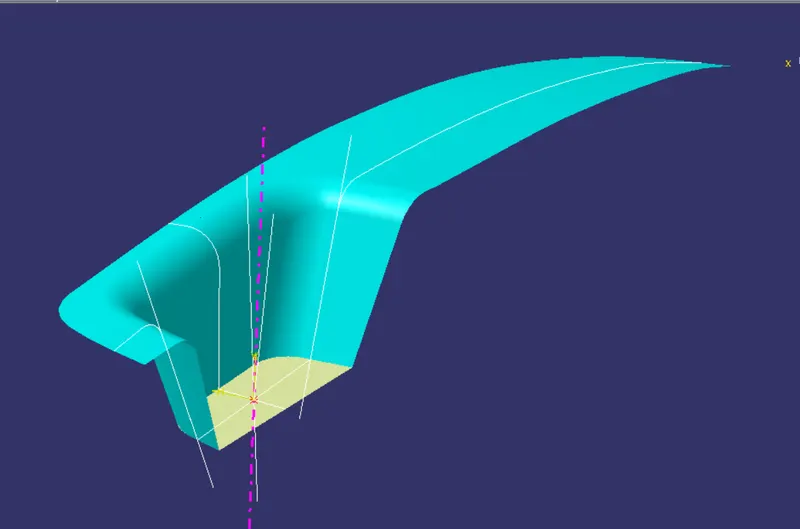

6) This final bisecting line will be the main tooling axis.

DRAFT ANALYSIS :

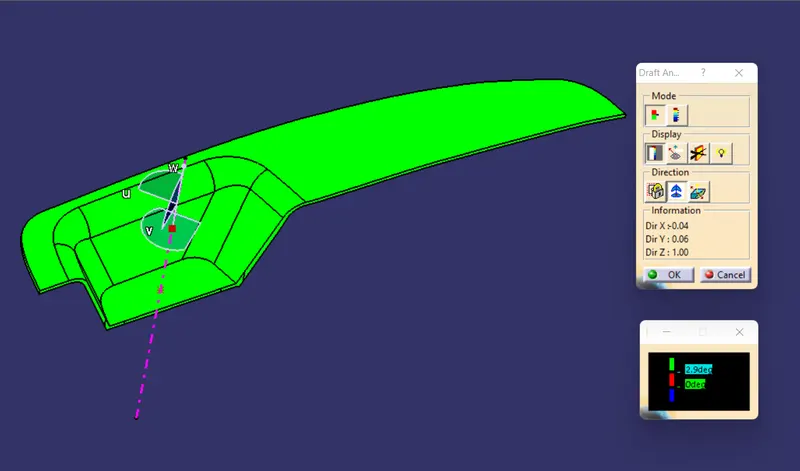

DRAFT ANALYSIS OF CLASS-A SURFACE

STEP FOLLOWED :

1) Find out the main tooling axis

2) Draft analysis tool : Insert - Analysis - Feature Draft Analysis

3) Now set the angle value in which we have check the draft

4) Drag the compass at main tooling axis & click on the surface

5) Now activate the compass and recheck its position

6) Now we can perform the draft Analysis in various mode : Quick analysis mode , full Analysis mode and analysis under running point .

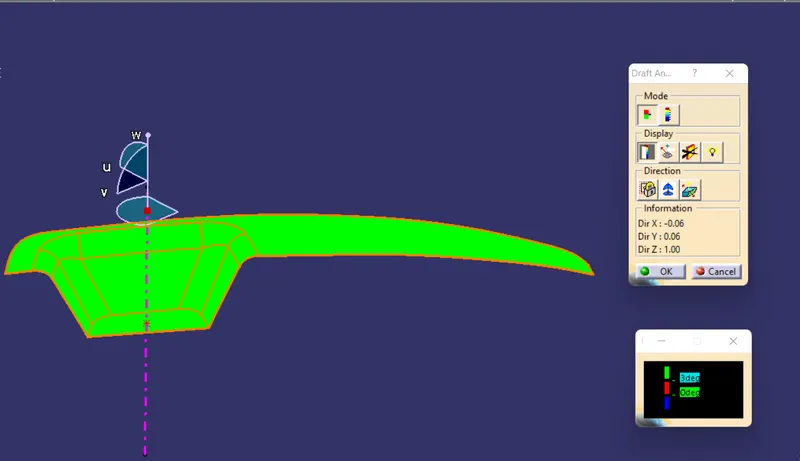

Quick Analysis Mode

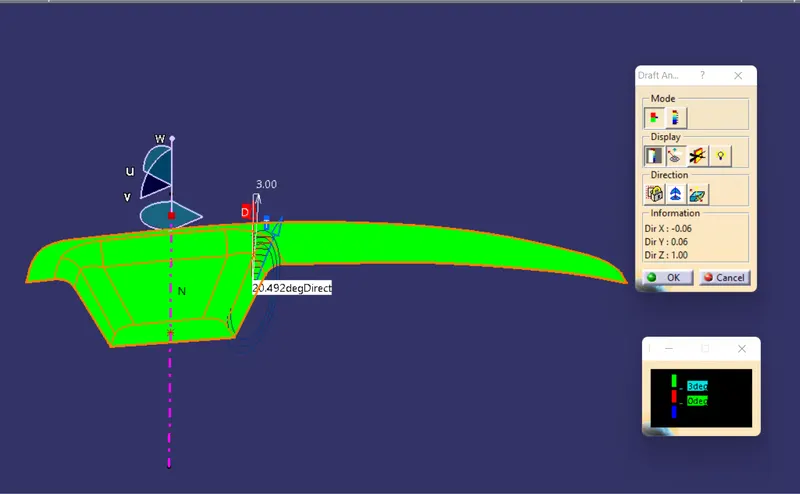

Analysis Under Running Point

DRAFT ANALYSIS OF COMPLETE PART :

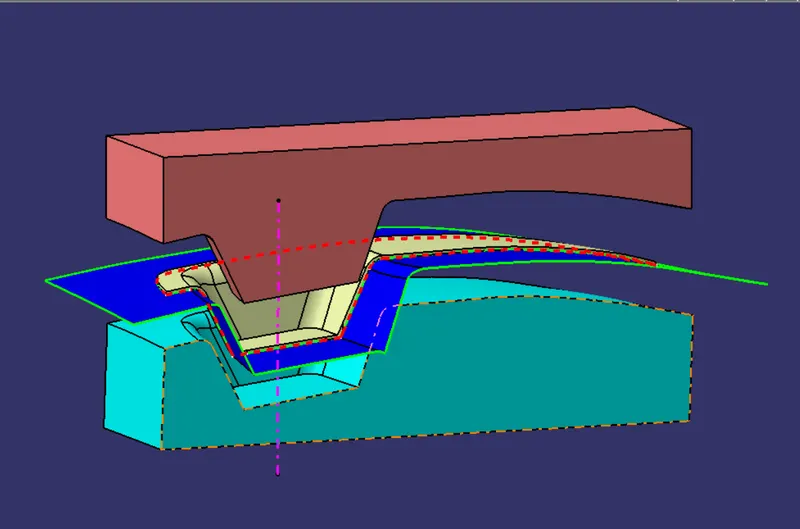

CORE & CAVITY BLOCK , PARTING SURFACE & PARTING LINE , PART & MAIN TOOLING AXIS

VARIOUS ORIENTATION OF PART :

ISOMETRIC VIEW :

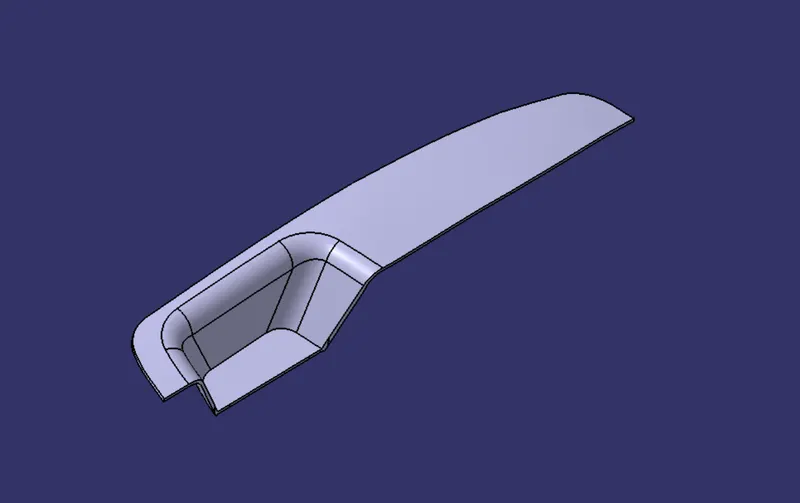

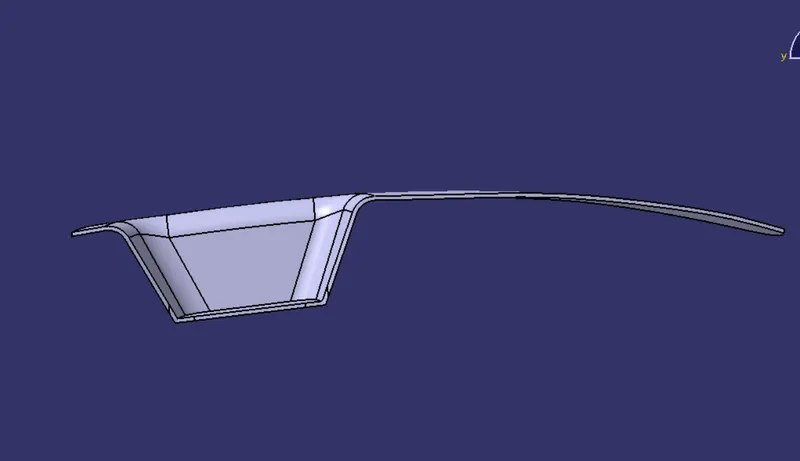

FRONT VIEW :

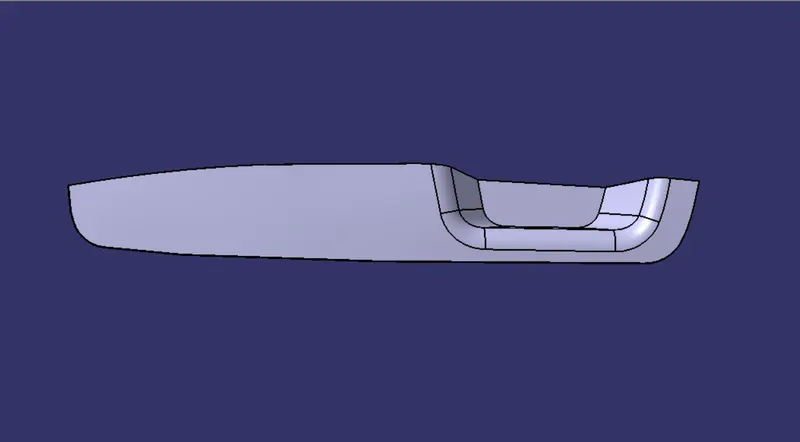

TOP VIEW :

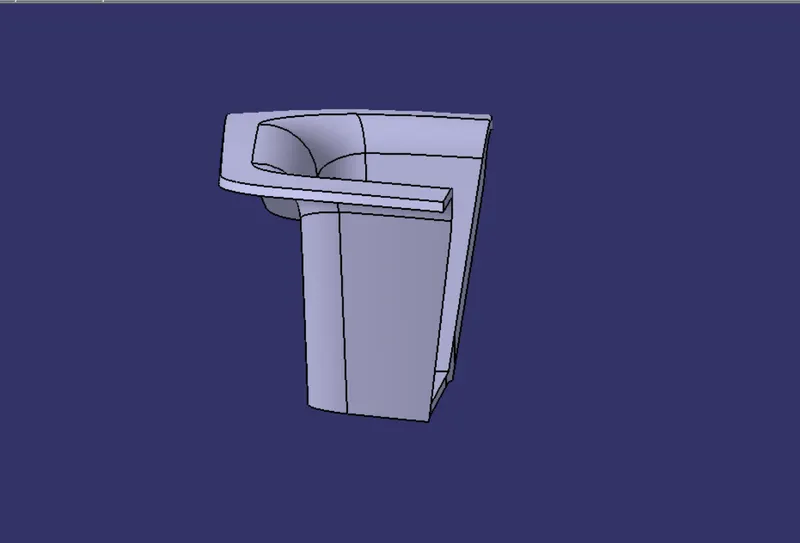

SIDE VIEW :
