Week 8 - Challenge 1 - Base Bracket Design
#21 WEEK 8-SKILL LYNC
COURSE: Automotive Plastic Design using CATIA V5
NAME: SRI RAGUL P CHALLENGE: BASE BRAKET
|

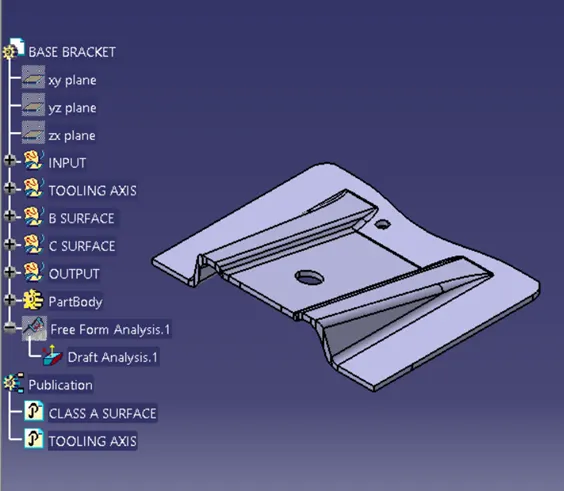

BASE BRAKET
|
|

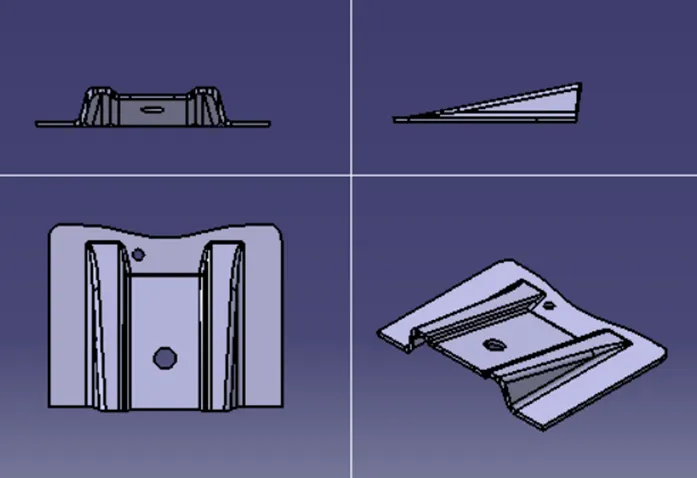

VIEW
|
|

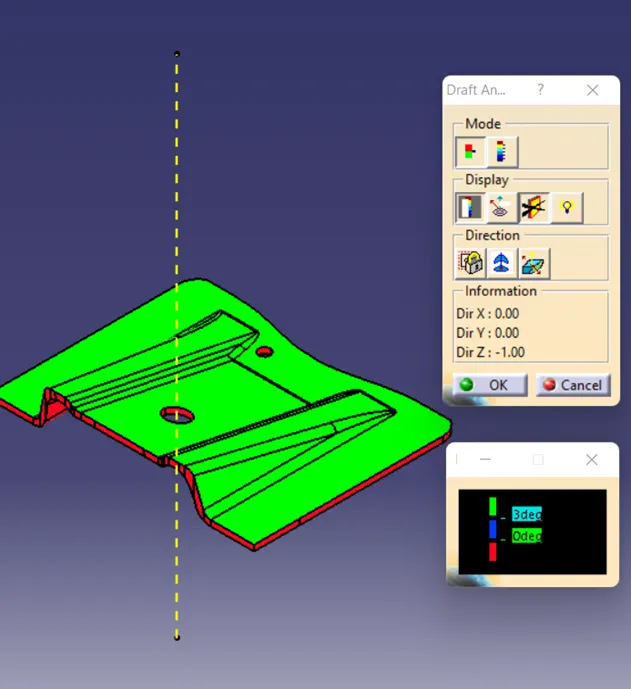

DRAFT ANALYSIS
· The Draft Analysis allows the user to easily analysis a part for proper draft angle. · A Draft Angle describes the amount of taper for moulded or cast parts perpendicular to the parting line. · Draft angle is used to remove core and cavity easy in injection moulding and minimum draft angle is 3deg. |
