WEEK 7 CHALLENGE - SATURN PCB TOOL

PROJECT : Traffic Jam Assistant Feature Problem Statement: To develop one specific requirement of Traffic Jam Assistant algorithm which would predominantly feature in the IPC algorithm.Please note that the whole Traffic Jam Assistant is a very huge algorithm & only one small part of the logic is implemented here.…

PROJECT: 1 : OBJECTIVE:  To Develop Adaptive Cruise Control feature as per the Requirement Document using MATLAB Simulink. To Follow all the MBD related processes: Requirement Tagging & Traceability, SLDD creation, Configuration Parameter changes, Model Advisor check & Code Generation. Use Embedded Coder…

MINI PROJECT: 1 : OBJECTIVE :         Development of MATLAB Simulink model as per requirement. Tag the requirements to the simulink model; tagging requirement 1 & requirement 2 to their corresponding subsystems is fine REQUIREMENT: 1 :  Steering wheel input as yaw rate (Signal name: SteeringWheel_YawDegreeInput)…

AIM :       To show the implementation of retraction and extension function of Airplane’s landing gear using Finite State Machine (FSM) GOALS: Controlling the direction of Valve. Controlling the retraction and extension of Airplane’s landing gear. indicating stages by different light signals.…

Overview of the Project:  In this project,  interfaces for mathematical Set Theory are implemented using C programming language. User can give the input like two list of data and this program will give  the output as the union and intersection of these two lists Goals : Implementation of interface for mathematical…

  Project 2: To design a double sided USB type C to RJ45 ethernet interface PCB utilising bus-powered following the length matching of the high speed signals and EMC/EMI complaint. Challenge: Creating a workspace for LAN7800 in altium Defining a PCB board size using the DXF data provided PCB clearance to be set as…

Question Use the provided PCB to create a panel that can contain the maximum number of circuits by following the panelization rule. Using the provided gerber data, overlap the two gerber data sets and identify the issues on each layer. Click here for the attachment   Your Answers AIM: To use the provided PCB to create…

Question On the attached example design add 2mm keepout region on the board outline and select  traces and copper pour option Add ground copper pour on the top and  bottom layer Add via shielding on the board end with distance  between the via to be 1mm Run DRC and clear all errors   Your Answers AIM:…

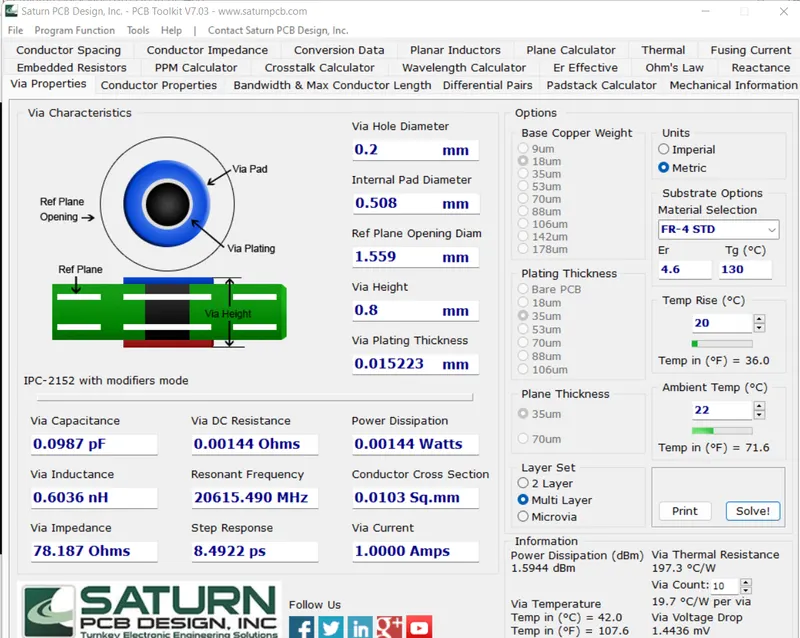

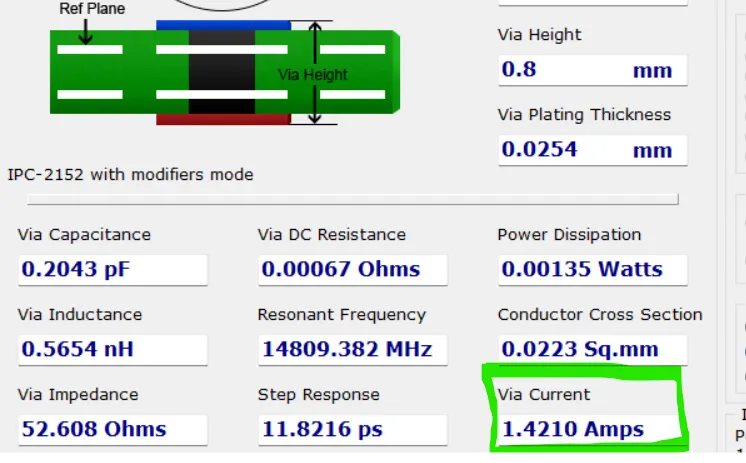

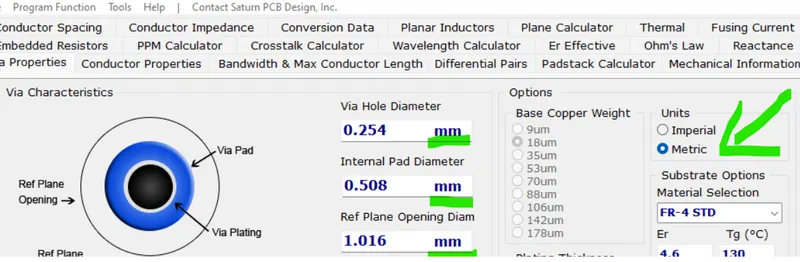

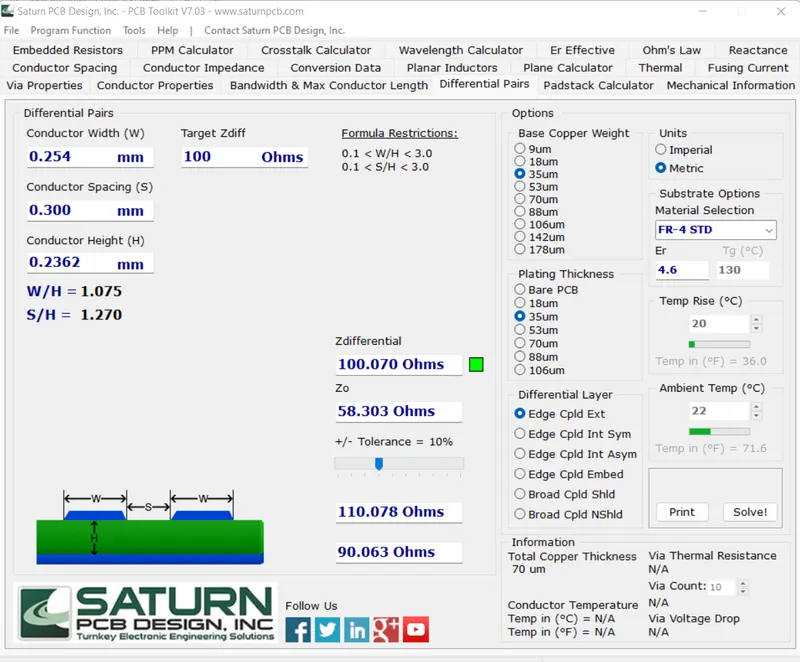

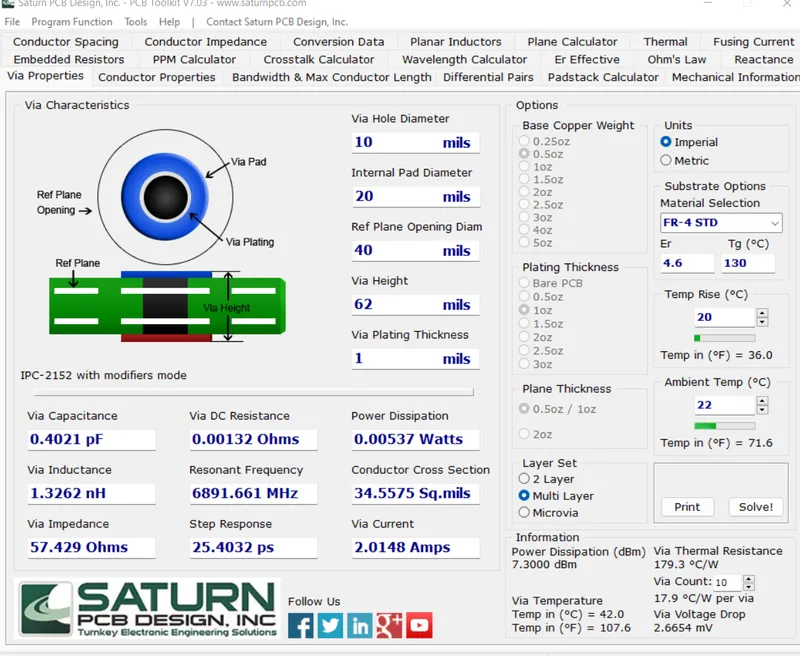

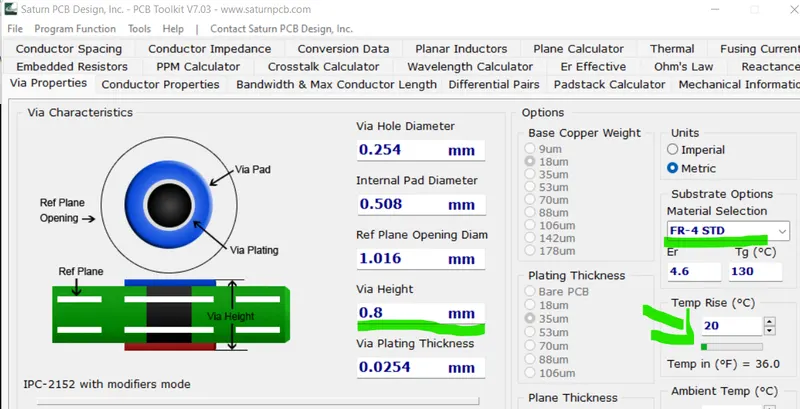

Question Using the following values to get 1 amp of via current 8mm via height, 20 degree temperature rise FR-4 material Tune rest of the values such as hole and PAD diameter, plating thickness etc. Calculate differential pair width and spacing for a differential of 100ohm where Target diff is 100 ohm and 10% tolerance…

Question Using the provided PCB Generate a 3D file. Generate BOM and X Y Data. Generate Draftsman to show PCB assembly and manufacturing information. Generate output job as explained in the course.  Click here for the attachment   Your Answers AIM: To Generate a 3D file. To Generate BOM and X Y Data. To Generate…

  Project 1:               To design a PCB using Altium ECAD software for a low dropout voltage regulator (LDO) for 5V input, stepping down to 3.3V Challenge: Creating a workspace for MIC33030_3V3 Defining a PCB board size of 40mm x 40mm for a 2 layer PCB PCB clearance to be set…
