Week 6 Challenge

3)

AIM:

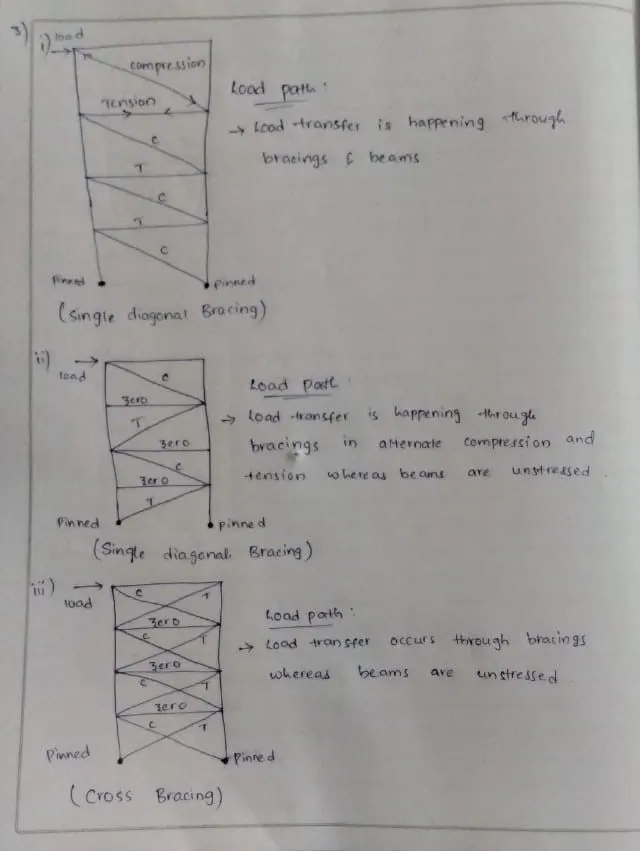

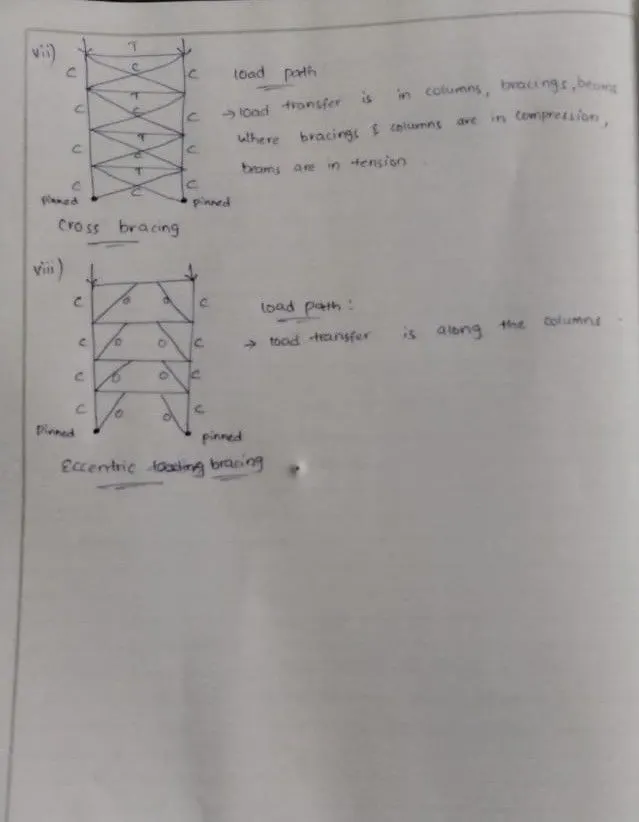

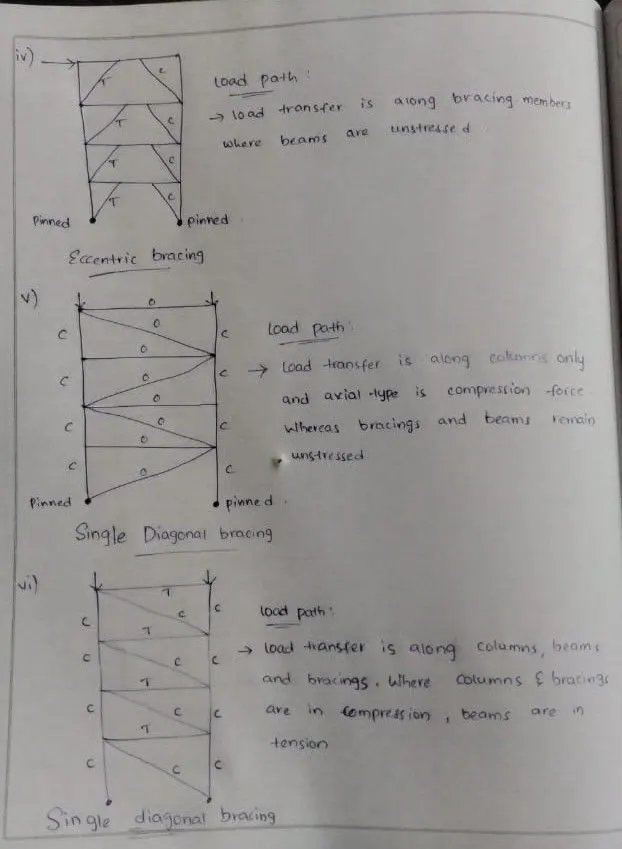

To draw the load path and also to identify the Axial force type in different type of bracing system below to resist horizontal shear & gravity load

PROCEDURE:

RESULT:

Types of bracing system, types of axial loading in members and loading path is shown in the above figures for each of the bracing systems.
