Week 6 Challenge

1.

3.

Axial Force type -Lateral force or Horizontal force with pinned support

Brracing type - Diagonal bracing in that diagonal brace back

Axial Force type -Lateral force or Horizontal force with pinned support

Brracing type - K type bracing

Axial Force type -Lateral force or Horizontal force with pinned support

Brracing type - X type bracing

Axial Force type - Lateral force or Horizontal force with pinned support

Brracing type - Eccentric type bracing

Axial Force type -Gravity force or Vertical force with pinned support

Brracing type - K type bracing

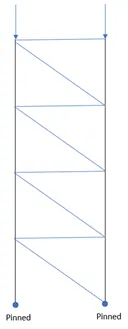

Axial Force type -Gravity force or Vertical force with pinned support

Brracing type - Diagonal bracing in that diagonal brace back

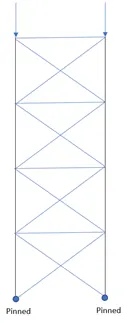

Axial Force type -Gravity force or Vertical force with pinned support

Brracing type - X type bracing

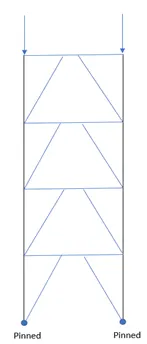

Axial Force type - Gravity force or Vertical force with pinned support

Brracing type - Eccentric type bracing
